PrimoTherm® K 180-1 DN25 | 77811

Heating pump assembly

in-stock items
Documents

  • pre-assembled, tightness-tested and heat-insulated assembly
  • modular system with flow at left or right
  • easy, fast mounting
  • available with high energy efficiency pump class A

Heating pump assembly for use in non-mixed heating circuits, specially for storage tank charging. It connects the heating boiler and the pipe system.

Comact, pre-assembled and tightness-tested heating pump assembly with all required functional components, form-fit heat insulation (complies with German Energy Saving Regulation) and wall mounting unit. Adhesive labels with pictograms allow for easy designation of the heating circuits.

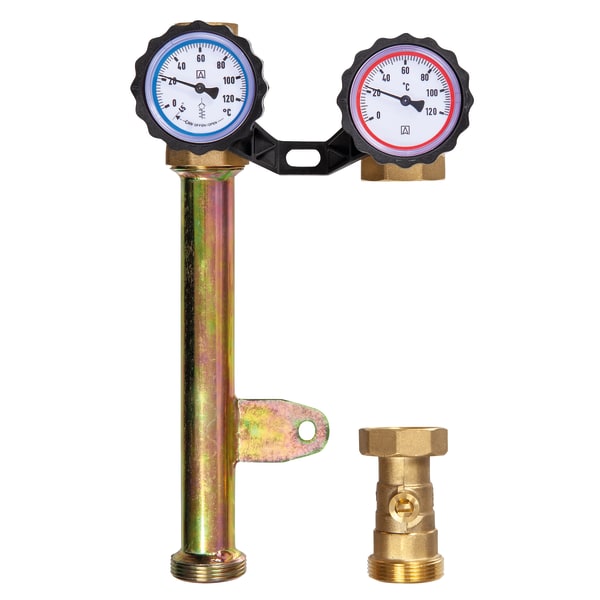

The flow line consists of:
Combination valve with thermometer in the hand wheel (red mark, range 0/120 °C)
Ball valve below the pump
System connection G1½ male (boiler), G1 female (heating circuit) Suitable for pumps DN 25 with G1½ x 180 mm.
The return line consists of:
Combination valve with gravity brake, thermometer in the handle (blue mark, range 0/120 °C)
Pipe for length compensation with screw connection
System connection G1½ male (boiler), G1 female (heating circuit)

Axis distance
  125 mm
system connections
Boiler:
G1½ male
Heating circuit:
G1 female
Operating temperature range
Medium:
max. 95 °C
Medium:
short-term 120 °C
System pressure
max. 10 bar
max.
Nominal size
DN 25
Flow coefficient Kvs
7.6 m³/h
Heat insulation
Polypropylene EPP
Dimensions
W x H x D:
248 x 400 x 155 mm
Circulation pump
Without circulation pump
Power input
Without circulation pump:
Without circulation pump:
Without circulation pump:
operating modes/settings
Without circulation pump:
Options
  • Mixer and actuator, can be retrofitted
  • andere Umwälzpumpen
