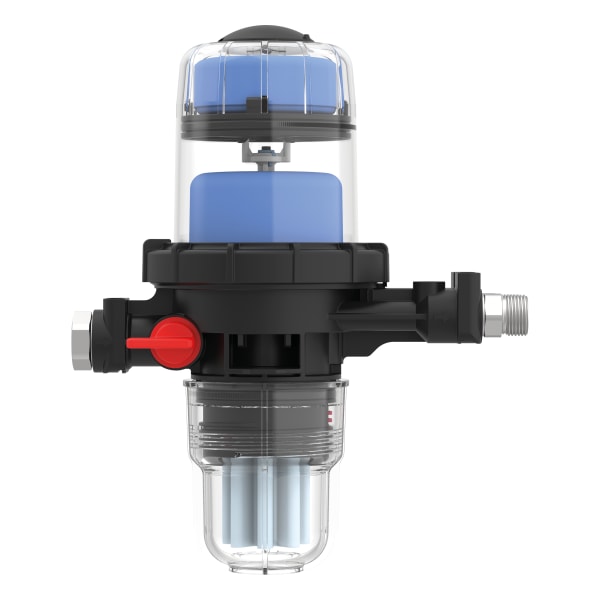

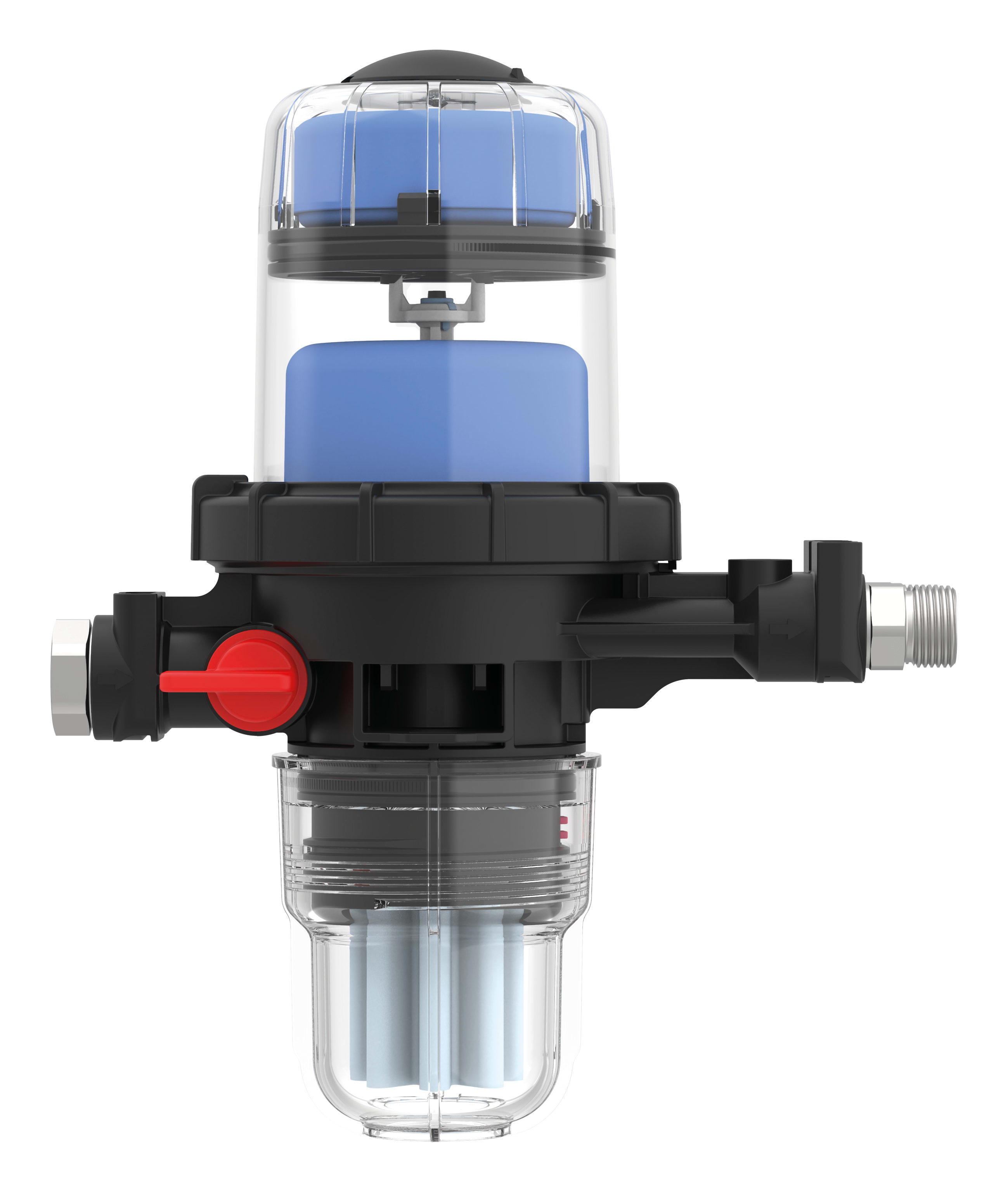

FloCo-Top-1C | 70155

automatic fuel oil de-aerator

manufactured goods
Documents

  • fuel oil de-aerator, filter and shut-off valve in a single, compact unit
  • Backflow preventer with integrated pressure relief towards the tank
  • safety system keeps oil foam from escaping
  • Drain system for controlled discharging of the oil from the vent unit
  • Proofed Barrier (odour-tight)
  • watertight up to 10 m water column - ideal for use in flood hazard areas

Automatic fuel oil de-aerator, safety version, with integrated filter and lateral dual shut-off valve, can be operated from both sides. Housing made of high-strength plastic with backflow preventer and integrated pressure relief towards the tank. Female connection thread G3/8 and male connection thread G3/8 with female cone for connection of the burner hoses. The de-aerator hood is made of transparent plastic and features two separate float chambers. The lower float chamber contains the operating float; the upper float chamber contains the safety float. The upper float chamber keeps oil foam from escaping through the vent opening. In addition, it is possible to detect malfunctions in the de-aeration system. Watertight up to 10 m water column.

connection burner end
G⅜ male with 60° cone for burner hoses
Connection tank
G⅜ female
Nozzle capacity
max. 100 l/h
Return flow
max. 120 l/h
Separating capacity air/gas
ca. 4 l/h
Mounting position
Float housing vertical to the top
Operating temperature range
Medium:
max. 60 °C
Ambient:
max. 60 °C
Operating overpressure
max. 0.7 bar
(corresponds to static oil column of approx. 8 m)
Test pressure
  6 bar
Dimensions (W x H x D)
185 x 224 x 109 mm
Material
Housing:
Plastic
De-aerator hood:
transparent plastic
Filter cup:
transparent plastic
Test
TÜV-tested (S 556 2021 S1)
approval
Conformity certificate (ÜHP) as per EN 12514
Scope of delivery
  • Fuel oil de-aerators
  • Halterung inkl. Montagematerial
  • Cover for connection of the vent hose

Accessories and spare parts Equipment for storage and distribution of liquid fuels
Abb.
Bezeichnung

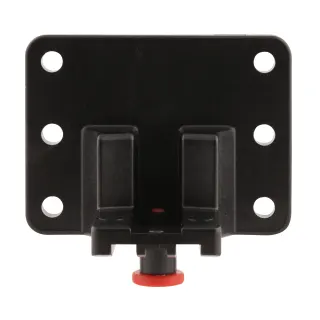

Halter für Heizölentlüfter
Halter für Heizölentlüfter | 70127

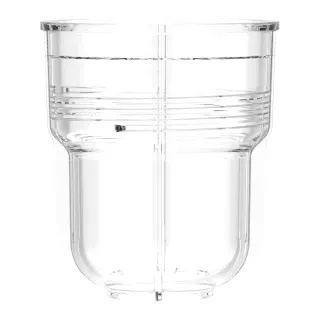

Filtertasse 500-K, kurz
Filtertasse 500-K, kurz | 20277
