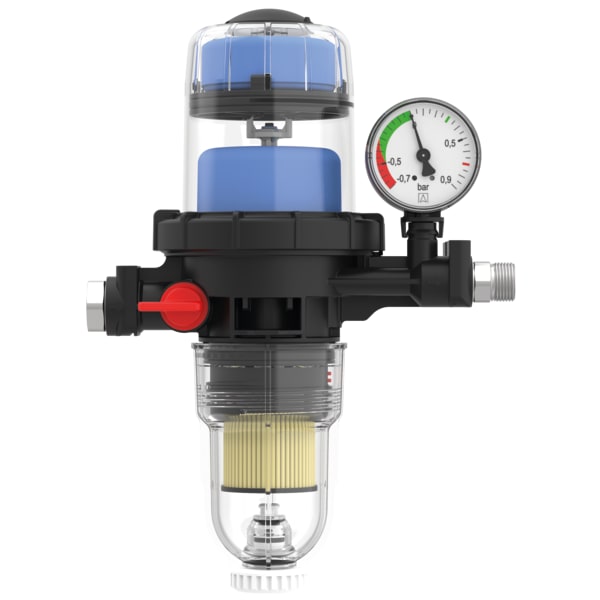

FloCo-Top-2CM | 70159

Automatic fuel oil de-aerator, safety version, with integrated filter, lateral dual shut-off valve (can be operated from both sides) and vacuum gauge. Housing made of high-strength plastic with backflow preventer and integrated pressure relief towards the tank. Compact de-aerator hood made of transparent plastic with dual float safety system to keep oil foam from escaping via the de-aerator opening. The vent hose is connected at the side in an unobtrusive way. Accessories such as the angular connection pieces provide even more flexibility, e.g. a directly connection to the tank or the burner from above. For venting, the oil is guided via the float chamber and can then be added directly to the flow. In service mode, the vacuum gauge indicates the pump vacuum. The shut-off valve can be closed to check the suction capacity of the burner pump. Increased vacuum provides information on the degree of pollution of the filter. The drain system and the drain valve ensure that replacing the filter and burner hoses is easy and clean: Connect the hose, open the drain valve and drain the oil in a controlled way. Watertight up to 10 m water column.
