Raumthermostat RT 05 | 86019

Raumthermostat für Regelklemmleiste WB 01/WB 10 D

in-stock items

Documents

compact, modern design
easy mounting on standard in-wall switch boxes
either as 230 V or as battery version
large display with additional information
Timer programs can be stored
suitable for heating and cooling

Determination of the actual ambient temperature and adjustment of the reference value for the room temperature. Can also be used for cooling (manual switching).

The room thermostat RT 05 is a part of the complete system FloorControl for single-room temperature control. Each room thermostat measures the actual ambient temperature and switches the output to obtain the required reference temperature. The reference value for the room temperature is adjusted by means of the keys. The actual temperature in rooms with an underfloor heating system is compared to the reference temperature on an ongoing basis. In addition to the reference temperature, you can store timer programs (e.g. Day/Night). The display shows values such as temperature, time or battery status. Both versions are suitable for mounting to junction boxes or in-wall switch boxes.
Versions:
RT 05 D-BAT: Version with battery

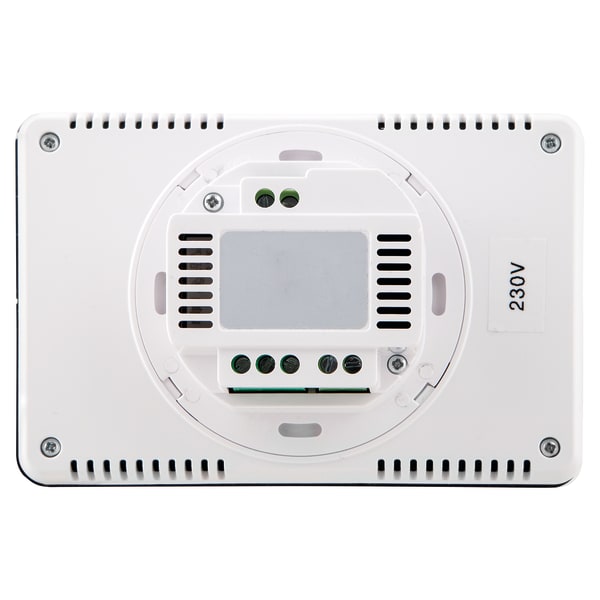

RT 05 D-230: 230 V version

Programs

Day and night mode
Wochenprogramm: Gleiche Einstellung für alle Tage
Day program: Different setting for each day

Operating temperature range

Ambient:: 5/50 °C

Storage:: 5/50 °C

Temperature adjustment range

: 5/35 °C

Accuracy:: ± 0.5 K

Supply voltage

: RT 05 D-230: AC 230 V

: RT 05 D-230:

: RT 05 D-230: 1.175 VA

Contact rating

NC:: max. AC 250 V, 1 A

NO:: max. AC 250 V, 1 A

Housing

: Plastic (PC)

Colour:: white (RAL 9003)

Degree of protection:: IP 20 (EN 60529)

Weight

: RT 05 D-230: 189 g

Compatibility

: RT 05 D-230: WB 01 D-8-230

FloorControl
