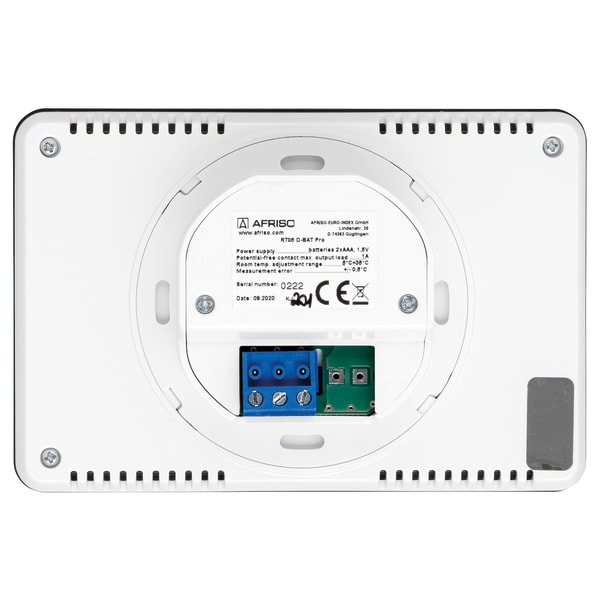

Raumthermostat RT 05 | 86020

Raumthermostat für Regelklemmleiste WB 01/WB 10 D

in-stock items
Documents

  • compact, modern design
  • easy mounting on standard in-wall switch boxes
  • either as 230 V or as battery version
  • large display with additional information
  • Timer programs can be stored
  • suitable for heating and cooling

Determination of the actual ambient temperature and adjustment of the reference value for the room temperature. Can also be used for cooling (manual switching).

The room thermostat RT 05 is a part of the complete system FloorControl for single-room temperature control. Each room thermostat measures the actual ambient temperature and switches the output to obtain the required reference temperature. The reference value for the room temperature is adjusted by means of the keys. The actual temperature in rooms with an underfloor heating system is compared to the reference temperature on an ongoing basis. In addition to the reference temperature, you can store timer programs (e.g. Day/Night). The display shows values such as temperature, time or battery status. Both versions are suitable for mounting to junction boxes or in-wall switch boxes.
Versions:
RT 05 D-BAT: Version with battery
RT 05 D-230: 230 V version

Programs
  • Day and night mode
  • Wochenprogramm: Gleiche Einstellung für alle Tage
  • Day program: Different setting for each day
Operating temperature range
Ambient:
5/50 °C
Storage:
5/50 °C
Temperature adjustment range
5/35 °C
Accuracy:
± 0.5 K
Supply voltage
RT 05 D-BAT:
2 x 1.5 V AAA batteries
Nominal power
RT 05 D-BAT:
NC:
max. AC 250 V, 1 A
NO:
max. AC 250 V, 1 A
Housing
Plastic (PC)
Colour:
white (RAL 9003)
Degree of protection:
IP 20 (EN 60529)
Weight
RT 05 D-BAT:   166 g 
Compatibility
RT 05 D-BAT: WB 01 D-8-230,
WB 01 D-8-24
Scope of delivery
  • RT 05 D-BAT with battery
