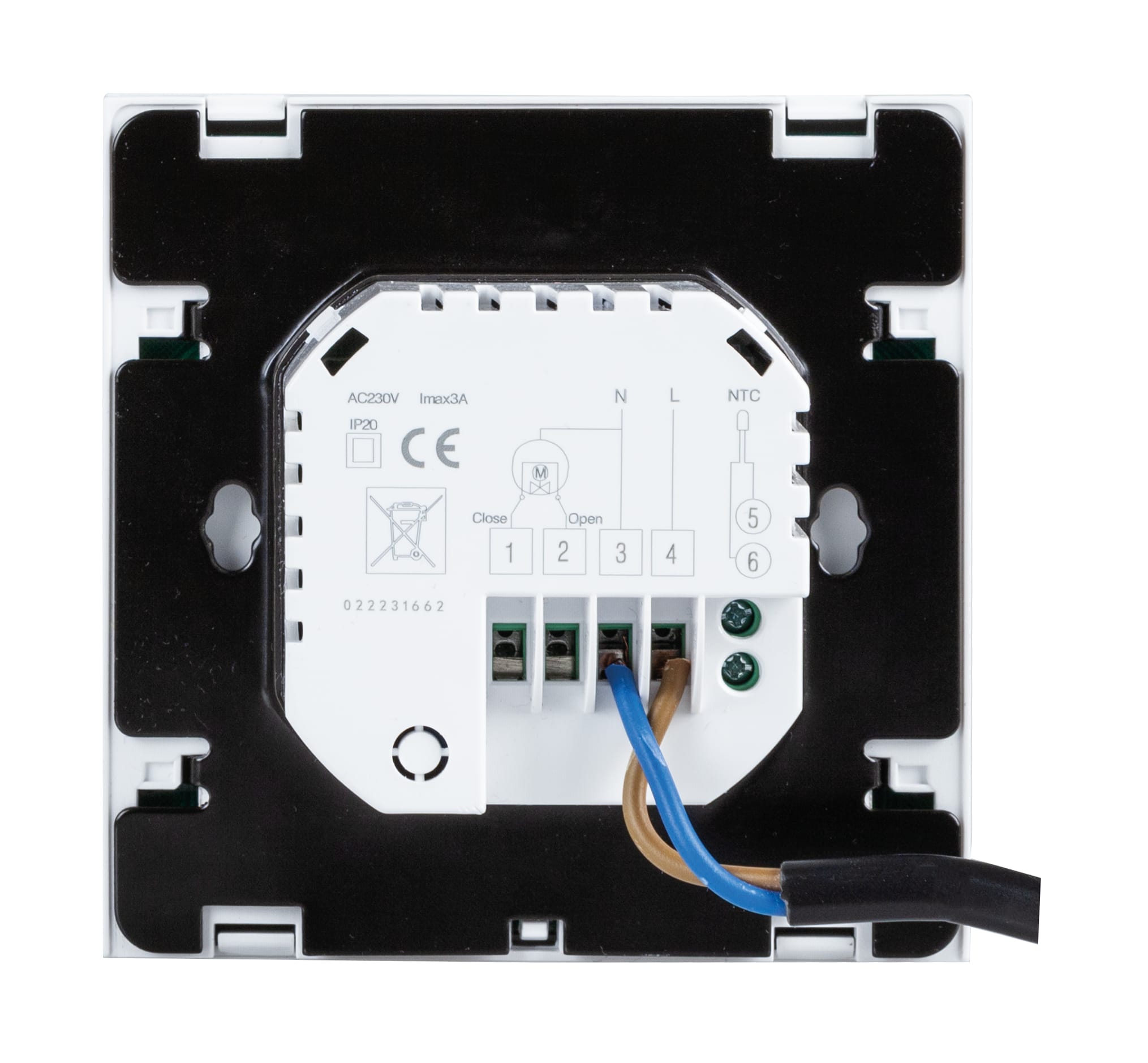

PRO_TEC_RUE_RAUMTHERMOSTAT_RT10_D230_86062.TIF
PRO_TEC_VOR_RAUMTHERMOSTAT_RT10_D230_86062.TIF
PRO_TEC_SAL_RAUMTHERMOSTAT_RT10_D230_86062.TIF
PRO_TEC_SAR_RAUMTHERMOSTAT_RT10_D230_86062.TIF
PRO_TEC_RUE_RAUMTHERMOSTAT_RT10_D230_86062.TIF
Images 4
Back

RT 10 D-230 | 86062

Room thermostat

in-stock items
Documents

  • easy mounting on standard in-wall switch boxes
  • 230 V version

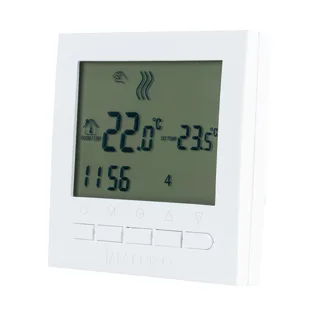

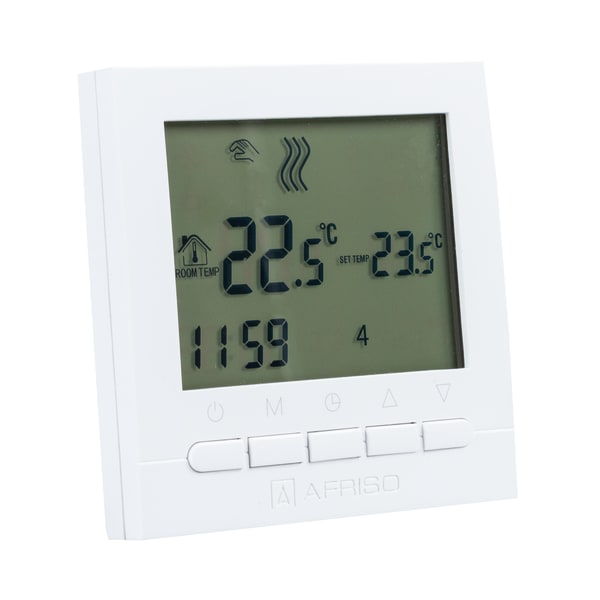

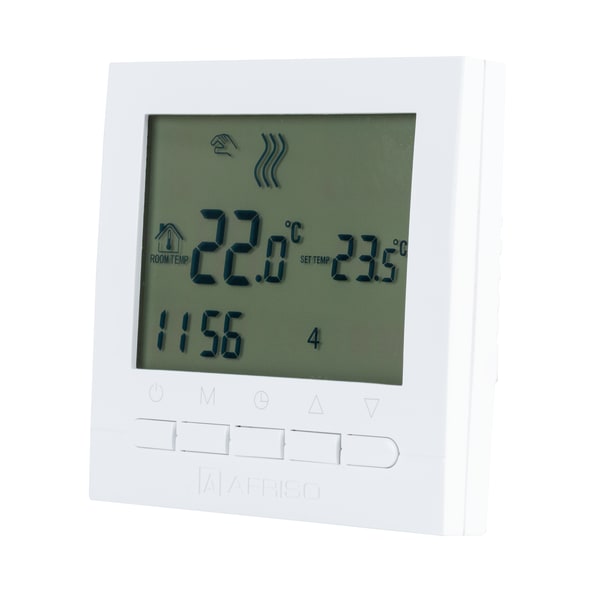

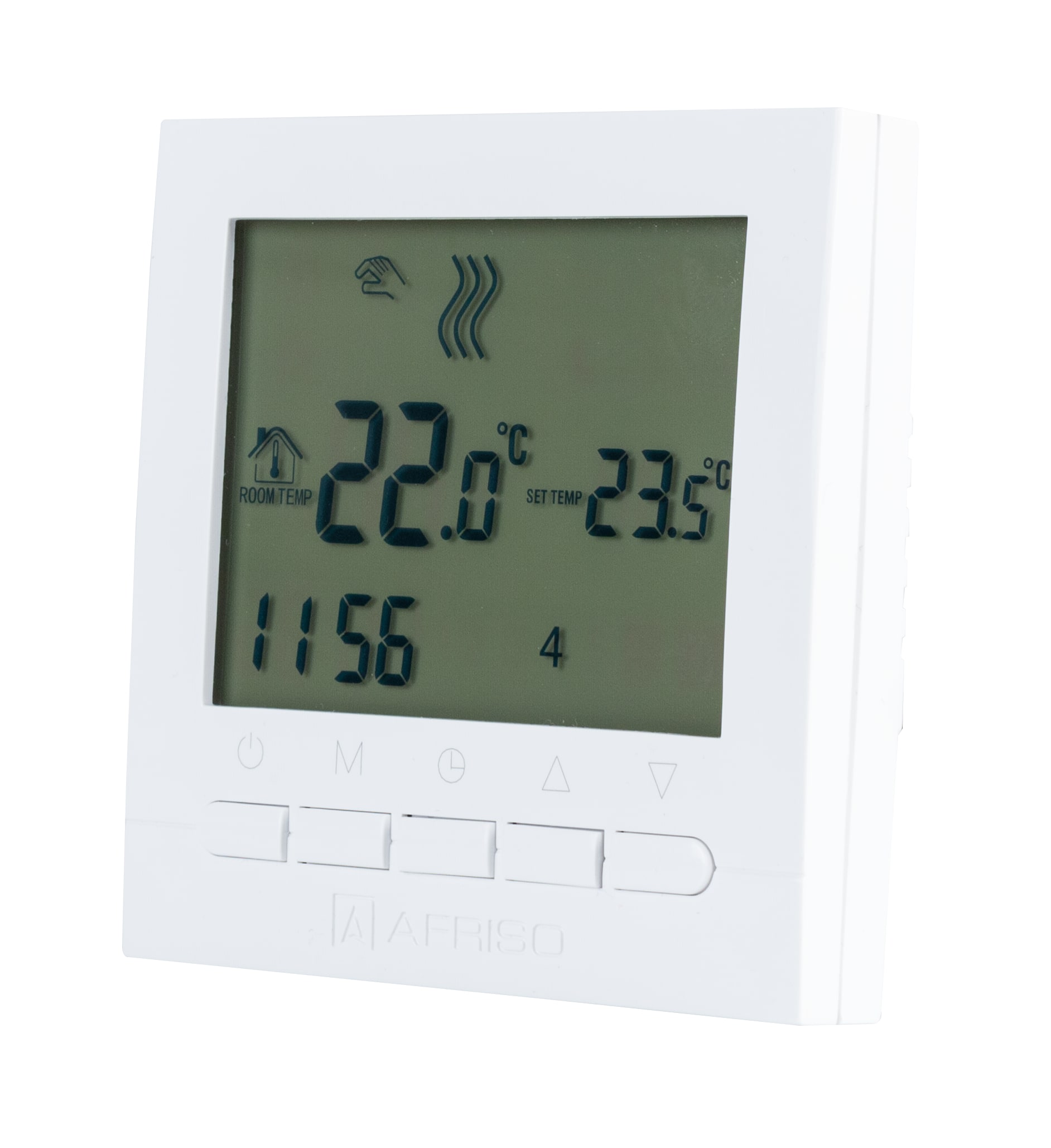

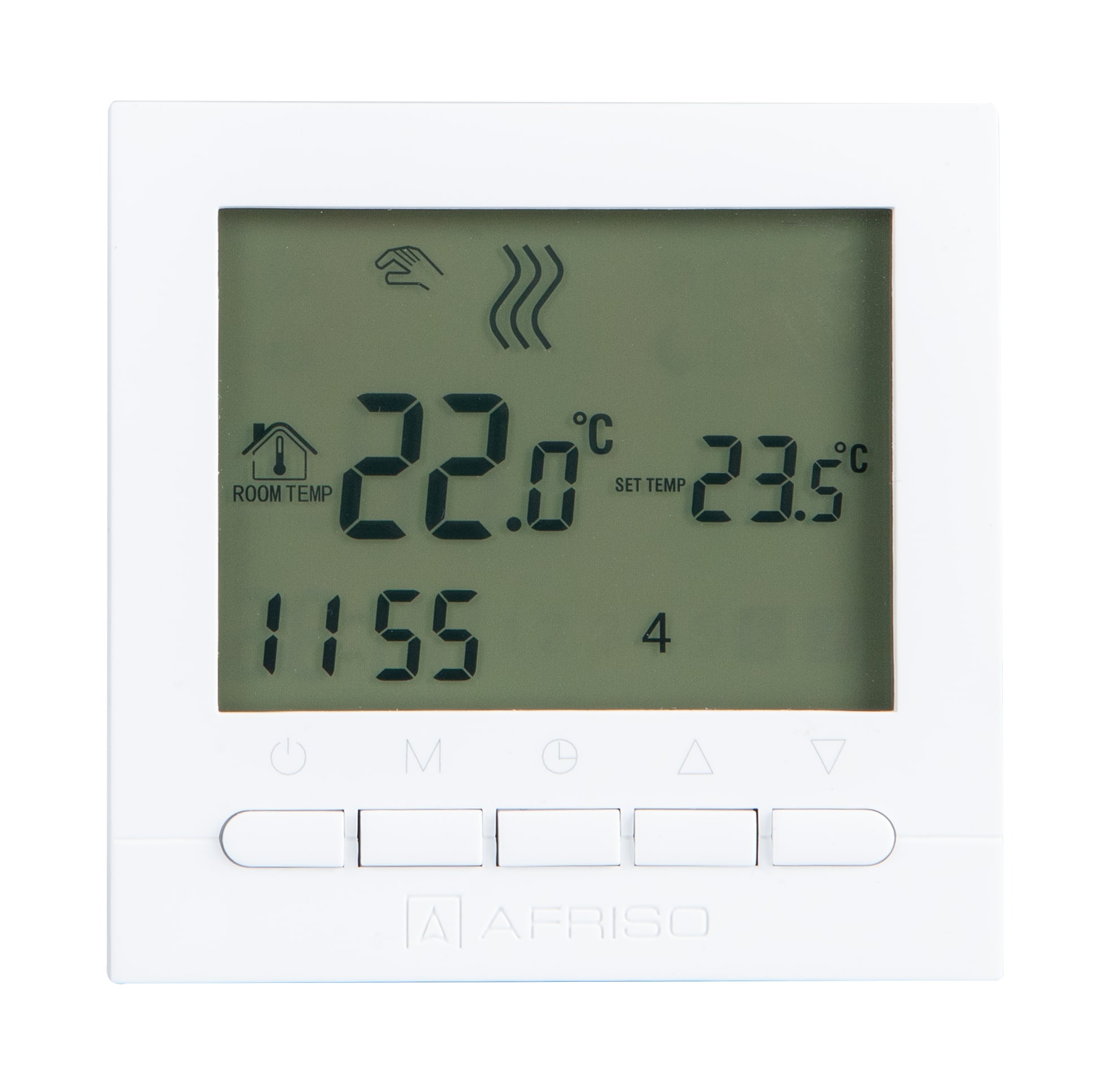

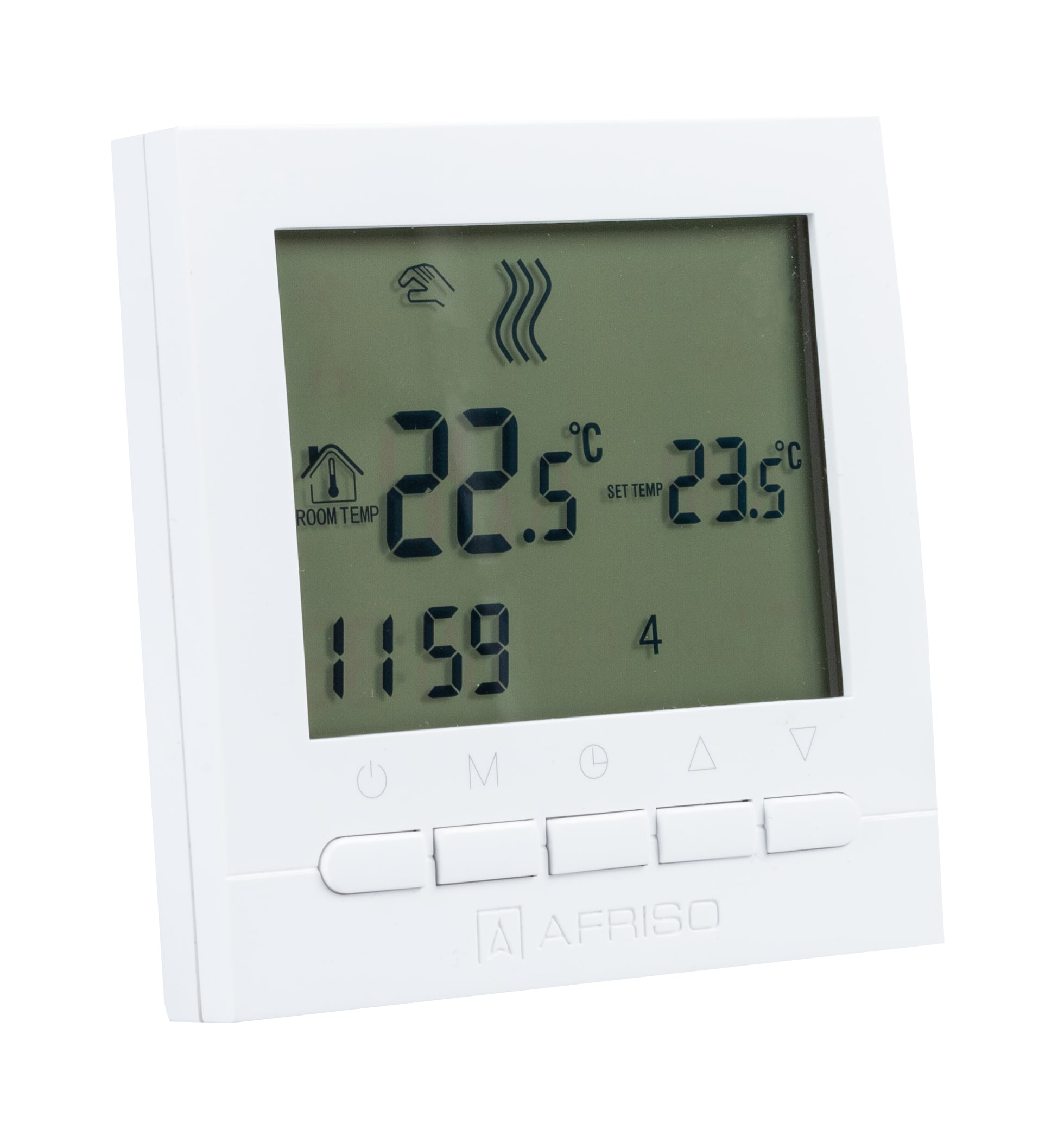

  • large display with additional information
  • Timer programs can be stored

Determination of the actual ambient temperature and adjustment of the reference value for the room temperature for use in water-based underfloor heating systems.

The room thermostat RT 10 D-230 is used in water-based underfloor heating systems in conjunction with thermostatic actuators and/or controller terminal bars (e.g. CosiTherm® Basic WB 10 D-8-230 and WB 01 D). Each room thermostat measures the actual ambient temperature and switches the output to obtain the required reference temperature. The reference value for the room temperature is adjusted by means of the keys. The actual temperature in rooms with an underfloor heating system is compared to the reference temperature on an ongoing basis. In addition to the reference temperature, you can store timer programs (e.g. Day/Night). The display shows values such as temperature, time or heating mode.

Programs
  • Adjustable for 5 + 2 or 6 + 1 or 7 days
Operating temperature range
Ambient:
5/60 °C
Storage:
5/60 °C
Temperature adjustment range
5/35 °C
Accuracy:
± 0.5 K
Supply voltage
AC 230 V
Contact rating
max. AC 250 V, 3 A
Housing
Plastic (PC)
Colour:
white (RAL 9003)
Degree of protection:
IP 20 (EN 60529)
Weight
  165 g 
Scope of delivery
  • Room thermostat RT 10 D-230
  • Betriebsanleitung
