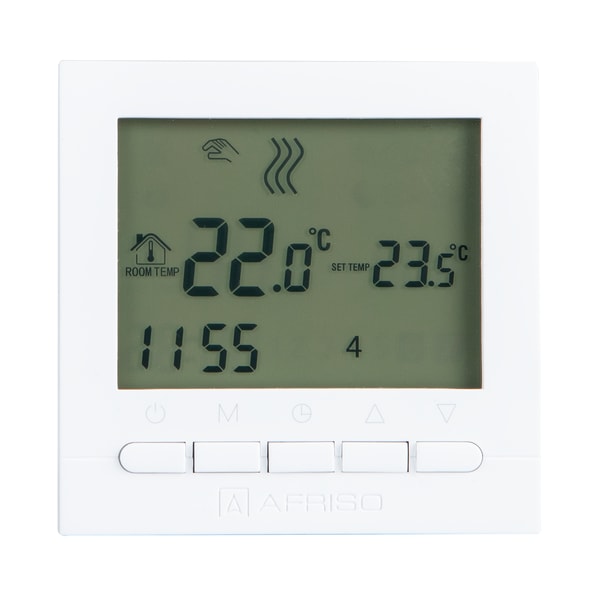

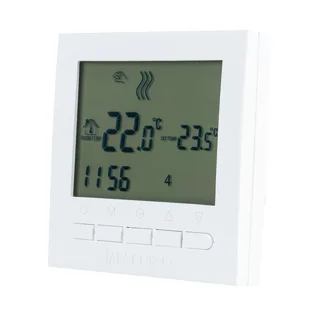

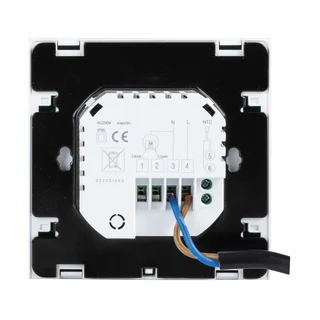

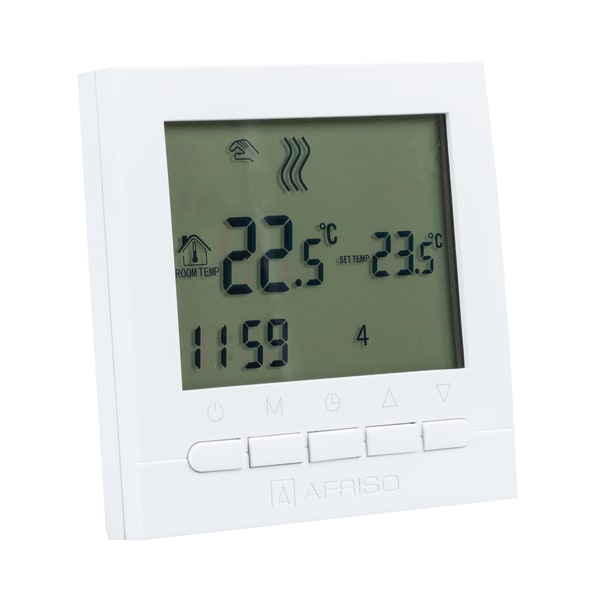

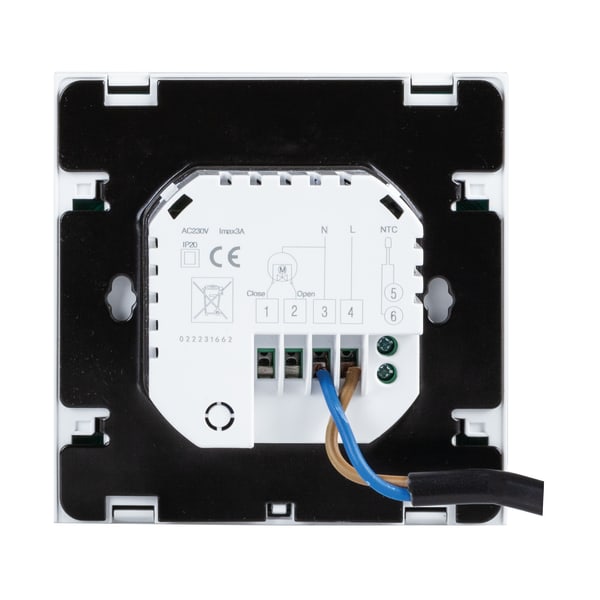

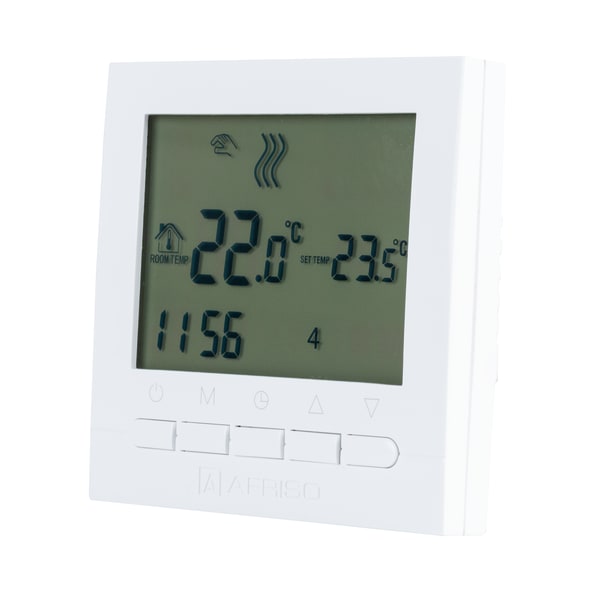

RT 10 D-5 | 86061

Raumthermostat passend für CosiTherm® – Draht

in-stock items
Documents

  • easy mounting on standard in-wall switch boxes
  • 5 V version for CosiTherm® – wired
  • large display with additional information
  • Timer programs can be stored
  • suitable for heating and cooling

Determination of the actual ambient temperature and adjustment of the reference value for the room temperature for use in water-based underfloor heating systems.

The room thermostat measures the ambient temperature, compares it to the reference temperature and provides a control signal for CosiTherm®.
The reference value for the room temperature is adjusted by means of the function keys. The actual temperature in rooms with an underfloor heating system is compared to the reference temperature on an ongoing basis. If there is a difference, the single room temperature controller CosiTherm® opens or closes the actuators, thus controlling the heating circuits. In addition to the reference temperature, you can store timer programs (e.g. Day/Night).

Operating temperature range
Ambient:
5/60 °C
Storage:
5/60 °C
Temperature adjustment range
5/35 °C
Accuracy:
± 0.5 K
Supply voltage
  5 V via CosiTherm® controller terminal bar
Housing
Plastic (PC)
Colour:
white (RAL 9003)
Degree of protection:
IP 20 (EN 60529)
Weight
  165 g 
Scope of delivery
  • Room thermostat RT 10 D-5
  • Betriebsanleitung
necessary additional components
  • CosiTherm® base module BM
  • CosiTherm® Reglermodul D2 und/oder D6
