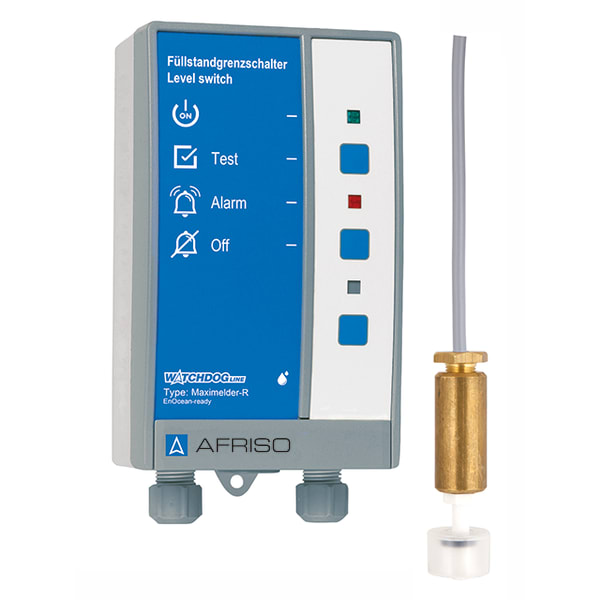

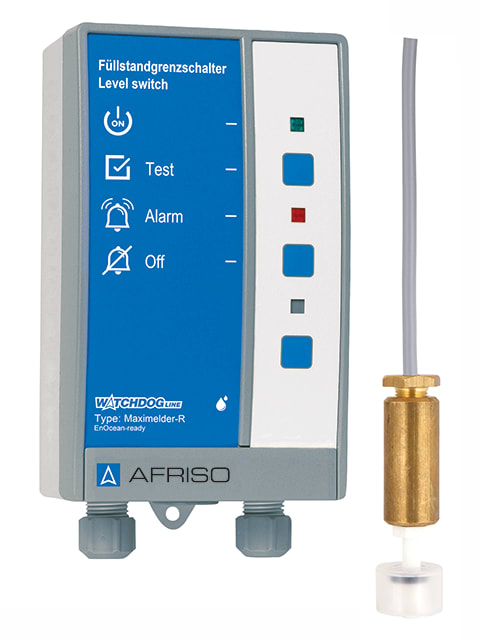

Maximelder-R | 16702

Level switches

in-stock items

  • for fuel oil EL, L, M, oil/water mixtures and many other media
  • with visual/audible alarms, Acknowledge button and 1 relay
  • Wall mounting housing for fast, professional mounting
  • alarm points adjustable by means of height-adjustable probe
  • early reserve alarm for reordering on time
  • Function test with test button "Test" possible at any time
  • EnOceanⓇ-ready: Can be smart-home-enabled for AFRISOhome (can be retrofitted)

Designed to signal minimum or maximum levels of water, heating oil EL, L, M, oil/water mixtures and neutral, non-viscous and non-adhesive liquids in tanks. System owners are alerted when the supply runs low or if there is a hazard of overfilling.

Minimelder/Maximelder consist of a control unit and a height-adjustable float probe. The Minimelder probe is mounted in the bottom area of the tank and generates an alarm signal when the liquid level falls and the probe is no longer submerged in the liquid. The Maximelder probe is mounted in the top area of the tank and generates an alarm when the liquid reaches the probe. The liquid levels are adjustable. When these levels are reached, the units generate visual and audible alarms. The integrated relay can be used for transmission of the signal to external alarm equipment or for connection to telecommunication or building control systems.
Alarm units with the EnOcean-ready label can be integrated into your existing building automation systems at a later point in time. To do so, plug the EnOcean® wireless module TCM 320 into the EnOcean® interface (PCB of the device). The AFRISO gateway in conjunction with additional AFRISO products with EnOcean® wireless technology allow you to configure a whole range of fully customisable, extensible features for the protection of plants and buildings.

Operating temperature range
Medium:
-5/+55 °C
Ambient:
-5/+55 °C
Process connection
Screw fitting G1
plastic, with cable gland for height adjustment
Probe
magnetic float switch
L x ⌀:
85 x 25.2 mm
Float:
Plastic (PA/PP)
cable:
oil-resistant cable Ölflex 2 x 0.5 mm2
cable:
5 m
Probe weight:
Brass
Degree of protection:
IP 68 (EN 60529)
Probe voltage:
max. AC 17 V
Connection probe – control unit
Length:
5 m, optionally up to 50 m
Supply voltage
AC 230 V
Nominal power
  5 VA
Switching output
Relay contact:
1 x voltage-free changeover contact
Contact rating:
max. AC 250 V, 2 A
visual indication
LED green:
Operation
LED red:
Alarm
audible alarm
integrated piezo-buzzer, can be acknowledged
min. 70 dB(A)
Function test
by means of test button
Housing
Wall mounting housing made of impact-resistant plastic (PC/ABS)
W x H x D:
100 x 188 x 65 mm
Weight:
  0.4 kg
Degree of protection:
IP 30 (EN 60529)

900_000_0206.PDF

Füllstandgrenzschalter Minimelder, Maximelder

Manuals
PDF

Mounting accessories
Abb.
Bezeichnung

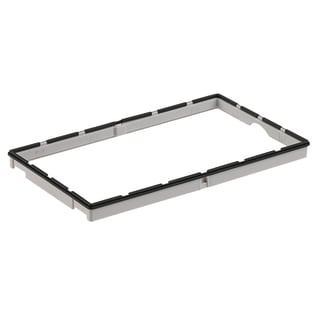

Dichtungsrahmen IP 54
Dichtungsrahmen IP 54 | 43416

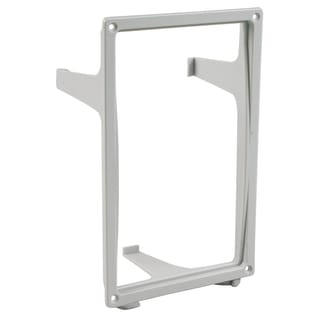

mounting frame
mounting frame | 43521

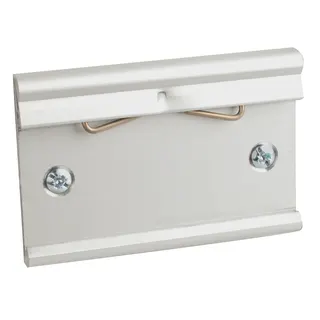

Montageset WATCHDOG Warngeräte
Montageset WATCHDOG Warngeräte | 43100
Function extensions
Abb.
Bezeichnung

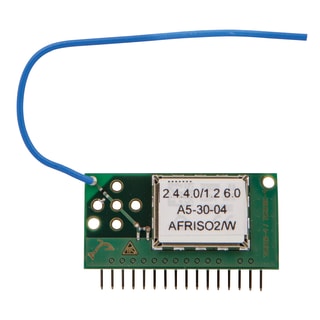

TCM 320
TCM 320 | 78082

Accessories and spare parts for level indicators and level controllers
Abb.
Bezeichnung

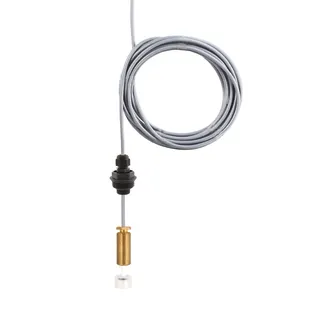

Sonde für Maximelder
Sonde für Maximelder | 16704
