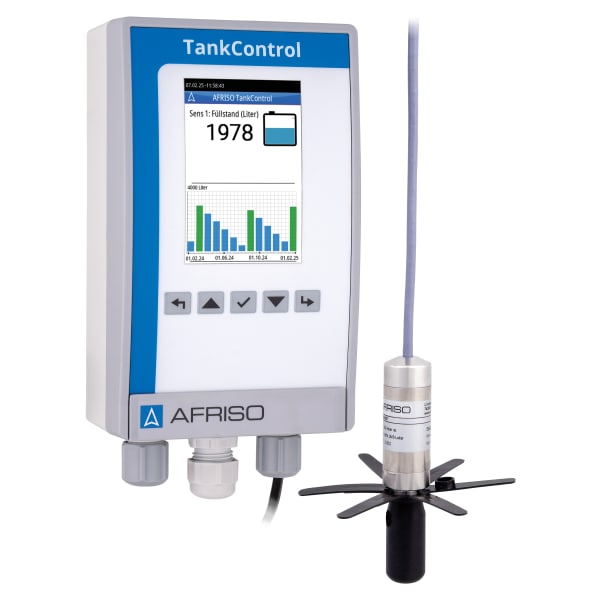

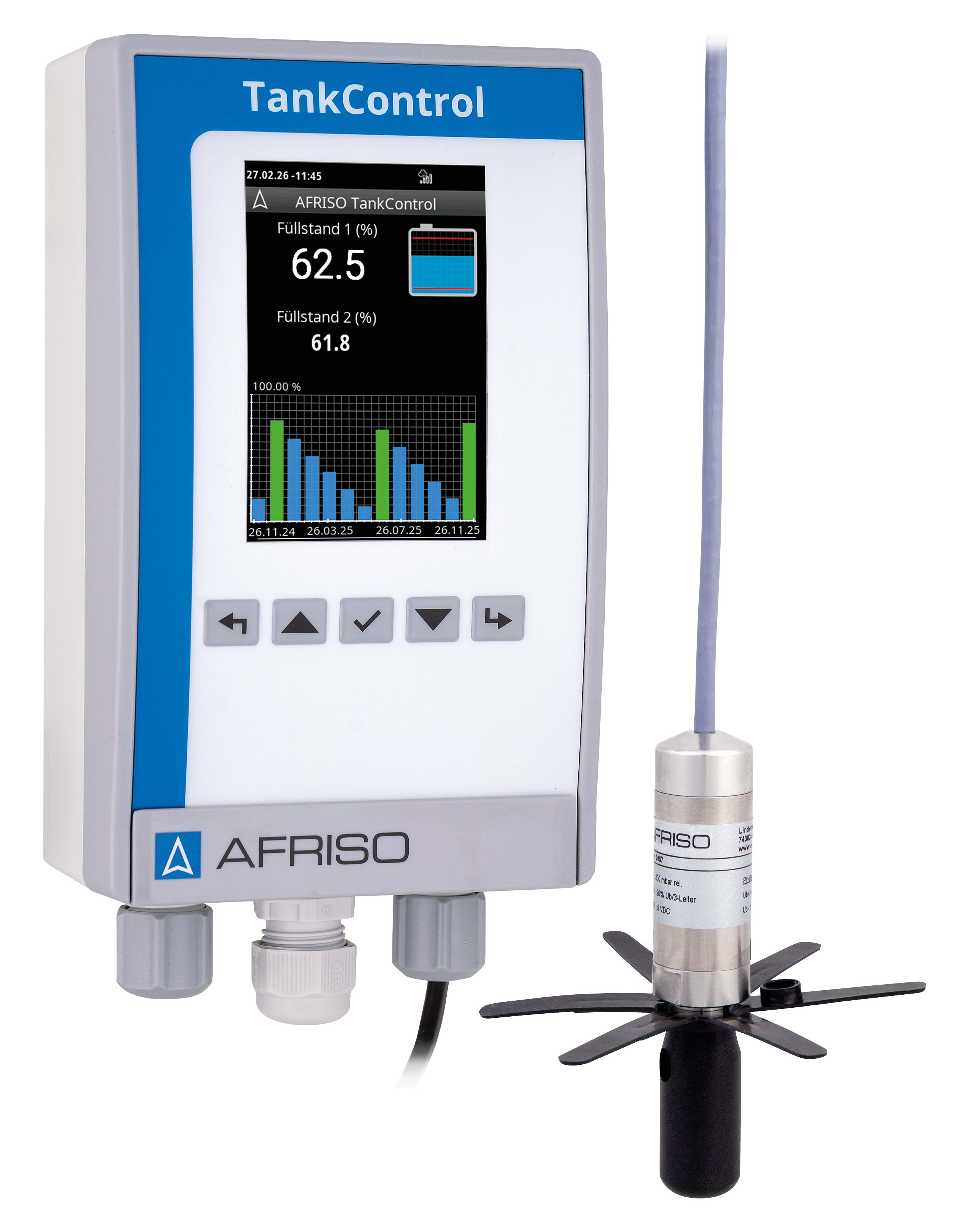

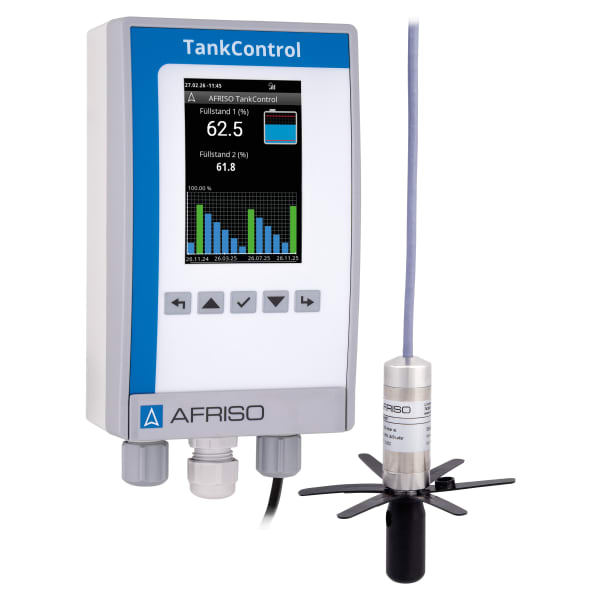

TankControl 20/25

hydrostatic level indicator

for fuel oil EL, L, diesel fuel, biodiesel and water
graphical indication of consumption and remaining range
with visual/audible alarms, Acknowledge button and 2 relays

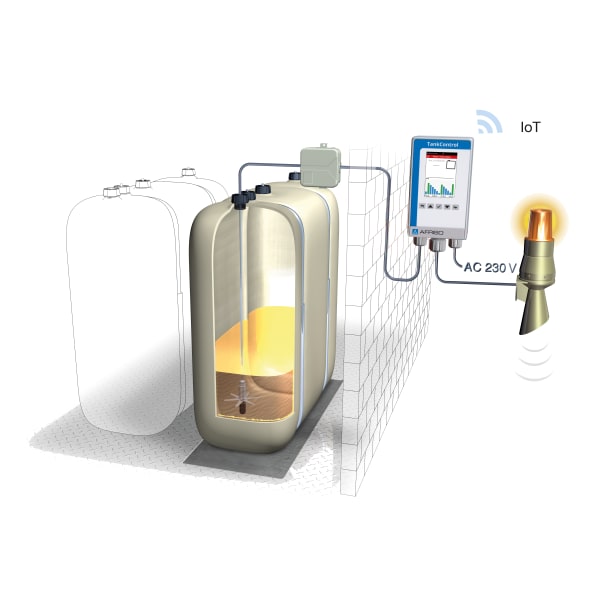

available with IoT-wireless module for transmissions of alarms to AFRISOcloud

Variants

		Part no.
level indicator TankControl 20		52160
level indicator TankControl 25	with wireless module, incl. 10 years data transmission	52161

in-stock items
manufactured goods

Additional information

Function
Selection of units (l, m³, %, m, cm, mm), daily saving of level data, consumption monitoring, graphical evaluation of consumption values (up to 5 years), calculation of remaining range, alarm functions (min./max./difference), sensor error and short circuit alarms.
TankControl 25: Transmission of data and alarms to AFRISOcloud.

Technical data

functions: units switching,
tägliche Speicherung von Füllstanddaten,
consumption monitoring,
grafische Auswertedarstellung für Verbrauchswerte (bis 5 Jahre),
calculation of remaining range,
Alarmfunktionen (Min./Max.),
sensor error and short circuit alarm

Measuring range: 0/400 mbar

Measuring accuracy: ± 1.5 % FS

Operating temperature range

Medium:: -5/+70 °C

Ambient:: -5/+55 °C

Storage:: -5/+65 °C

Display: High-resolution TFT display (50 x 70 mm). Indication of either litres (6 digits), m³, % and liquid level in mm.

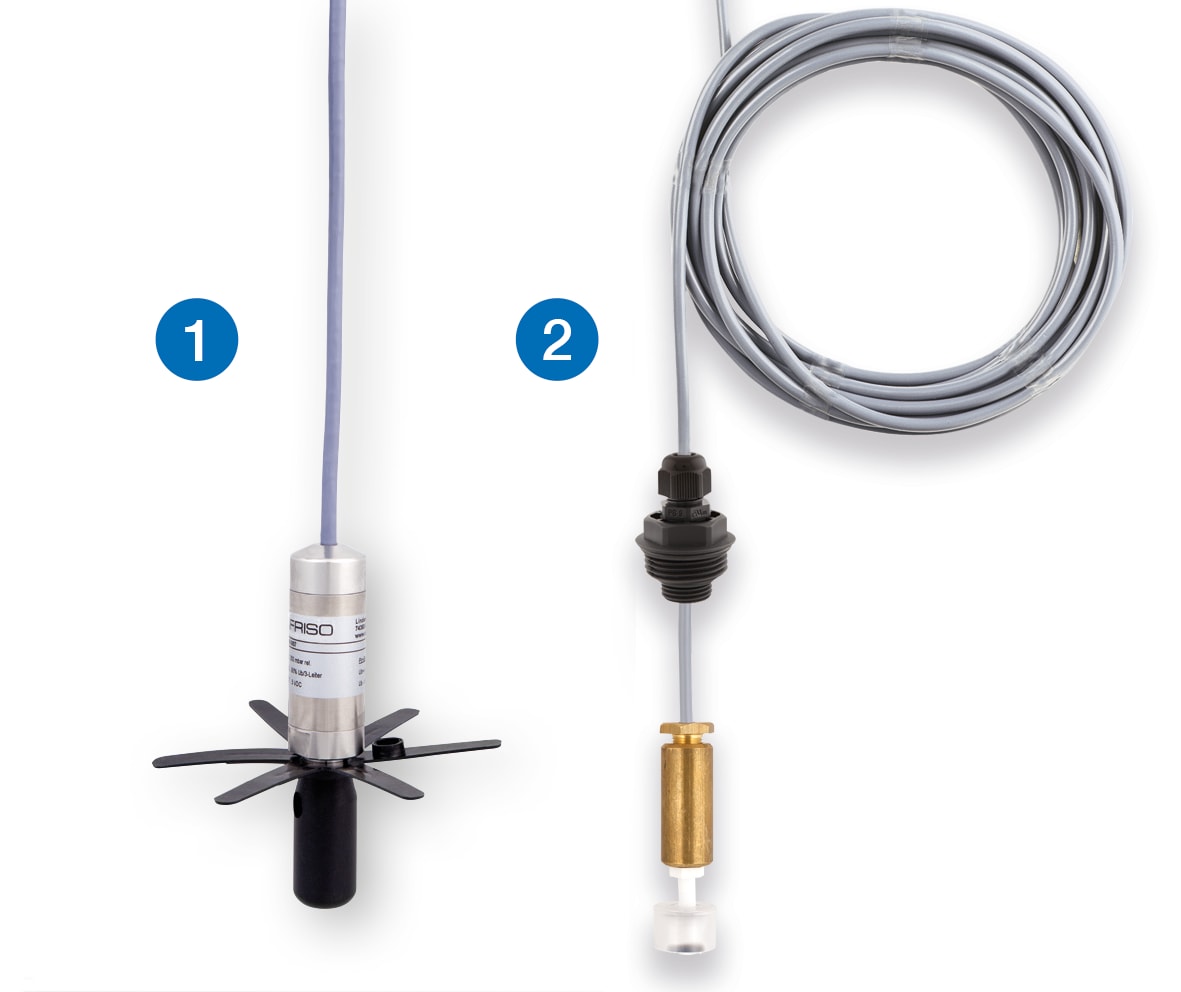

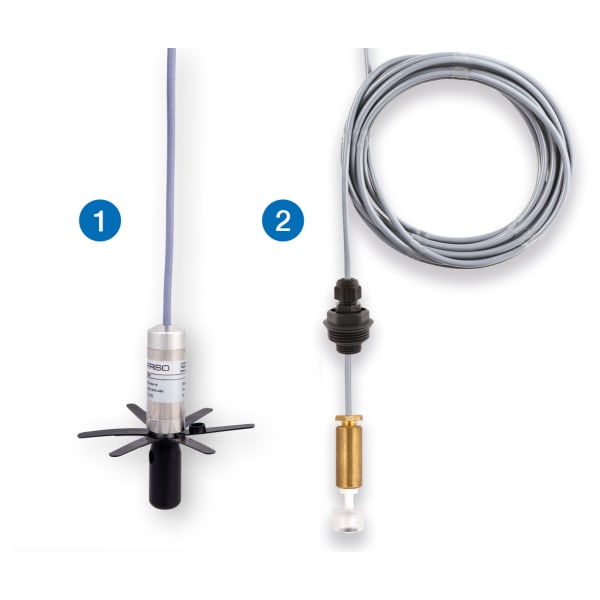

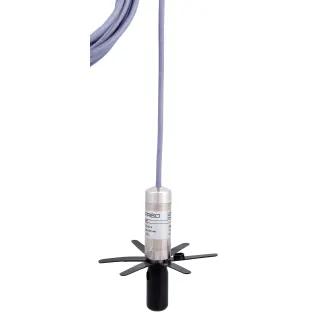

Submersible probe

L x ⌀:: 53 x 24 mm

Housing:: Stainless steel 304

cable:: PVC, 6 m with atmospheric reference hose

diaphragm:: Stainless steel 316 L

seals:: FKM (Viton)

Spacer:: POM, PE

Degree of protection:: IP 68 (EN 60529)

Supply voltage

: AC 100 − 240 V

: Buffer capacitor saves data in the case of power outage (calendar function)

Switching output

Relay contact:: 2 voltage-free changeover contacts

Contact rating:: AC 230 V, 2 A

visual alarm

: Text message with red background on display

audible alarm

: integrated piezo-buzzer, can be acknowledged

Housing

: Wall mounting housing made of impact-resistant plastic (PC/ABS)

W x H x D:: 100 x 188 x 65 mm

Degree of protection:: IP 54 (EN 60529)

Scope of delivery

Control unit with TFT display and 15 m connection cable to the probe (cannot be extended)
Tauchsonde mit 6 m Tauchkabel
Moisture-proof junction box (IP 54)
Verschraubungsset G1 x G1½ x G2
mounting kit for withdrawal flange at plastic battery tanks

Option
