UFS 01

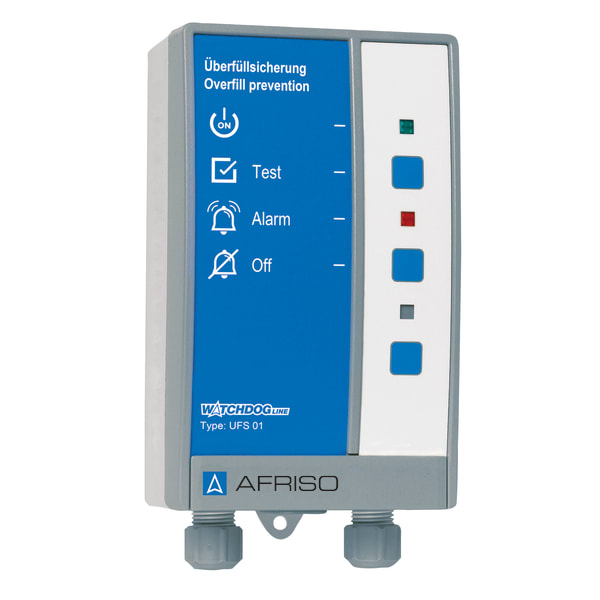

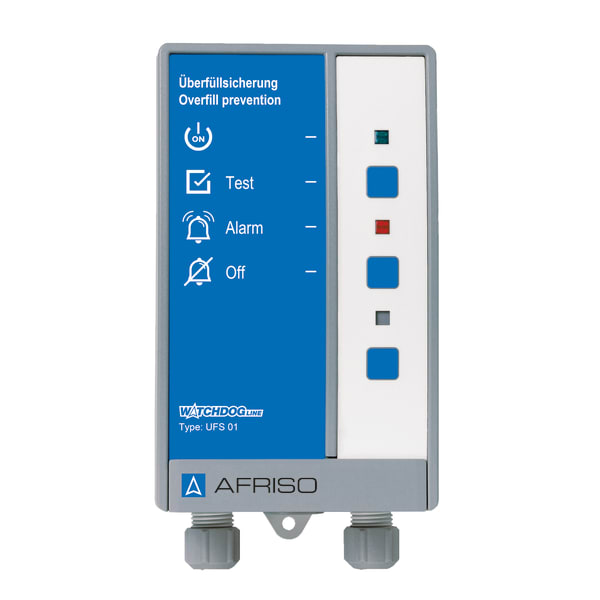

Messumformer für Überfüllsicherung (WHG)

Variants Documents

  • compact, modern design
  • with visual/audible alarms, Test and Acknowledge buttons
  • 2 relay outputs for additional alarm equipment, EMS, etc.
  • supply voltage AC 230 V or AC/DC 15 - 40 V
  • fail-safe, self-monitoring transducer for maximum reliability
  • type-approved together with the level probes type 76 as part of an overfill prevention system
  • connection of ancillary control unit type 907-Z as an additional control unit possible for connection to road tankers with overfill alarm system

To avoid overfilling of stationary tanks and stationary-use tanks. Suitable for a wide range of flammable and non-flammable water-polluting liquids with a flash point of > 55 °C.

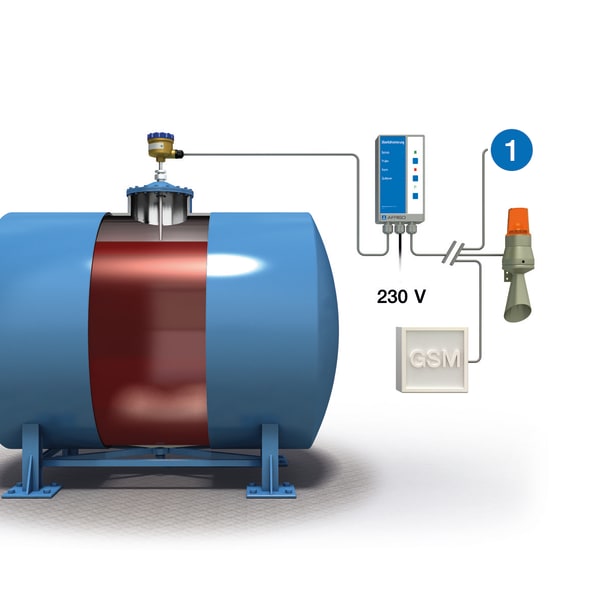

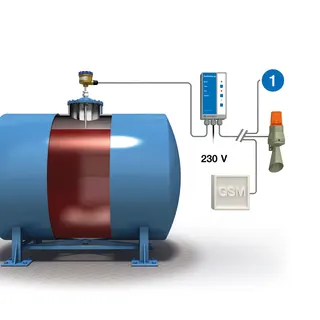

Type-approved together with all level probes type series 76 and UFS 01 as part of an overfill prevention system. UFS 01 in a wall mounting housing consists of a transducer and a suitable level probe (to be ordered separately). The transducer contains all display elements and controls as well as all electronic components for signal processing and conversion of the level probe signal into a digital output signal. The level probe and the transducer are connected by means of a 2-wire signal cable. When the maximum permissible level is reached, UFS 01 triggers visual and audible alarms. The filling process is stopped. The transducer also features two output relays for connection of event reporting systems, the additional alarm unit ZAG 01 or additional equipment. Ancillary control unit type 907-Z can be connected as an additional control unit to enable connection to a road tanker with filling system.

Part no.
Transducer UFS 01AC 230 V53202
Transducer UFS 01AC/DC 15–40 V53216
  • in-stock items
  • manufactured goods

Operating temperature range
Ambient:
-20/+60 °C
Storage:
-20/+60 °C
Supply voltage
Nominal power
< 10 VA
Switching output
Relay contact:
1 x voltage-free changeover contact
1 potenzialfreier Schließer, quittierbar
Contact rating:
max. AC 250 V, 2 A
Alarm sound
min. 70 dB(A)
Housing
Wall mounting housing made of impact-resistant plastic (ABS)
W x H x D:
100 x 188 x 65 mm
Weight:
  0.6 kg
Degree of protection:
IP 40 (EN 60529)
approval
DIBt: Z-65.11-193
