CAPBs® set 4 Pa with heating system check sens | P00120

CAPBs® set 4 Pa with heating system check sens

manufactured goods
Downloads Video

  • complete set for performing 4 Pa test and heating system check
  • robust, modular system case S, suitable for box and shelf system Sortimo-Boxx
  • wireless, immediate transmission of the measurement data to your AFRISO measuring instrument, smartphone or tablet with Bluetooth® technology
  • position-independent, temperature-compensated sensor technology for maximum precision in all measuring scenarios
  • free app for EuroSoft live for operation of all CAPBs® via smartphone and tablet. With pre-installed measurement menus for special applications and graphical representation of the measurement results

Check of underpressure limit value (4 Pa / 8 Pa ) in a sealed air system (building/apartment)
Acceptance of individual heat systems with simultaneous operation with exhaust air systems
Measurement of the flow rate and determination of the temperature in the residual core flow of the flue gas line

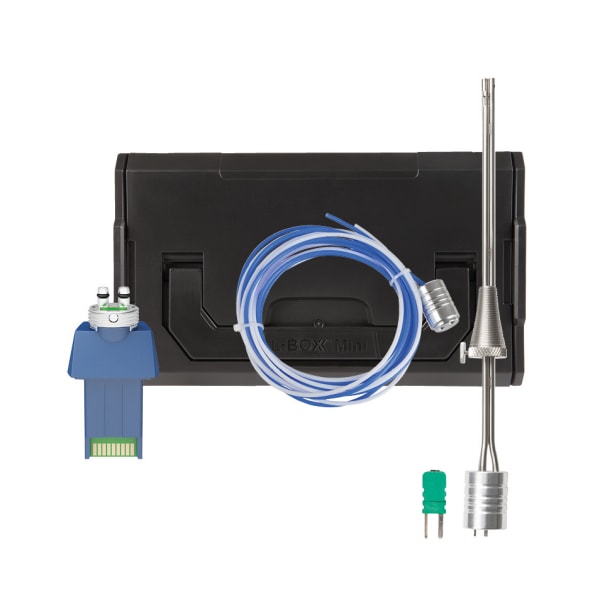

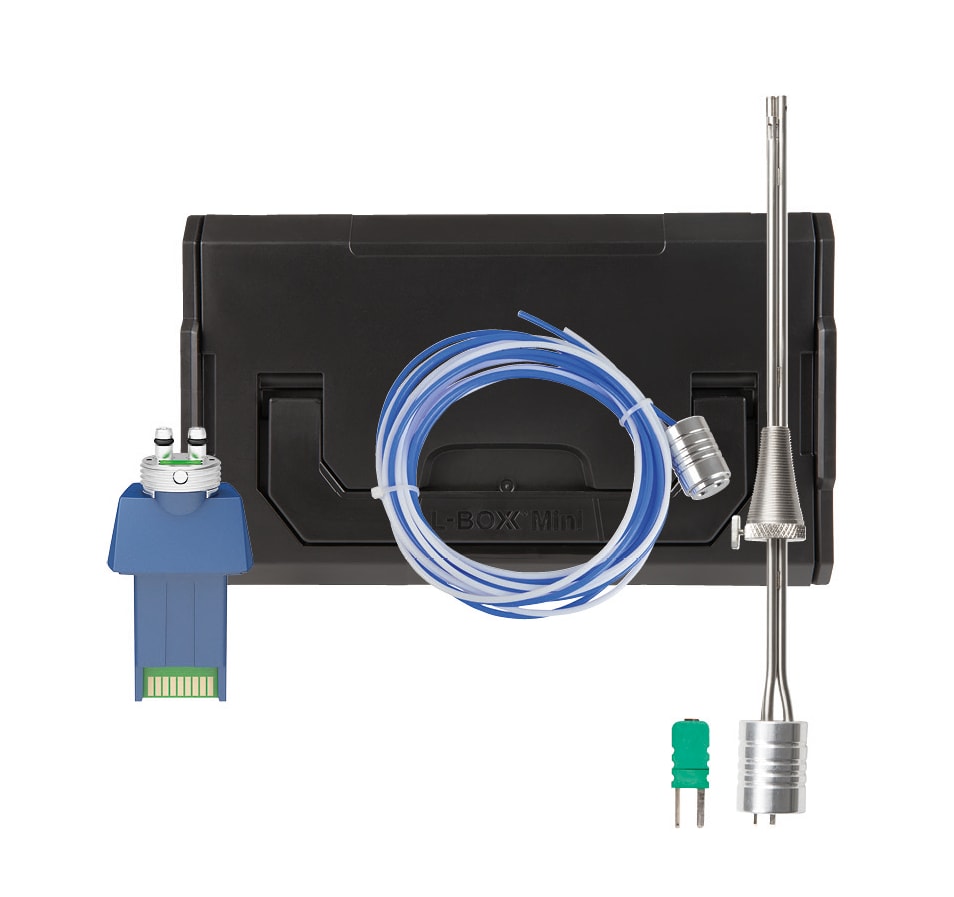

Ready-to-be-used combination set in system case S with sensor module pressure/temperature CAPBs® sens FP 10 (20 mbar), Pitot tube and surface temperature probe. For the heating system check, the measured data is used to calculate the ventilation loss and the volume flow is calculated if the duct cross section is known. Measurement of the surface temperature serves as the basis for calculating the surface loss of the energy generator. The hose kit is used to check and document the underpressure limit value of 4 Pa/8 Pa.

Zielgruppe

Measuring range
pressure:
-20/+20 mbar
temperature:
-50/+600 °C
Pitot:
0.2/20 m/s
Accuracy
pressure:
± 0.003 mbar (< 0.6 mbar)
± 0.5 % v. Mw. ± 1 Digit (> 0.6 mbar)
temperature:
± 1.5 K
Pitot:
± 0.1 m/s (< 2 m/s)
± 5 % v. Mw. (> 2 m/s)
Resolution
pressure:
0.001 mbar
temperature:
0.1 °C
Pitot:
0.1 m/s
Scope of delivery
  • sensor module pressure/temperature CAPBs® sens FP 10 (20 mbar)
  • Schlauchset SLS 4-Pa-Test
  • Pitot tube EP-SR 10
  • Oberflächentemperaturfühler TFB-OF 120
  • System case S

AFRISO_CAPBS--SET-4-PA-WITH-HEATING-SYSTEM-CHECK-SENS-CAPBS--SET_P00120_ENG_GBR.PDF

CAPBs® set 4 Pa with heating system check sens P00120

datasheet variant
Domestic Technology
PDF
AFRISO_CAPBS--SET_ENG_GBR_20260209_234405586.PDF

CAPBs® set 4 Pa with heating system check sens P78339

datasheet product
Domestic Technology
PDF
EuroSoft® live für Windows 3.5.0

EuroSoft® live für Windows 3.5.0

Software, Software / firmware
ZIP
