Air Speed Measuring Instrument BlueAir STx set 2 including vane probe Junior Mini | P00022

Air Speed Measuring Instrument BlueAir STx

in-stock items
Documents

  • clearly structured measurement programs, simultaneous display of 4 measured values
  • measurement of current value
  • automatic probe detection when probe is connected
  • range of high-performance probes for accurate measurements in daily use
  • evaluation functions display minimum, maximum and mean values
  • calculation of air volume after you have entered the channel cross section
  • large TFT colour display
  • fully automatic device check, manual and automatic zero calibration during program start

Modular, multi-channel instrument for, flow rate, temperature and relative humidity. Ideal for checking and setting the air velocity of ventilation and air conditioning systems and fans and for measurements in ventilation and exhaust ducts.

Operating temperature range
Ambient:
0/40 °C
Storage:
-20/+50 °C
Weight
ca. 220 g ca.
Dimensions
W x H x D:
66 x 143 x 37 mm
Degree of protection
IP 40 (EN 60529)
Display
TFT colour display 2.8 "
W x H:
45 x 60 mm
Resolution:
240 x 320 pixels
Supply voltage
lithium-ion battery (3.6 V/1800 mAh)
power supply unit (USB)
Battery or mains
Hours of operation
normal mode:
bis 20 Stunden
auto mode:
bis 30 Stunden
eco mode:
bis 40 Stunden
Data memory
microSD card
Data logger
1-999 seconds, interval freely selectable
Interfaces
Infrared
Bluetooth®
QR code generator
MicroSD-Kartenslot
Measuring range
humidity:
10/90 % r.F.
Resolution
humidity:
0.1 - 0.1
Accuracy
humidity:
2.3 - 2.3

Device options
Abb.
Bezeichnung
device function MGF DL-S Data logger | 511010
Vane probes
Abb.
Bezeichnung

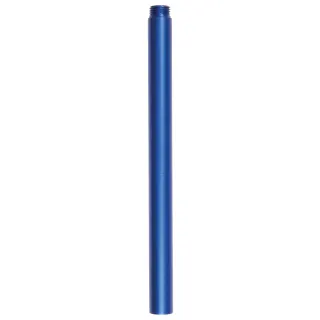

extension rod VLS 180 Length 180 mm
extension rod VLS 180 Length 180 mm | 523626
extension rod VLS 300 Length 300 mm
extension rod VLS 300 Length 300 mm | 523627

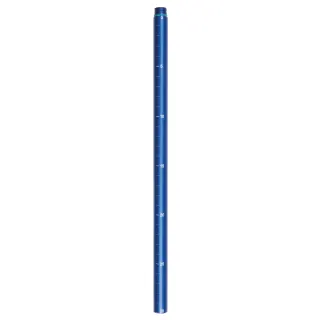

telescopic extension rod VLS-T 1000 Length 1 m
telescopic extension rod VLS-T 1000 Length 1 m | 523628

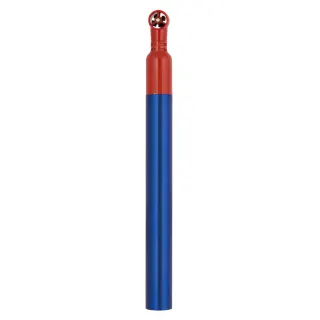

vane probe Junior Micro
vane probe Junior Micro | 524318

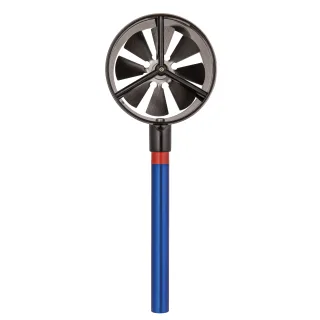

vane probe Junior Macro
vane probe Junior Macro | 524320

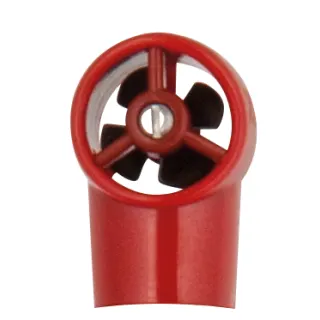

snap-on head Junior Micro
snap-on head Junior Micro | 524360

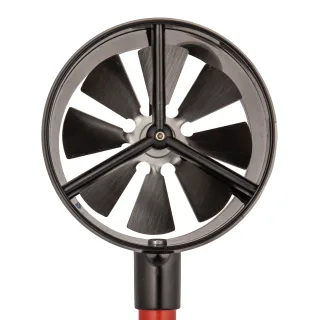

snap-on head Junior Macro
snap-on head Junior Macro | 524362
ISO calibration
Abb.
Bezeichnung
ISO calibration vane anemometer BlueAir STx
ISO calibration vane anemometer BlueAir STx | 524210-11
ISO calibration Humidity/moisture CAPBs® sens RH 80, AQ 36, FT series, BlueAir STx
ISO calibration Humidity/moisture CAPBs® sens RH 80, AQ 36, FT series, BlueAir STx | 524210-14
