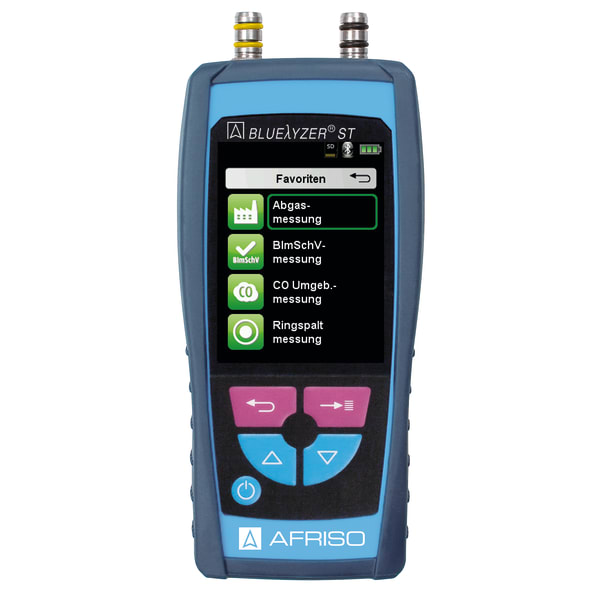

BLUELYZER ST set Pro | P00131

Complete package flue gas analysis

in-stock items
Documents

  • CO high device for measurements at all heat generators up to 20,000 ppm, including pellets boilers
  • comprehensive all-rounder set with IR printer
  • Combustion air probe for measurements at room air-independent systems
  • robust hard top case
  • the world's smallest, fully-featured HVAC all-rounder with TFT colour display
  • Flue gas analysis, pressure measurement (draft) and (differential) temperature measurement with a single instrument
  • CO ambient measurement with two freely adjustable alarm thresholds

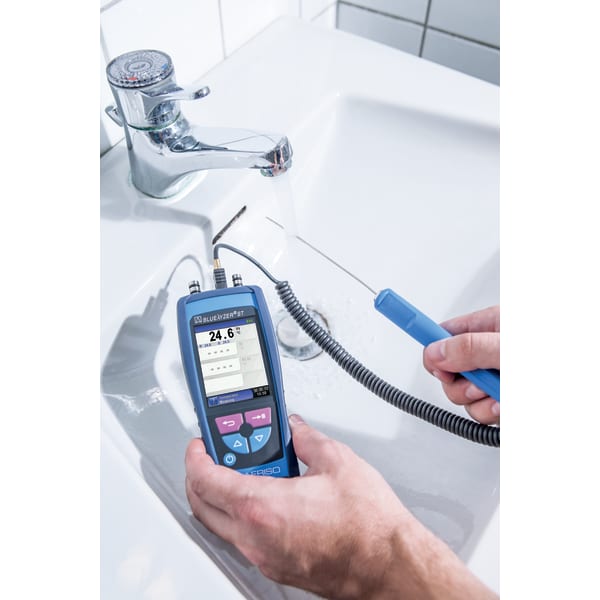

  • fully-fledged temperature measurement program, differential temperatures (e.g. flow/return) can also be determined
  • Hold function: Display shows the measured value for a given period of time while the measurement keeps running in the background
  • Measurement programs and measured values can be freely edited
  • display reverse function: TFT display can be rotated by 180° for easy reading and excellent working conditions at the point of measurement
  • zoom mode for entire display, "Single-value display"
  • Memory function with up to 100 measurement logs
  • CAPBs®-enabled

Ideal for HVAC professionals for accurate adjustments or inspections, on par with official flue gas analysers. BLUELYZER ST is suitable for flue gas analysis, pressure measurement and (differential) temperature measurement. The HVAC all-rounder also provides exact calculation of the Eta value for all condensing heating systems with fuel-specific dew point calculation.

Einsatzmedien
Produkteigenschaften
Schnittstellen
Zulassungen

measuring ranges (measured values)
Flue gas temperature/differential temperature
0/1 150 °C
Air temperature/combustion air temperature
-20/+200 °C
Draft
-70/+70 hPa
O2 measurement
0/21 Vol.-%
CO measurement
nominal:
0/20 000 ppm
additional technical specifications
Indication (calculated values)
CO2, COunverdünnt, Lambda, Taupunkt, Eta efficiency, Abgasverluste qA, CO mg/m3 (natural gas), CO mg/kWh (Heizöl)
Operating temperature range
Ambient:
0/40 °C
Storage:
-20/+50 °C
Dimensions
W x H x D:
66 x 143 x 37 mm
Degree of protection
IP 42 (EN 60529)
Display
TFT colour display 2.8 "
W x H:
45 x 60 mm
240 x 320 pixels

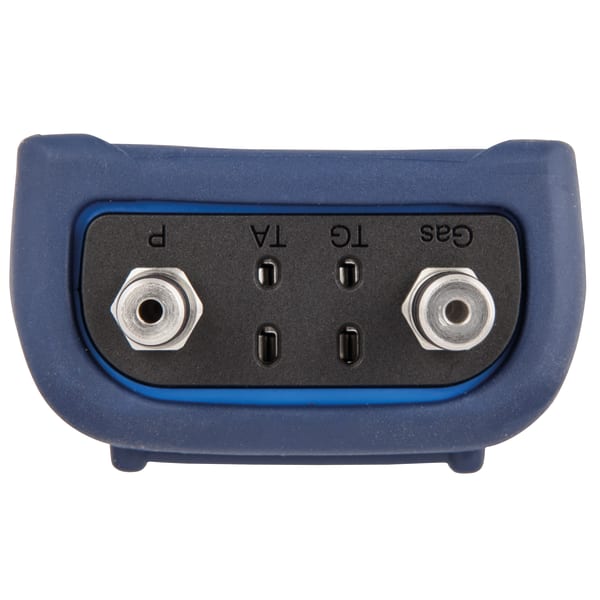

Connections
Draft/pressure:
∅ 7 mm
Gas:
∅ 8 mm
temperature:
socket type K
Supply voltage
lithium-ion battery (3.6 V/1800 mAh)
power supply unit (mini USB)
Battery or mains
Hours of operation (eco mode)
  12 Stunden
Data memory
microSD card, max. 16 GB

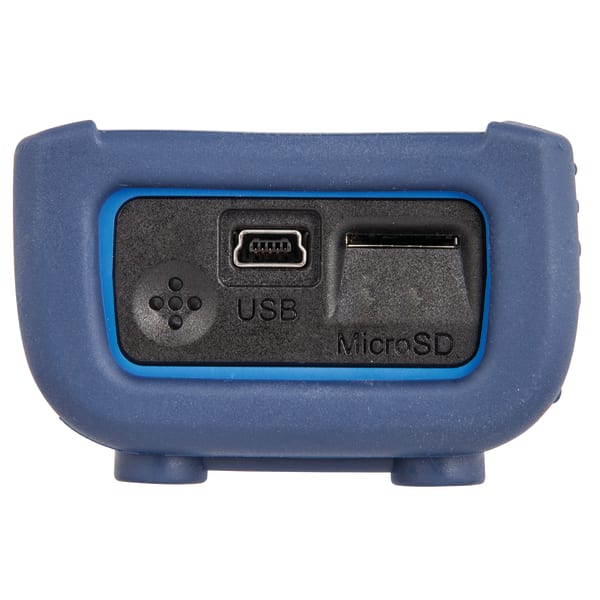

Interfaces
Infrared,
Bluetooth®,
QR code generator,
MicroSD-Kartenslot
Approvals
VDI 4206 (Blatt 1),
DIN EN 50379-2 für O2/CO2, TA, TG, Druck,
DIN EN 50379-3 for CO

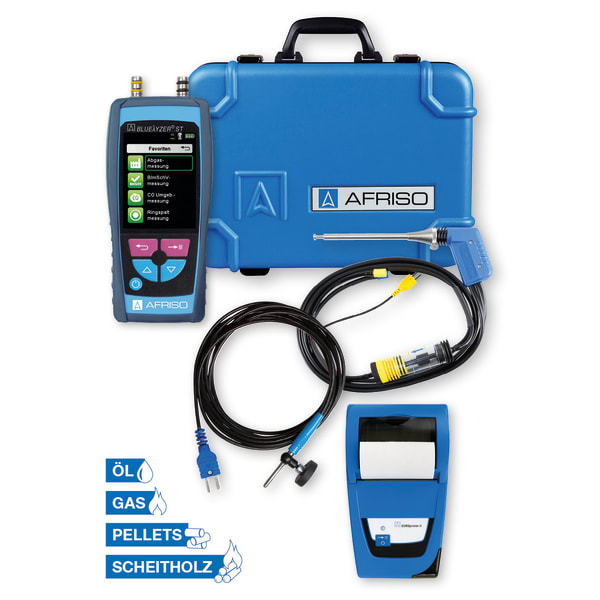

Scope of delivery
  • Flue gas analyser BLUELYZER ST
  • Kalibrierprotokoll
  • protective sleeve for device with magnets
  • Netzteil NTE 5 USB-A
  • Charging cable USB-A - mini USB
  • MicroSD-Karte
  • Condensate filter cartridge KFP 2P
  • 5 x Partikelfilter
  • 5 x Teflon membrane
  • Abgaskombisonde kompakt AKS-K 170 mm
  • Thermal printer EUROprinter II
  • Verbrennungsluftfühler TFB-VL 100 M mit Magnethalter
  • Hard top case Pro blue

Flue gas probe plug-in units
Abb.
Bezeichnung
Annular gap probe
Annular gap probe | 500236
Annular gap probe
Annular gap probe | 570082
Thermal printer EUROprinter
Abb.
Bezeichnung

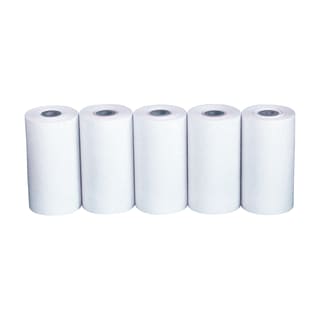

thermal paper
thermal paper | 523374

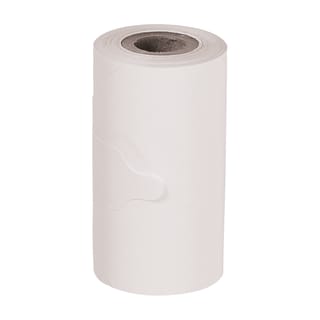

thermal paper
thermal paper | 522666

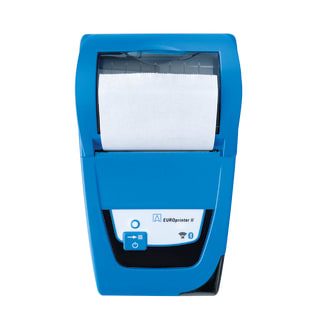

EUROprinter II
EUROprinter II | 524340
EUROprinter II
EUROprinter II | 524346
Soot pumps RSP
Abb.
Bezeichnung

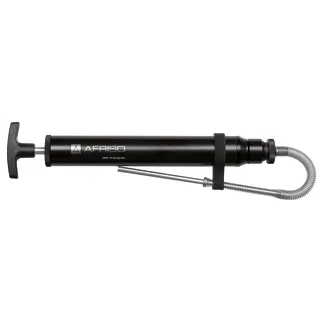

Soot pump
Soot pump | 569581
Interfaces
Abb.
Bezeichnung

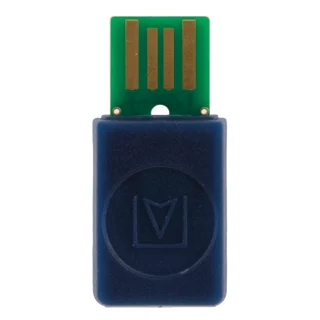

Bluetooth interface
Bluetooth interface | 500856
Temperature probes
Abb.
Bezeichnung
Verbrennungsluftfühler mit Magnethalter
Verbrennungsluftfühler mit Magnethalter | 500141
Verbrennungsluftfühler mit Magnethalter
Verbrennungsluftfühler mit Magnethalter | 500141-1
Combustion air probe
Combustion air probe | 500147
Combustion air probe
Combustion air probe | 500147-2
Power supply units and charging cables
Abb.
Bezeichnung

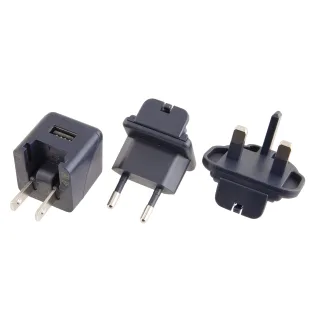

power supply unit
power supply unit | 523493

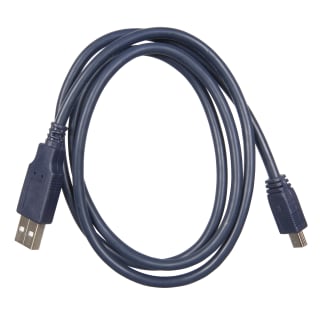

Ladekabel USB
Ladekabel USB | 523506
Memory
Abb.
Bezeichnung

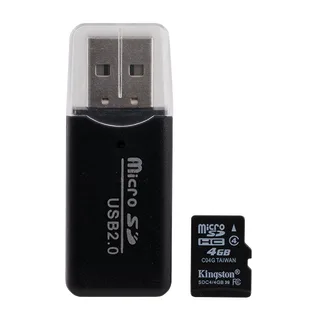

SD memory card
SD memory card | 511035
Database memory | 511030
Flue gas probes
Abb.
Bezeichnung
Flue gas combination probe, compact
Flue gas combination probe, compact | 500268-5
Condensate filter cartridges KFP
Abb.
Bezeichnung

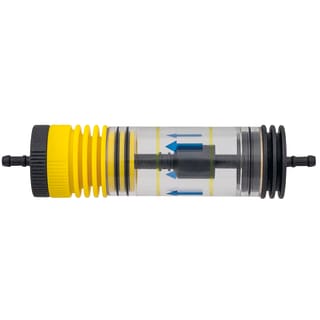

Condensate filter cartridge KFP
Condensate filter cartridge KFP | 500192

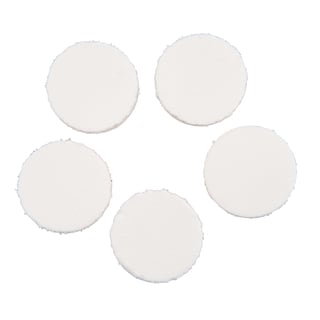

Particle filter
Particle filter | 511009

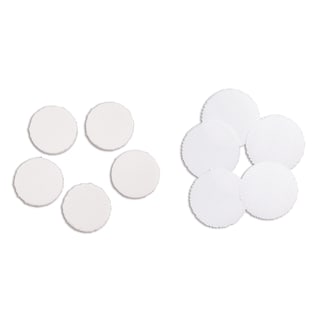

Kondensatfilterpatrone KFP - Ersatzteilpakete
Kondensatfilterpatrone KFP - Ersatzteilpakete | 500214
Filters
Abb.
Bezeichnung

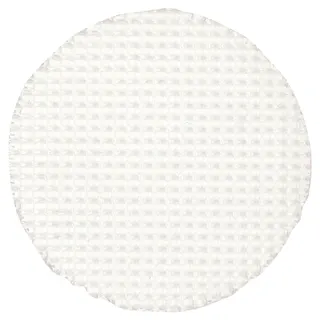

Teflon-Gewebemembrane
Teflon-Gewebemembrane | 511004
ISO calibration
Abb.
Bezeichnung
ISO calibration
ISO calibration | 524210-06
