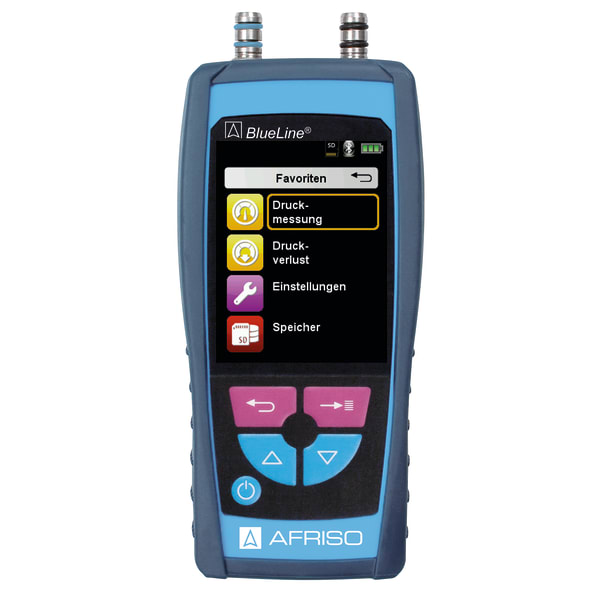

Serie S4600 ST

pressure measuring instrument

Variants

  • for measuring pressure, vacuum and differential pressure
  • six (differential) pressure measuring ranges from measuring instrument for ultra-low pressure (20 mbar) to version for very high pressure (18 bar)
  • barometric pressure sensor and temperature compensation for highly accurate measured value
  • large TFT colour display (W x H: 45 x 60 mm) for simultaneous display of 4 measured values
  • measured values displayed in 9 units: mbar, Pa, hPa, kPa, mmWC, mmHg, inWC, psi, bar
  • fully automatic device check, manual and automatic zero calibration during program start
  • microSD card for system-independent storage of measurement logs (HTML format) and fast software updates
  • optional data logger function for long-term measurement or diagnostics (data in XML format)
  • Pitot measurement (air velocity) for measuring range up to 20 mbar or 150 mbar

For measuring pressure, vacuum and differential pressure. For non-corrosive gaseous, dry media. Ideal for industrial, medical and air conditioning technology applications. Other typical application areas: Measurement of chimney draft, measurement of inlet pressure, flow pressure and nozzle pressure, pressure loss in flowing gases, filter inspection, ventilation systems or ducts, production and extraction facilities, vacuum measurement (laboratory), check of the connection pressure (natural gas supply pipes), burner pressure check, inspection of tanks for liquids (inlet and outlet pressure). Minimum and maximum values can be set before the measurement; if these values are reached, visual or audible alarms are triggered. The free Android app EuroSoft connect allows for transfer of measurement results to smartphones and tablets via QR code and for the visualisation of such results. Measurement records can also be sent via e-mail.

Zulassungen

Measuring rangePart no.
pressure measuring instrument S4601 ST150 mbar-150/+150 mbarP00084
pressure measuring instrument S4602 ST20 mbar-20/+20 mbarP00085
pressure measuring instrument S4610 ST1,000 mbar-1 000/+1 000 mbarP00086
pressure measuring instrument S4650 ST5,000 mbar-1 000/+5 000 mbarP00087
pressure measuring instrument S4680 ST8,000 mbar-1 000/+8 000 mbarP00089
pressure measuring instrument S4680 ST-F8,000 mbar, with Festo connection ⌀ 3 mm-1 000/+8 000 mbarP00090
  • in-stock items
  • manufactured goods

Operating temperature range
Ambient:
0/40 °C
Storage:
-20/+50 °C
Hours of operation (eco mode)
max. 38 Stunden
Weight
ca. 220 g ca.
Dimensions
W x H x D:
66 x 143 x 37 mm
Degree of protection
IP 40 (EN 60529)
Display
TFT colour display 2.8 "
W x H:
45 x 60 mm
Supply voltage
lithium-ion battery (3.6 V/1800 mAh)
power supply unit (mini USB)
Battery or mains
Data memory
microSD card, max. 16 GB

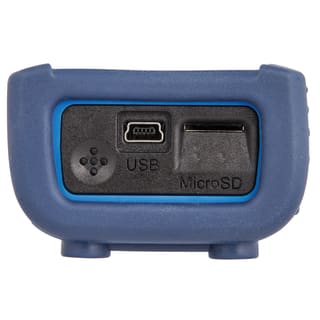

Interfaces
Infrared,
Bluetooth®,
QR code generator,
MicroSD-Kartenslot
Approvals
EN 50379-2
Scope of delivery
  • Measuring instrument
  • Kalibrierprotokoll
  • power supply unit
  • Ladekabel USB-A auf Mini-USB
  • microSD card
  • Geräteschutzhülle mit Magnet
