570200 Staubmessgerät STM 225 - BLACK EDITION Set1

Dust measuring instrument

manufactured goods

optical measuring principle for fast, accurate measurement results and real time diagnostics
Reliable measurement results, not influenced by interference (e.g. shocks)
intuitive operation via menu-guided measuring sequences
operation, flue gas analysis and data output via the optional flue gas analyser MULTILYZER STx as central controller

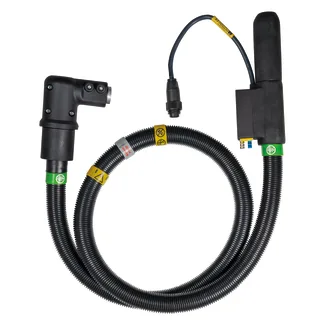

withdrawal system with quick-action coupling lock
visualisation via 5.7" colour touch display
permanent indication of the current measured value
output of the mass concentration of dust as a 15 minute mean value
qualification-tested also for 30-minutes mean value measurement
short setup time due to fast heat-up and zero point phase
easy connection of flue gas analyser MULTILYZER STx via Bluetooth®
compact, robust measuring system

Dust measuring instrument specially designed for mobile use at solid-fuel systems such as pellets or wood fired systems for determining the mass concentration of particles/dust and for monitoring the limit values for particulate matter. Approved for stages 1 and 2, including limit value monitoring 150 mg/m³ for old systems as well as 30-minutes mean value measurement (single-stage measurement) of single room combustion systems. The sampling probe can also be used for tightness tests of the entire gas path. Ideal for chimney sweeps, heating system engineers and service technicians for performing required particulate matter measurements, e.g. as per 1st German Federal Immission Act.

Technical data

Measuring range

dust:: 0/300 mg/m³

Resolution: 0.1 mg/m³

Operating temperature range

Ambient:: 5/40 °C

Storage:: -20/+50 °C

Housing

W x H x D:: 205 x 275 x 350 mm

Degree of protection: IP 40 (EN 60529)

Display

: TFT colour touch display 5.7 "

Supply voltage: AC 230 V, 50 Hz

Nominal power

without probe:: 90 VA

with heated probe:: 230 VA

Interfaces: Bluetooth®,
USB,
RS 232

Approvals: Zugelassen für die Brennstoffe 1-8 gemäß 1. BImSchV,
Eignungszulassung für Stufe 1+2, inklusive 150 mg/m³, 30-Minuten-Mittelwertmessung
