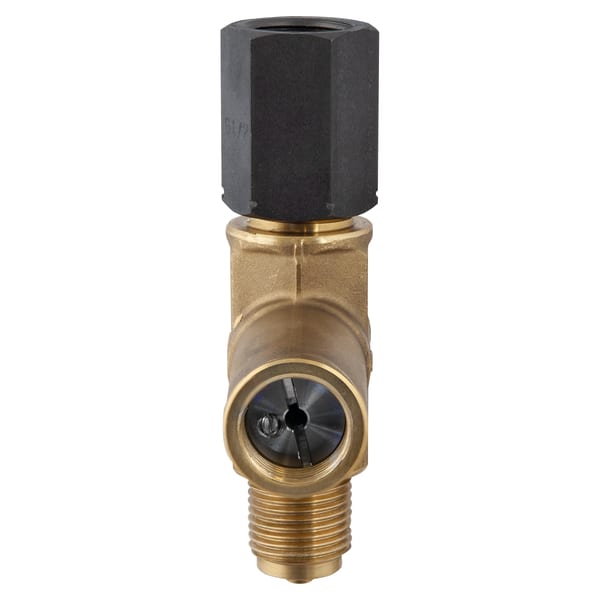

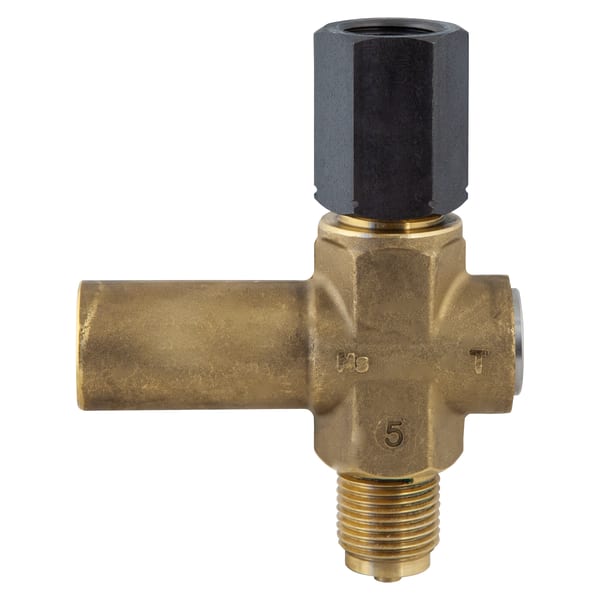

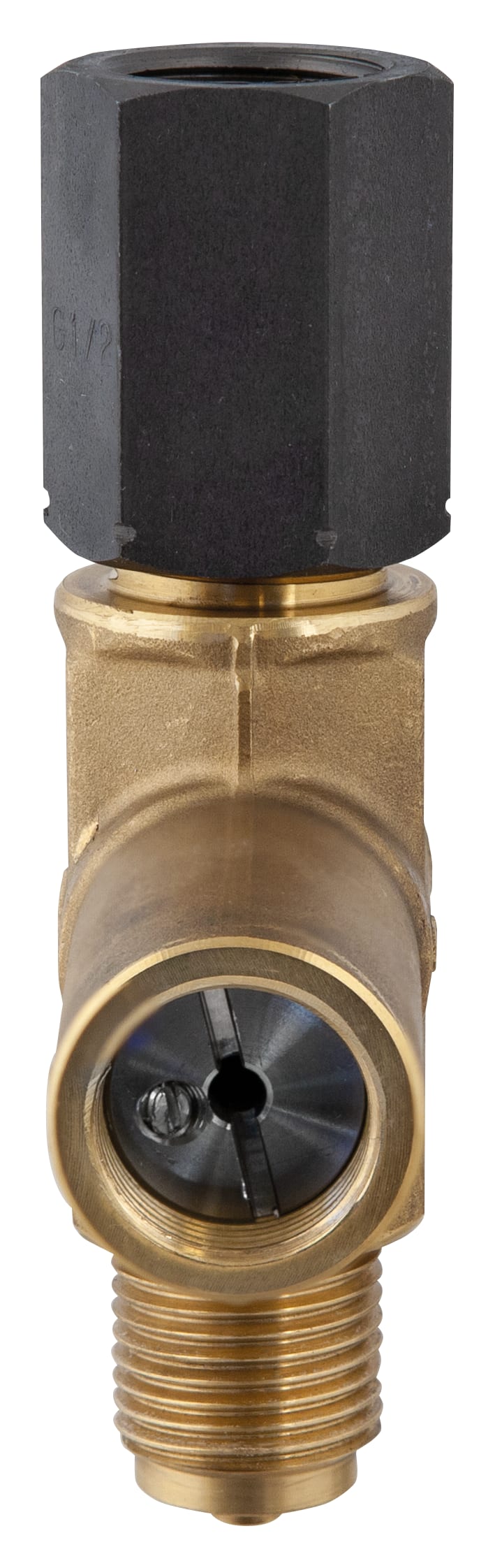

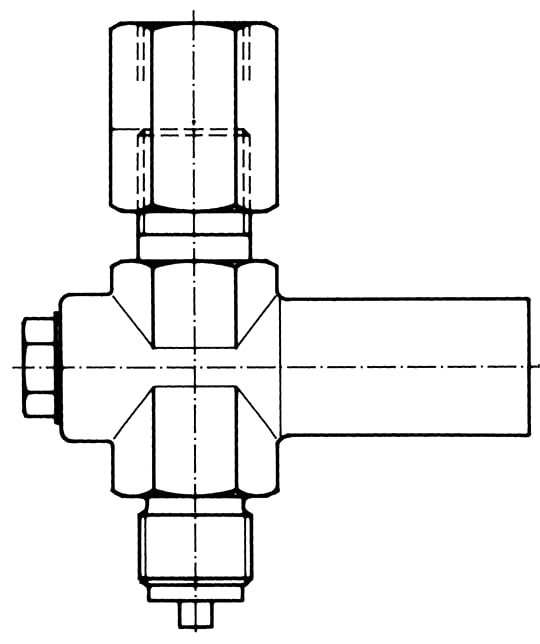

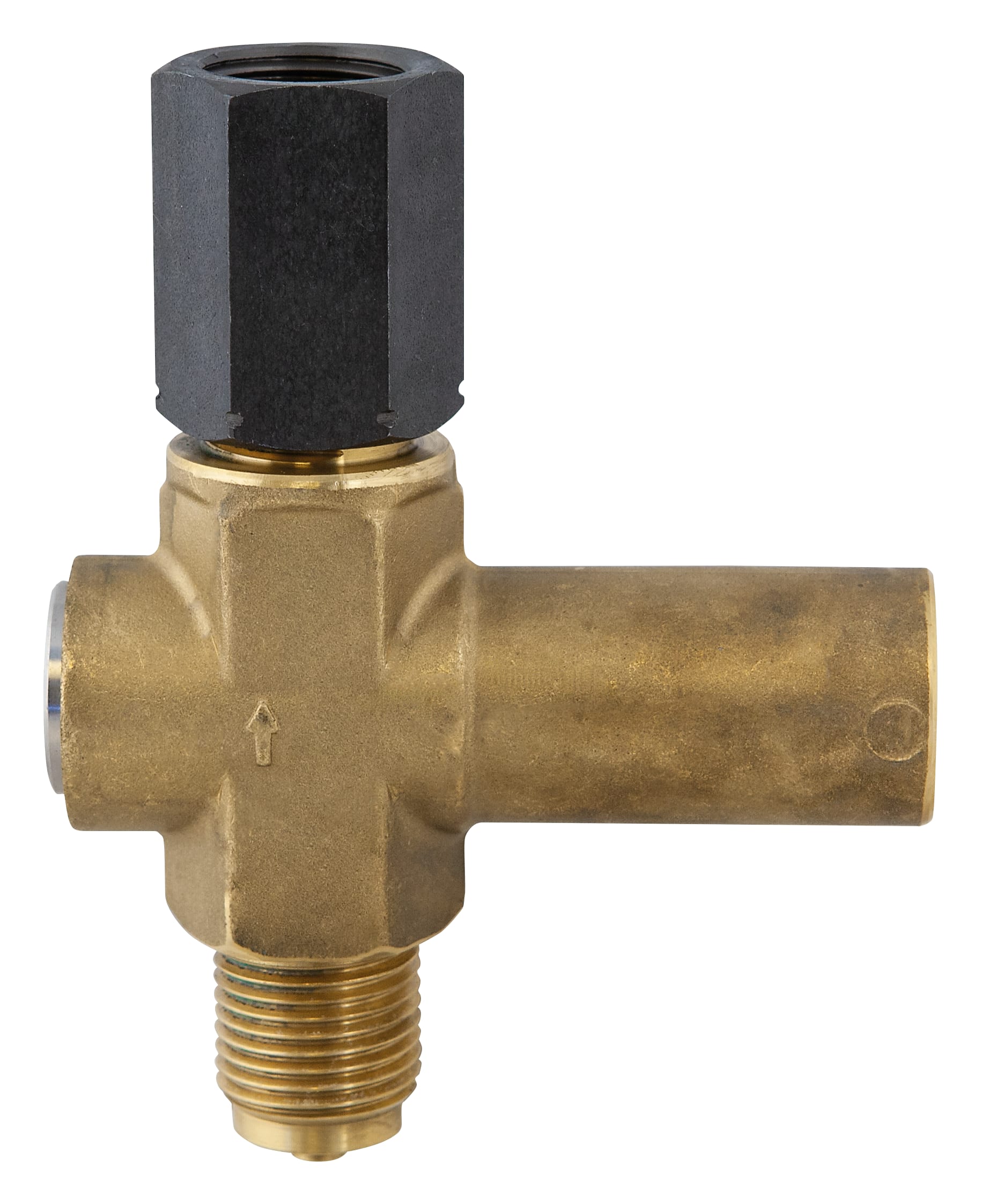

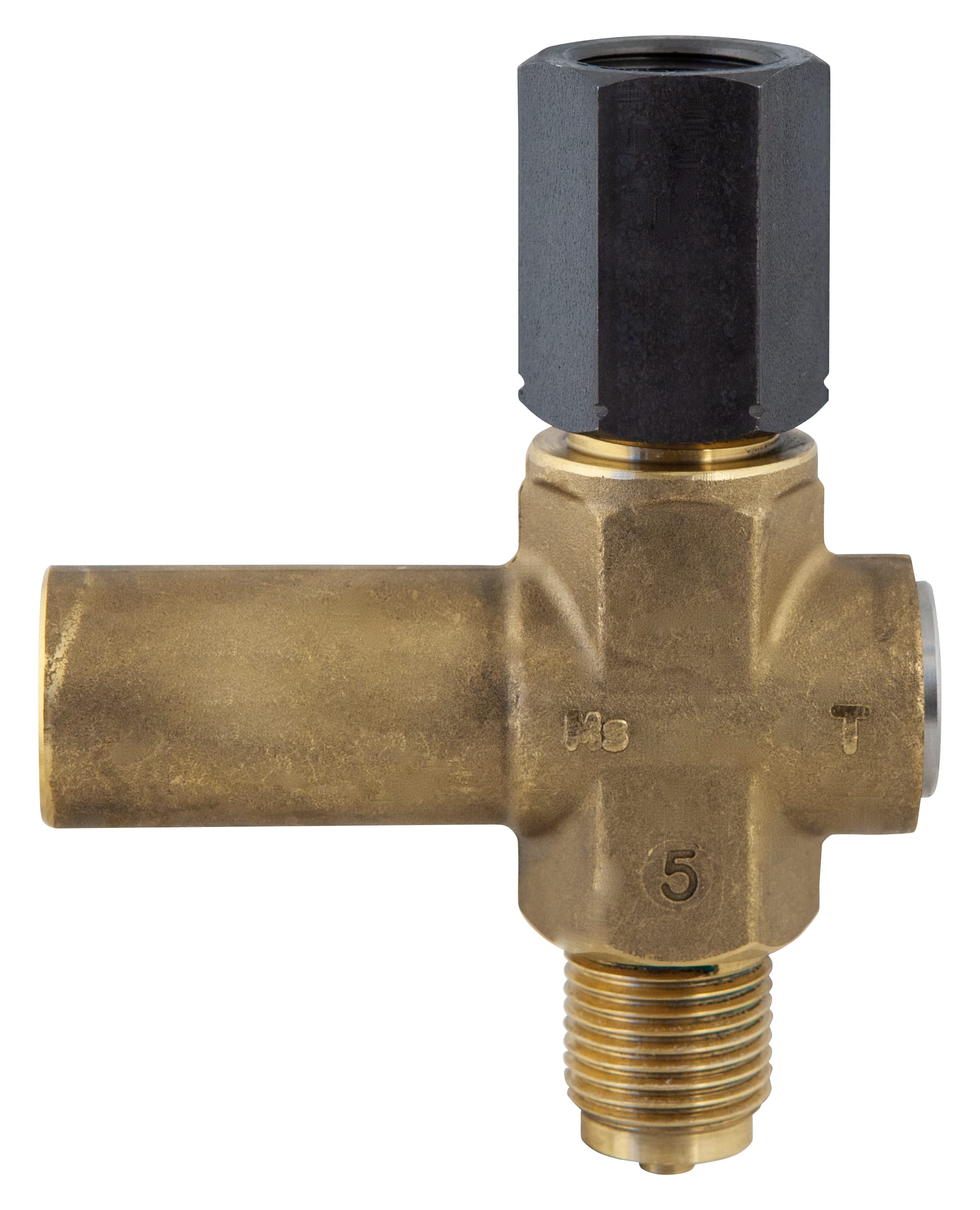

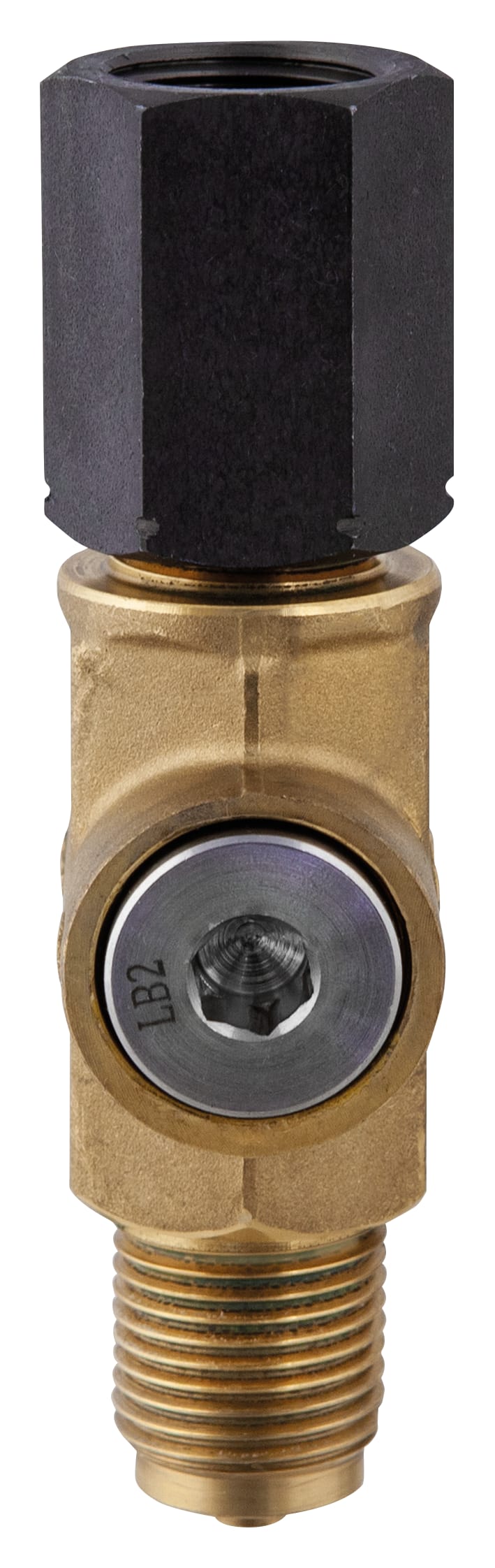

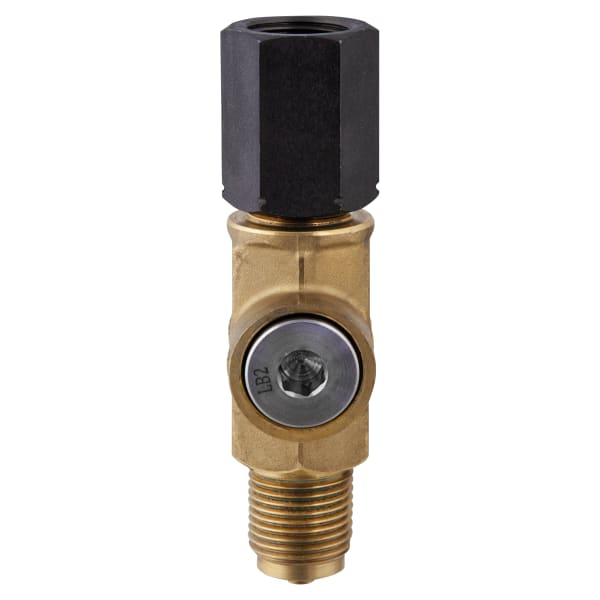

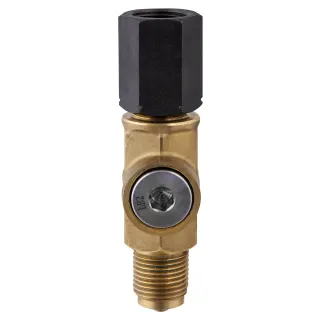

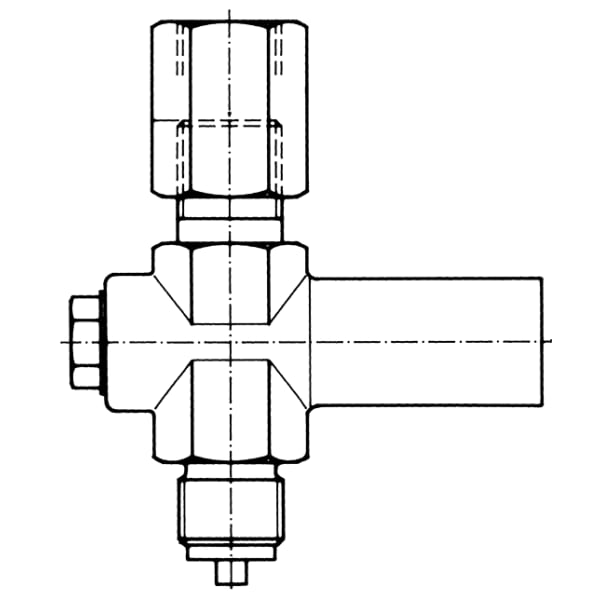

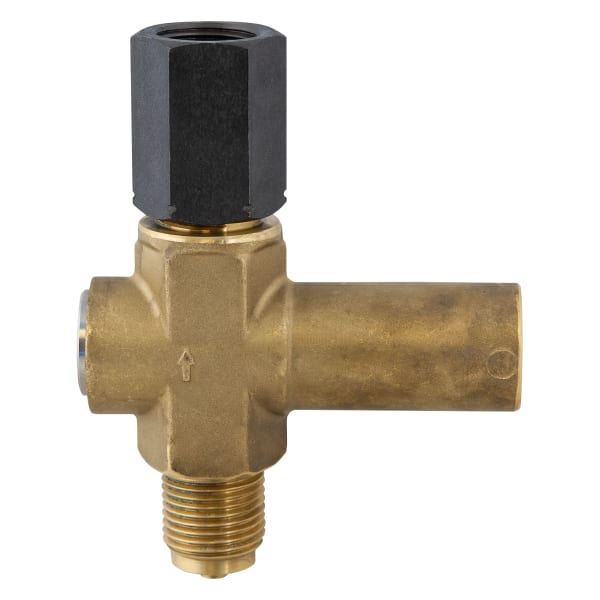

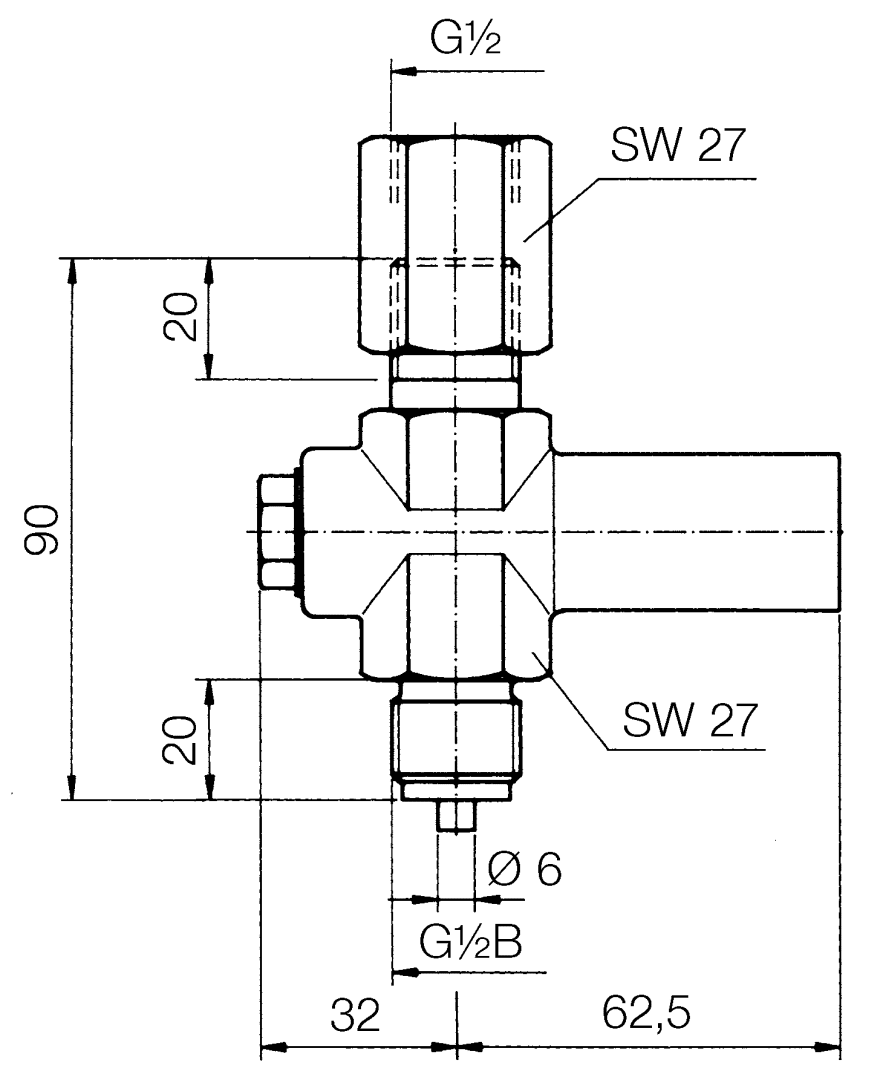

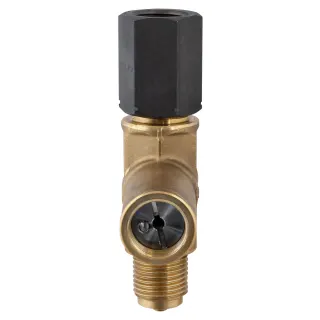

Images 5 Overpressure safety device, brass Variants Application Adjustable overpressure safety device used to protect the system against peak pressures exceeding the range of the pressure gauge. At measuring points which are subject to great pressure variations, you can install different pressure gauges with different ranges in order to precisely measure even the lower pressures. The overpressure safety devices are adjusted according to the maximum pressure ratings of the various pressure gauges installed. Variants Technical data Technical drawings Variants TypeConnectionAdjustment rangematerialPart no.Overpressure safety device female/female connection x maleG½0.4/2.5 barBrass63131Overpressure safety device female/female connection x maleG½2/6 barBrass63132Overpressure safety device female/female connection x maleG½5/25 barBrass63133Overpressure safety device female/female connection x maleG½20/60 barBrass63134Overpressure safety device female/female connection x maleG½50/250 barBrass63135Overpressure safety device female/female connection x maleG½240/400 barBrass63136 in-stock items manufactured goods Technical data FunctionWhen the set pressure is reached, a piston valve blocks the port to the pressure gauge. After the pressure has dropped to a value of approx. 25 % below the closing pressure, the valve opens again.Operating temperature rangemax. 80 °COverpressure safetyBrass: 600 barMax. vacuum range up to -1 bar, no adjustment functionConnectionG½ female/female connection x malematerialHousing: Brasspiston: Stainless steel 316 TiFemale/female connection: Steeldiaphragm: FKM (Viton)O ring: FKM (Viton) Technical drawings Click the corresponding image for detail views, additional information and dimension tables. Maße (mm)
