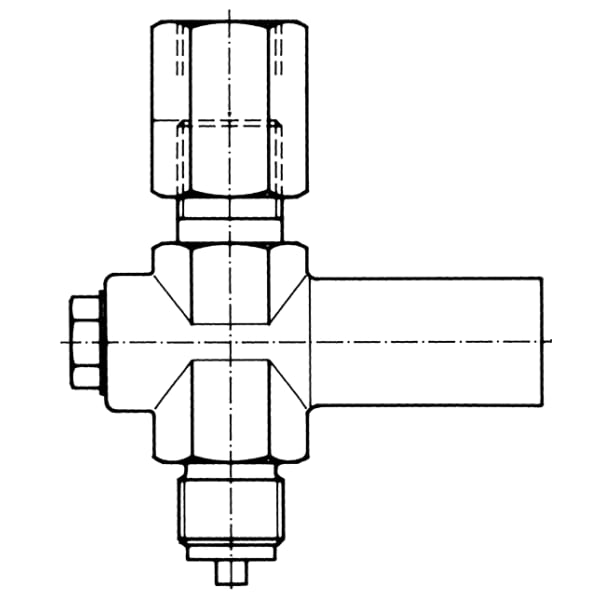

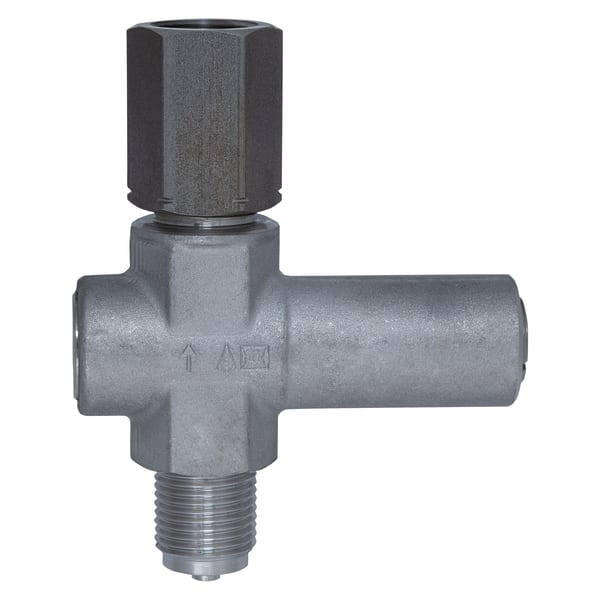

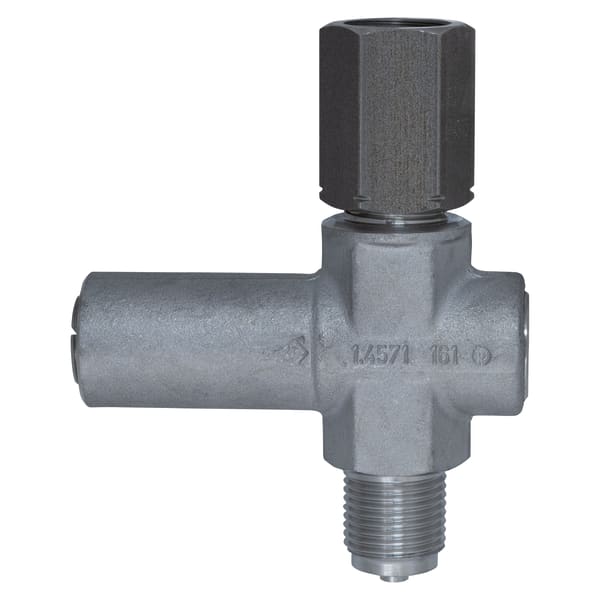

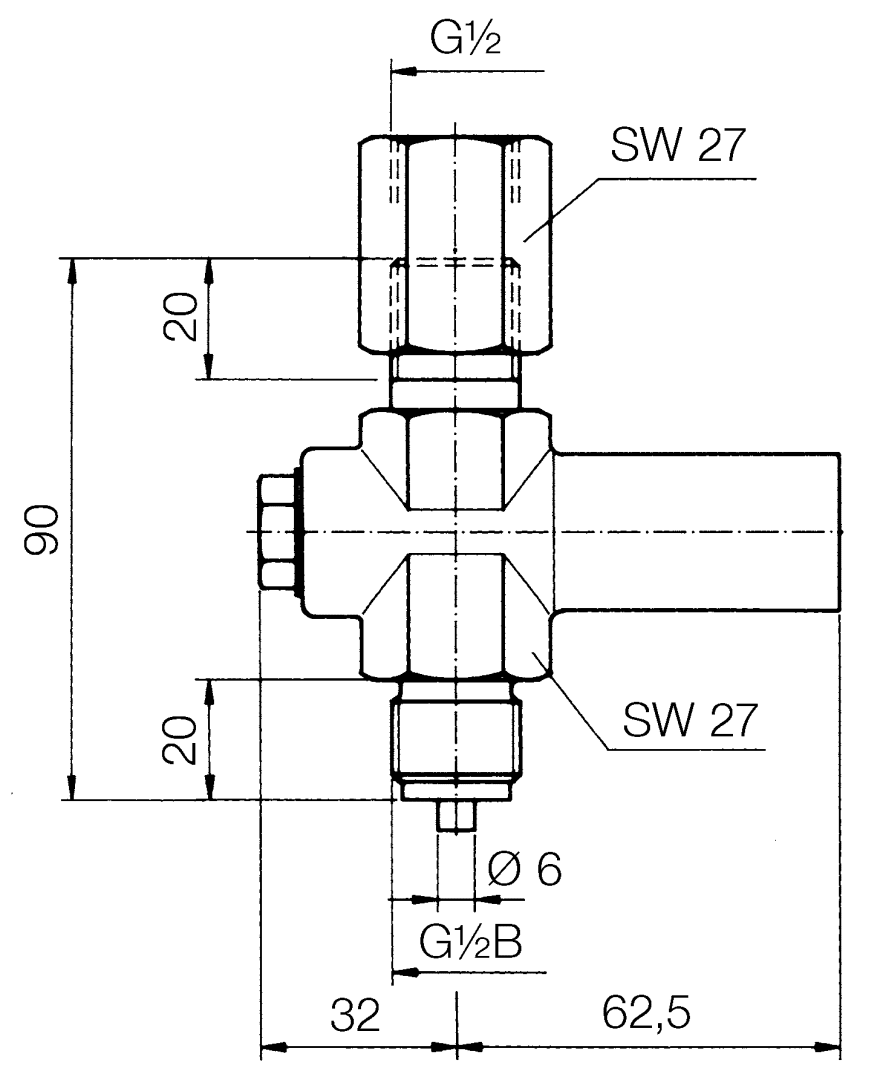

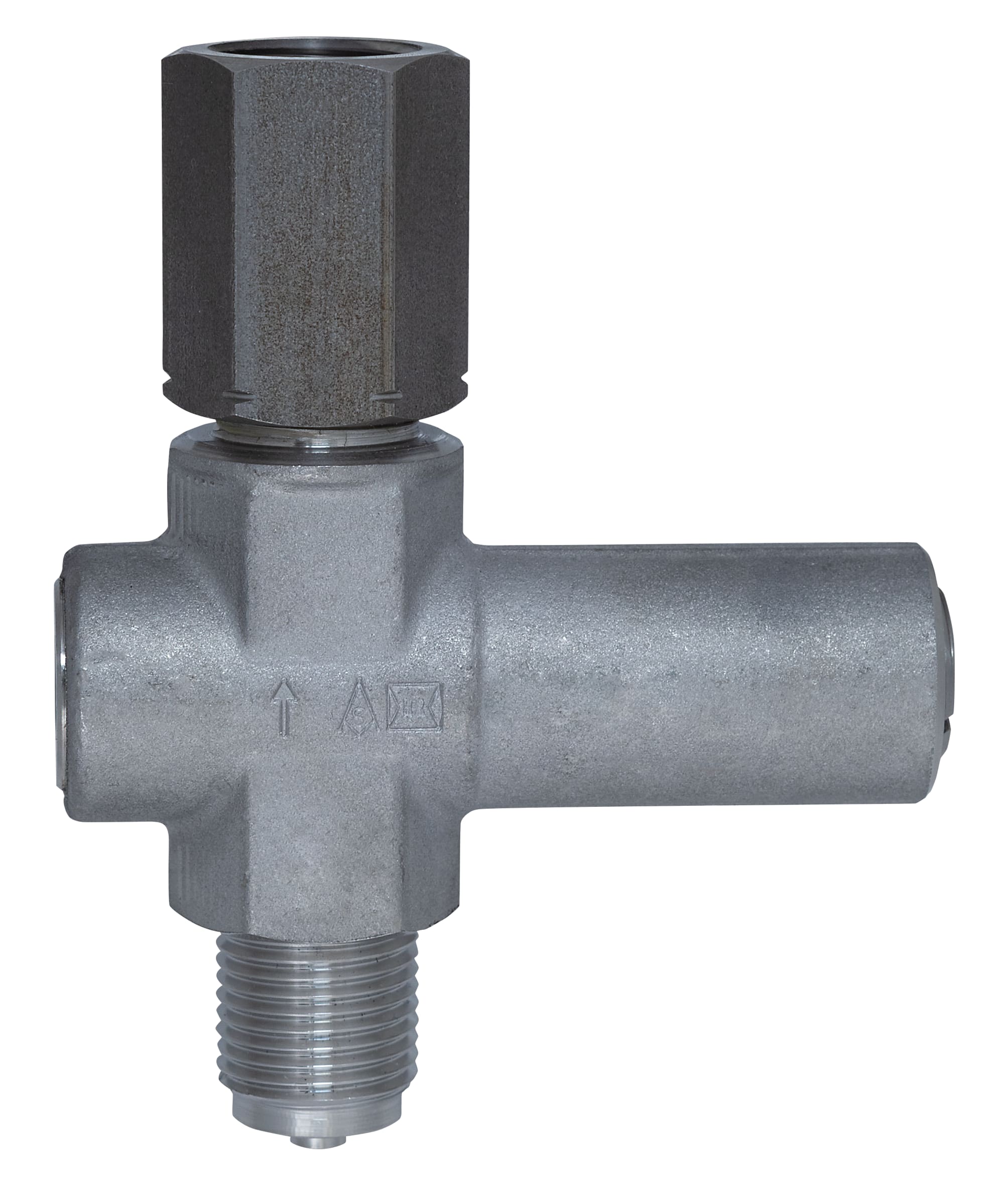

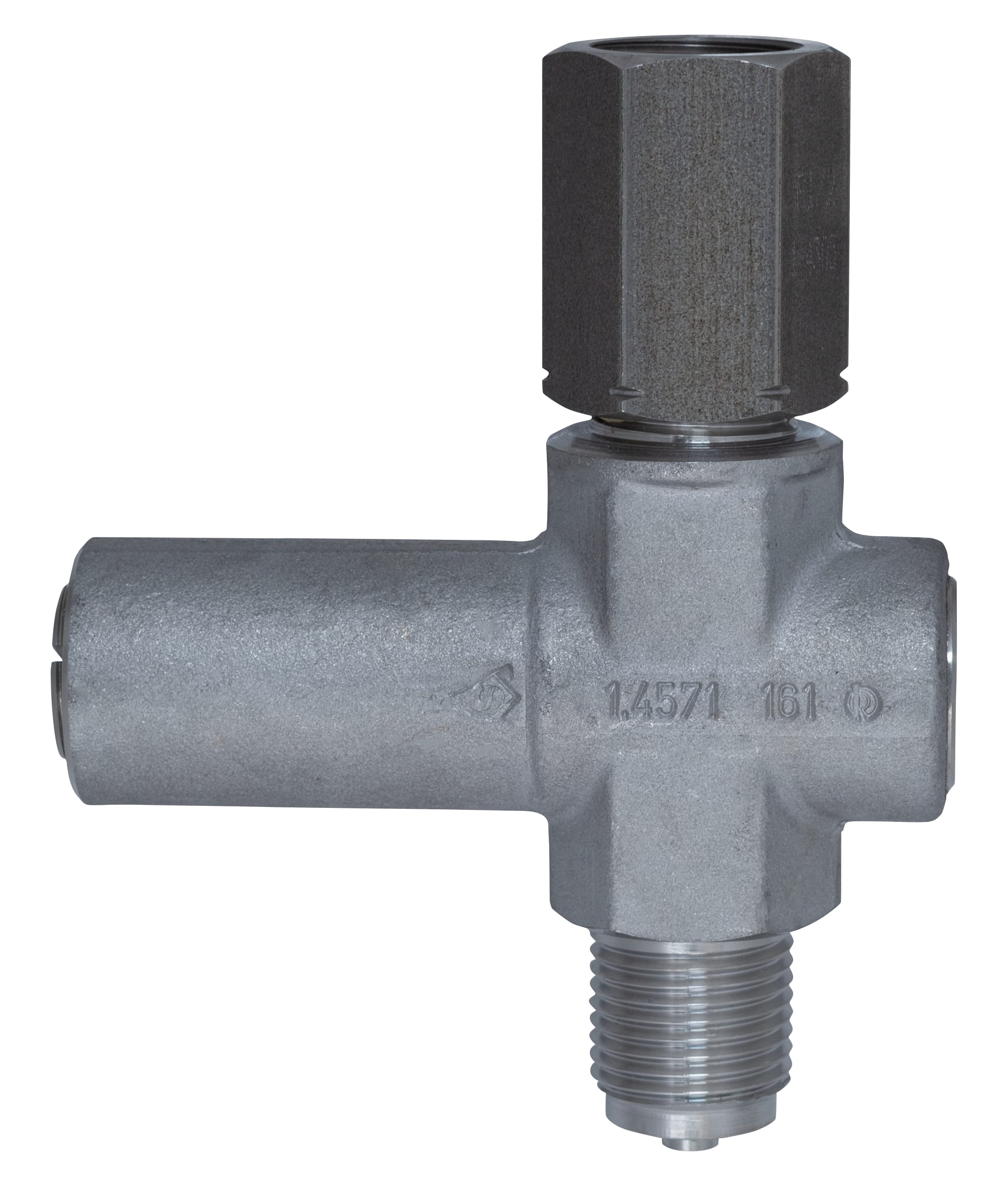

Images 3 Overpressure safety device, stainless steel 316 Ti Variants Application Adjustable overpressure safety device used to protect the system against peak pressures exceeding the range of the pressure gauge. At measuring points which are subject to great pressure variations, you can install different pressure gauges with different ranges in order to precisely measure even the lower pressures. The overpressure safety devices are adjusted according to the maximum pressure ratings of the various pressure gauges installed. Variants Technical data Technical drawings Variants TypeConnectionAdjustment rangematerialPart no.Overpressure safety device female/female connection x maleG½0.4/2.5 barStainless steel 316 Ti63139Overpressure safety device female/female connection x maleG½2/6 barStainless steel 316 Ti63140Overpressure safety device female/female connection x maleG½5/25 barStainless steel 316 Ti63141Overpressure safety device female/female connection x maleG½20/60 barStainless steel 316 Ti63142Overpressure safety device female/female connection x maleG½50/250 barStainless steel 316 Ti63143Overpressure safety device female/female connection x maleG½240/400 barStainless steel 316 Ti63144 in-stock items manufactured goods Technical data FunctionWhen the set pressure is reached, a piston valve blocks the port to the pressure gauge. After the pressure has dropped to a value of approx. 25 % below the closing pressure, the valve opens again.Operating temperature rangemax. 80 °COverpressure safetyStainless steel 316 Ti: 1000 barMax. vacuum range up to -1 bar, no adjustment functionConnectionG½ female/female connection x malematerialHousing: Stainless steel 316 Tipiston: Stainless steel 316 TiFemale/female connection: Stainless steel 303diaphragm: FKM (Viton)O ring: FKM (Viton) Technical drawings Click the corresponding image for detail views, additional information and dimension tables. Maße (mm)
