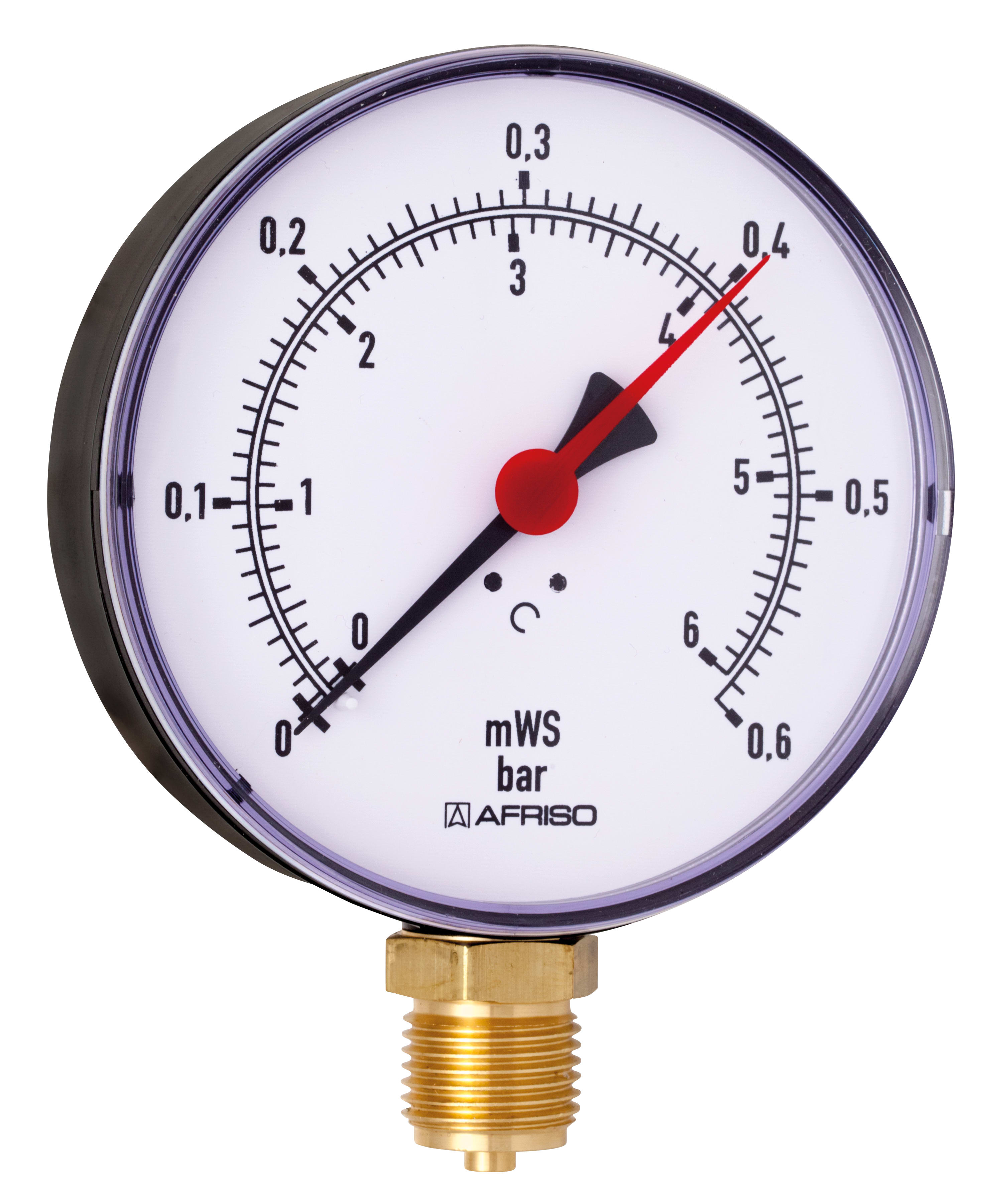

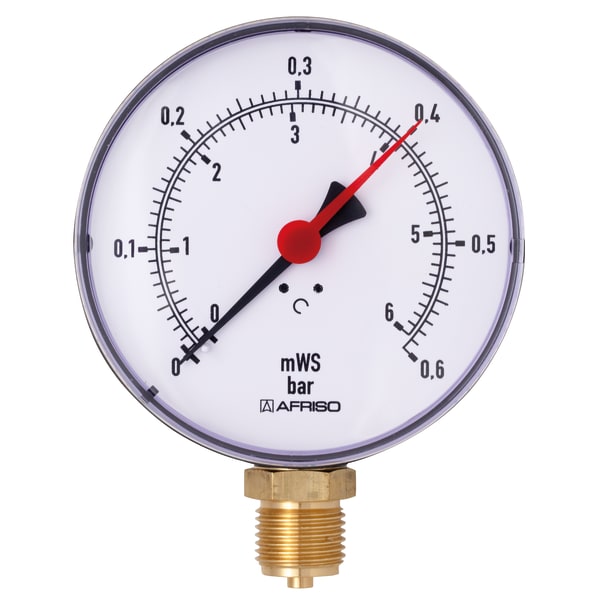

PRO_TEC_VOR_HY100_RAD_63281.TIF

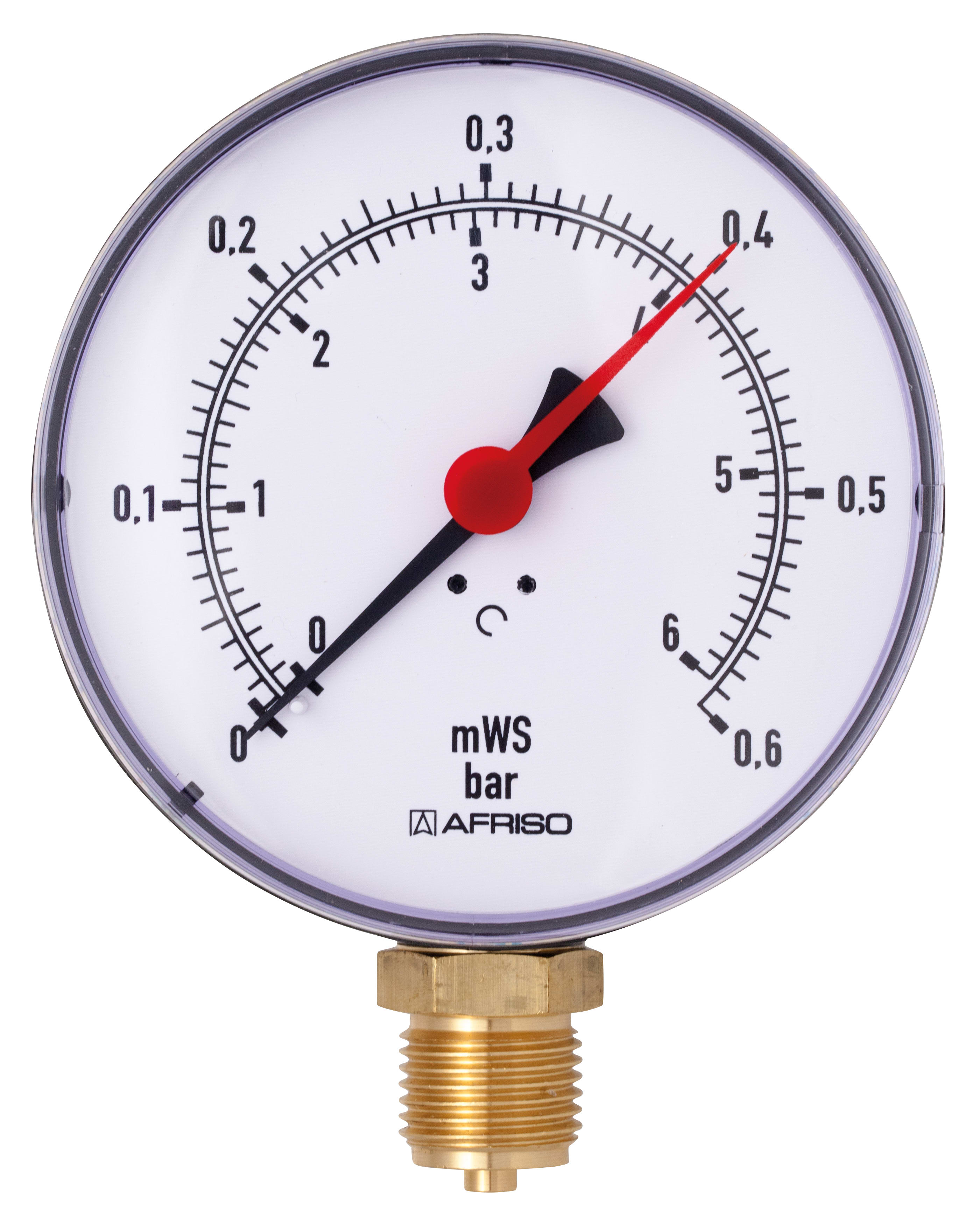

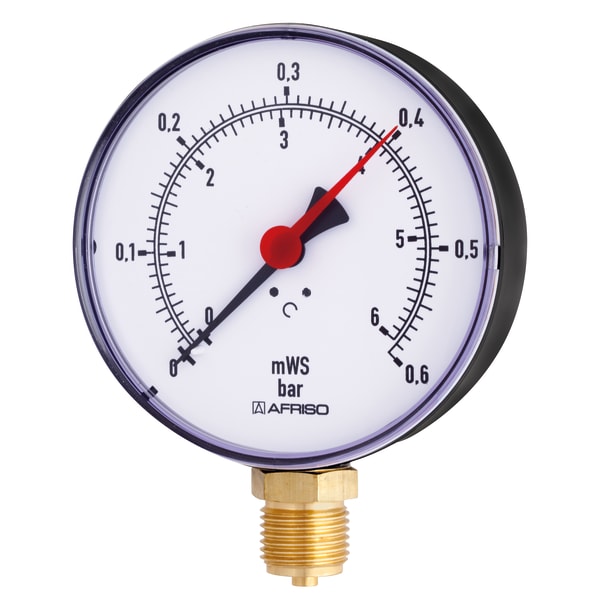

PRO_TEC_SAL_HY100_RAD_63281.TIF

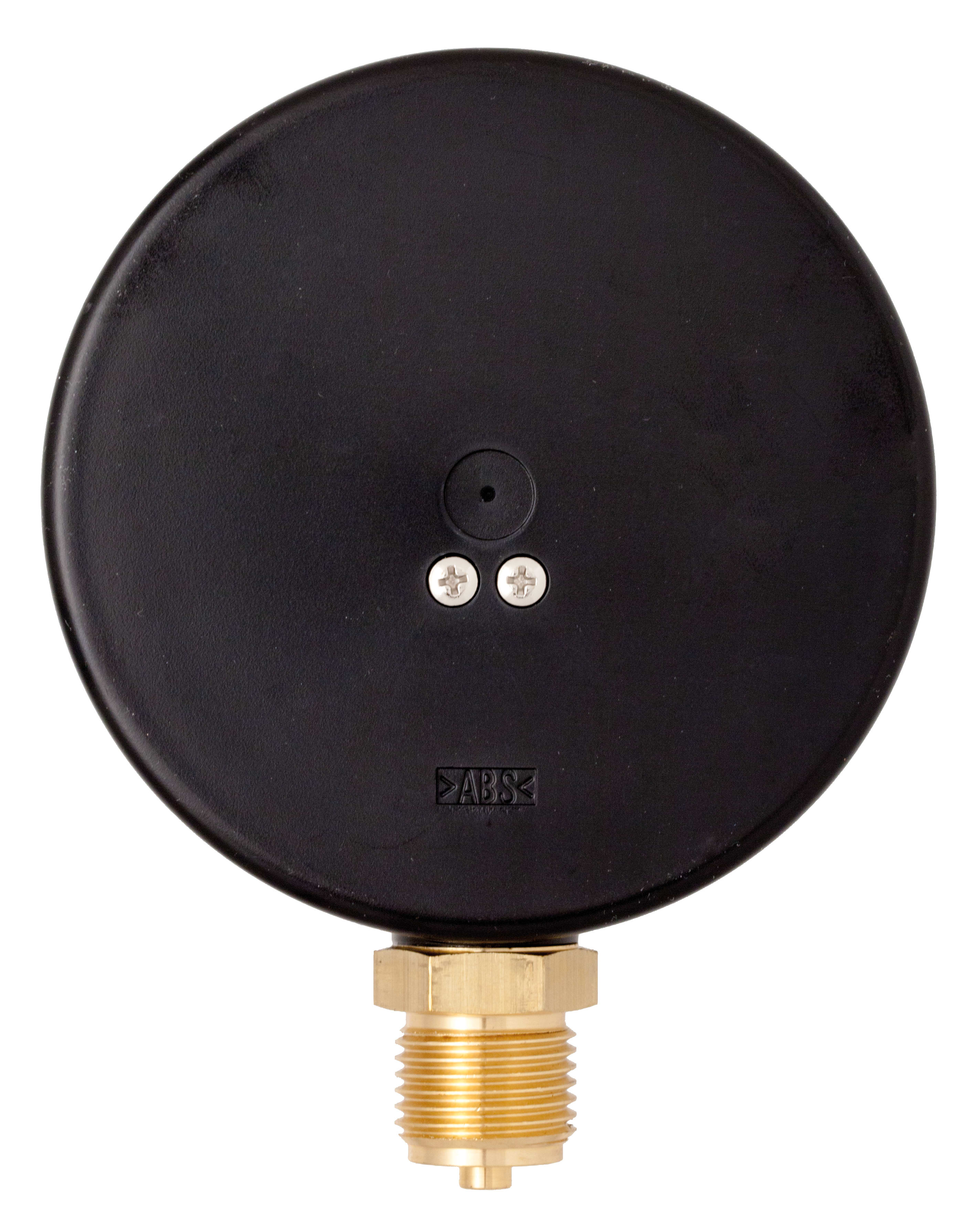

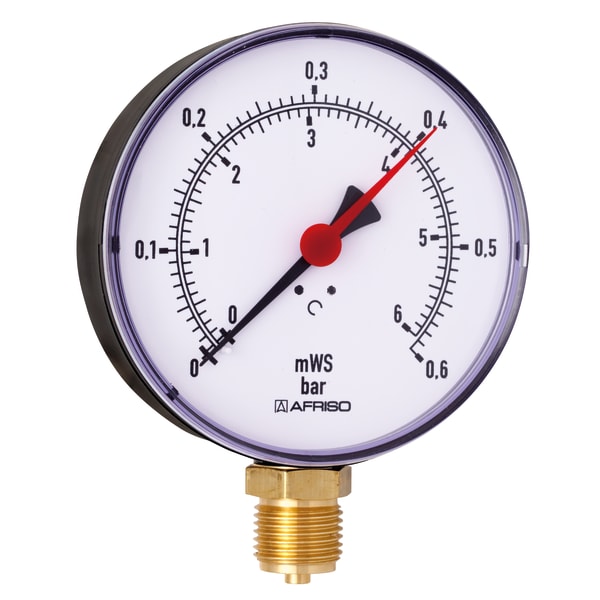

PRO_TEC_SAR_HY100_RAD_63281.TIF

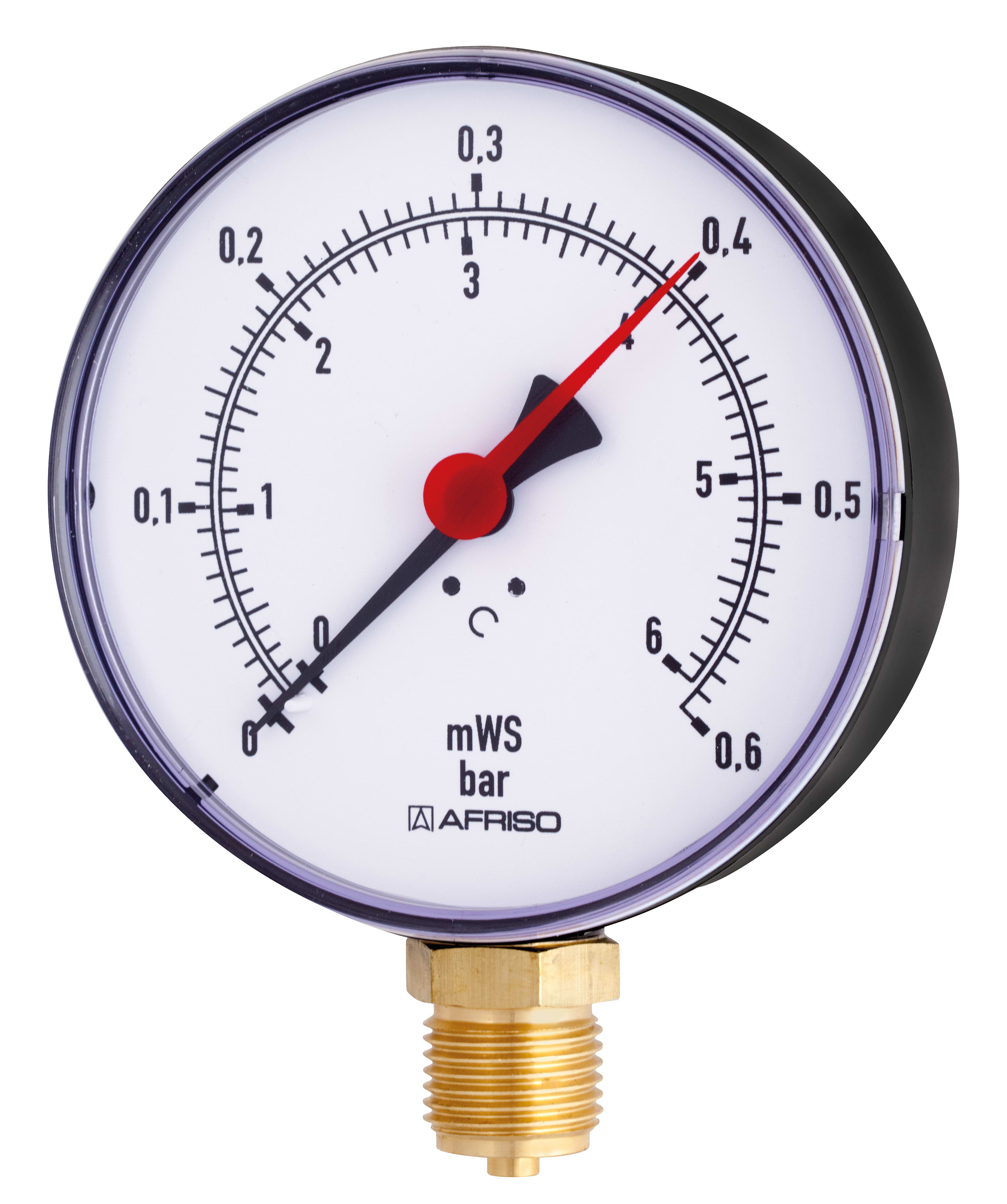

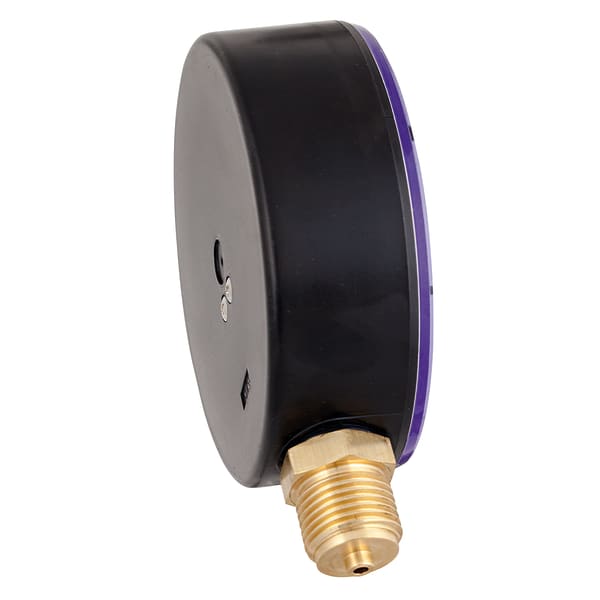

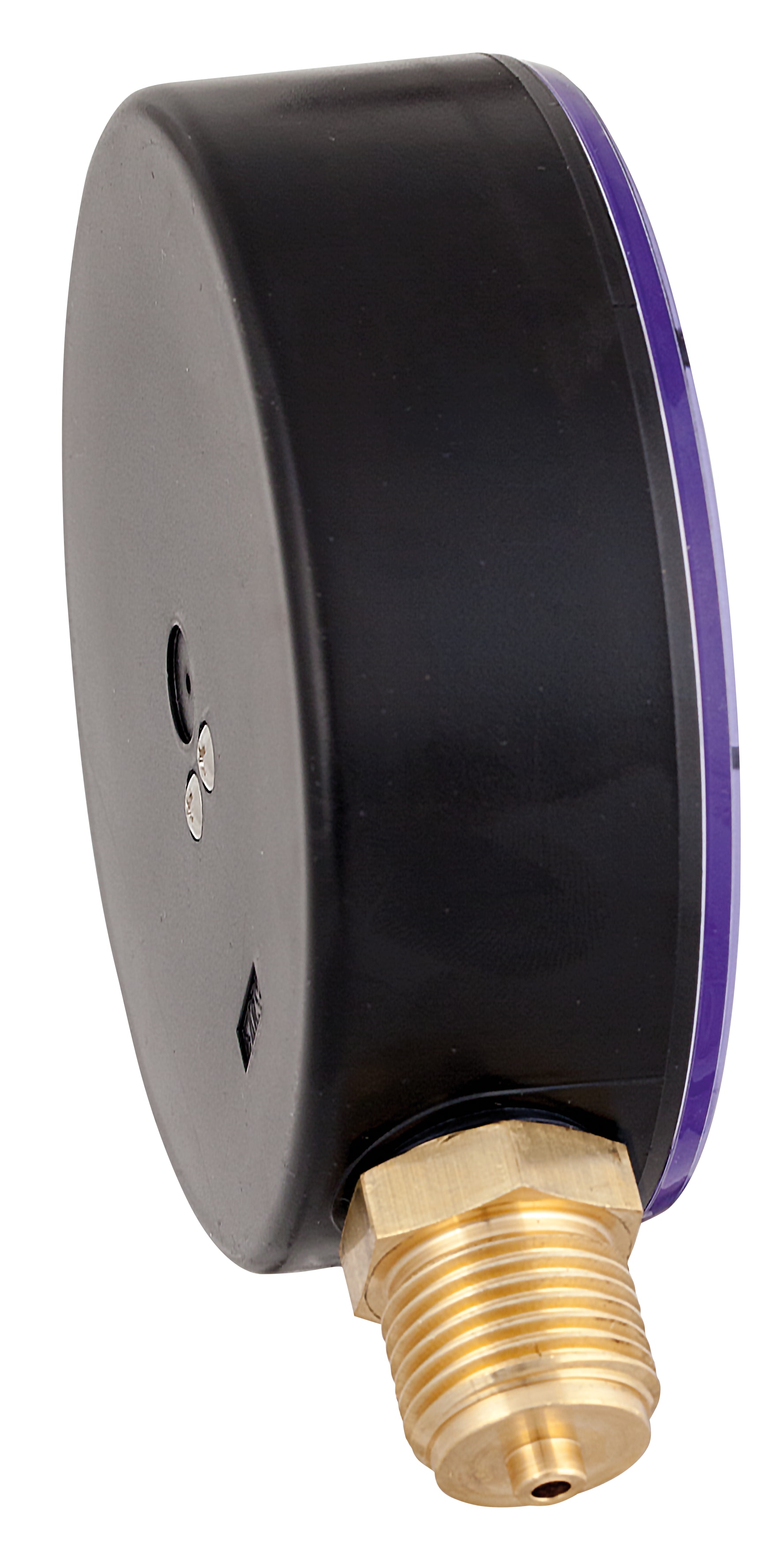

PRO_TEC_DRU_HY100_RAD_63281.TIF

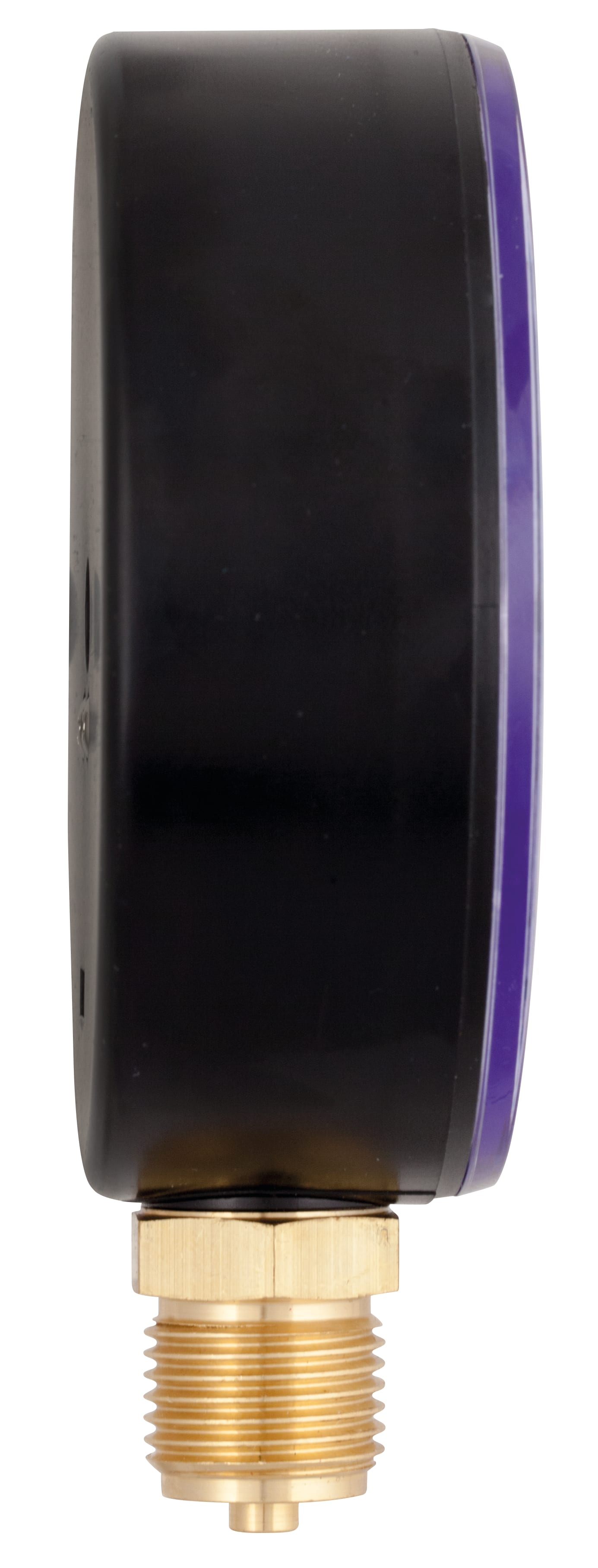

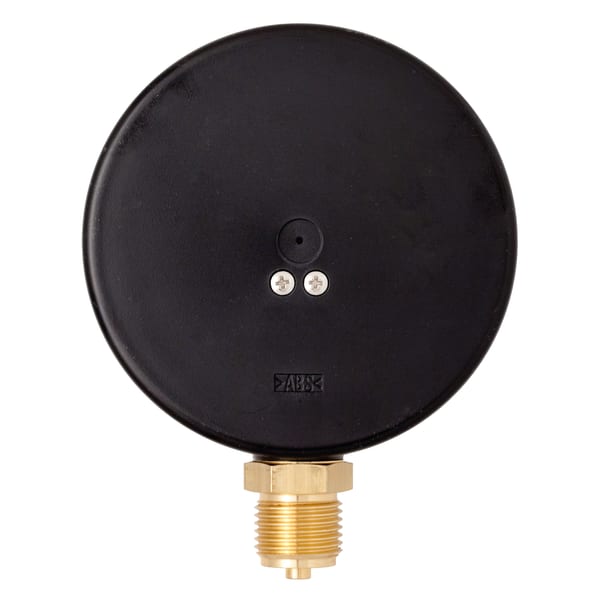

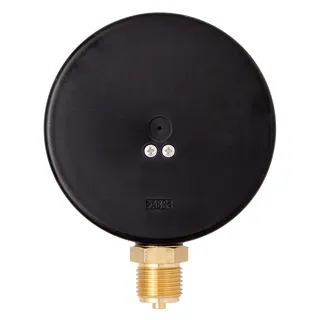

PRO_TEC_RUE_HY100_RAD_63281.TIF

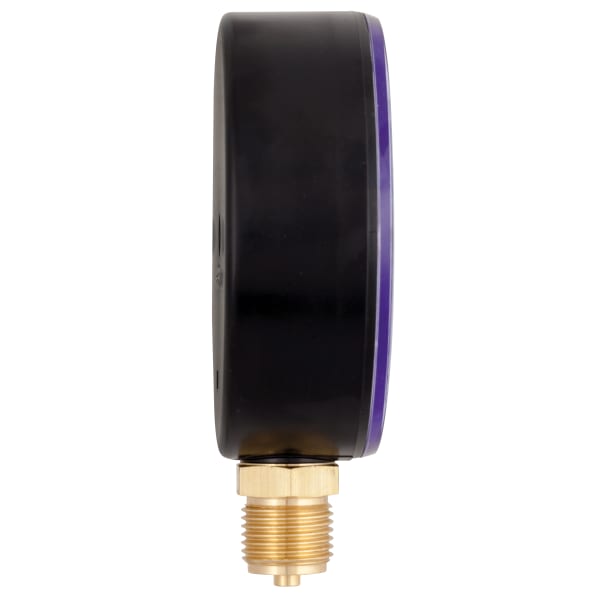

PRO_TEC_SCD_MANOMETER_RADIAL.TIF

Images 6

HY 100

Hydrometer für Heizung/Sanitär

Variants Documents

		housing ⌀	Connection	Connection	Thread	alignment	Range	Type	Part no.
	HY 100	100 mm	G½B			bottom	0/0.6 bar	HY 100	63281
	HY 100	100 mm	G½B			bottom	0/1 bar	HY 100	63282
	HY 100	100 mm	G½B			bottom	0/1.6 bar	HY 100	63283
	HY 100	100 mm	G½B			bottom	0/2.5 bar	HY 100	63284
	HY 100	100 mm	G½B			bottom	0/4 bar	HY 100	63285
	HY 100	100 mm	G½B			bottom	0/6 bar	HY 100	63286
	HY 100	100 mm	G½B			bottom	0/10 bar	HY 100	63287

in-stock items
manufactured goods

Nominal size: 100 - 100

accuracy class (EN 837-1/6): 2,5

ranges

: 0/0.6 bar

application area

static load:: ¾ x full scale value

dynamic load:: ⅔ x full scale value

short-term:: Full scale value

Operating temperature range

Medium:: max. 60 °C

Ambient:: -20/+60 °C

Temperature performance: Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,4 %/10 K,
falling temperature approx. ± 0.4 %/10 K
vom jeweiligen Skalenendwert

Degree of protection: IP 32 (EN 60529)

Standard design

Connection

: Brass, bottom

: NG 100: G½B

Measuring element

: Bourdon tube, "C" type tube

: Copper alloy

movement

: Brass

Dial

: Kunststoff, weiß

: dual scale bar outer - mWC inner

: Scaling black

Pointer

: Kunststoff, schwarz

Housing

: Kunststoff (ABS), schwarz, highly impact-resistant and corrosion-resistant

window

: Kunststoff, eingeclipst

: with adjustable red reference pointer

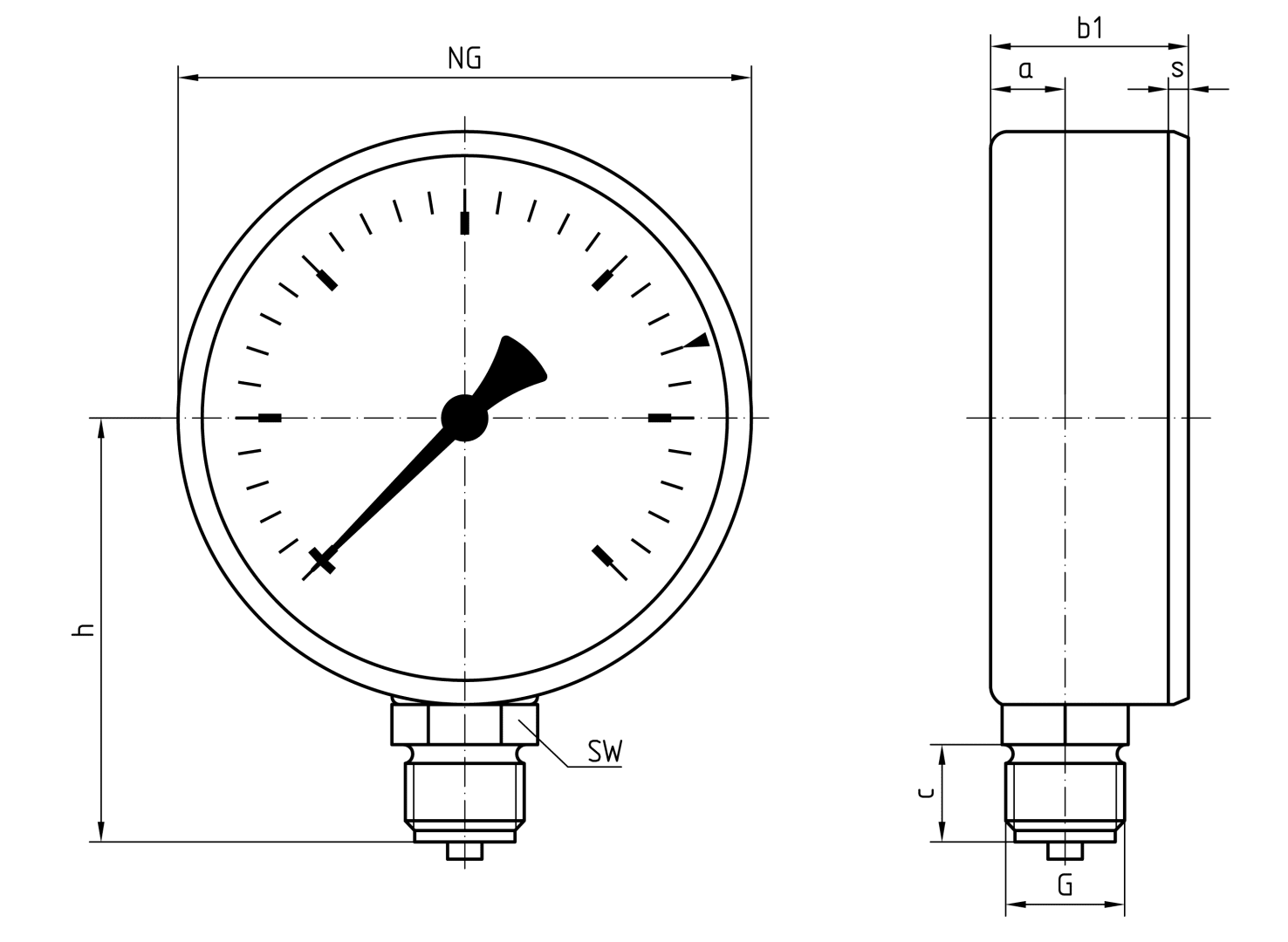

Click the corresponding image for detail views, additional information and dimension tables.
