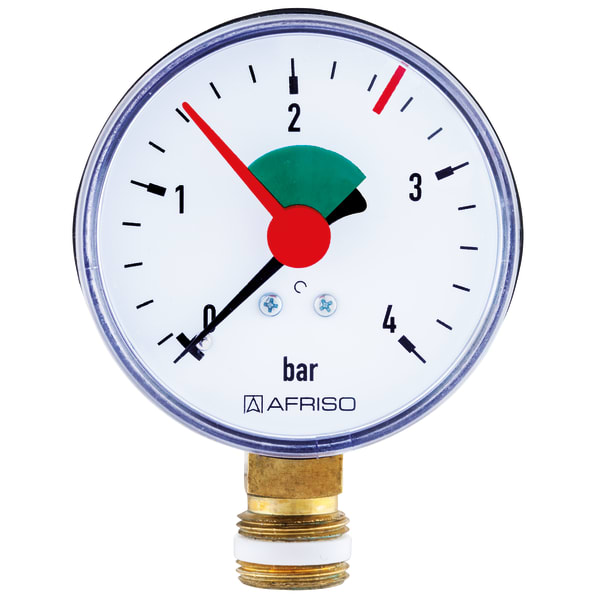

Images 1 Back HZ 63 | 63908 Rohrfeder-Manometer für Heizung/Sanitär in-stock items Documents Benefits with self-sealing connection thread (NG 50 and 63) for fast mountingred maximum mark on dialadjustable red reference pointer and green operation segment on windowcorrosion-resistant housing Application For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys and EPDM.! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)! Technical data Technical drawings Downloads Technical data Nominal size63 - 63accuracy class (EN 837-1/6)2,5ranges0/4 barapplication areastatic load: ¾ x full scale valuedynamic load: ⅔ x full scale valueshort-term: Full scale valueOperating temperature rangeMedium: max. 60 °CAmbient: -20/+60 °CTemperature performanceIndication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:bei Temperaturzunahme ca. ± 0,4 %/10 K,falling temperature approx. ± 0.4 %/10 Kvom jeweiligen SkalenendwertDegree of protectionIP 32 (EN 60529) Standard design ConnectionBrass, bottomNG 63: G⅜B, Self-sealing with PTFE sealing ringMeasuring elementBourdon tube, "C" type tubeCopper alloymovementBrassDialKunststoff, weißWith red mark at 2.5 bar and green sector from 1.5 to 2.5 barScaling blackPointerKunststoff, schwarzHousingKunststoff (ABS), schwarz, highly impact-resistant and corrosion-resistantwindowKunststoff, eingeclipstwith adjustable red reference pointer and green flag Technical drawings Click the corresponding image for detail views, additional information and dimension tables. RF/HZ 63 – bottom connection Dimensions (mm) NG a b1 c c1 G G1 h h1 s SW SW1 63 9,8 29,7 11,2 13 G½B G⅜B 49,5 51,5 3,7 14 17 Downloads Montage Manometer Manuals Industrial technology PDF Download Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck Manuals Industrial technology PDF Ukrainian German German AFRISO_EU-KONFORMITAETSERKLAERUNG_DRUCKGERAETE_DE.PDF Industrial technology PDF Download
Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck Manuals Industrial technology PDF Ukrainian German German
