Domestic technology Pressure measuring instruments for domestic technology KP100 D301

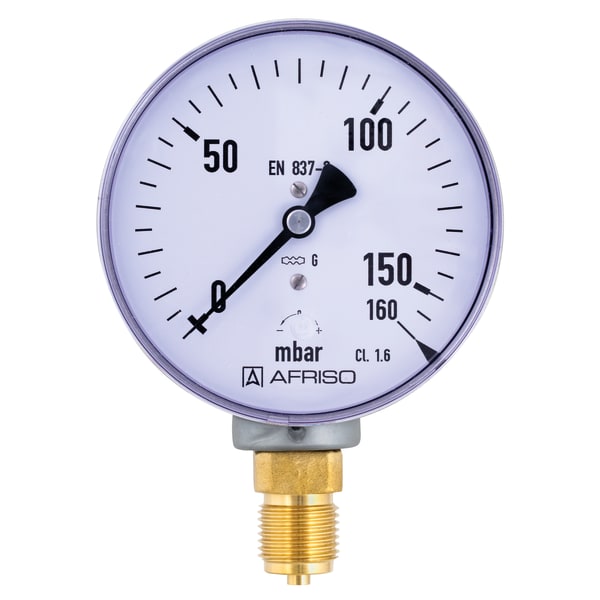

PRO_TEC_VOR_KP100_D301_35120301.TIF

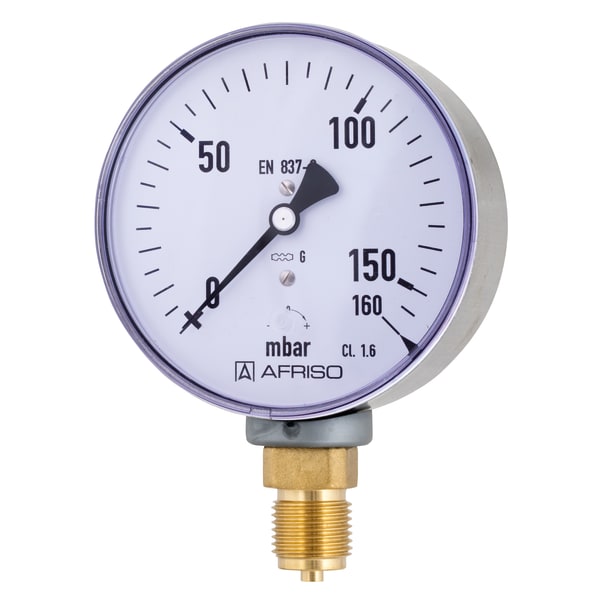

PRO_ECO_PRI_KP100_D301.TIF

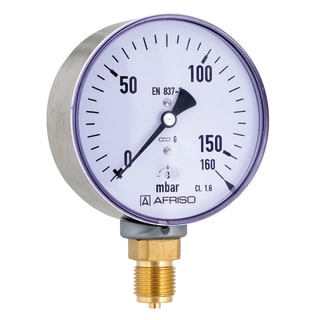

PRO_TEC_SAL_KP100_D301_35120301.TIF

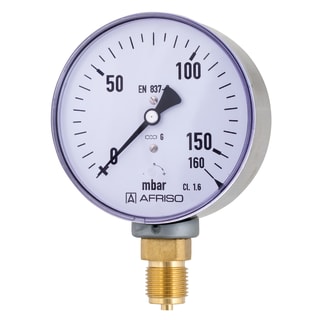

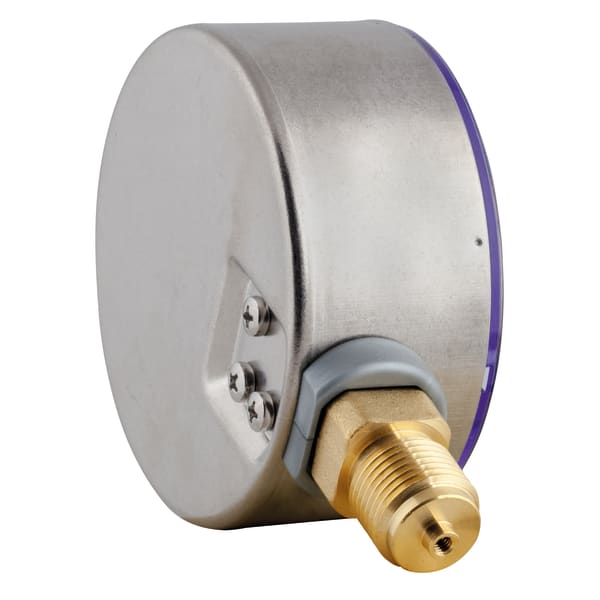

PRO_TEC_SAR_KP100_D301_35120301.TIF
PRO_TEC_DRU_KP100_D301_35120301.TIF

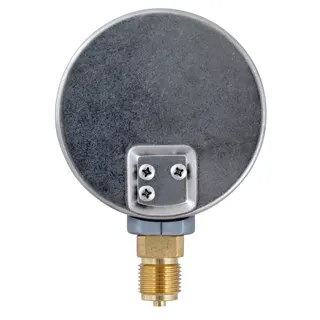

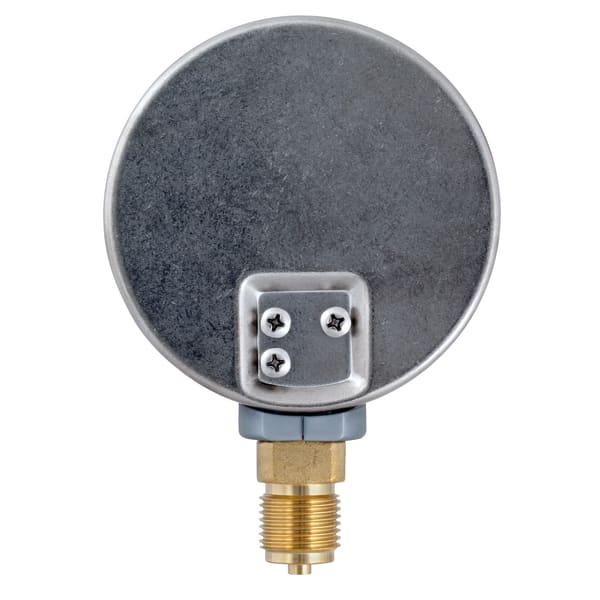

PRO_TEC_RUE_KP100_D301_35120301.TIF
PRO_TEC_ILL_SCHNITT_KP.TIF
PRO_TEC_SCD_MANOMETER_RADIAL.TIF
PRO_TEC_VOR_KP100_D301_35120301.TIF
PRO_ECO_PRI_KP100_D301.TIF
PRO_TEC_SAL_KP100_D301_35120301.TIF
PRO_TEC_SAR_KP100_D301_35120301.TIF
PRO_TEC_DRU_KP100_D301_35120301.TIF
PRO_TEC_RUE_KP100_D301_35120301.TIF
PRO_TEC_ILL_SCHNITT_KP.TIF
PRO_TEC_SCD_MANOMETER_RADIAL.TIF
Images 8

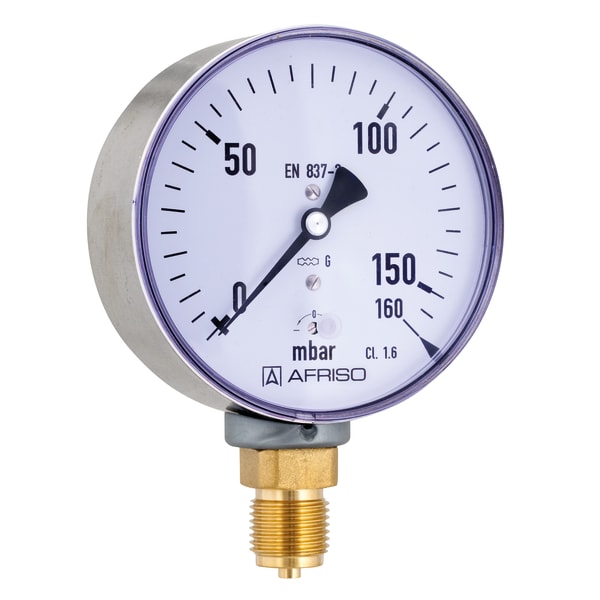

KP100 D301

Kapselfeder-Standardmanometer Typ D3

Variants Documents

housing ⌀ (nominal size)100 mm
ConnectionG½B
alignmentbottom
accuracy class1,6
standardEN 837-3

  • with zero correction
  • ideal for low pressure ranges
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-25/0 mbardirectKP100 D30135104301
-40/0 mbardirectKP100 D30135105301
-60/0 mbardirectKP100 D30135106301
-100/0 mbardirectKP100 D30135107301
-160/0 mbardirectKP100 D30135108301
-250/0 mbardirectKP100 D30135109301
-400/0 mbardirectKP100 D30135110301
-600/0 mbardirectKP100 D30135111301
-1 000/0 mbardirectKP100 D30135112301
0/25 mbardirectKP100 D30135116301
0/40 mbardirectKP100 D30135117301
0/60 mbardirectKP100 D30135118301
0/100 mbardirectKP100 D30135119301
0/160 mbardirectKP100 D30135120301
0/250 mbardirectKP100 D30135121301
0/400 mbardirectKP100 D30135122301
0/600 mbardirectKP100 D30135123301
0/1 000 mbardirectKP100 D30135124301
  • in-stock items
  • manufactured goods

Type
D3
Nominal size
100 - 100
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 100: IP 44 (EN 60529)

Standard design

Connection
Brass, bottom
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
window
Kunststoff, eingeclipst

Click the corresponding image for detail views, additional information and dimension tables.

Bottom connection

PRO_TEC_BEP_KP_D20X-D30X_S.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
Genauigkeitsklasse 1,0 | 38180
Anschlussstutzen vernickelt | 38086
Drosselschraube Messing | 38099
3-Lochfrontflansch Edelstahl 304 poliert | 37609
Befestigungsrand hinten Edelstahl 304 trowalisiert
Befestigungsrand hinten Edelstahl 304 trowalisiert | 38050
Gehäuse Edelstahl 304 poliert KP | 37613
red mark on dial | 38186
1 Markenzeiger rot verstellbar mit Schraubendreher | 38117
1 Markenzeiger rot verstellbar mit Drehknopf | 38190
special mounting position | 38149
Klischeekosten je Skala und Farbe | 38155
Druckkosten je Farbe | 38167
3-Lochfrontflansch Bajonett ES 304 poliert
3-Lochfrontflansch Bajonett ES 304 poliert | 38056
