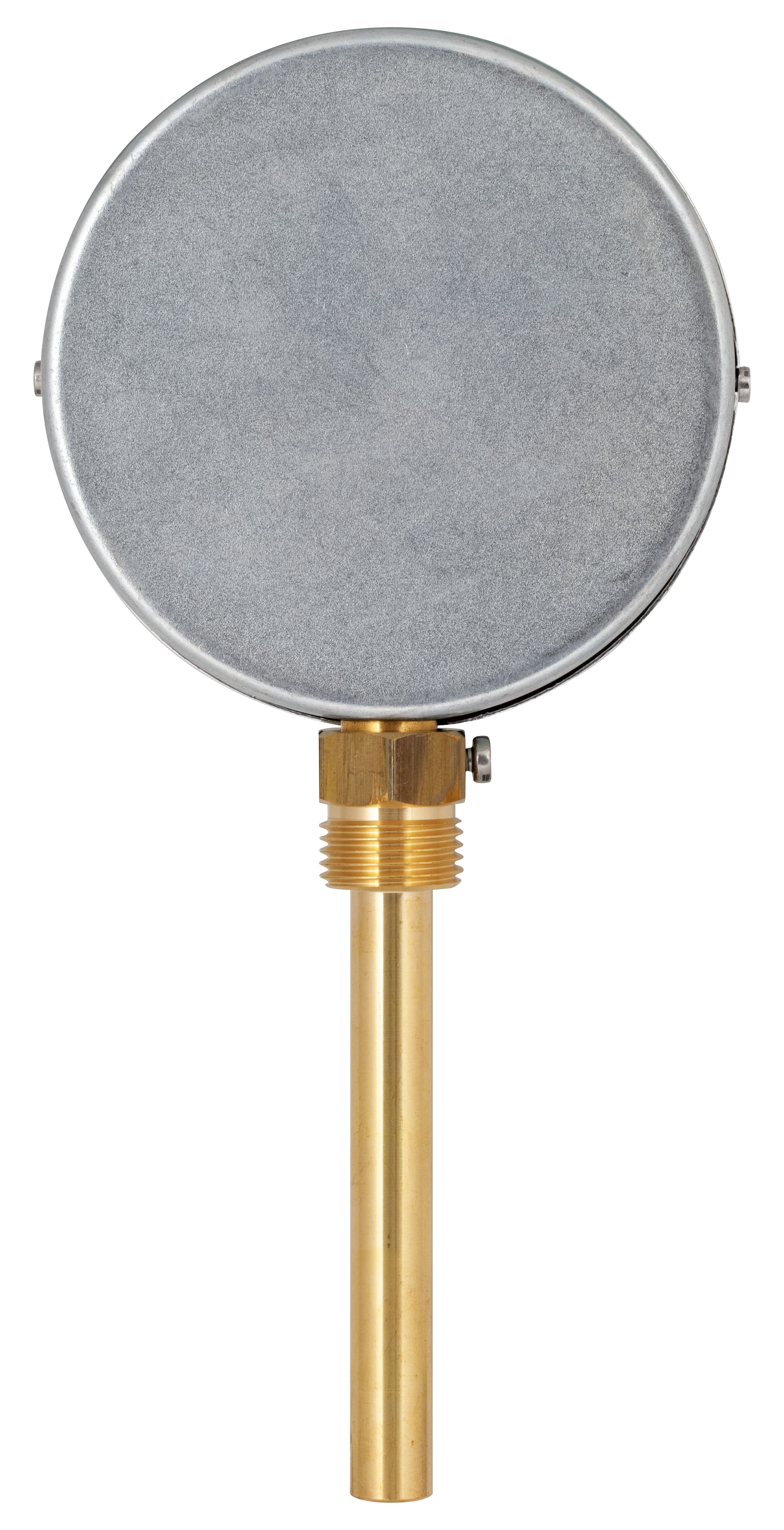

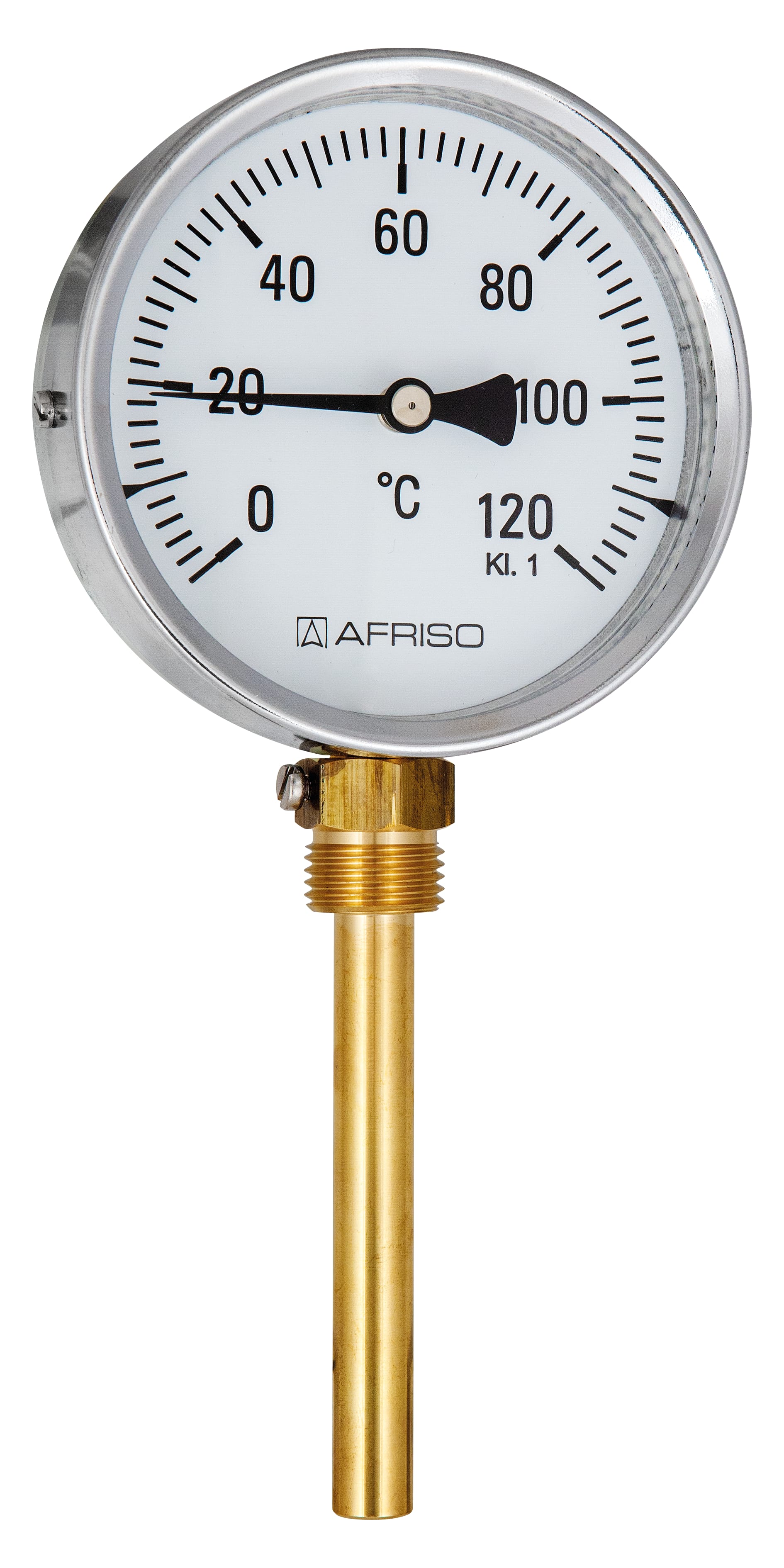

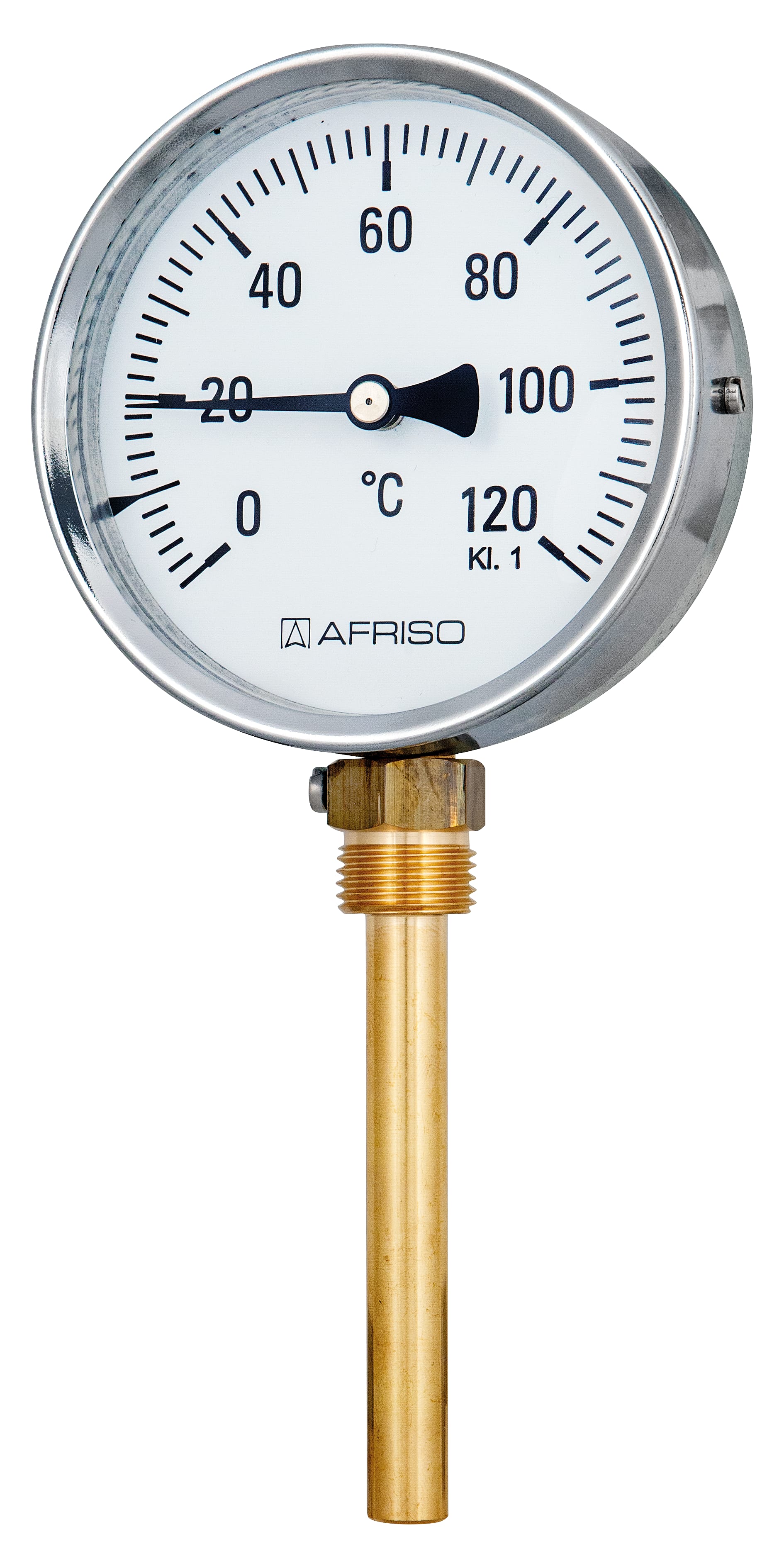

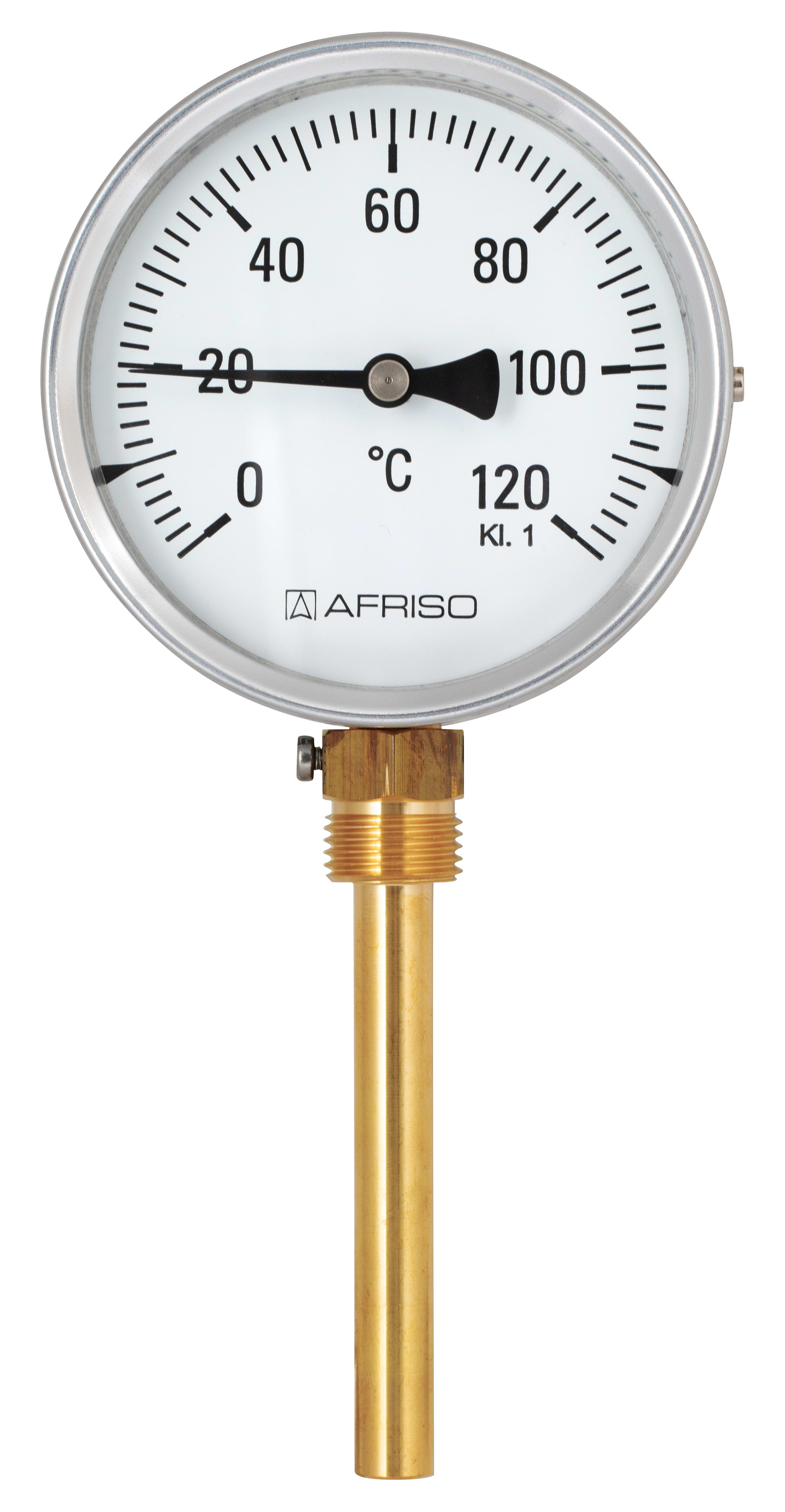

BiTh 100 I D201

Bimetal thermometers for industrial applications

Variants

  • ranges: -20/+60, 0/60, 0/120, 0/160 °C
  • brass thermowell
  • brass stem

Mechanical engineering, plant engineering, pipelines, boilers, heating technology

housing ⌀mounting positionRangeStem lengthTypePart no.
100 mmbottom-20/+60 °C45 mmBiTh 100 ID20165306201
100 mmbottom-20/+60 °C63 mmBiTh 100 ID20165307201
100 mmbottom-20/+60 °C100 mmBiTh 100 ID20165308201
100 mmbottom-20/+60 °C150 mmBiTh 100 ID20165309201
  • in-stock items
  • manufactured goods

Type
D2
Nominal size
100
measuring element
Bimetal helix
accuracy class
1 (EN 13190)
ranges °C
-20/+60 °C
Application area (EN 13190)
continuous load:
Measuring range
short-term:
Range
Operating pressure at thermowell
max. 10 bar (max. static)
Degree of protection
IP 41 (EN 60529)

Standard design

Connection
Stem:
Brass, ∅ 9 mm
Thermowell:
G½B, Brass, ∅ 12 mm, removable
mounting position
bottom
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Stahlblech, verzinkt
push on bezel
Stahlblech, vernickelt
window
Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

Bottom connection
