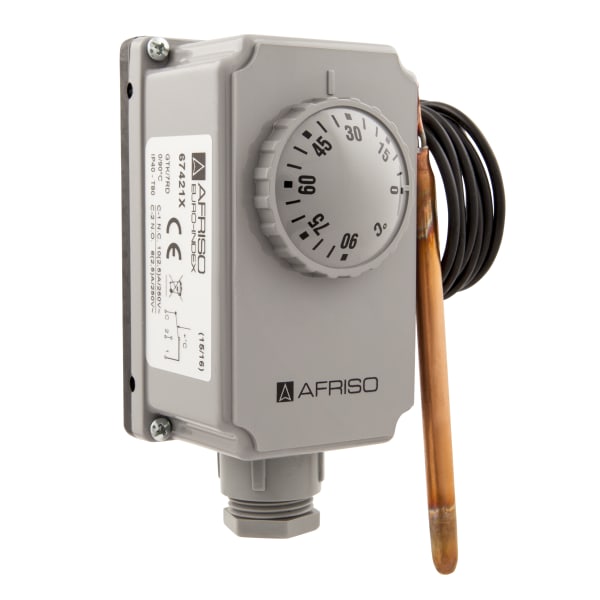

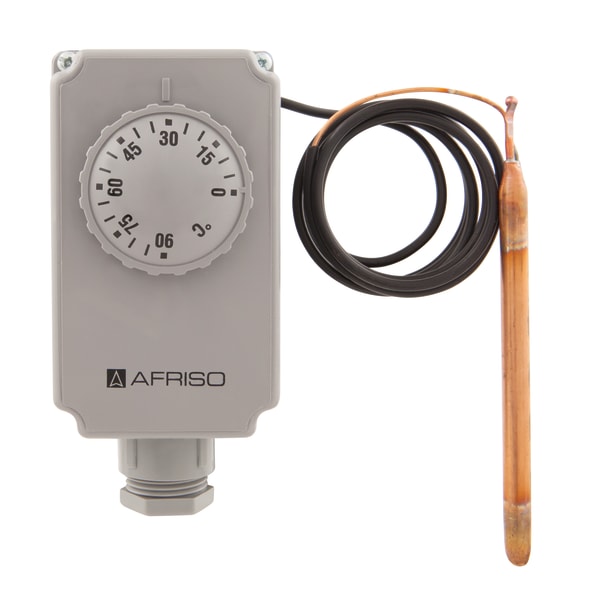

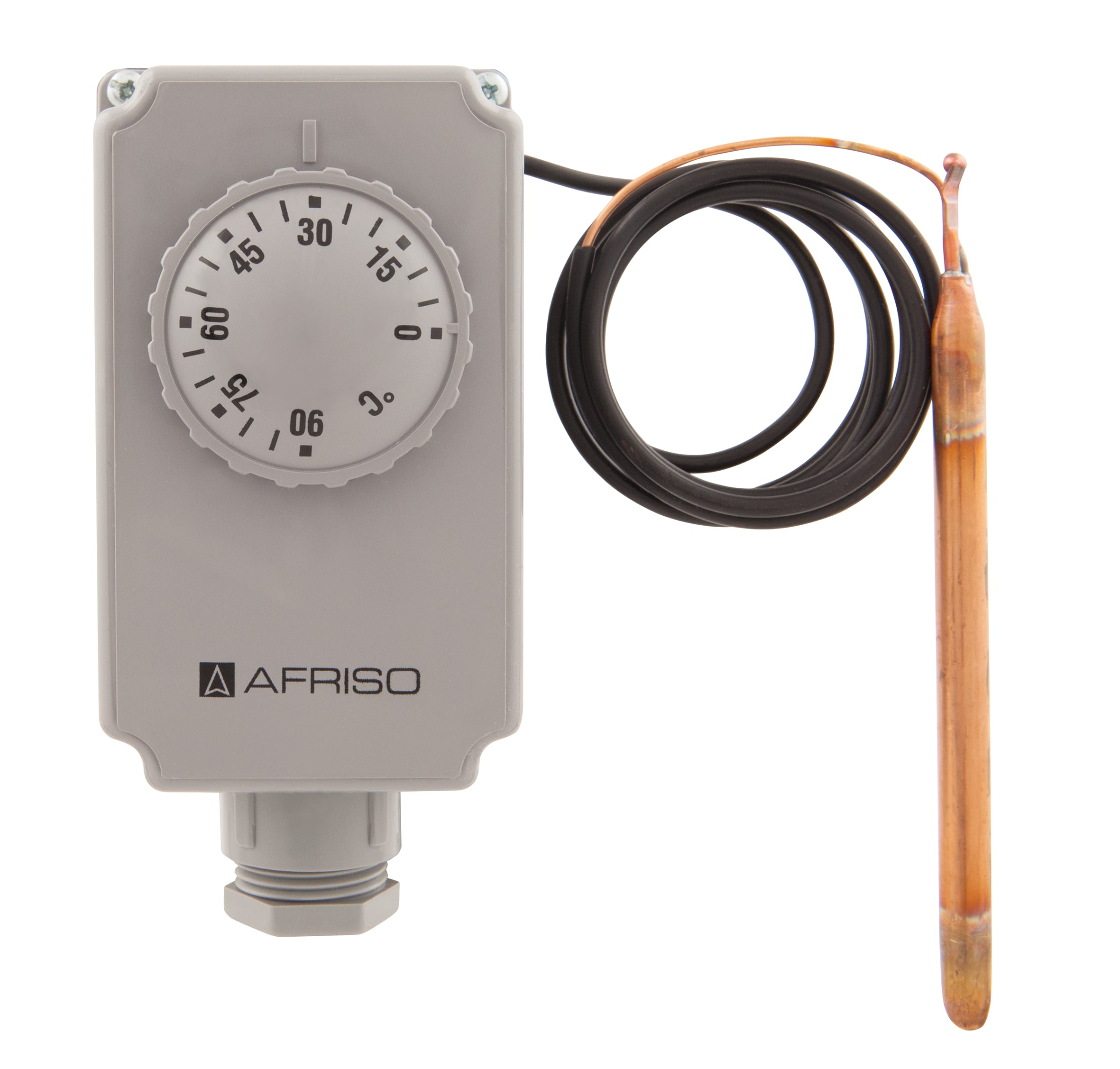

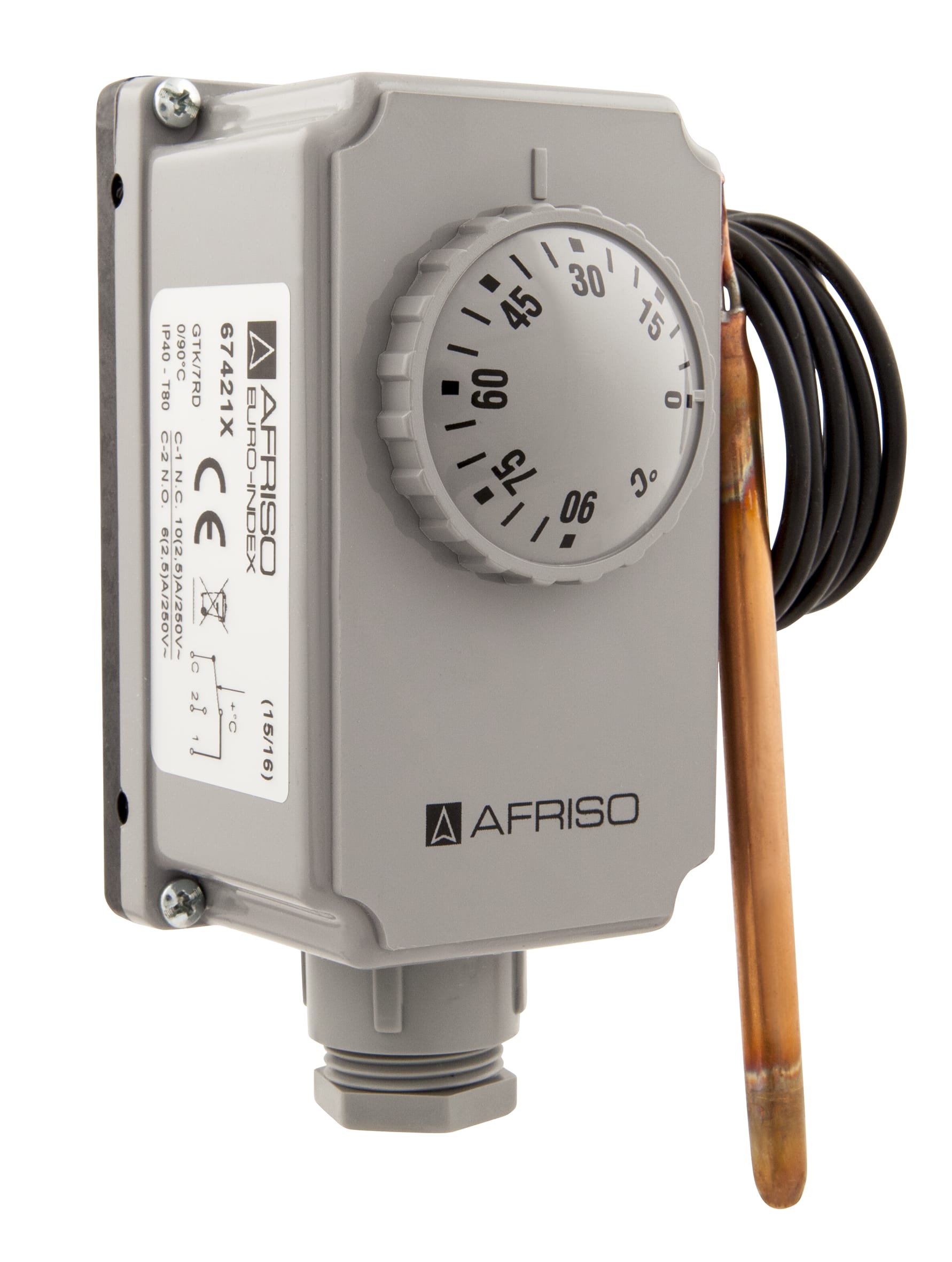

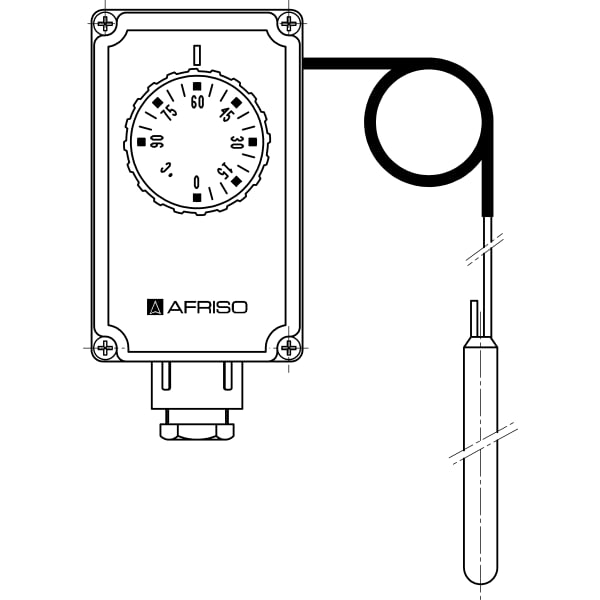

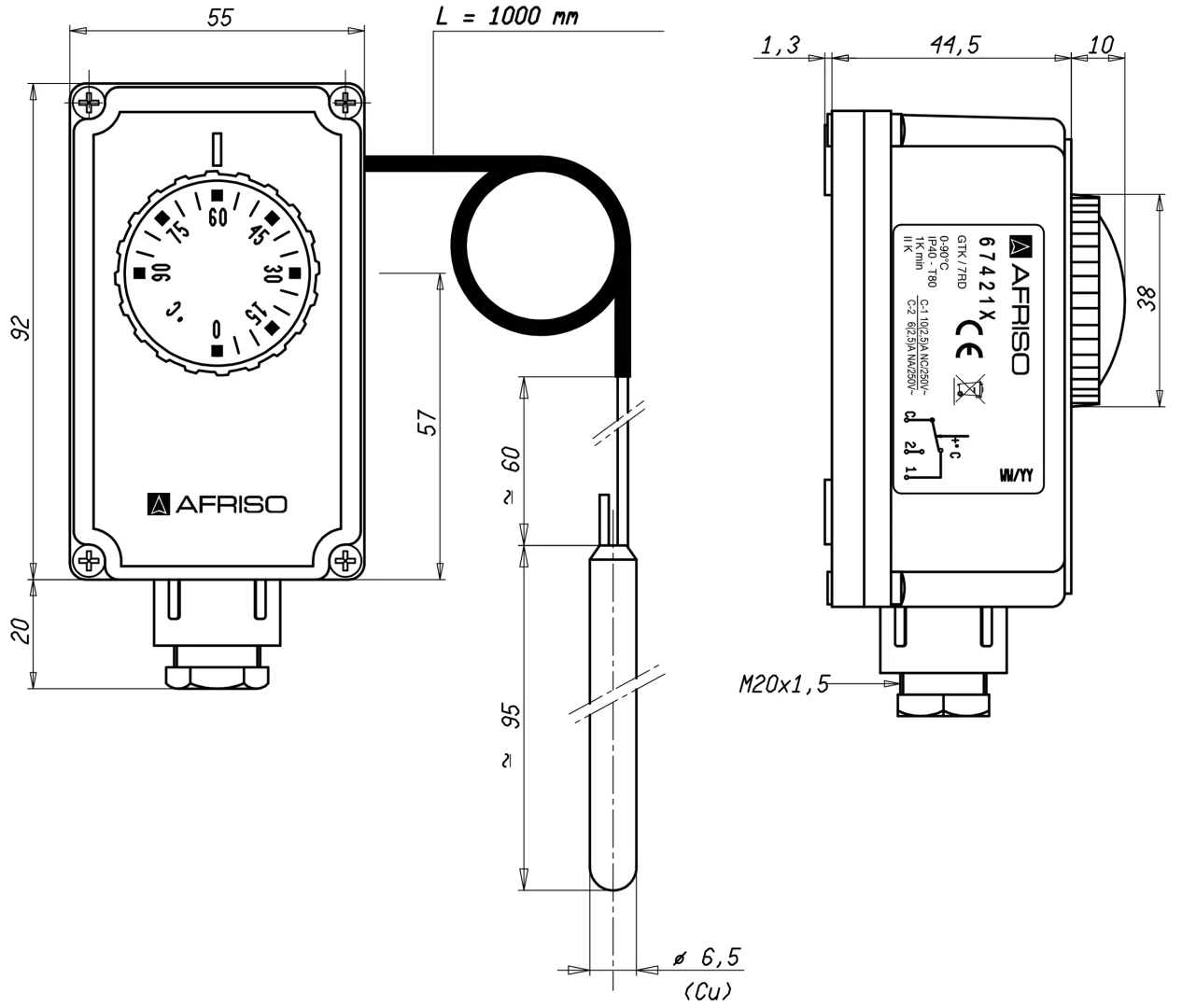

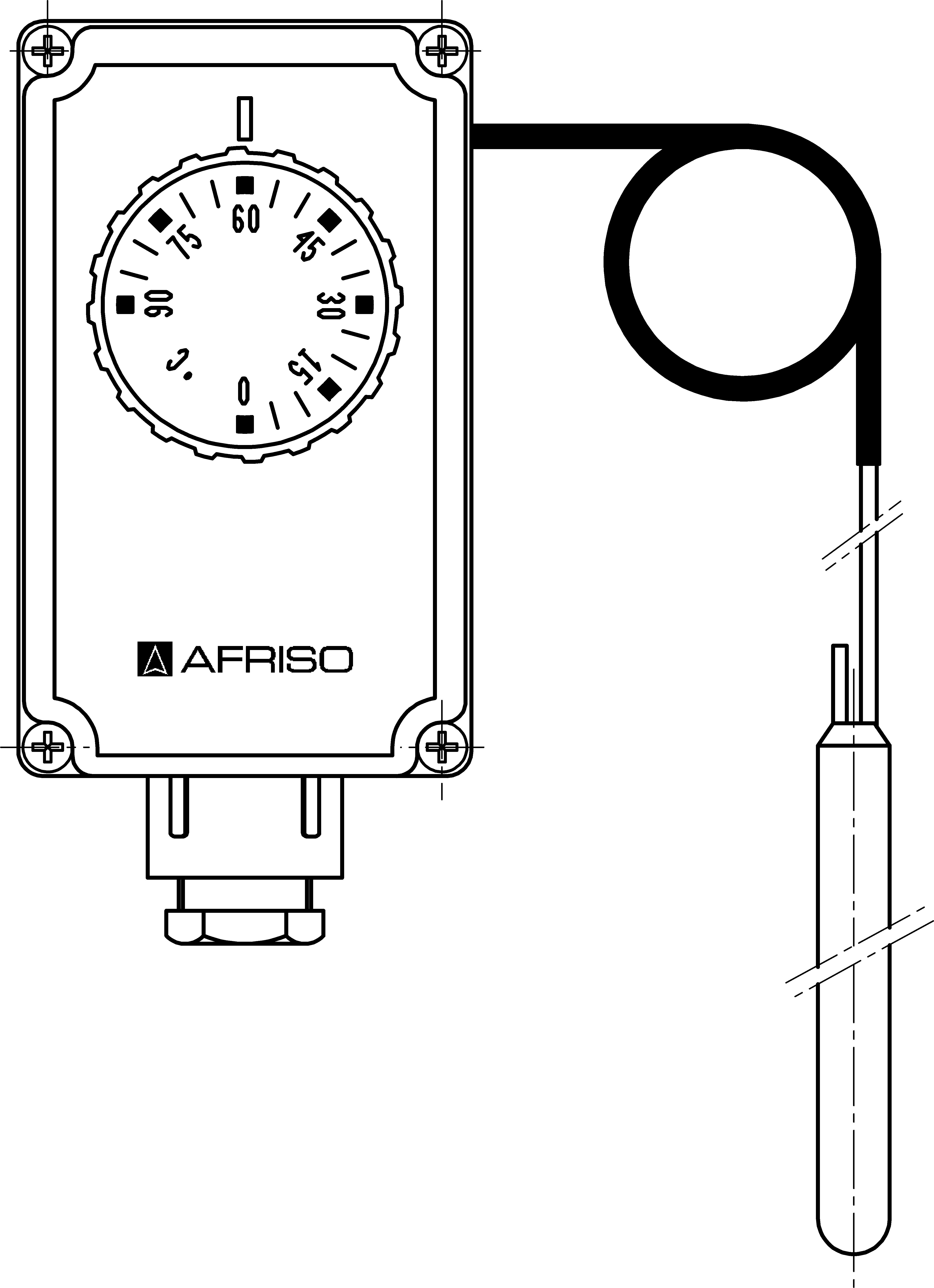

GTK/7RD

Gehäusethermostat mit Kapillarleitung

Variants Documents

  • mechanical temperature controller for remote measurement
  • for controlling heating and cooling processes
  • ideal for heat and process engineering

Mechanical temperature controller and limiter for remote measurement. The device is suitable for application areas in the field of heat and process engineering. Heating and cooling processes in industrial and domestic applications (in particular solar systems) are easy to control and monitor.

The temperature measured at the probe causes a change in the volume of the measuring liquid in the probe-capillary system. Electrical switching is triggered by the force acting. A thermowell allows for pressure-tight installation of the probe in various types of pressurised tanks.

adjustmentOperating rangeSwitching pointSwitching pointcapillary lengthStem lengthPart no.
thermostat with housing GTK/7RDExternal0/90 °C1000 mm67421X
thermostat with housing GTK/7RDExternal0/90 °C2000 mm67424X
  • in-stock items
  • manufactured goods

Type
GTK/TC2
Operating range
0/60 °C
Tolerance
±0.4 %/10 K
Switching differential
∆T 4 ± 1 K
Setting
External
Probe
Copper
∅ 6.5 x 95 mm
Probe element
liquid-filled
Operating temperature range
Probe:
max. 150 °C
Housing:
max. 80 °C
Housing
plastic (PVC), grey (RAL 7035)
Cable entry
plastic (PVC), black
M20 x 1.5
Capillary tube
Cu capillary tube with PVC coating, black
Length:
1000 mm
Degree of protection
IP 40 (EN 60529)
Time constant
DIN-tested
DIN EN 14597:2012-09
registration number:
TR/STB 1211
electrical switching contact
Changeover contact
Contact rating
NC:
AC 250 V, 10 (2.5) A
NO:
AC 250 V, 6 (2.5) A
