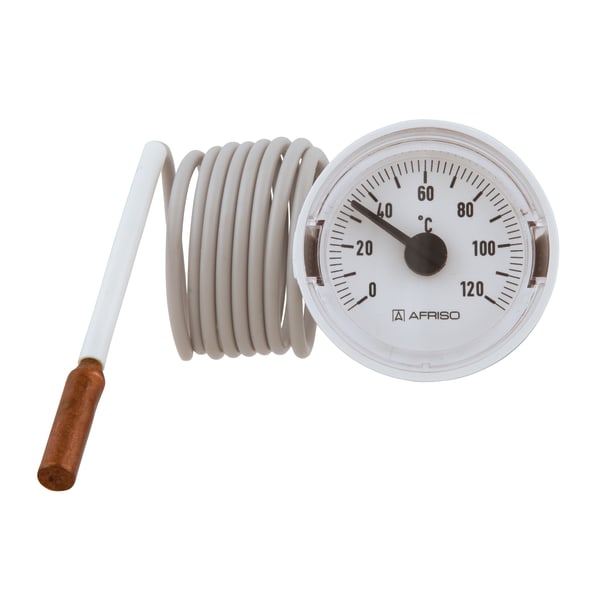

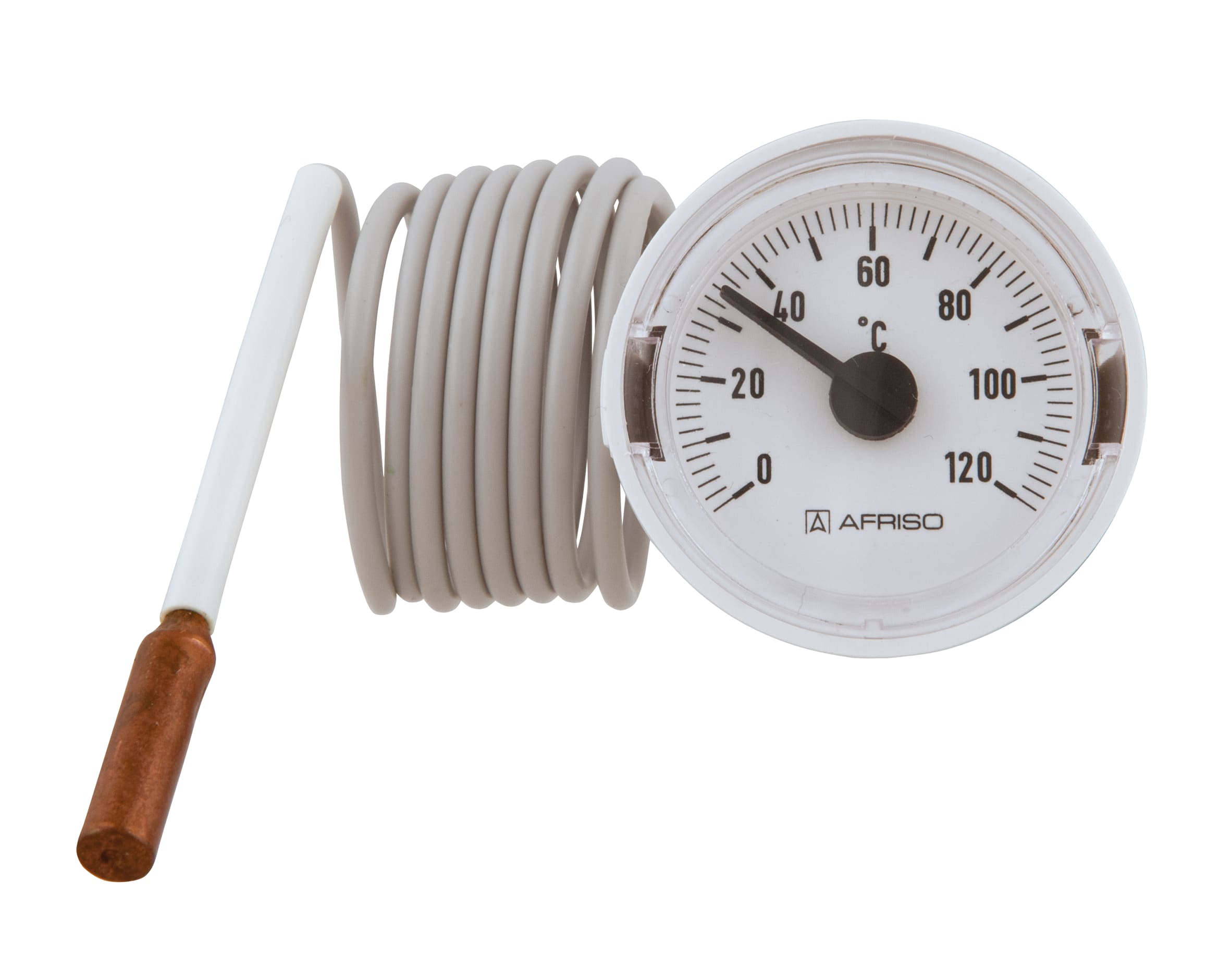

THK 40

Thermometers with capillary tube

Variants

ideal for boilers and water heaters
corrosion-resistant, highly impact-resistant plastic housing
many customised versions available

Heating and plumbing, e.g. boilers, water heaters, hot water storage tanks

	Nominal size	Nominal size	Housing	push on bezel	Pointer	Dial	Scale	Range	capillary length	Type	Part no.
	40 mm		white		black	white	black	0/120 °C	500 mm	THK 40	67652105
	40 mm		white		black	white	black	0/120 °C	1000 mm	THK 40	67652115
	40 mm		white		black	white	black	0/120 °C	1500 mm	THK 40	67652125
	40 mm		white		black	white	black	0/120 °C	2000 mm	THK 40	67652135

in-stock items
manufactured goods

Nominal size

: 40

Range

: 0/120 °C

Measuring principle: Liquid filling

Operating temperature range

Medium:: Full scale value

Ambient:: max. 70 °C

Operating pressure: without pressure

Degree of protection: IP 32 (EN 60529)

Standard design

Connection

Probe:: ∅ 6 x 30 mm, Copper

Capillary tube:: Copper with PVC coating (R3, grey)

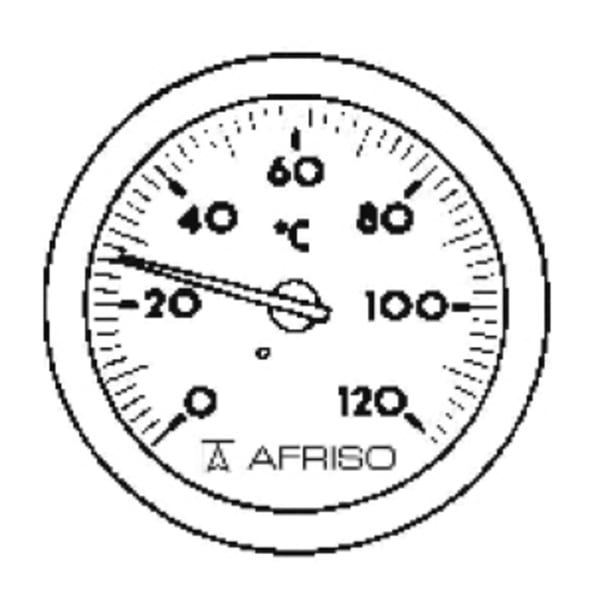

Dial

: Plastic, white

: Scaling black

Pointer

: Plastic, black

Housing

: Plastic (ABS), white

capillary length: 500 mm

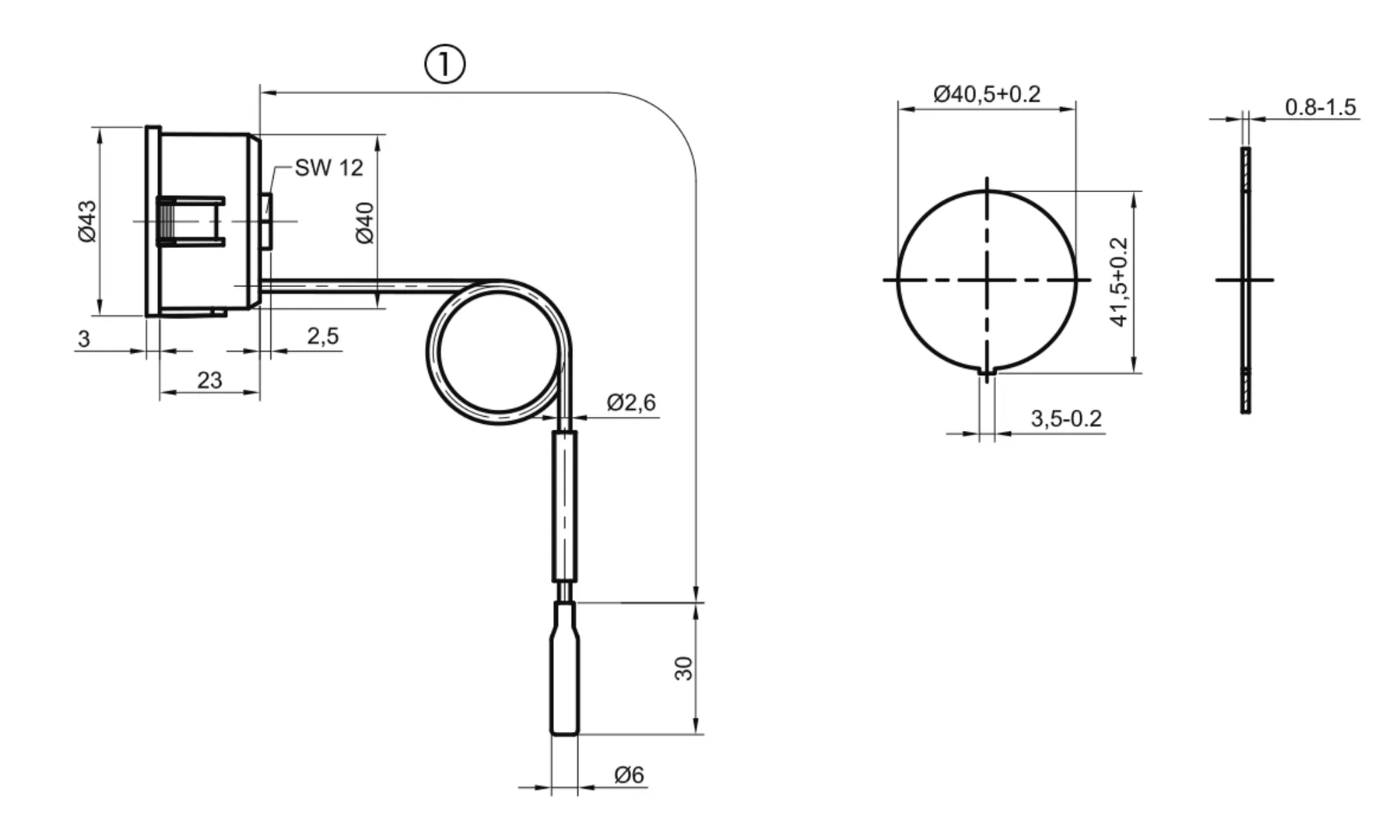

Click the corresponding image for detail views, additional information and dimension tables.
