TRT

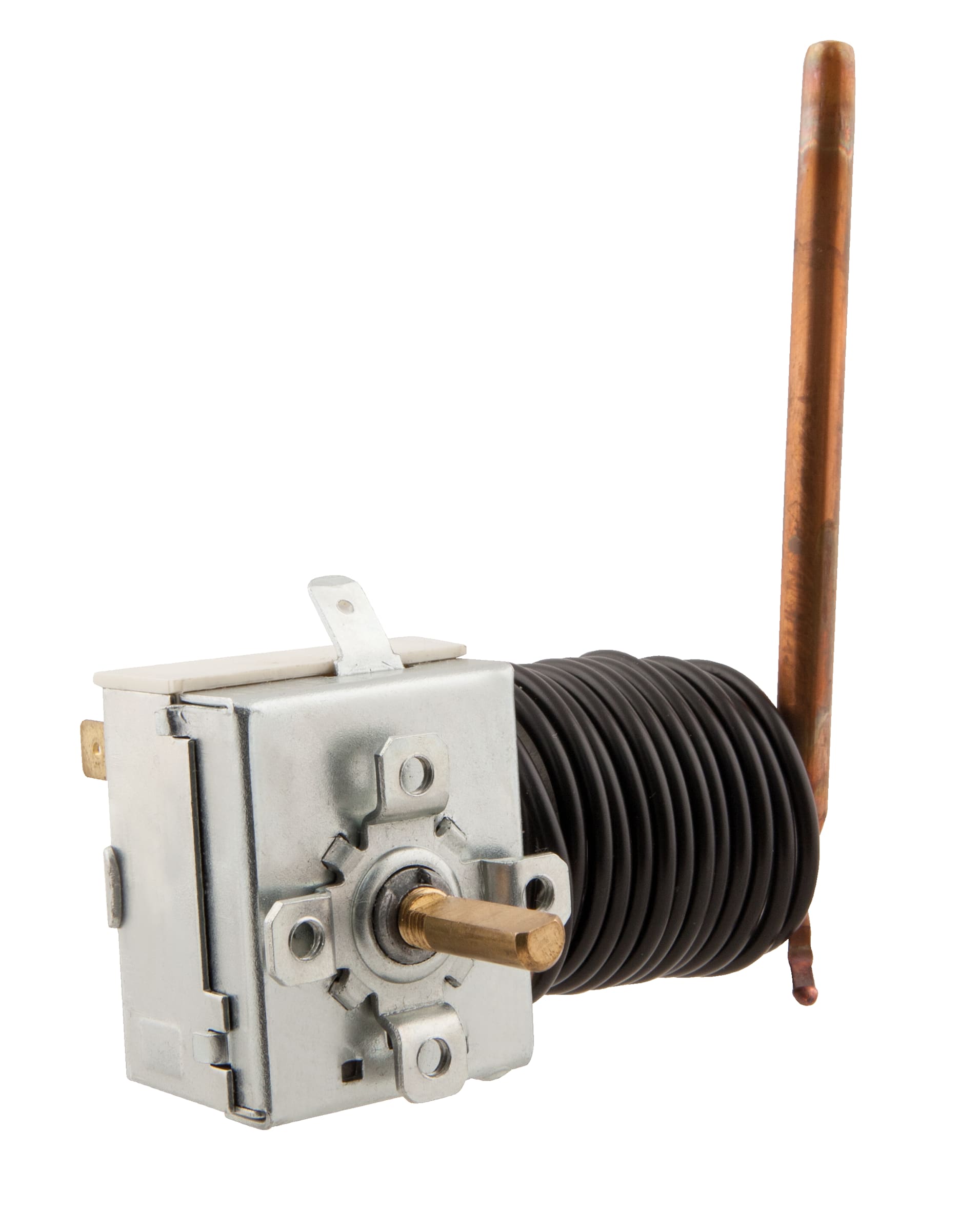

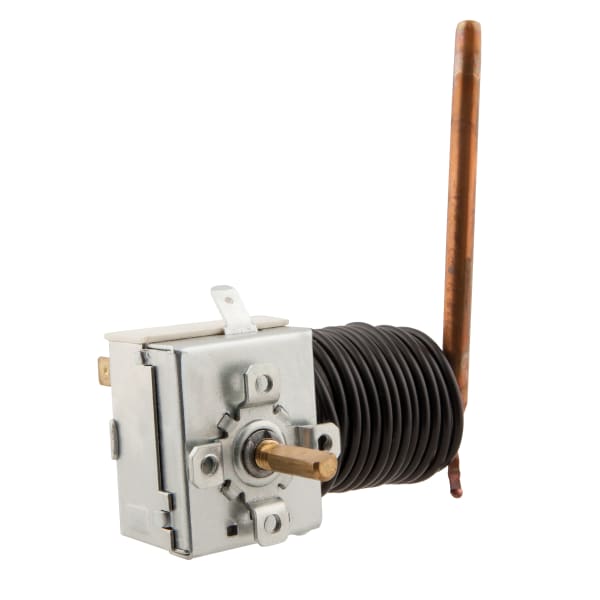

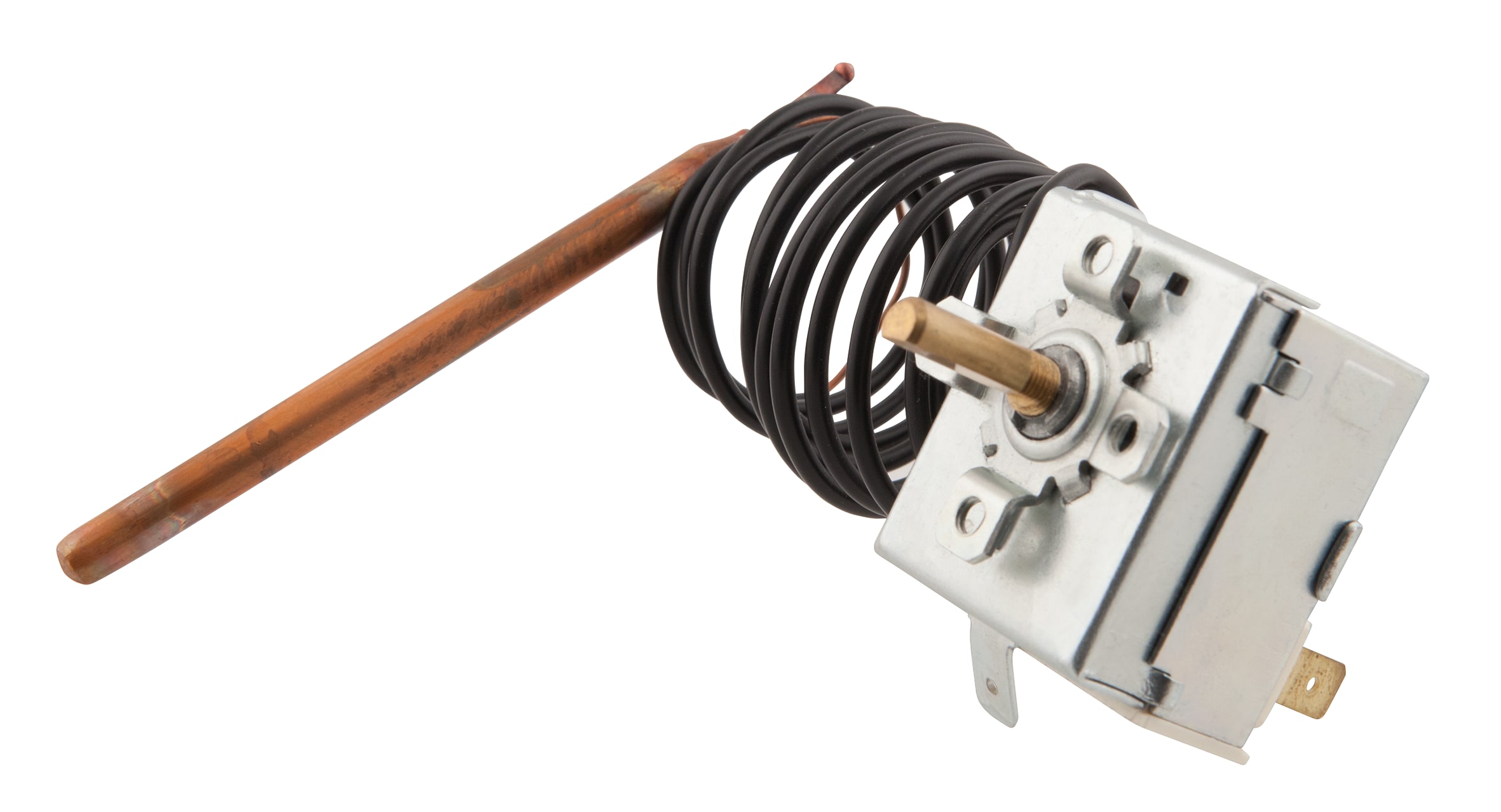

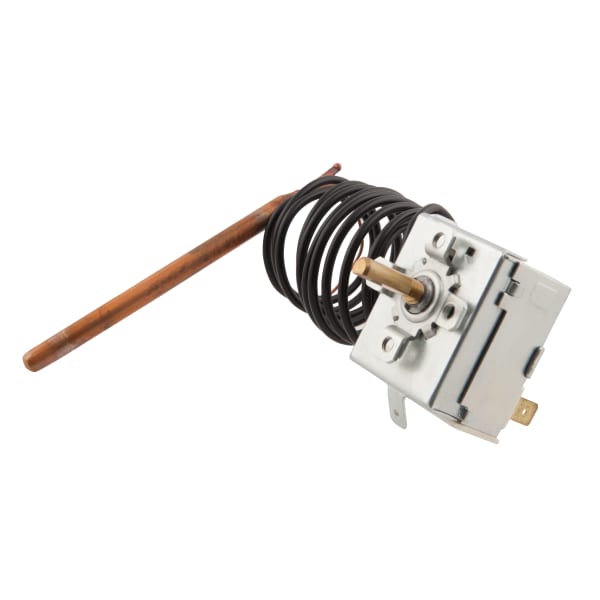

Temperatur-Regelthermostat mit Kapillarleitung

Variants

mechanical temperature controllers
for controlling and monitoring thermal processes
ideal for heat and process engineering
simple, robust design

Mechanical temperature controller and limiter without external power supply. The device is suitable for application areas in the field of heat and process engineering. With the liquid-filled measuring systems and the short response times, the devices lend themselves for controlling thermal processes in appliance engineering, ovens, heating and air conditioning and other industrial or domestic applications.

The temperature measured at the probe causes a change in the volume of the measuring liquid in the probe-capillary system. Electrical switching is triggered by the force acting. A thermowell allows for pressure-tight installation of the probe in various types of pressurised tanks.

	Contact	Operating range	capillary length	Part no.
temperature control thermostat TRT TR2/711 EU	Changeover contact	0/90 °C	1000 mm	67216X
temperature control thermostat TRT TR2/711 EU	Changeover contact	0/90 °C	1500 mm	67217X
temperature control thermostat TRT TR2/712 EU	Changeover contact	10/200 °C	1000 mm	67609

in-stock items
manufactured goods

Type: TR2

Operating range

: see ordering table

Tolerance: ± 6 K at 20 °C

Influence of ambient temperature: -0.054 °C/°C

Switching differential: ∆T 4 ± 1 K

Adjustment angle: 270 °

Probe

: Copper

: ∅ 6.5 x 95 mm

Probe element

: liquid-filled

Operating temperature range

Probe:: max. 130 °C

Housing:: max. 90 °C

Capillary tube

: Cu capillary tube with PVC coating, black

Length:: 1000 mm

Degree of protection: IP 00 (EN 60529)

Time constant

: DIN-tested

: DIN EN 14597:2012-09

registration number:: TR/STB 1211

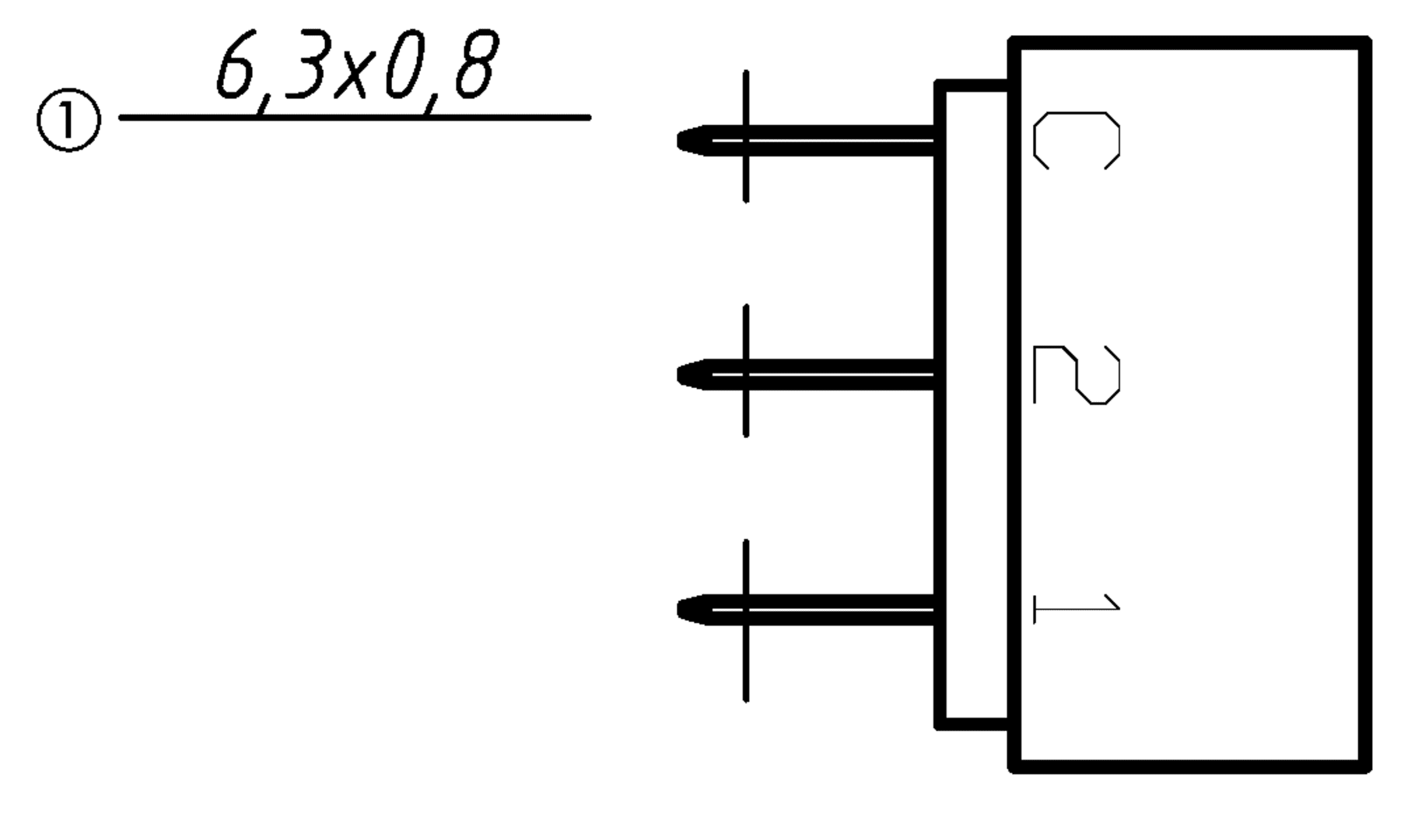

electrical switching contact: Changeover contact

Contact rating

NC:: AC 250 V, 16 (6) A

NO:: AC 250 V, 6 (4) A
