WTh 23

Resistance thermometers

Variants Documents

for heating, ventilation and air conditioning technology

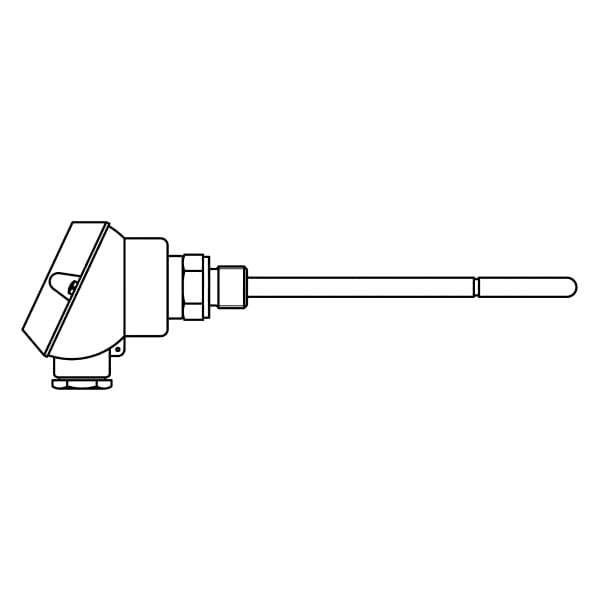

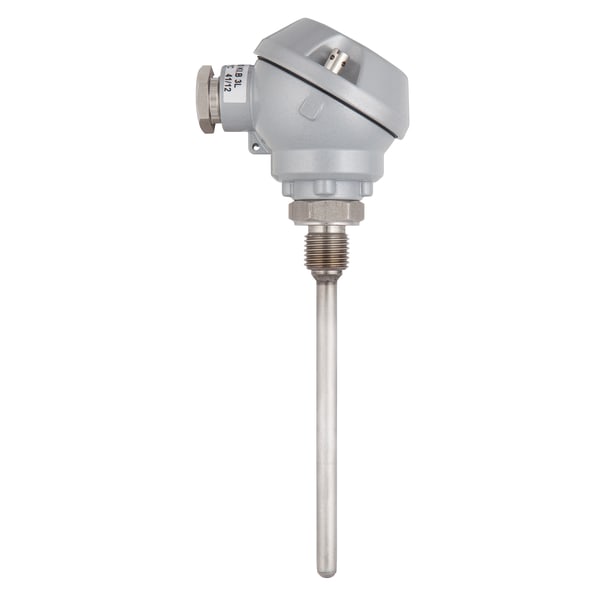

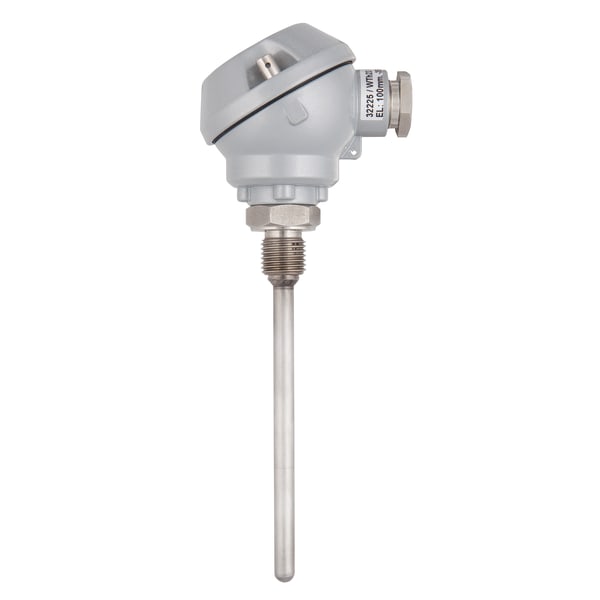

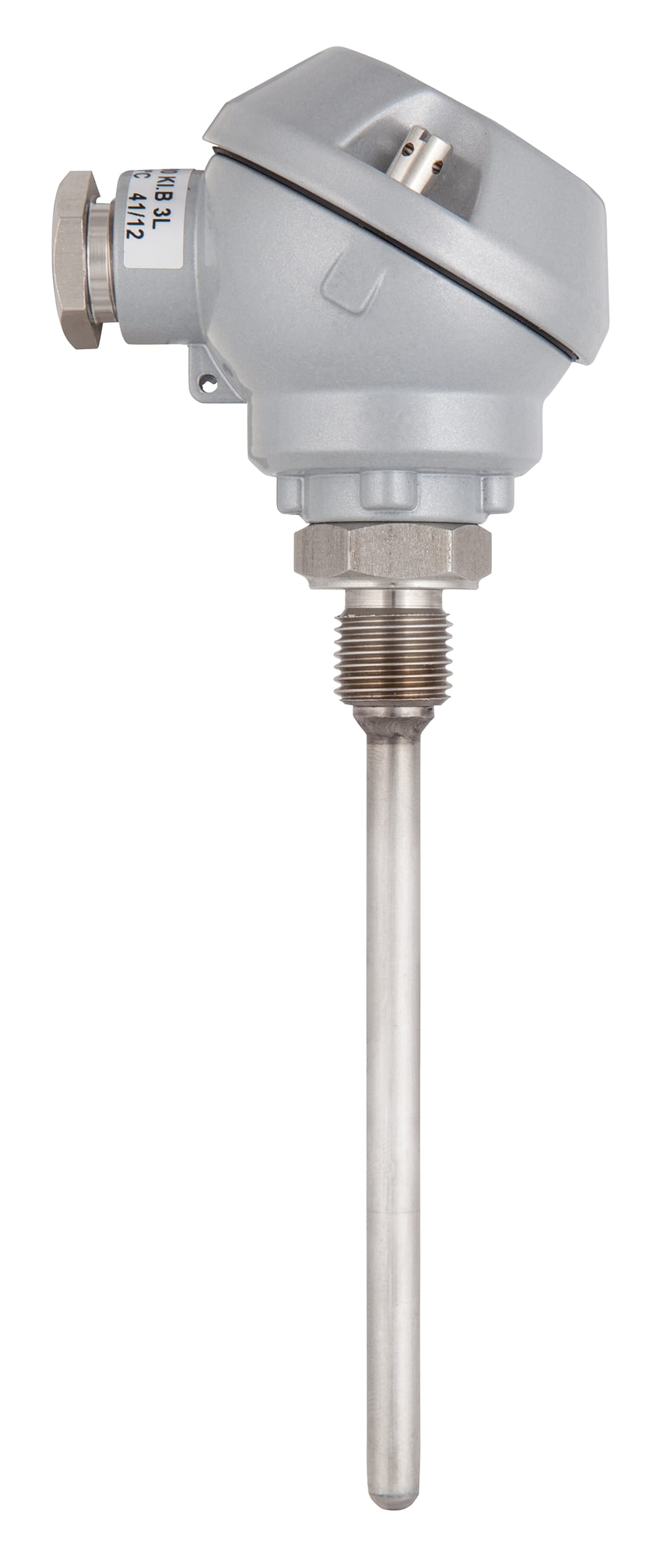

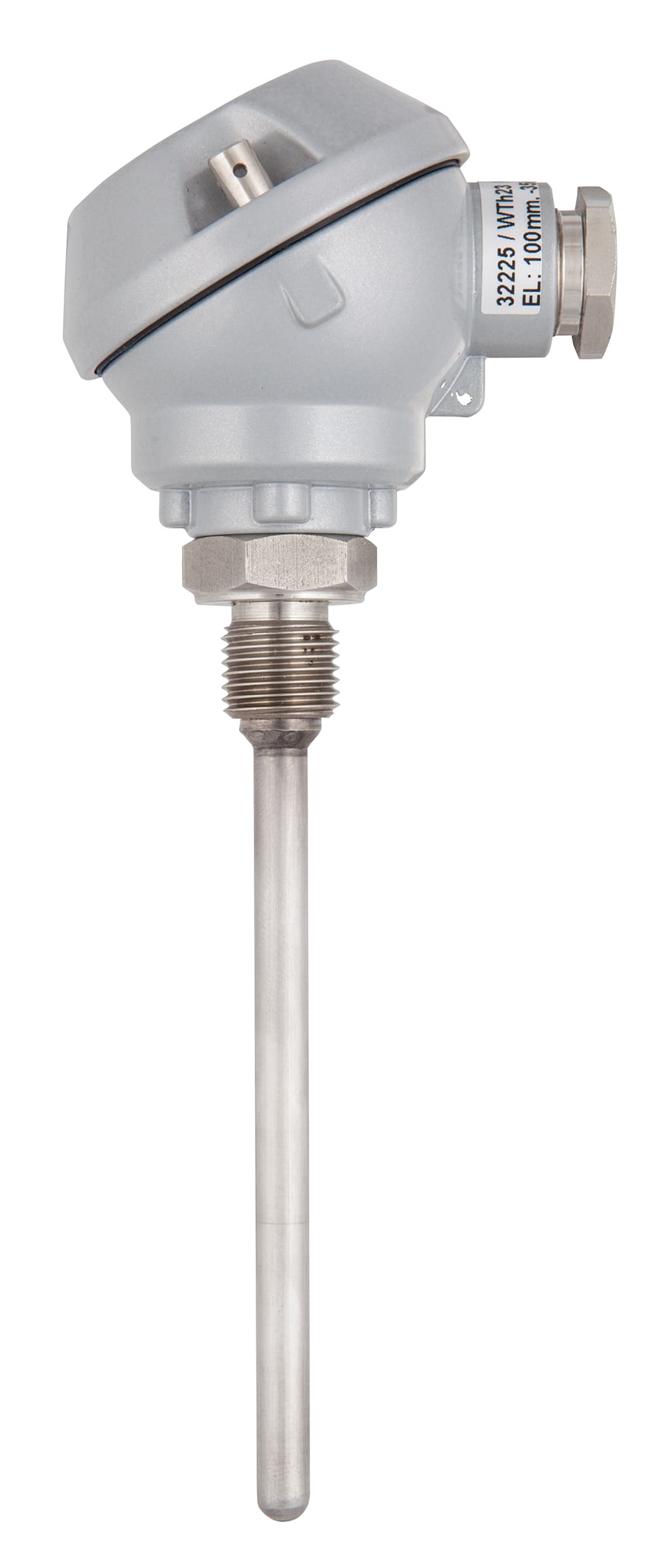

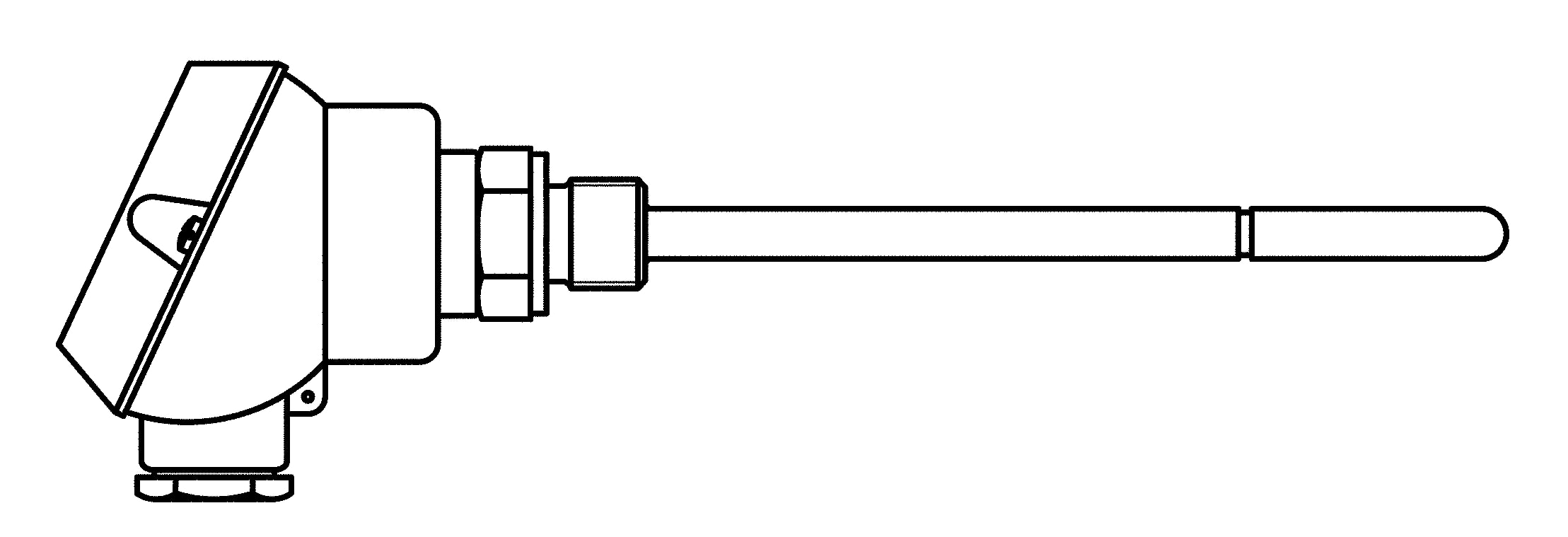

screw-in resistance thermometer with Pt100 sensor
Wetted parts 316 Ti

Compact screw-in resistance thermometer specially for heating, ventilation and air conditioning applications

		Installation length	Part no.
	Resistance thermometers WTh 23	100 mm	32225
	Resistance thermometers WTh 23	160 mm	32226
	Resistance thermometers WTh 23	250 mm	32227
	Resistance thermometers WTh 23	400 mm	32228

in-stock items
manufactured goods

Sensor

: 1 x Pt100

: 3-wire

: Class B, IEC 751

Measuring insert

: not replaceable

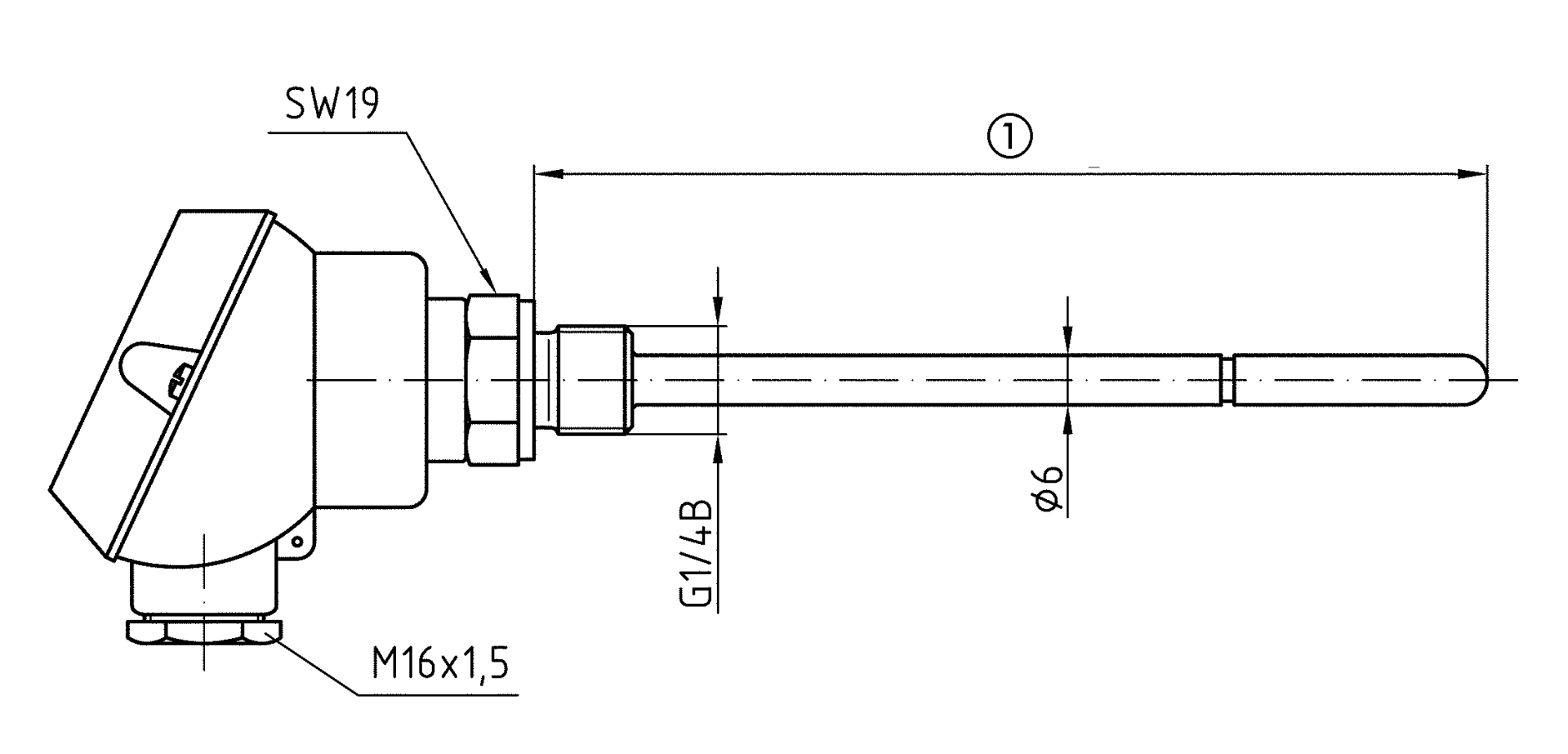

Thermowell

: ∅ 6, Stainless steel 316 Ti

Process connection

: G¼B

Installation length: 100 mm

Connection head

: shape J

: aluminium die cast

Electrical connection

: Cable gland

Degree of protection: IP 54 (EN 60529)

Measuring range

: -35/+180 °C
