Anode tester CAPBs® sens AT 10 | M090283910

Anode tester CAPBs® sens AT 10

in-stock items

Downloads

Prüfung von isoliert eingebauten Opferanoden
nichtisolierte Anoden mit optionalem Adapter umrüstbar
leicht bedienbare Klemmen zum Messanschluss
automatische Auswertung und Anzeige des Zustands der Opferanode
Messablauf und Dokumentation mit der kostenlosen App EuroSoft® live

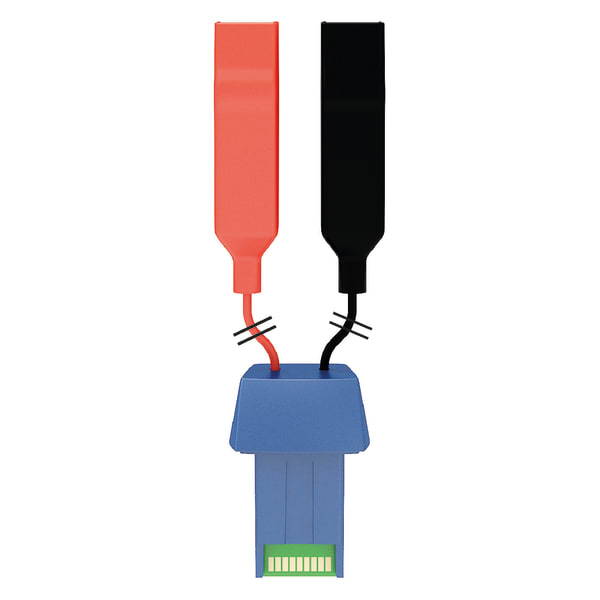

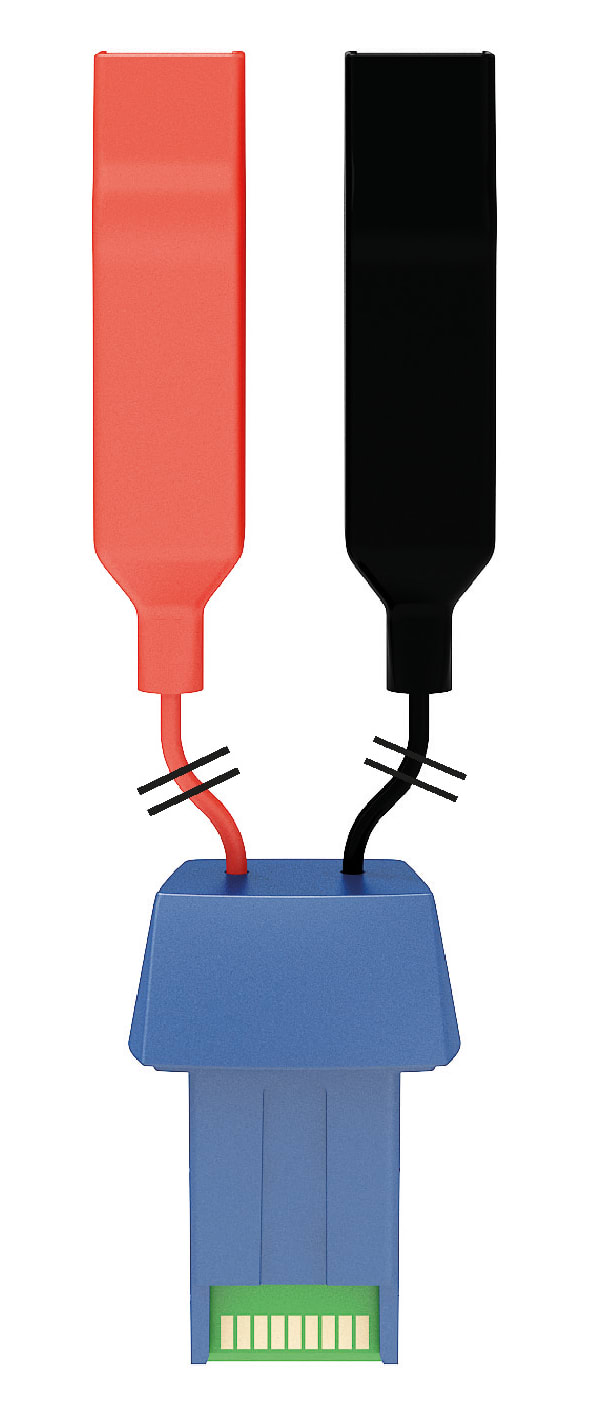

CAPBs® sens AT 10 is used together with a CAPBs® handle to test sacrificial anodes installed in an isolated way at hot water tanks. To do so, disconnect the cable connection between the anode and the hot water tank and connect the terminals of the sensor module AT 10. AFRISO offers various conversion kits for isolated installation of standard sacrificial anodes (please enquire).

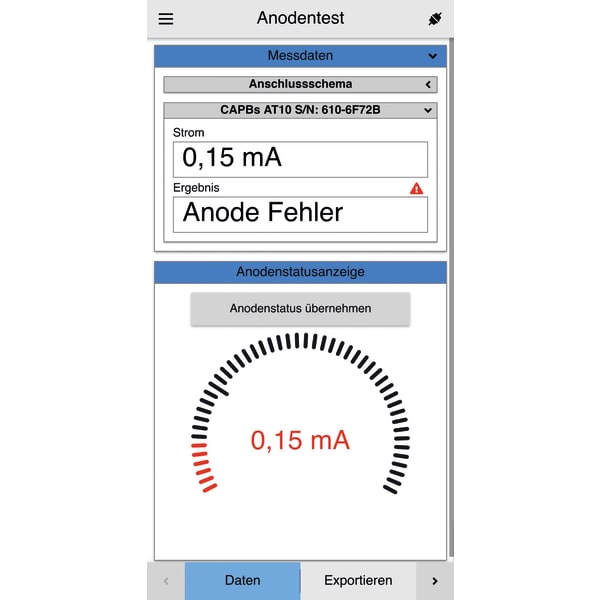

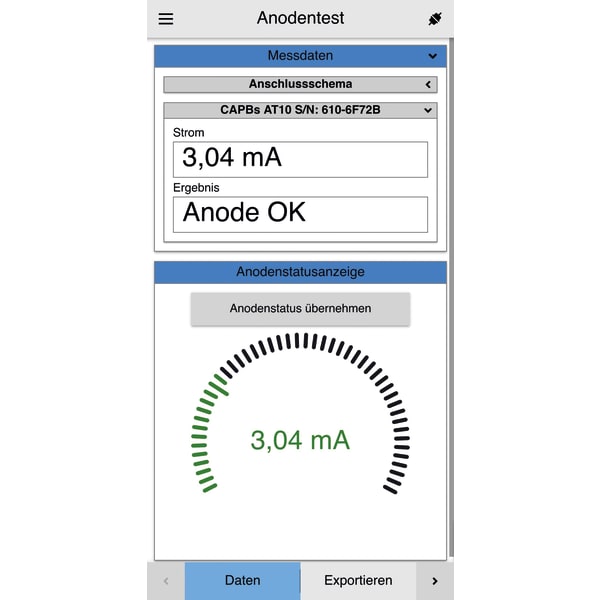

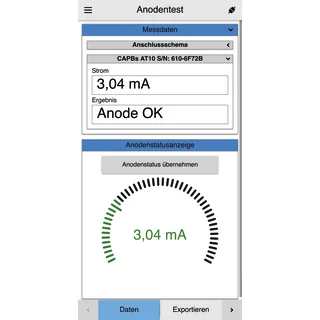

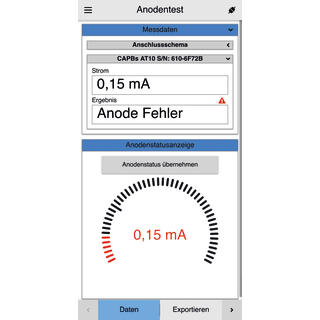

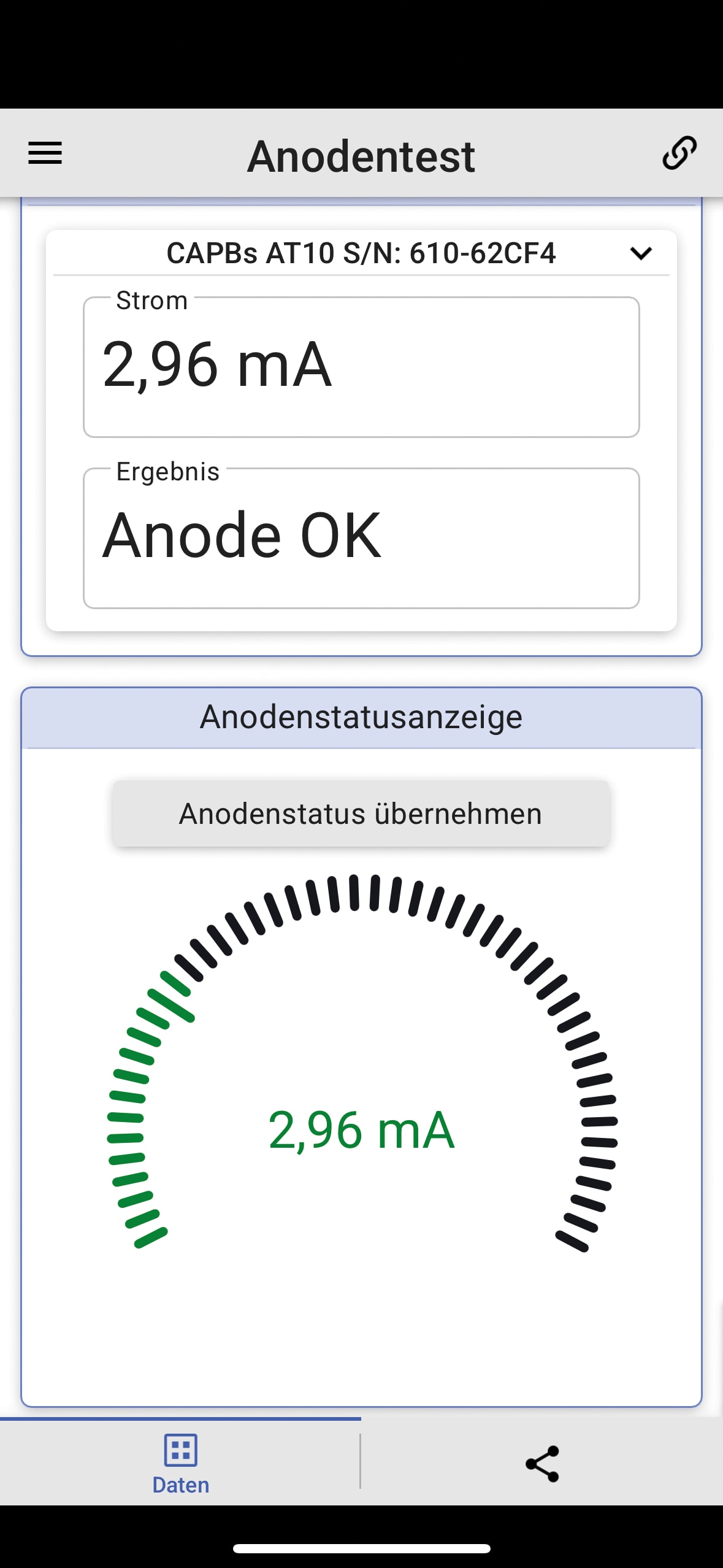

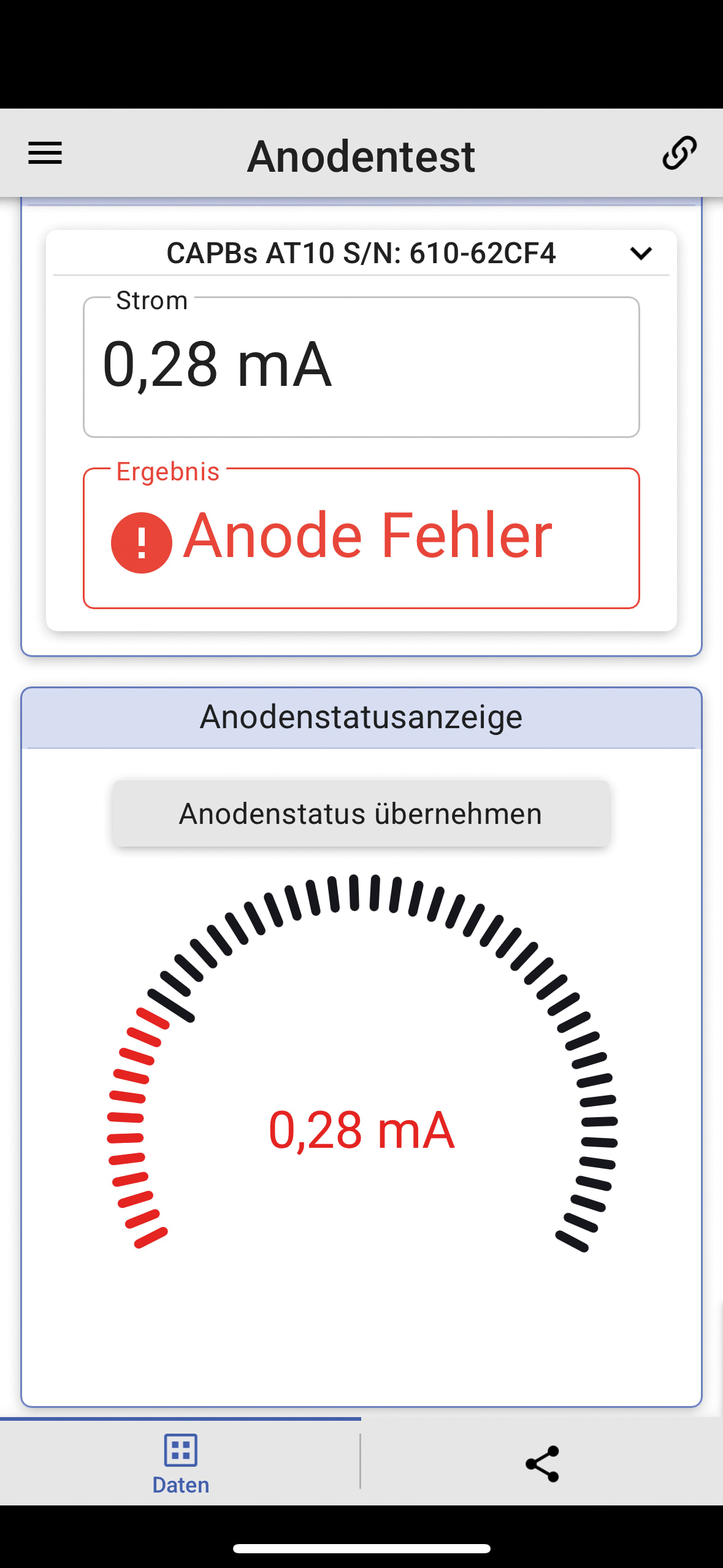

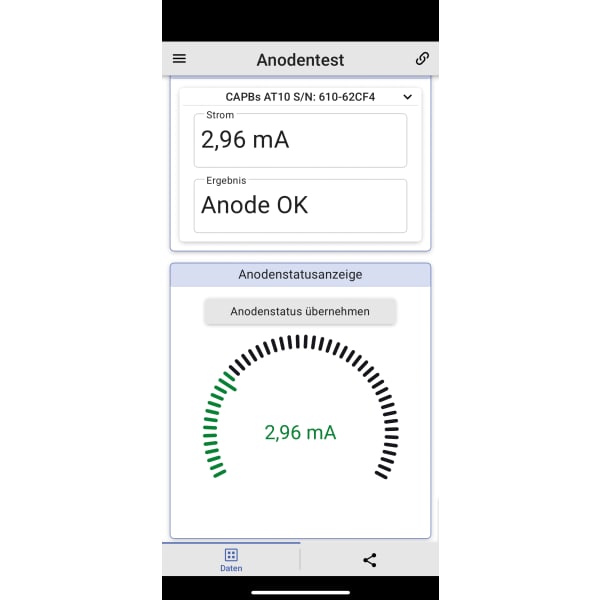

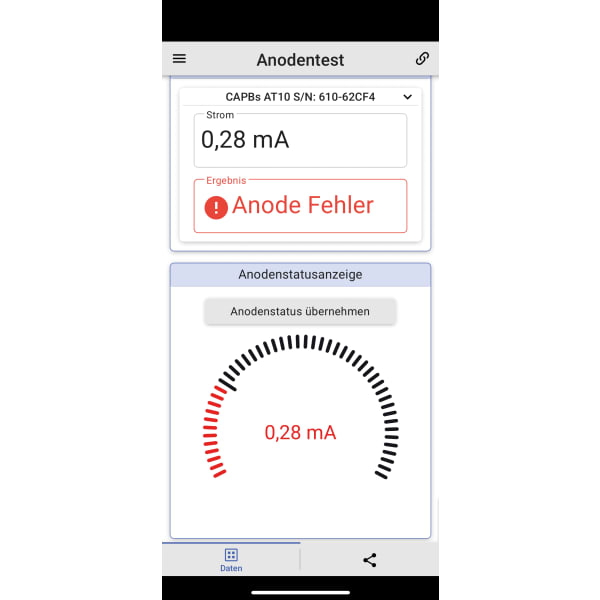

Sensor module for the measurement of sacrificial anodes installed in an isolated way. The measured data is transmitted to a smartphone or a tablet via, for example, the integrated Bluetooth® interface of the base handle. In the case of measurements with less than 0.3 mA, the applet "Anode Test" recommends an anode replacement. The measurement can be documented with the app EuroSoft®, including comprehensive additional documentation.
Please note: Base handle BG 10 or CAPBs® device required.

Zielgruppe

Dimensions

W x H x D:: 58 x 42 x 35 mm

Weight: 93 g

Measuring range

: 0/60 mA

Resolution: 0.01 mA

Connection anodes: terminals with 0.5 m cable
