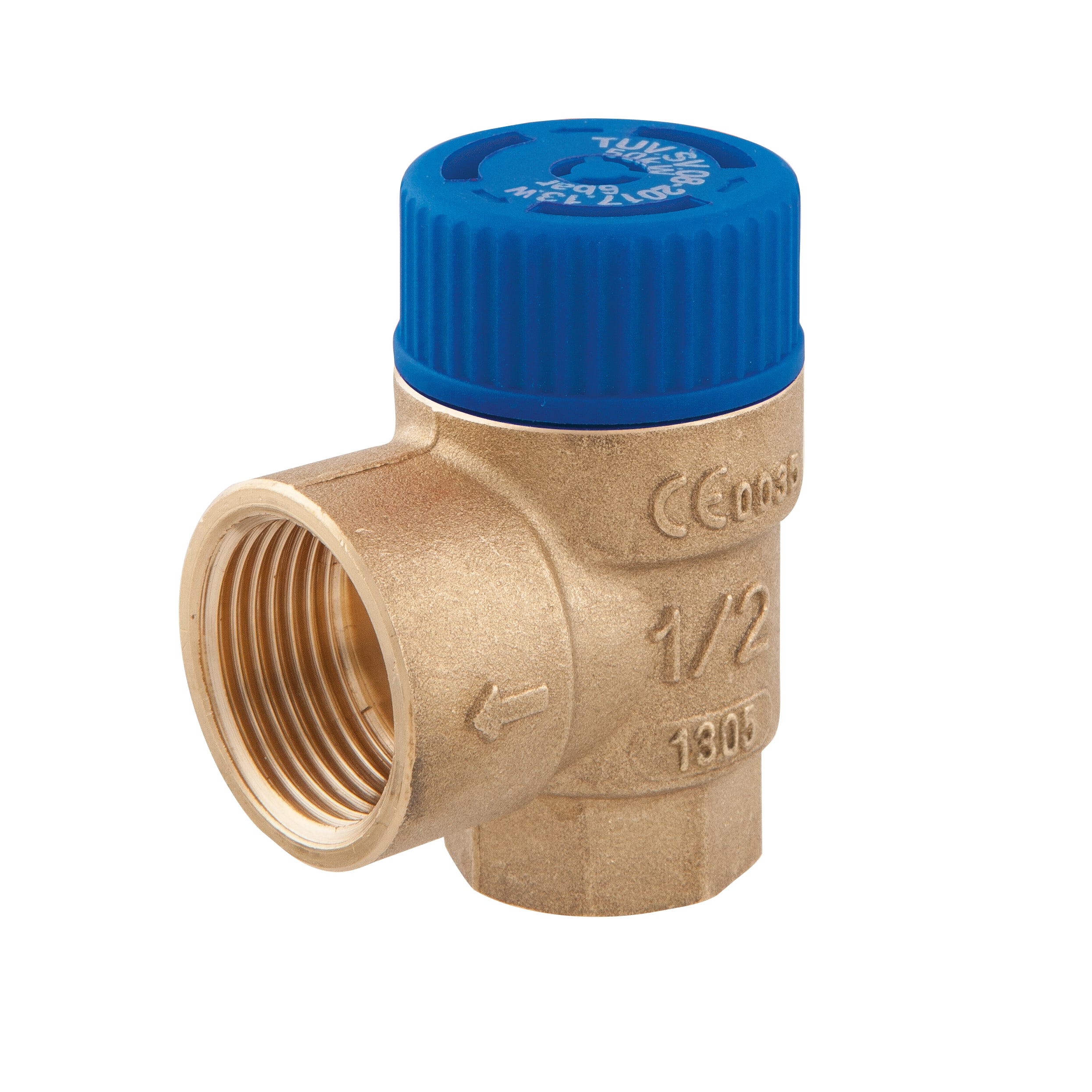

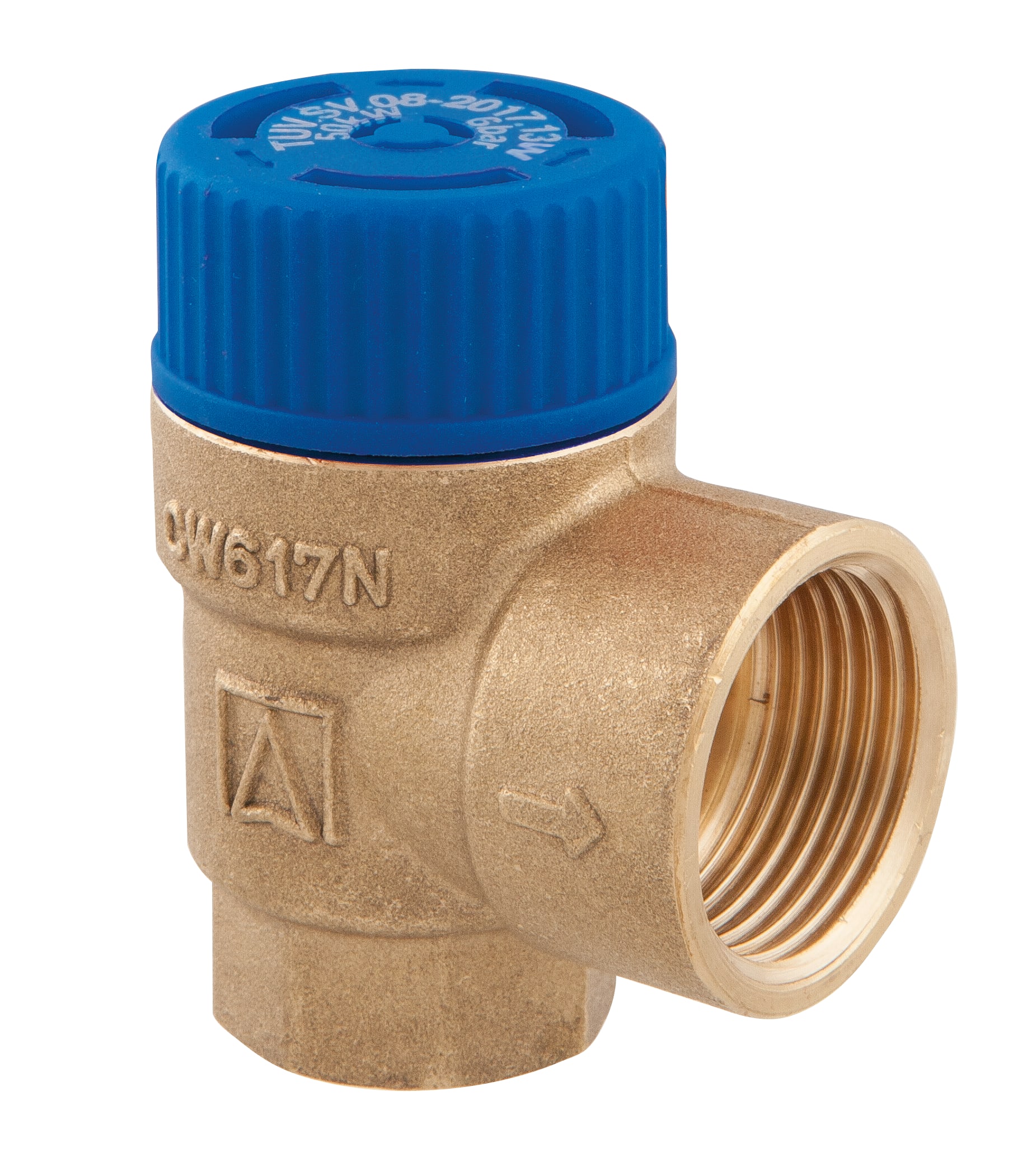

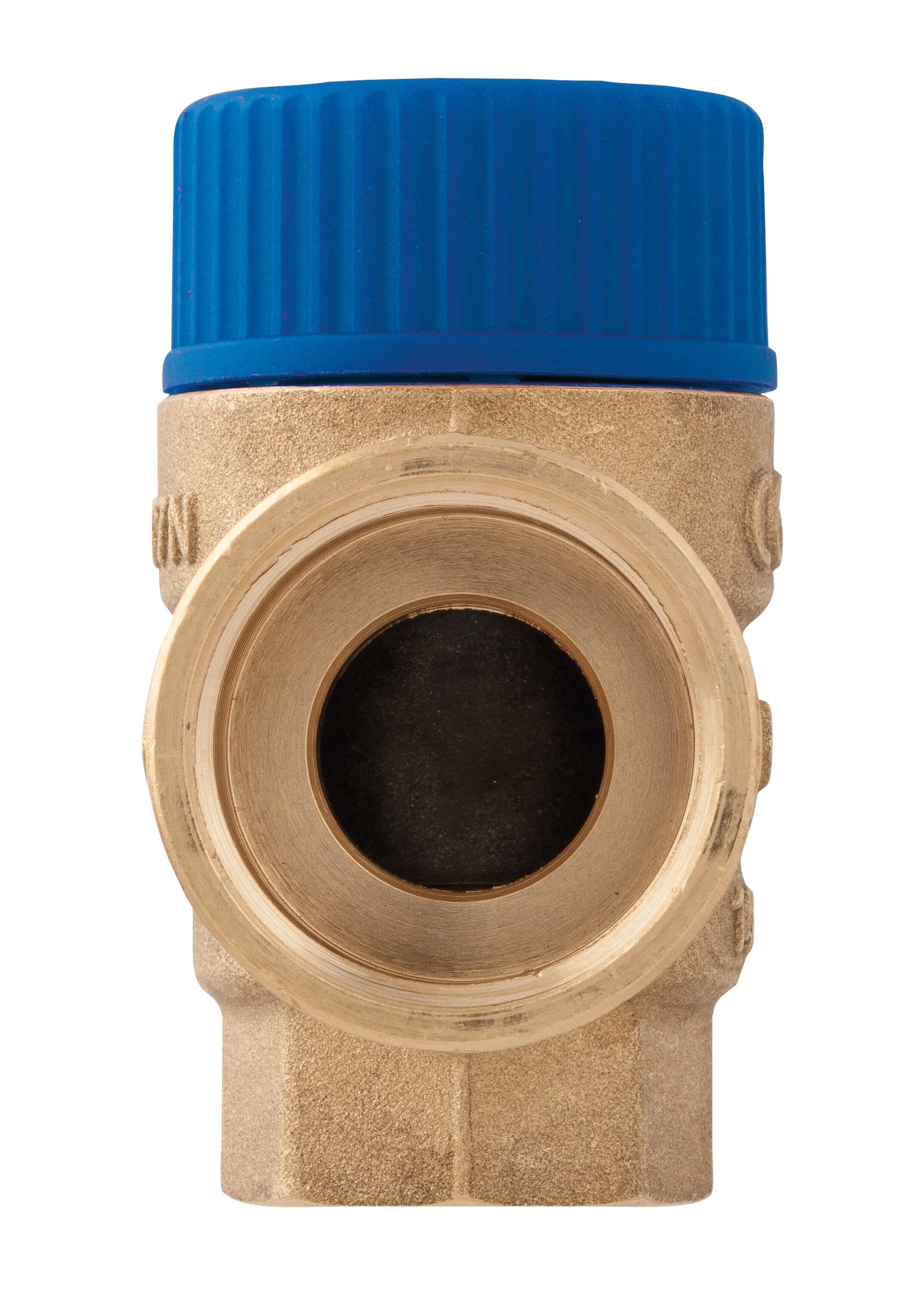

MSW G½ x G¾

Membran-Sicherheitsventil - Trinkwasser

Variants Documents

  • for protection against overpressure in drinking water heaters

For sealed drinking water heaters as per EN 806, DIN 1988 and DIN 4753-1 and for protection against overpressure.

The response pressure is factory-set.

maximum heating capacityopening pressurePart no.
diaphragm safety valve MS - heating systems MSW G½ x G¾  75 kW  6 bar42421
diaphragm safety valve MS - heating systems MSW G½ x G¾  75 kW  8 bar42422
diaphragm safety valve MS - heating systems MSW G½ x G¾  75 kW  10 bar42423
  • in-stock items
  • manufactured goods

opening pressure
see ordering table
Connection
see ordering table
Material
Housing:
brass (CW617N)
cap:
PA 6, Blue
Operating temperature range
Medium:
4/110 °C
type approval mark
TÜV.SV.yy-2017.13.W
"yy" represents the year of the approval

900_000_0472.PDF

Membran-Sicherheitsventil MSW - Trinkwasser
