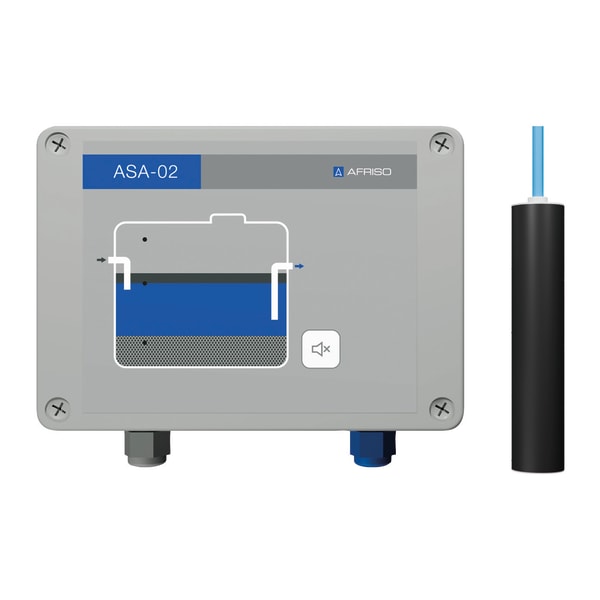

Images 2 Back ASA-02 | 53423 Alarm unit for separators manufactured goods Benefits for oil, petrol and grease separatorswith layer thickness alarmoptional overflow alarm and/or sand/sludge alarmwith Ex approval for use in zone 0 Application Oil, grease and petrol pose a great hazard to groundwater and waste water. ASA-02 monitors the layer thickness of separated liquid in oil, petrol and grease separators and generates an alarm signal when it is time to drain the separator. With the optional retrofittable overflow probe and the sand/sludge probe, it is possible to detect the maximum permissible level and/or a layer of solids in the separator. This avoids overflows that may be caused by clogged outlets or other circumstances. The unit keeps harmful substances from reaching the sewage water system. Description The base system ASA-02 consists of a control unit and a capacitance probe ASA-LP to monitor the layer thickness of oil, petrol or grease layers. The control unit is equipped with 3 configurable relay out puts, visual and audible alarms as well as an acknowledge button. The ASA-LP layer thickness probe is mounted below the constant level of the separator. As soon as the oil, petrol or grease layer reaches the critical level, the device generates an alarm signal. Optionally, the maximum level can also be monitored with the ASA-HLP overflow probe and the sand and sludge deposits with the ASA-SP sand/sludge probe. Technical data Accessories Spare parts Technical data Operating temperature rangeMedium: -20/+40 °CAmbient: -20/+60 °CSupply voltageAC 230 VPower inputca. 2 VAswitching outputsRelay contact: 3 voltage-free changeover contactsContact rating: AC 250 V, 5 A, 100 VAvisual indicationStatus LED for each probeaudible alarmintegrated piezo-buzzer, can be acknowledgedHousingWall mounting housing made of impact-resistant plastic (ABS)W x H x D: 175 x 125 x 75 mmDegree of protection: IP 65 (EN 60529)Ex approvalEx II (1) G [Ex ia GA] IIALayer thickness probe ASA-LPMeasuring principle: CapacitanceL x ⌀: 150 x 30 mmCable length: 5 m, PEHD, oil-resistantEx approval: Ex II (1) G [Ex ia] IIA T4 GaOverflow probe ASA-HLPMeasuring principle: UltrasonicL x ⌀: 150 x 30 mmCable length: 5 m, PVC, oil-resistantEx approval: Ex II (1) G [Ex ia] IIA T4 GaSand/sludge probe ASA-SPMeasuring principle: UltrasonicL x ⌀: 150 x 30 mmCable length: 5 m, PVC, oil-resistantEx approval: Ex II (1) G [Ex ia] IIA T4 GaConnection probe – control unitmax. 500 m, Min. 2 x 0.75 mm2Scope of deliveryASA-02-1: control unitSonde ASA-LP (Schichtdicke)Connector ASAMontagematerial Accessories Probes and sensors Abb. Bezeichnung ASA-SP | 53433 Spare parts Probes and sensors Abb. Bezeichnung ASA-LP | 53431
