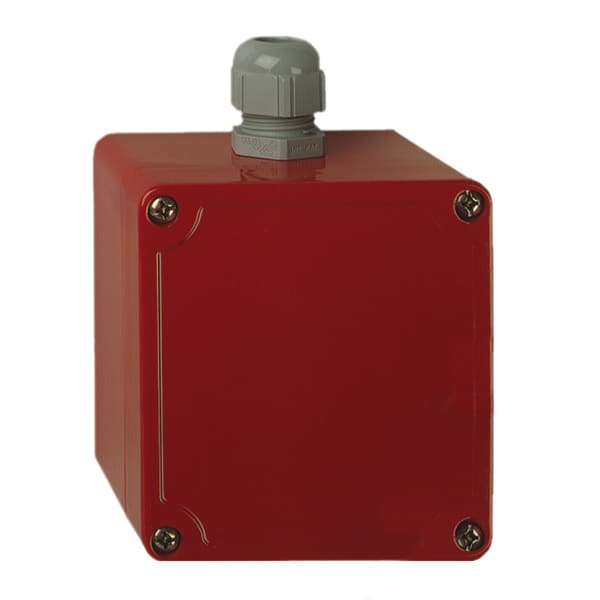

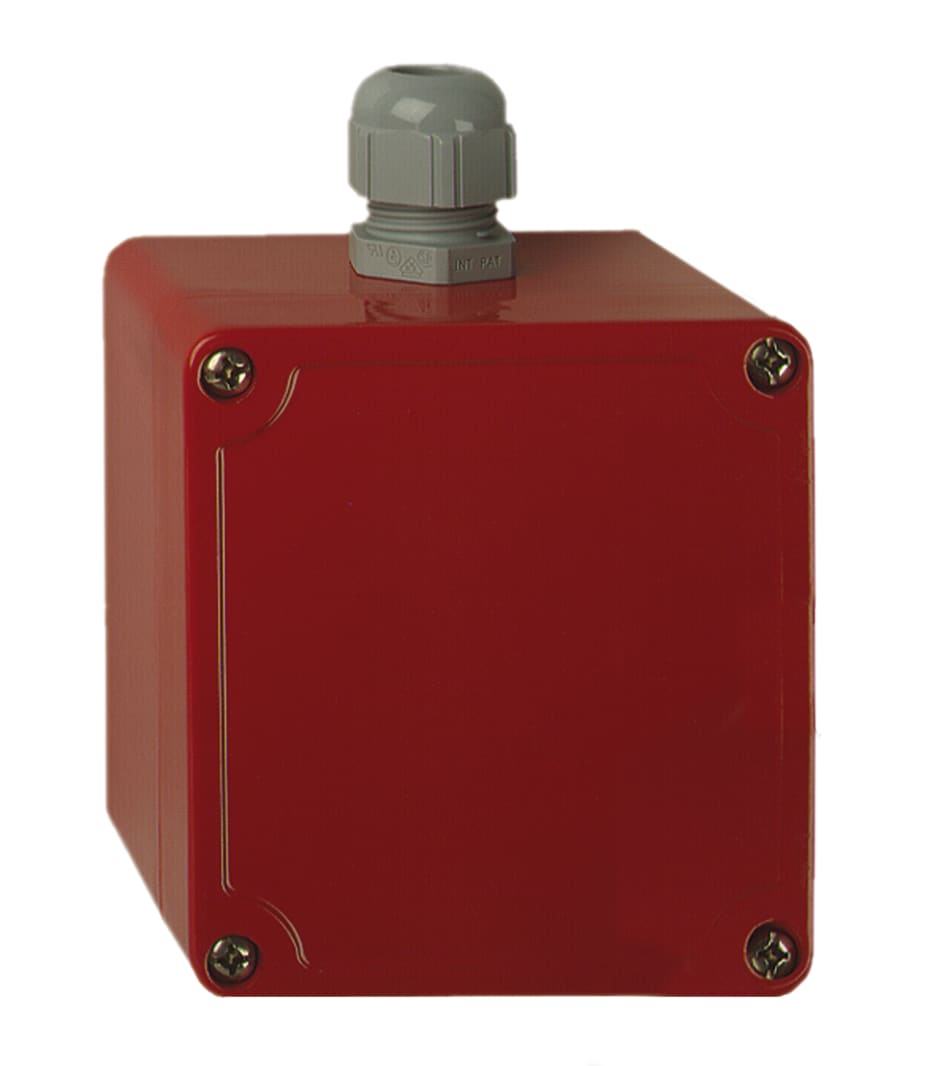

GS 500 ST

Gas sensor

Variants Documents

For the detection of flammable, explosive gases. Can also be used in dusty and dirty environments.

For connection to the gas alarm units GW-S, GW-S4 and GW-SK. Aluminium wall mounting design. Connection cable (shielded) 3 x 1.5 mm2 Cu+ protective conductor, supply and return conductor (max. 100 Ohm line resistance).

Part no.
Gas sensor GS 500 ST (WT) methane69109
Gas sensor GS 500 ST (WT) propane69120
Gas sensor GS 500 ST (WT) butane69124
Gas sensor GS 500 ST (WT) LPG69130
Gas sensor GS 500 ST (WT) H269137
Gas sensor GS 500 ST (WT) ethanol69138
Gas sensor GS 500 ST (WT) n heptane69139
  • in-stock items
  • manufactured goods

Measuring range
0/100 % UEG
Measuring principle
heat tone (HT)
Service life:
ca. 3 Jahre
Supply voltage
DC 24 V DC 5 %
Operating temperature range
Ambient:
-20/+50 °C
Humidity/moisture
15/95 % r.F.
Atmospheric pressure
900/1 100 hPa
Housing
W x H x D:
90 x 85 x 65 mm
Weight:
ca. 0.5 kg
Degree of protection:
IP 54 (EN 60529)
Output signal
4–20 mA
