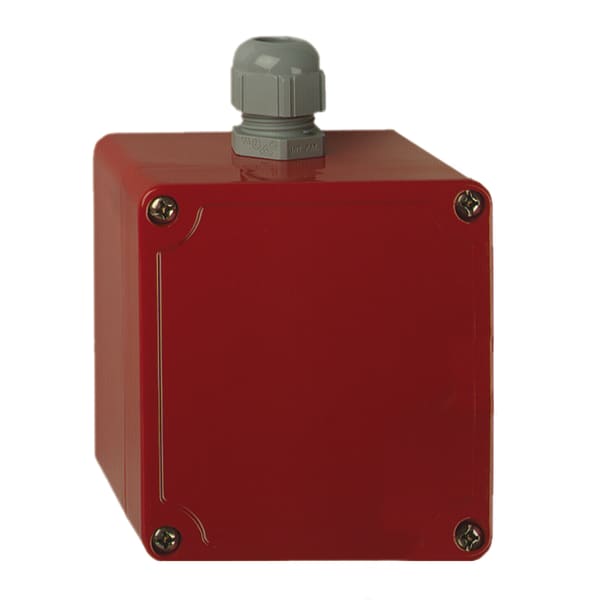

GS 600 ST

Gas sensor

Variants Documents

For monitoring the oxygen concentration or toxic gases. Can also be used in dusty and dirty environments.

For connection to the gas alarm units GW-S 2.1/GW-S 4.1/GW-SK 6.1. Aluminium version for wall mounting housing. Connection cable (shielded) 3 x 1.5 mm2 Cu+ protective conductor, supply and return conductor (max. 100 Ohm line resistance).

Part no.
Gas sensor GS 600 ST (EC) O20.1–25 % by volume61179
Gas sensor GS 600 ST (EC) CO0–300 ppm61180
Gas sensor GS 600 ST (EC) H2S0–50/100 ppm61121
Gas sensor GS 600 ST (EC) NH30–100 ppm61122
Gas sensor GS 600 ST (EC) NO20–50 ppm61123
Gas sensor GS 600 ST (EC) Cl20–10 ppm61124
Gas sensor GS 600 ST (EC) SO20–100 ppm61126
  • in-stock items
  • manufactured goods

Measuring range
see ordering table
Measuring principle
electrochemical (EC)
Service life:
bis 2 Jahre
Supply voltage
DC 24 V DC 5 %
Operating temperature range
Ambient:
-20/+50 °C
Humidity/moisture
15/95 % r.F.
Atmospheric pressure
900/1 100 hPa
Housing
W x H x D:
90 x 85 x 65 mm
Weight:
ca. 0.5 kg
Degree of protection:
IP 54 (EN 60529)
Output signal
4–20 mA
