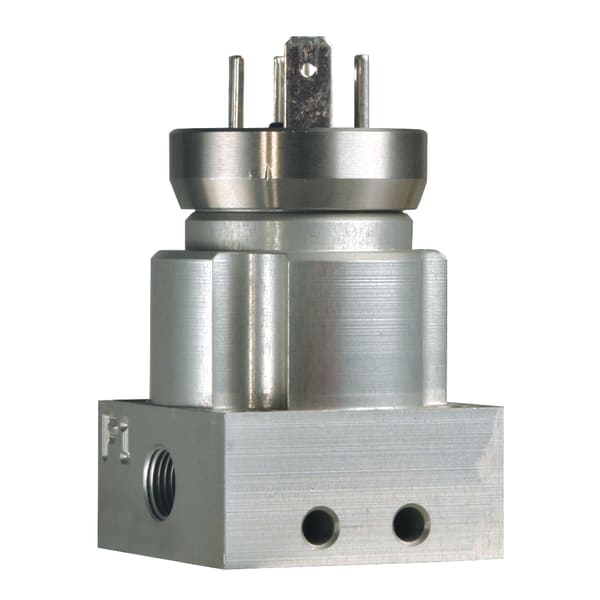

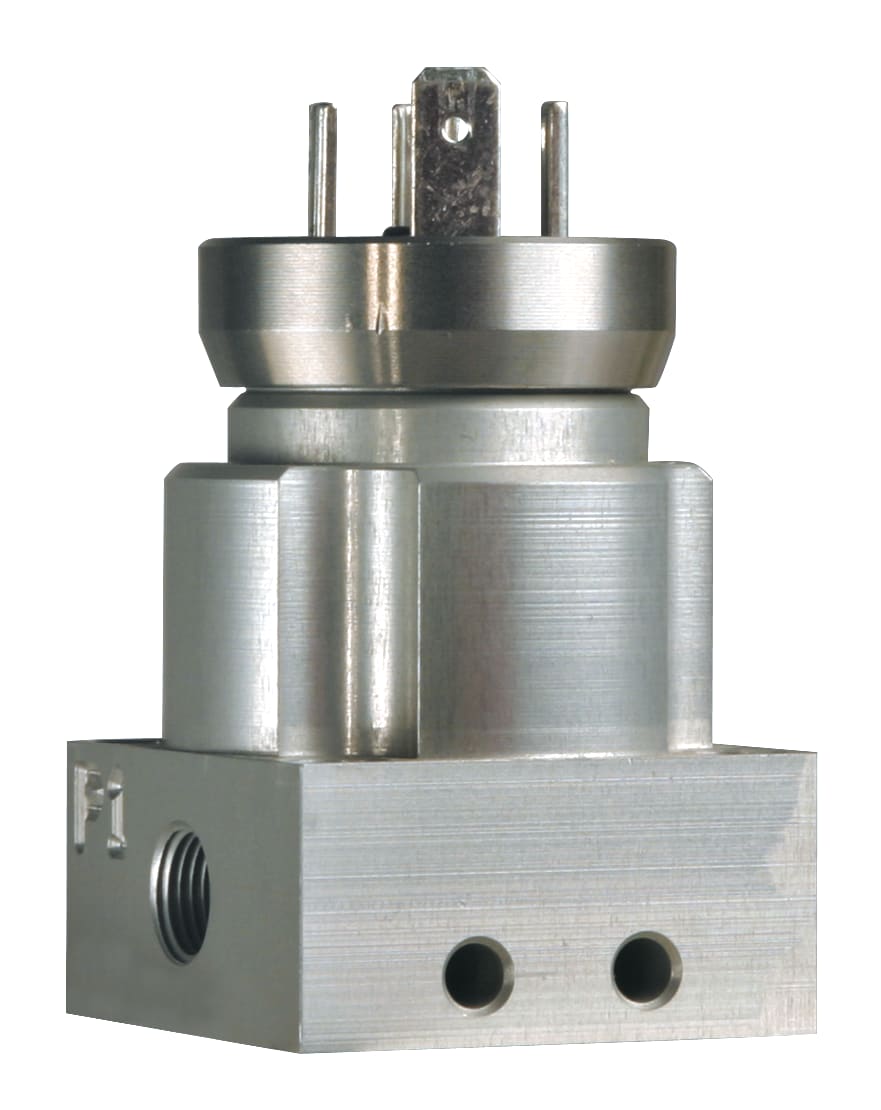

DeltaFox DMU 10 D

Druckmessumformer Differenzdruckausführung

Variants Documents

Connection2 x G⅛B female

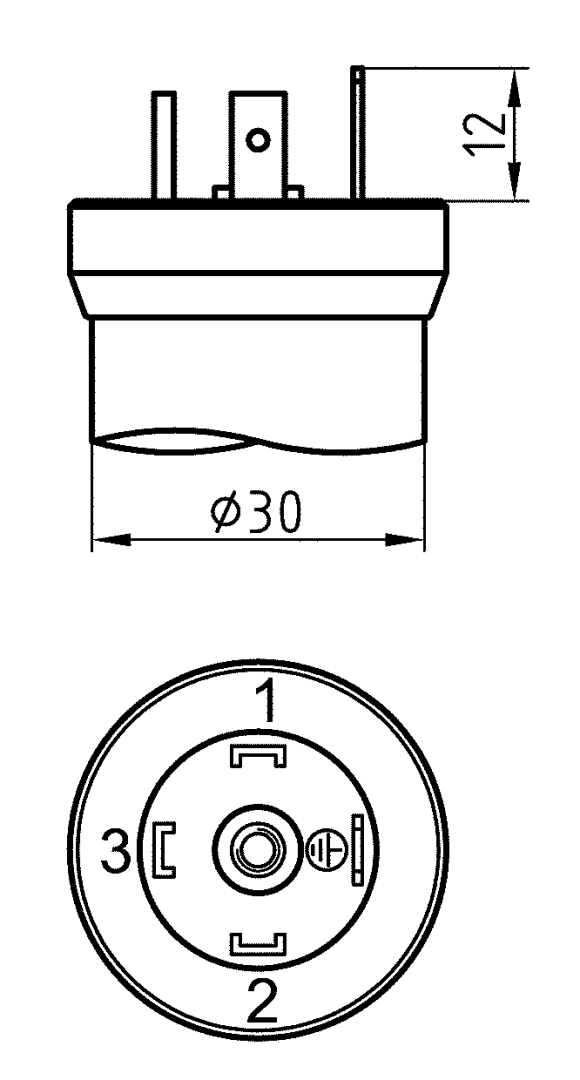

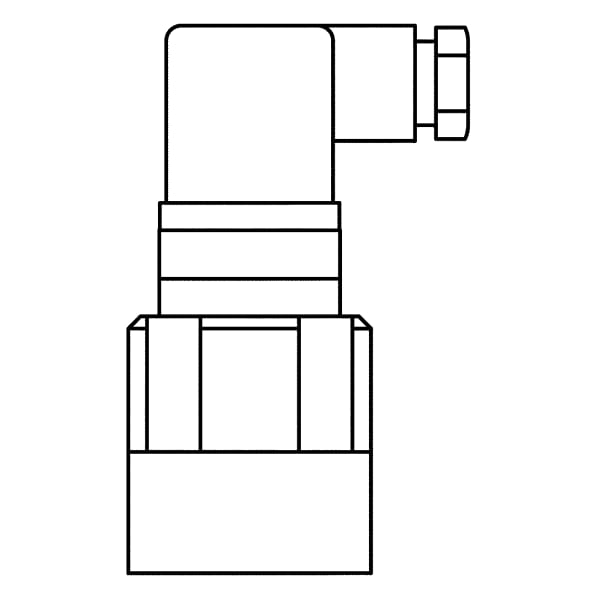

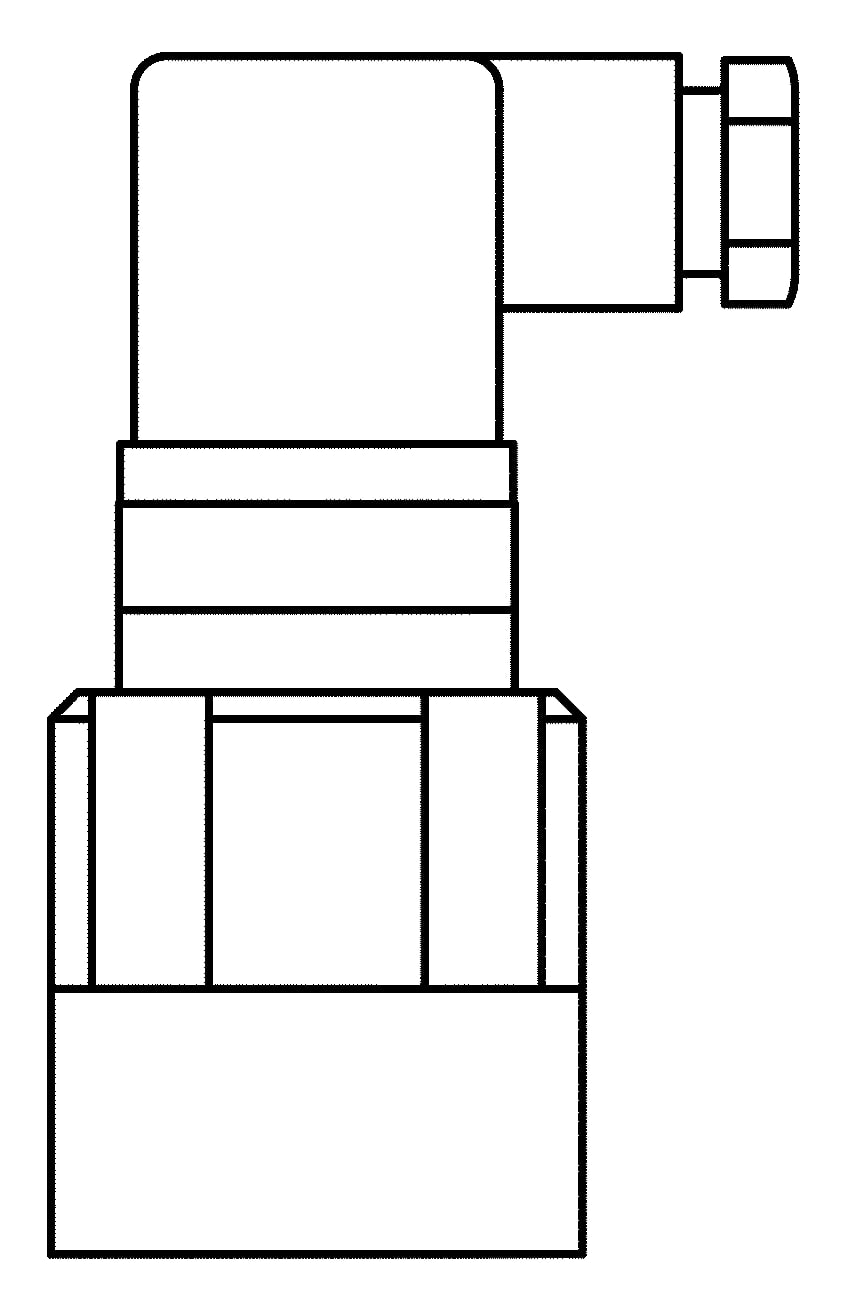

Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

  • compact design
  • robust aluminium housing
  • high long-term stability
  • high overpressure safety
  • long service life

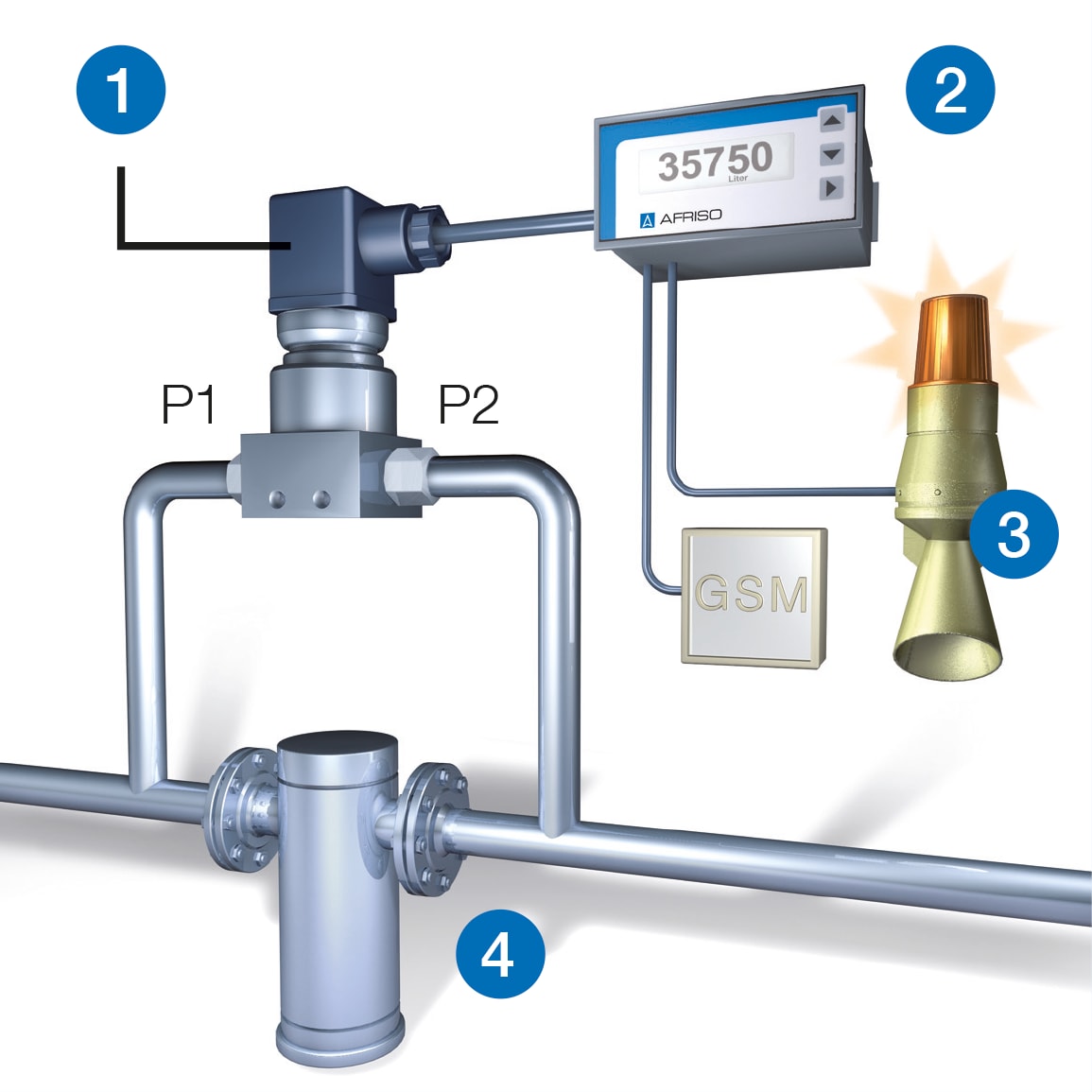

For electronic differential pressure measurement at very low differential pressure. For non-corrosive gaseous media. Particularly suitable for monitoring filters and fans in air and air conditioning applications.

RangeMeasuring rangeTypeVersionPart no.
0/6 mbarDeltaFox DMU 10 D31861
0/10 mbarDeltaFox DMU 10 D31862
0/25 mbarDeltaFox DMU 10 D31863
0/40 mbarDeltaFox DMU 10 D31864
0/60 mbarDeltaFox DMU 10 D31865
0/100 mbarDeltaFox DMU 10 D31866
0/160 mbarDeltaFox DMU 10 D31867
0/250 mbarDeltaFox DMU 10 D31868
0/400 mbarDeltaFox DMU 10 D31869
0/600 mbarDeltaFox DMU 10 D31870
0/1 barDeltaFox DMU 10 D31871
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< 0/40 mbar: ≤ ± 2 % FSO
Measuring range
see ordering table
Overpressure safety
≤ 0/10 mbar: 100 mbar
Operating temperature range
Medium:
-25/+125 °C
Ambient:
-25/+85 °C
Storage:
-40/+100 °C
Temperature error band
≤ 0/10 mbar: ≤ ± 2 % FSO ≤ ± In compensated range 0/60 °C
dynamic characteristics
Response time:
< 5 ms
Process connection
2 x G⅛B female
material
Housing:
aluminium, eloxed, silver
pressure connection:
Aluminium
Seal:
PUR glued
Supply voltage
DC 8 − 32 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
