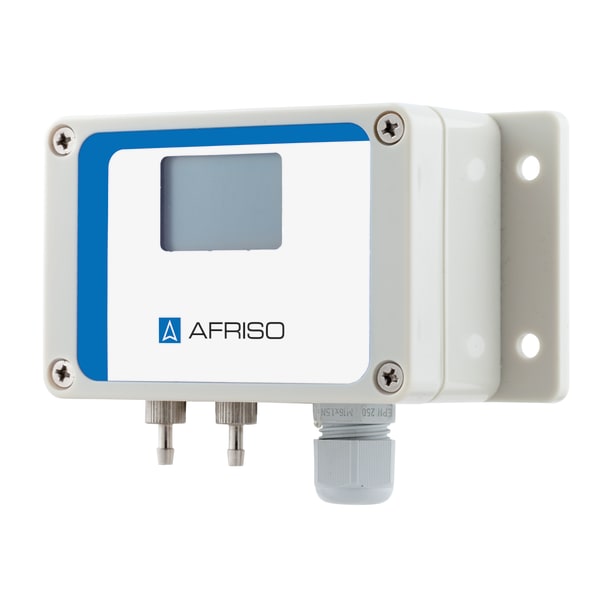

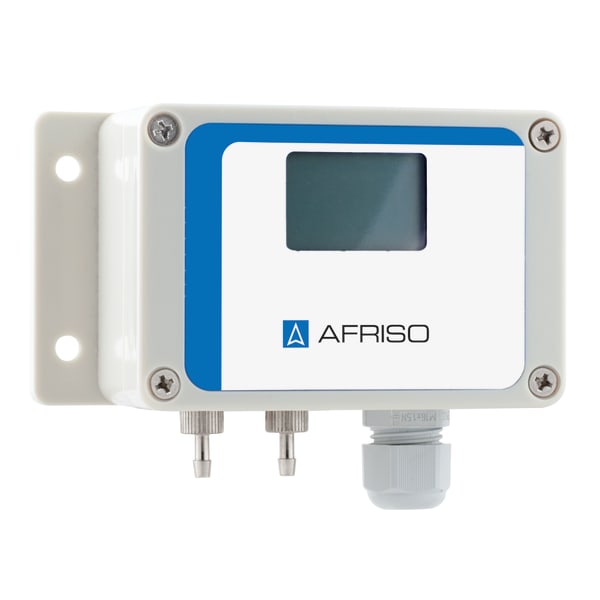

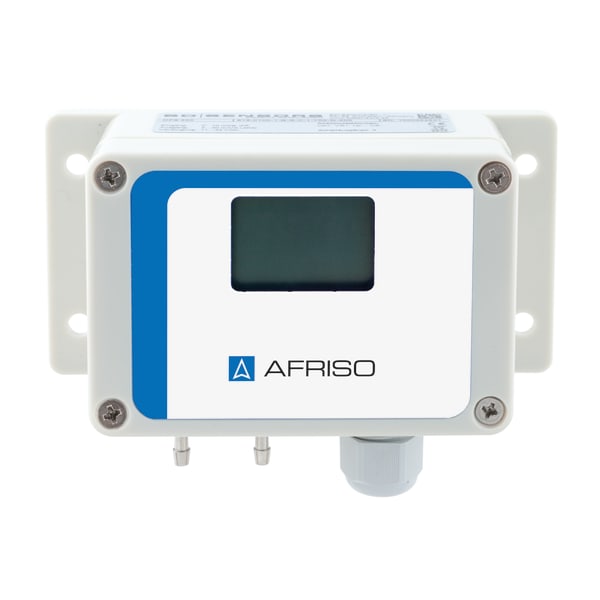

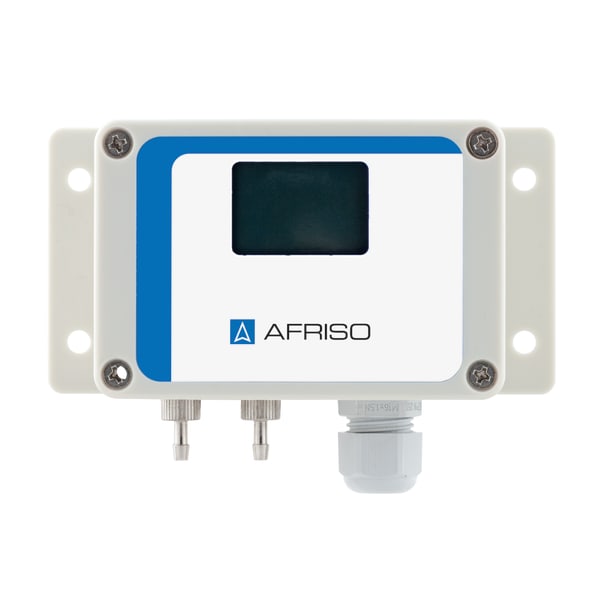

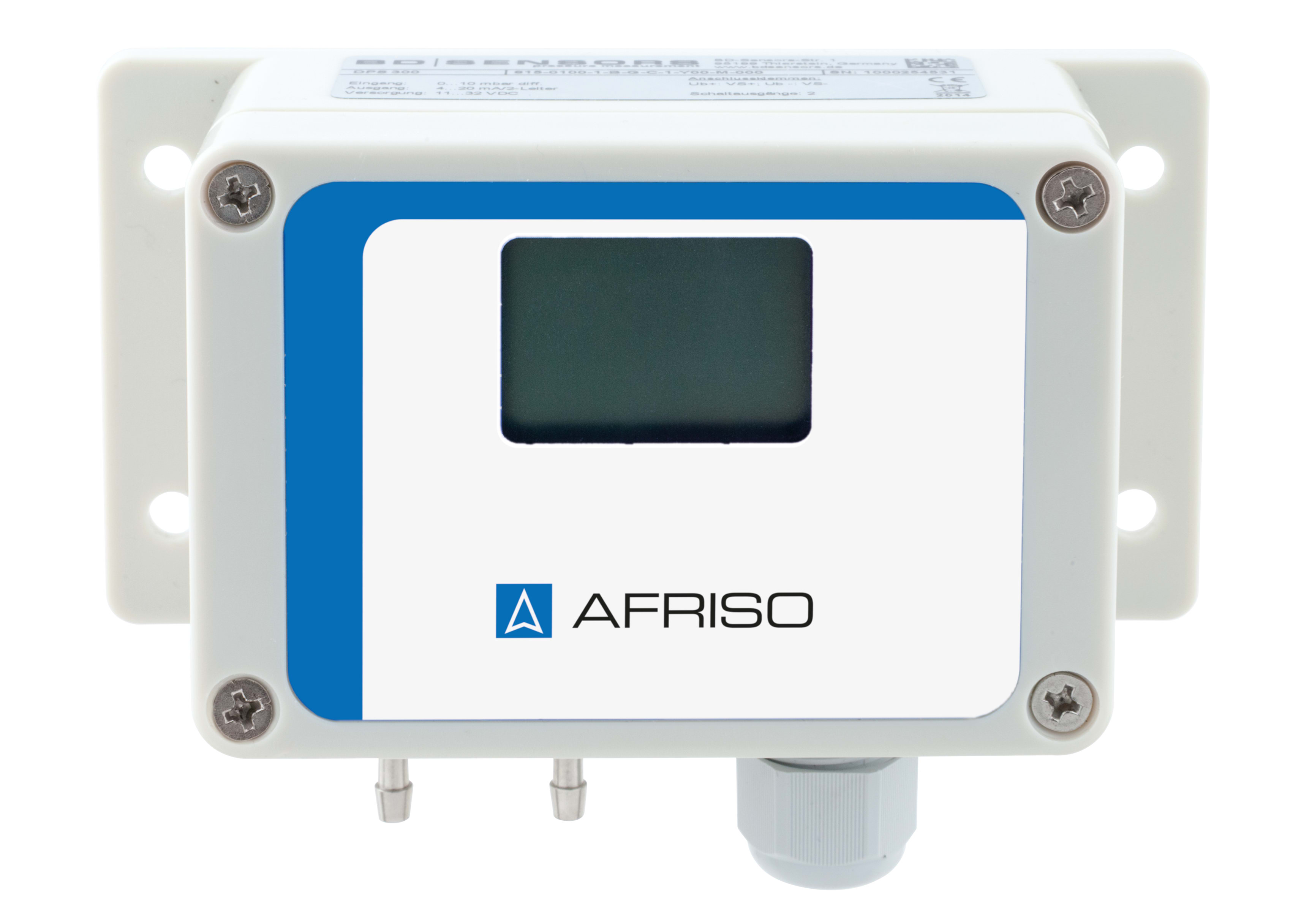

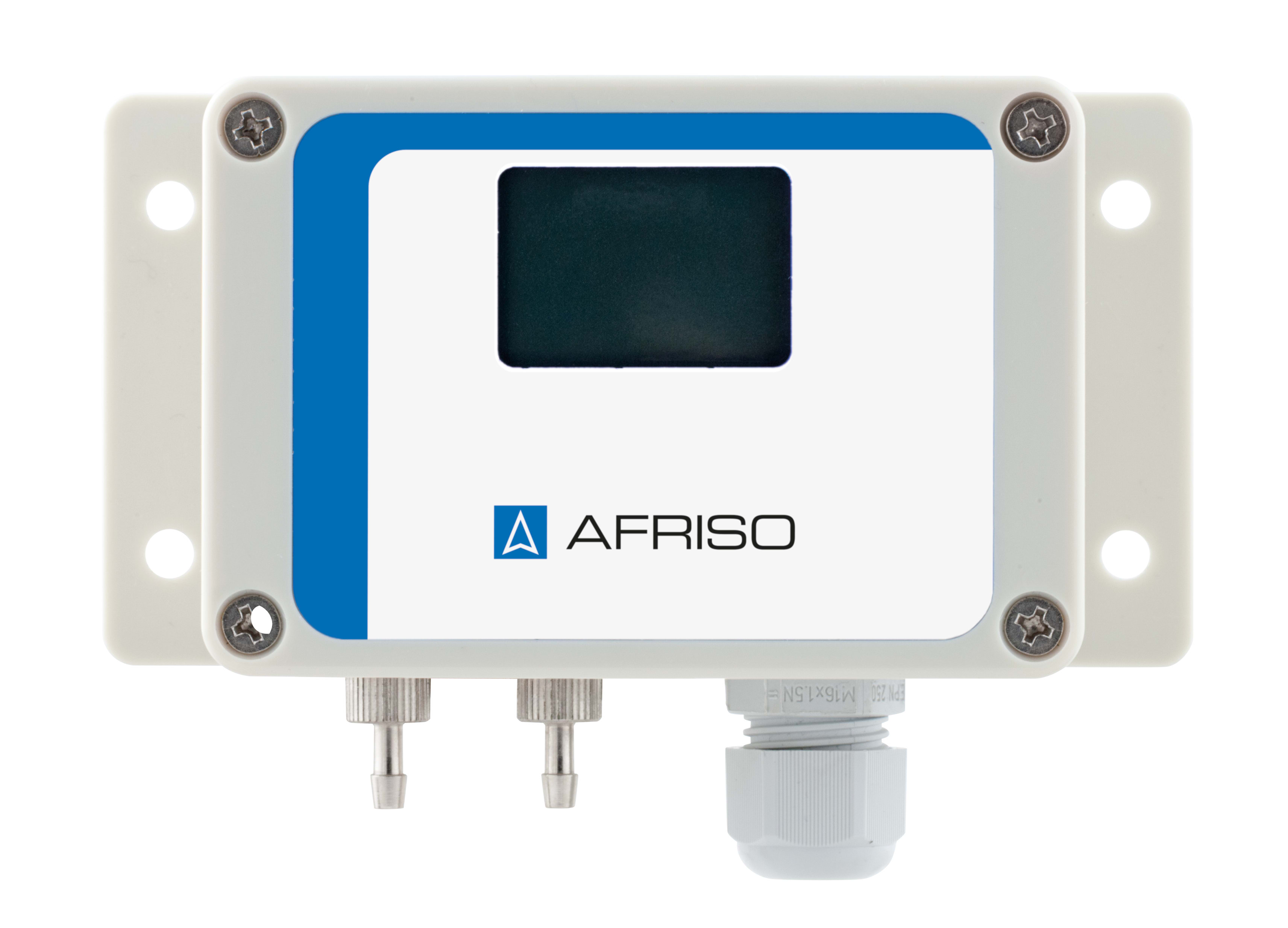

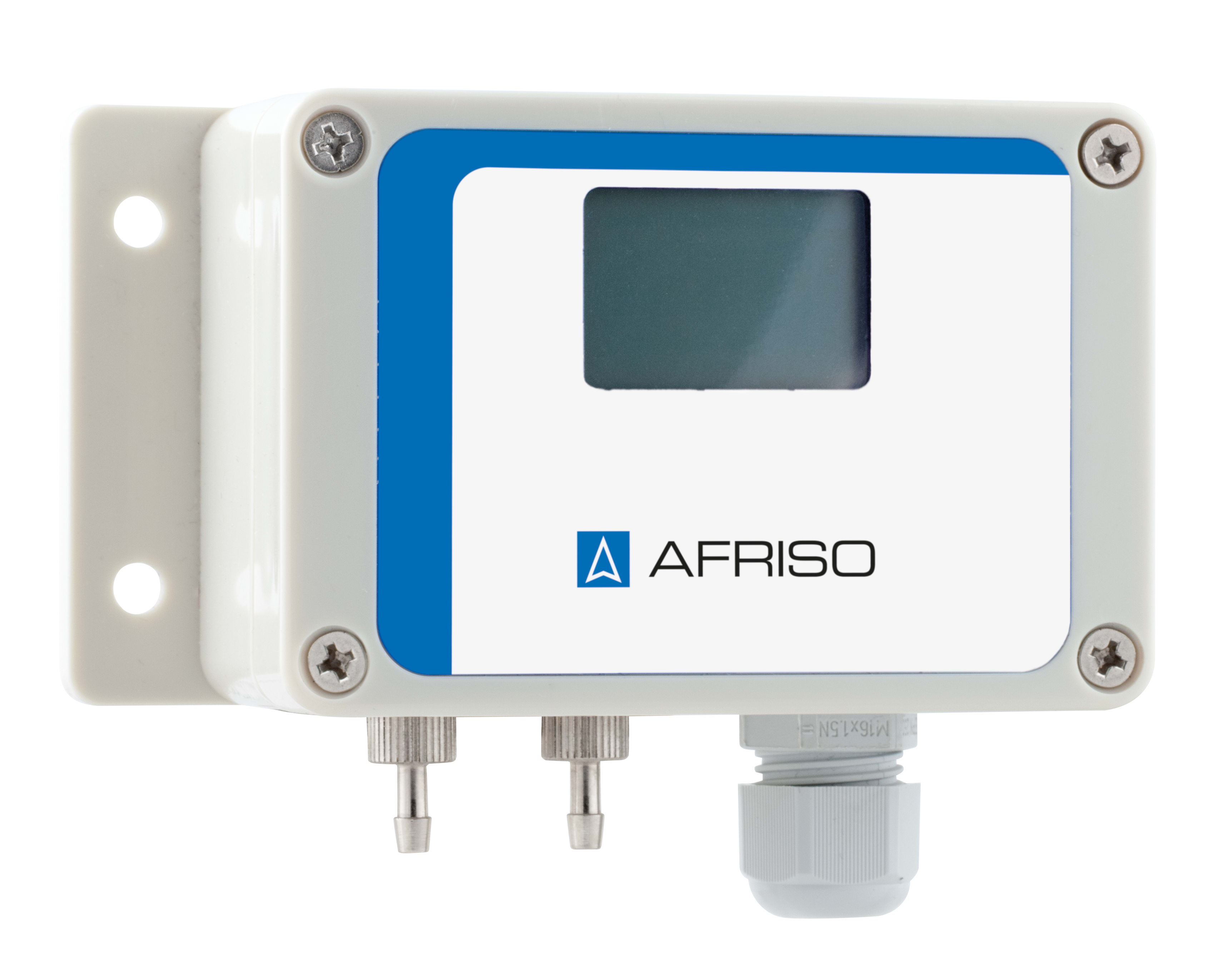

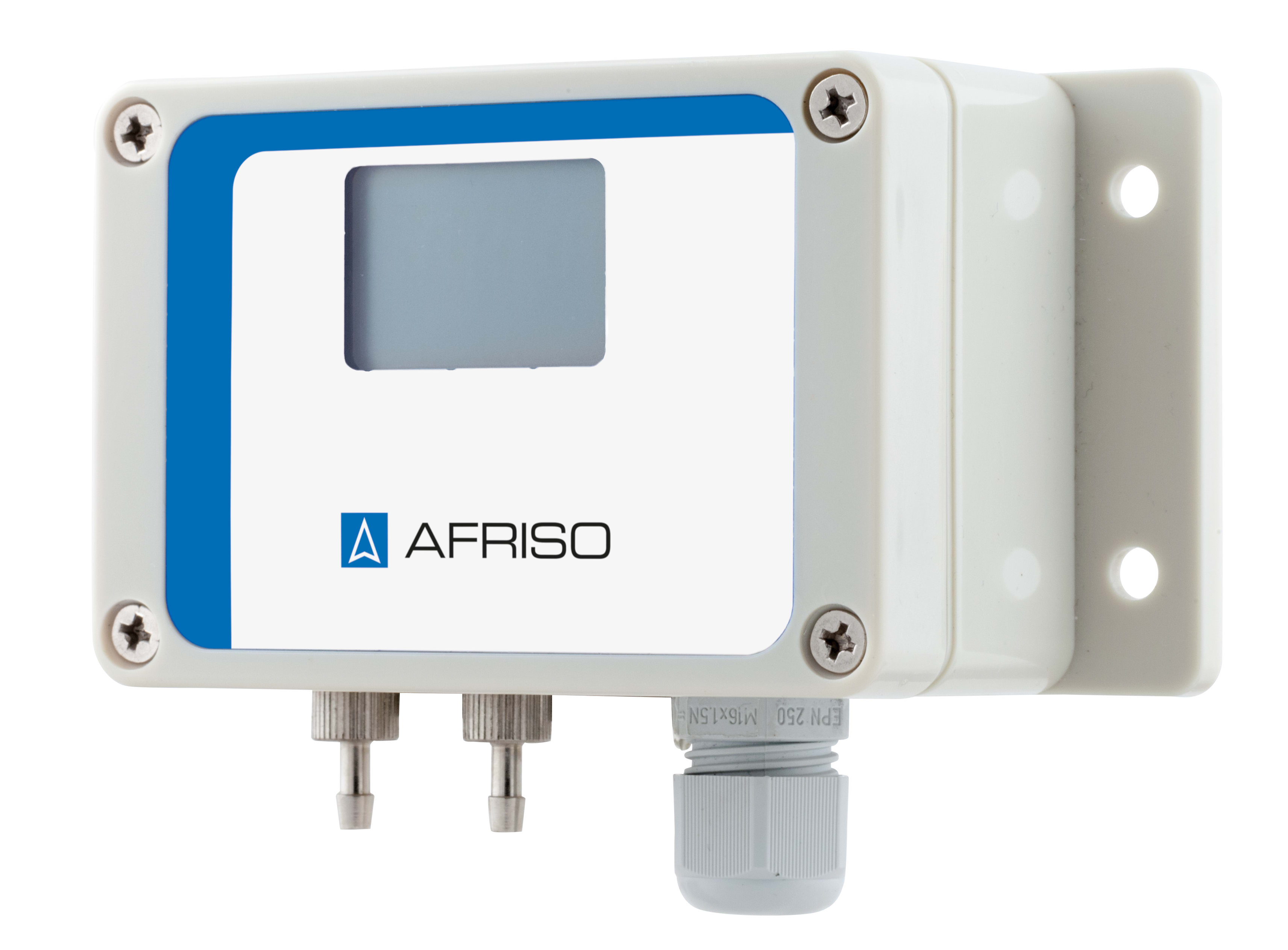

DeltaFox DMU 20 D

Druckmessumformer Differenzdruckausführung

Variants Documents

Connectionhose olive ⌀ 4.4 x 10 mm
Electrical connectionCable gland M16 x 1.5

  • multiple-range transmitter with up to 3 switchable measuring ranges
  • easy parameterisation via 2-line LC display
  • Min./Max. value indication
  • ideal for clean room and filter monitoring

The differential pressure transducer DMU 20 D can be used with all dry, gaseous, non-corrosive media. The device detects even smallest differential pressures and is particularly suitable for heating, air conditioning and ventilation applications. Clean rooms and filter monitoring are other application areas.

The devices equipped with silicon sensors. When pressure is applied, the pressure difference between the positive side and the negative side is converted into a current and voltage signal which is proportional to the differential pressure. The 2-line LC display shows the measured value and the unit and optionally the status of the switching outputs. The customer can parameterise up to three measuring ranges.

Process/pressure connectionswitchable measuring rangesstatic pressurePart no.
IIIIII
Pressure transducers DeltaFox DMU 20 Dhose olive ⌀ 4.4 x 10 mm0/1.6 mbar0/1 mbarmax. 200 mbar33409R010532
Pressure transducers DeltaFox DMU 20 Dhose olive ⌀ 4.4 x 10 mm0/4 mbar0/2.5 mbarmax. 200 mbar33409R010542
Pressure transducers DeltaFox DMU 20 Dhose olive ⌀ 4.4 x 10 mm0/10 mbar0/6 mbarmax. 200 mbar33409R010022
Pressure transducers DeltaFox DMU 20 Dhose olive ⌀ 4.4 x 10 mm0/40 mbar0/25 mbarmax. 345 mbar33409R010052
Pressure transducers DeltaFox DMU 20 Dhose olive ⌀ 4.4 x 10 mm0/250 mbar0/60 mbar0/160 mbarmax. 1000 mbar33409R010092
Pressure transducers DeltaFox DMU 20 Dhose olive ⌀ 4.4 x 10 mm0/1 000 mbar0/400 mbar0max. 3000 mbar33409R010122
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< 0/6 mbar: ≤ ± 1 % FSO (BFSL)
Display
2-line LC display,
sichtbarer Bereich 32,5 x 22,5 mm,
5-digit 7-segment main display,
Ziffernhöhe 8 mm,
range ± 9,999,
8-stellige 14-Segment-Zusatzanzeige,
height 5 mm, 52-segment bar chart,
Genauigkeit 0,1 % ± 1 Digit,
pressure units switchable mbar, bar, Pa, hPa, kPa, psi, Atm, torr, mmHg
Measuring range
see ordering table
Long-term stability
< 0/6 mbar: ≤ ± 0.5 % FSO/Jahr
Operating temperature range
Medium:
0/50 °C
Ambient:
0/50 °C
Storage:
-10/+70 °C
Housing
W x H x D:
132 x 68.5 x 50 mm
Process connection
hose olive ⌀ 4.4 x 10 mm (for flexible hoses with ID 4 mm)
material
Housing:
Plastic (ABS)
Process/pressure connection:
Brass, nickel-plated
Sensor:
Ceramic, Silikon, epoxy, RTV
wetted parts
pressure connection, PVC/Silikonschlauch, Sensor
Supply voltage
DC 19 − 32 V
Output signal
3-wire, 0/4–20 mA and 0–10 (5) V
Load
0/4–20 mA:
Rmax = 330 Ω
0–10 V:
Rmin = 10 kΩ
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Cable gland M16 x 1.5
Degree of protection
IP 54 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
