DIM 30 G½B EN837-1

Precision digital pressure gauges

Variants Documents

  • accuracy ≤ ± 0.05 % at 400 mbar and higher
  • suitable for on-site calibration or pressure transducers
  • graphical LC display
  • Data logger function

For mobile electronic pressure measurement with high demands in terms of accuracy and long-term stability in process engineering as well as mechanical and plant engineering applications. Suitable for monitoring pressure and temperature behaviour as well as on-site calibration of pressure transducers.

The battery-operated digital pressure gauge DIM 30 consists of two devices – the digital display with a graphical LC display and a pressure transducer with a piezo-resistive stainless steel sensor. The pressure transducer can be replaced without tools and without calibration for other measurement tasks. The integrated data logger can record pressure and temperature values linearly and cyclically. These measured values can be analysed with the enclosed PC evaluation software.

Process connectionpressure rangeOverloadBurst pressurePart no.
Digital pressure gauges DIM 300/0.1 barat least 3 x FSat least 5 x FS33406R007021
Digital pressure gauges DIM 300/0.16 barat least 3 x FSat least 5 x FS33406R008021
Digital pressure gauges DIM 300/0.25 barat least 3 x FSat least 5 x FS33406R009021
Digital pressure gauges DIM 300/0.4 barat least 3 x FSat least 5 x FS33406R010021
Digital pressure gauges DIM 300/0.6 barat least 3 x FSat least 5 x FS33406R108021
Digital pressure gauges DIM 300/1 barat least 3 x FSat least 5 x FS33406R109021
Digital pressure gauges DIM 300/1.6 barat least 3 x FSat least 5 x FS33406R110021
Digital pressure gauges DIM 300/2.5 barat least 3 x FSat least 5 x FS33406R111021
Digital pressure gauges DIM 300/4 barat least 3 x FSat least 5 x FS33406R112021
Digital pressure gauges DIM 300/6 barat least 3 x FSat least 5 x FS33406R113021
Digital pressure gauges DIM 300/10 barat least 3 x FSat least 5 x FS33406R114021
Digital pressure gauges DIM 300/16 barat least 3 x FSat least 5 x FS33406R115021
Digital pressure gauges DIM 300/25 barat least 3 x FSat least 5 x FS33406R116021
Digital pressure gauges DIM 300/40 bar105 barat least 5 x FS33406R117021
Digital pressure gauges DIM 300/60 barat least 3 x FSat least 5 x FS33406R118021
Digital pressure gauges DIM 300/100 barat least 3 x FSat least 5 x FS33406R119021
Digital pressure gauges DIM 300/160 barat least 3 x FSat least 5 x FS33406R120021
Digital pressure gauges DIM 300/250 barat least 3 x FSat least 5 x FS33406R121021
Digital pressure gauges DIM 300/400 bar1,000 bar1,250 bar33406R122021
  • in-stock items
  • manufactured goods

Display
backlit graphical LC display,
sichtbarer Bereich 55 x 46 mm,
Indication of measured values max. 7 digits,
Temperaturanzeige,
Time,
100-Segment-Bargraph potentieller Eingangswert,
user interface language selectable (German/English),
Beleuchtungsdauer und Intensität einstellbar
Indication of measured values
bar, mbar, hPa, kPa, MPa, psi, inHg, cmHg, mmHg, inH2O, mmH2O, mH2O, or kg/cm2
selectable pressure unit
temperature indication
Measuring range:
-10/+55 °C
Resolution:
0.1 °C
Accuracy:
± 2 K
Data logger
stores pressure values and sensor temperature (sec., min., hour, daily at an adjusted time)
max. 600.000 Werte
Adjustable measurement interval
Zero correction
from the front via keypad
Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< 0/0.4 bar: ≤ ± 0.125 % FSO (BFSL)
Long-term stability
≤ ± 0.1 % FSO/Jahr ≤ ±
Overpressure safety
at least 3 x FS
Burst pressure
at least 5 x FS
Operating temperature range
Medium:
-10/+55 °C
Ambient:
-10/+55 °C
Storage:
-20/+70 °C

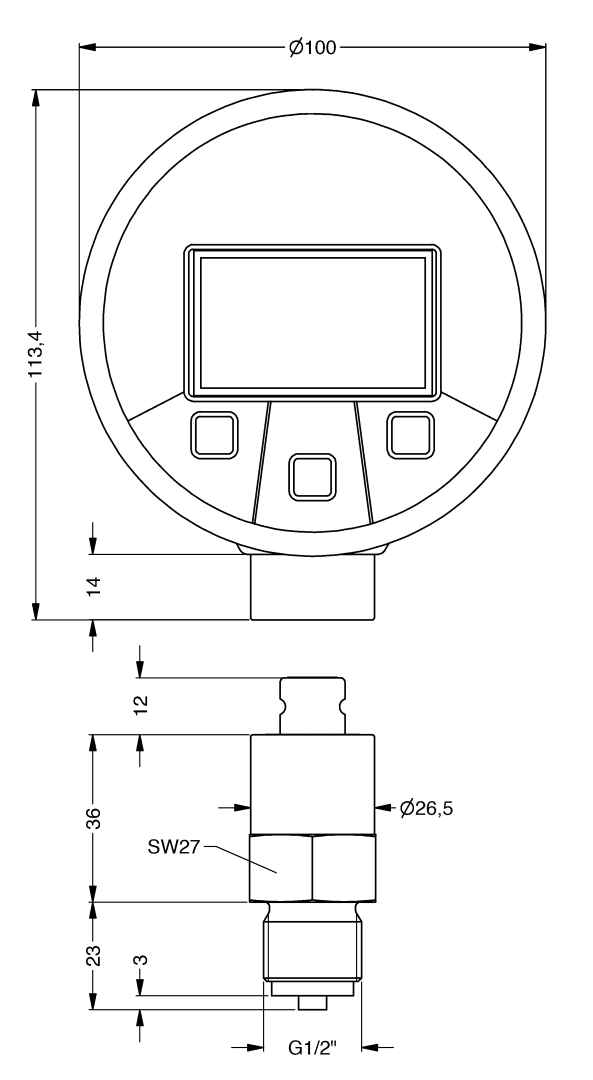

Housing diameter
100 mm
Process connection
G½B (EN 837-1)
material
Housing:
Stainless steel 304
Process connection:
Stainless steel 304
diaphragm:
Stainless steel 316 L
Seal:
FKM (Viton)
wetted parts
Process connection, Membrane, Seal
Mounting position
any
Supply voltage
3 x 1.5 V AA batteries
battery service life
standard mode:
> 2000 Stunden
standby mode:
> 5 Jahre
Current input
without backlight:
ca. 1.3 mA
with backlight:
ca. 16 mA
depends on adjusted intensity
standby mode:
ca. 1.2 µA
Degree of protection
IP 67 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU (module A)
Scope of delivery
  • Precision digital pressure gauge DIM 30
  • Batterien
  • PC connection cables
  • Auswertesoftware auf CD-ROM
Options
  • other process connections
  • ohne Dichtung (Schweißversion nur für Prozessanschlüsse nach EN 837)
