Industrial technology Electronic pressure measuring instruments DMU 01

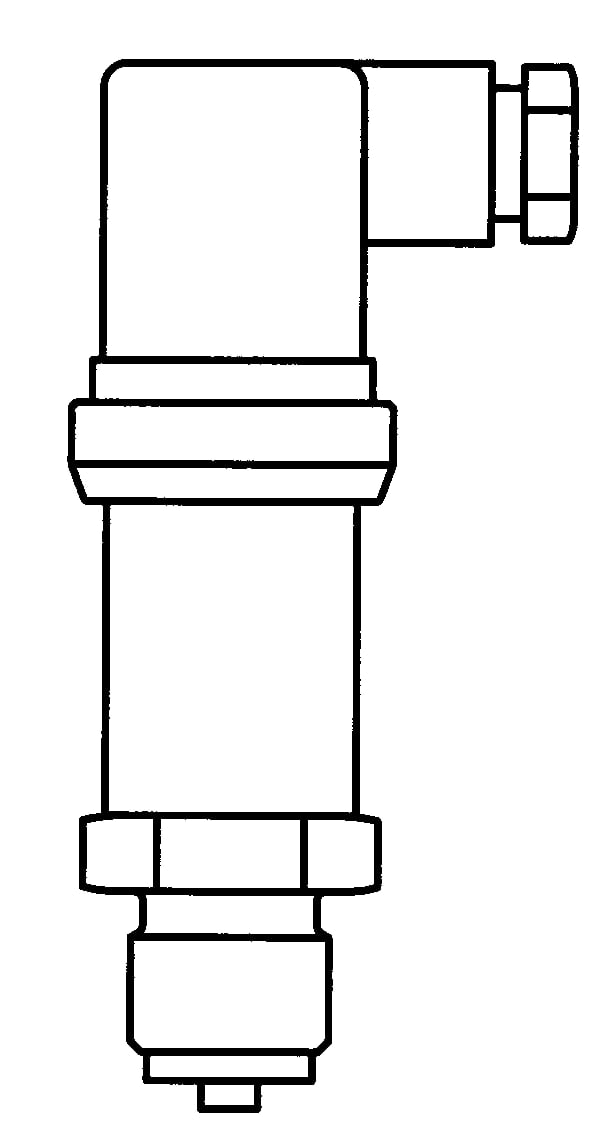

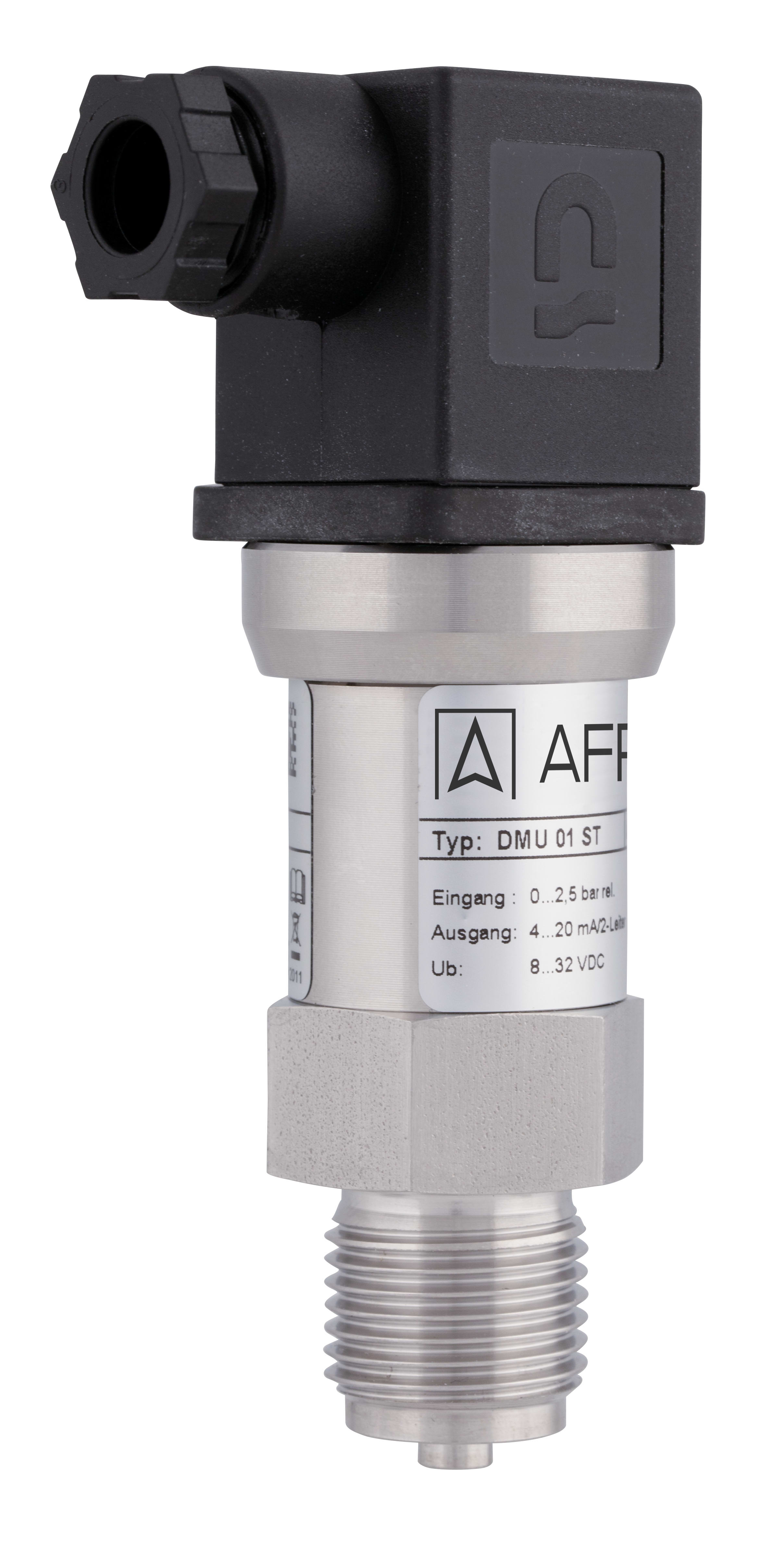

PRO_TEC_VOR_DMU_01ST_31117.TIF

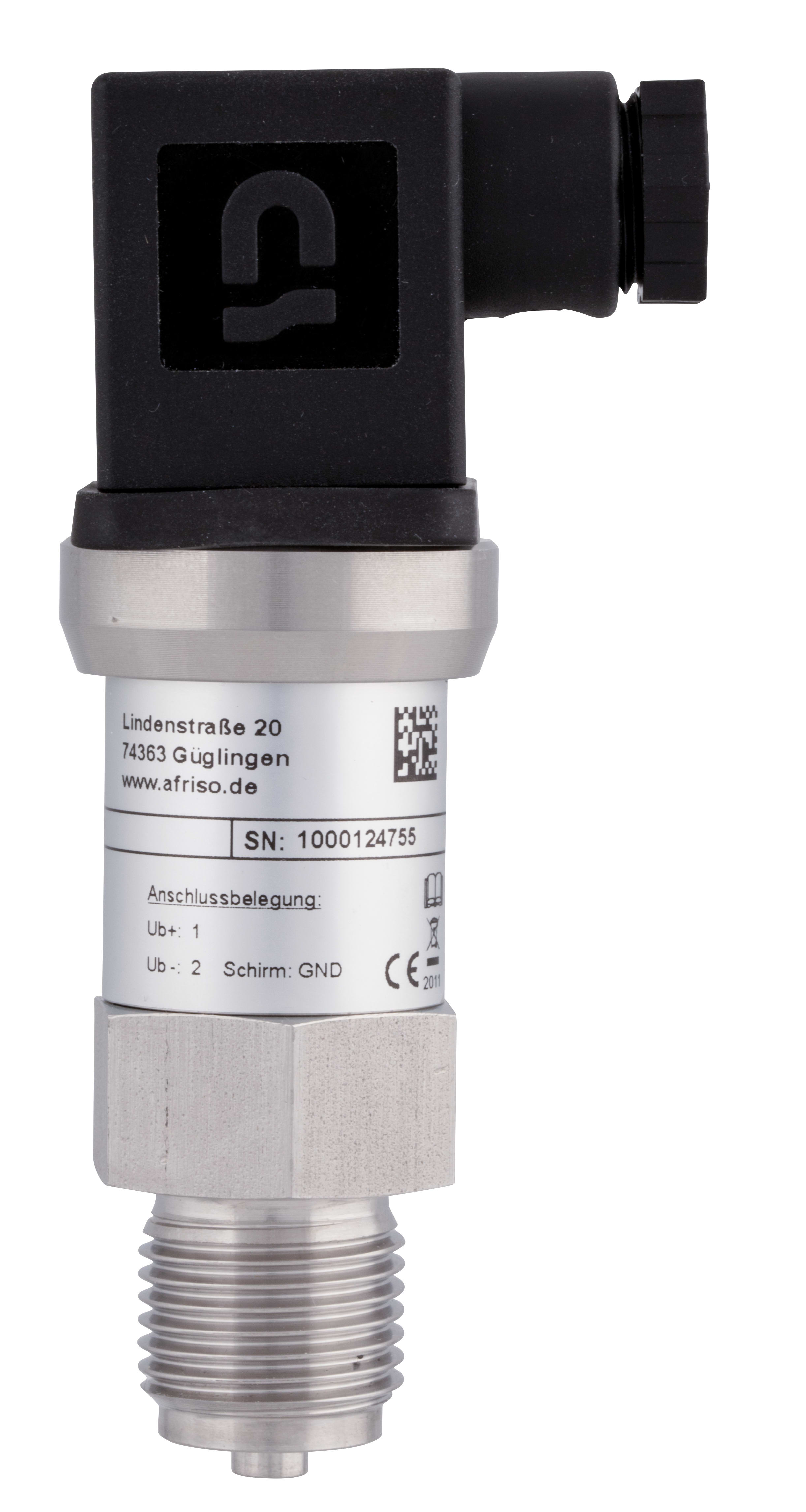

PRO_TEC_SAL_DMU_01ST_31117.TIF

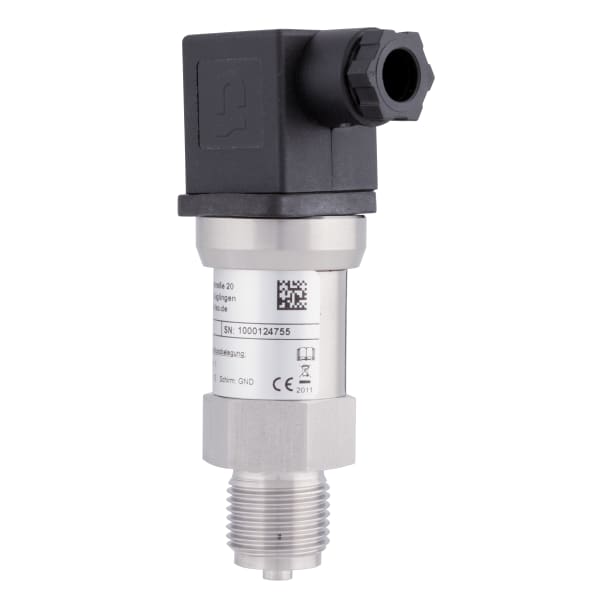

PRO_TEC_SAR_DMU_01ST_31117_3.TIF

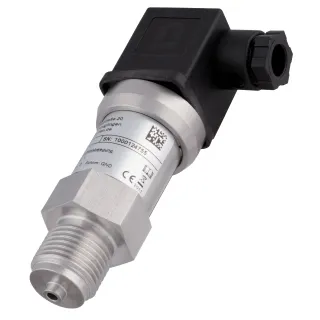

PRO_TEC_DRU_DMU_01ST_31117.TIF

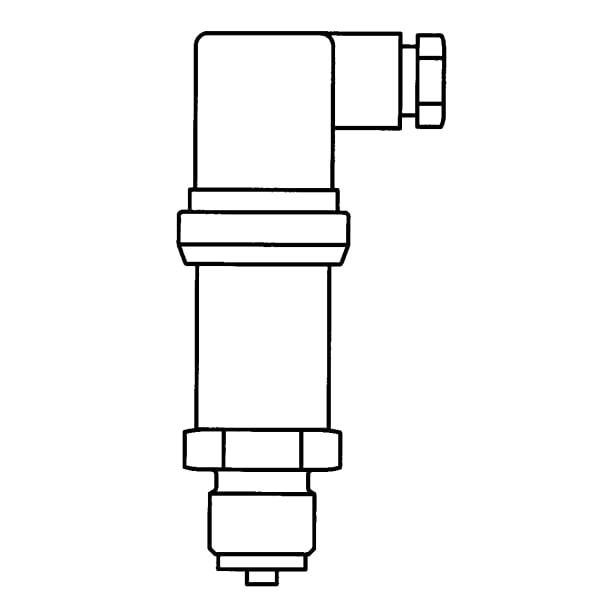

PRO_TEC_SCD_DMU01.TIF
PRO_TEC_VOR_DMU_01ST_31117.TIF
PRO_TEC_SAL_DMU_01ST_31117.TIF

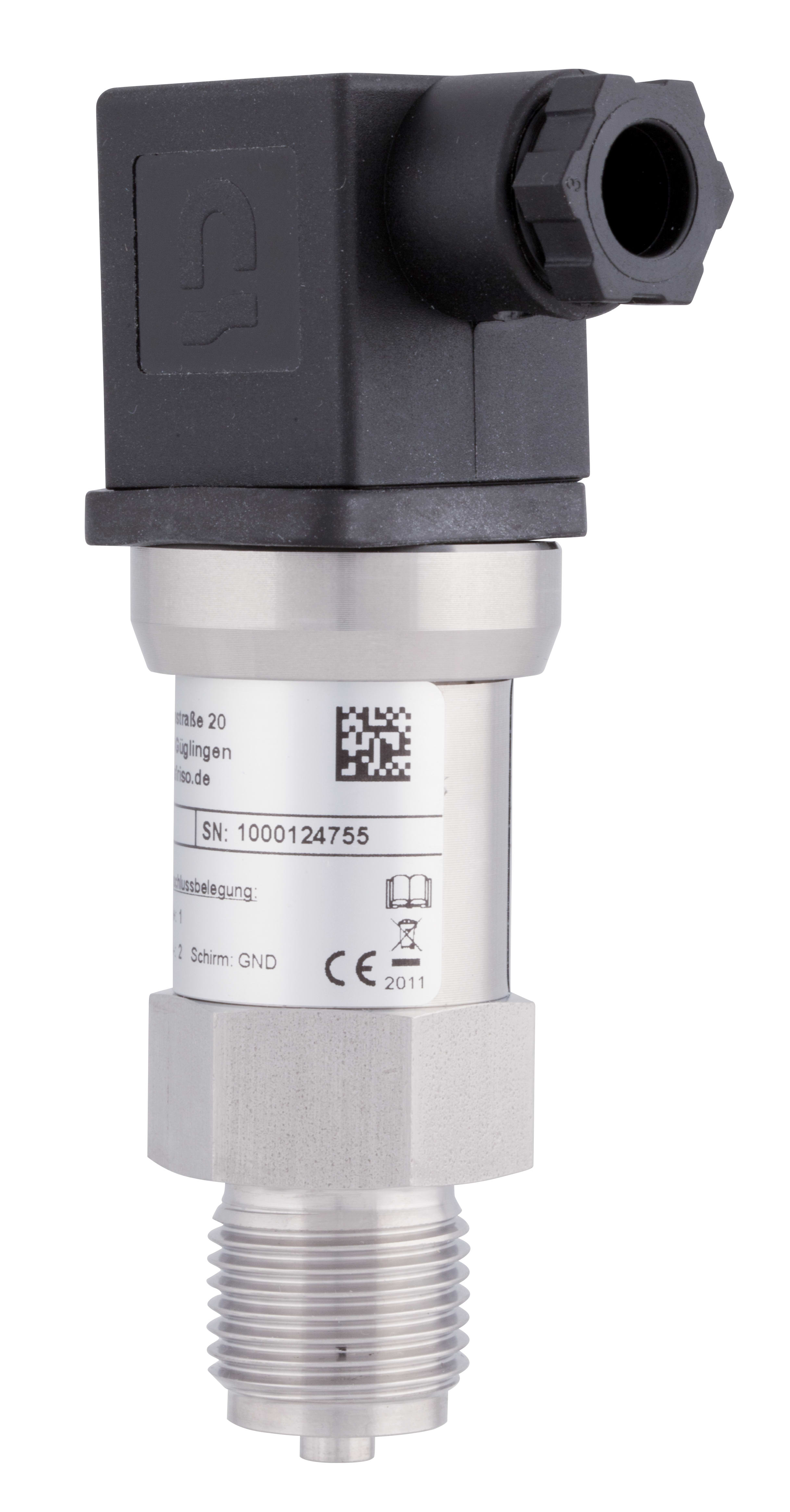

PRO_TEC_SAR_DMU_01ST_31117_3.TIF
PRO_TEC_DRU_DMU_01ST_31117.TIF
PRO_TEC_SCD_DMU01.TIF
Images 5

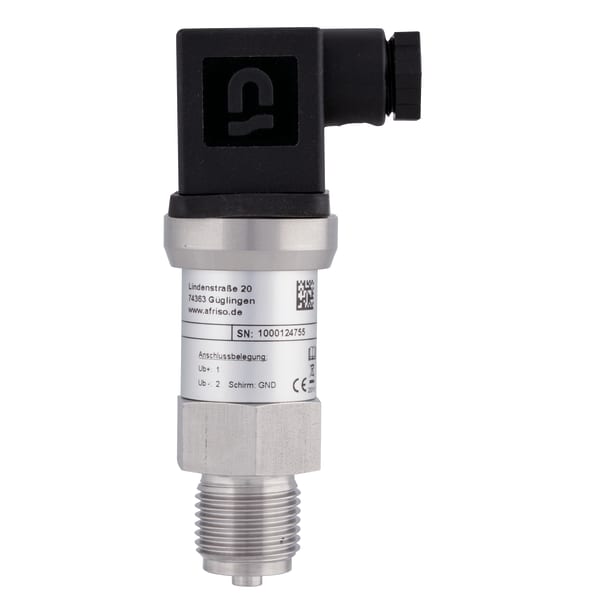

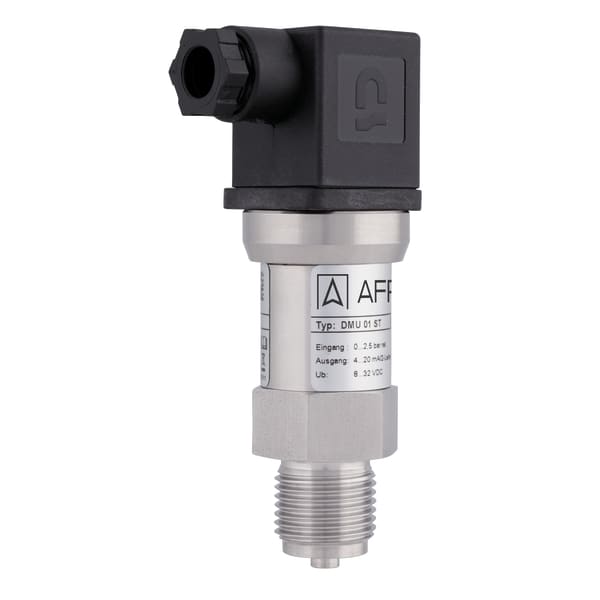

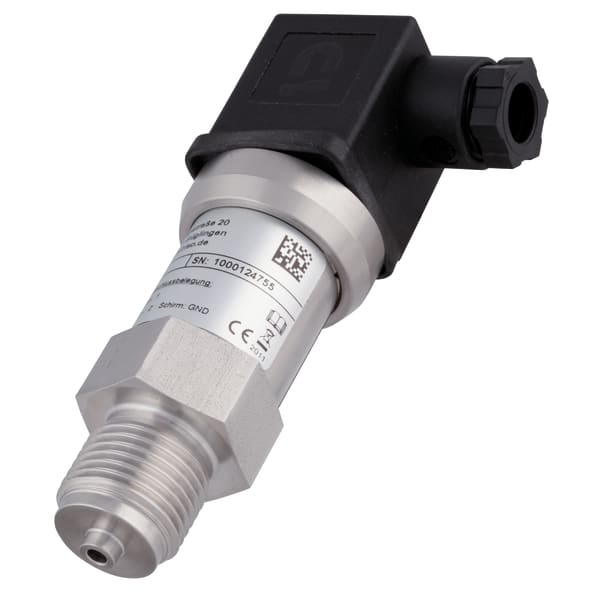

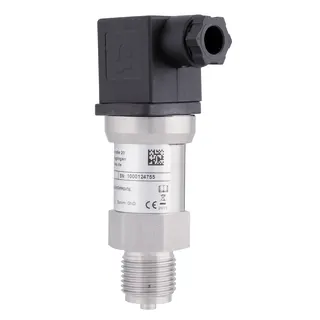

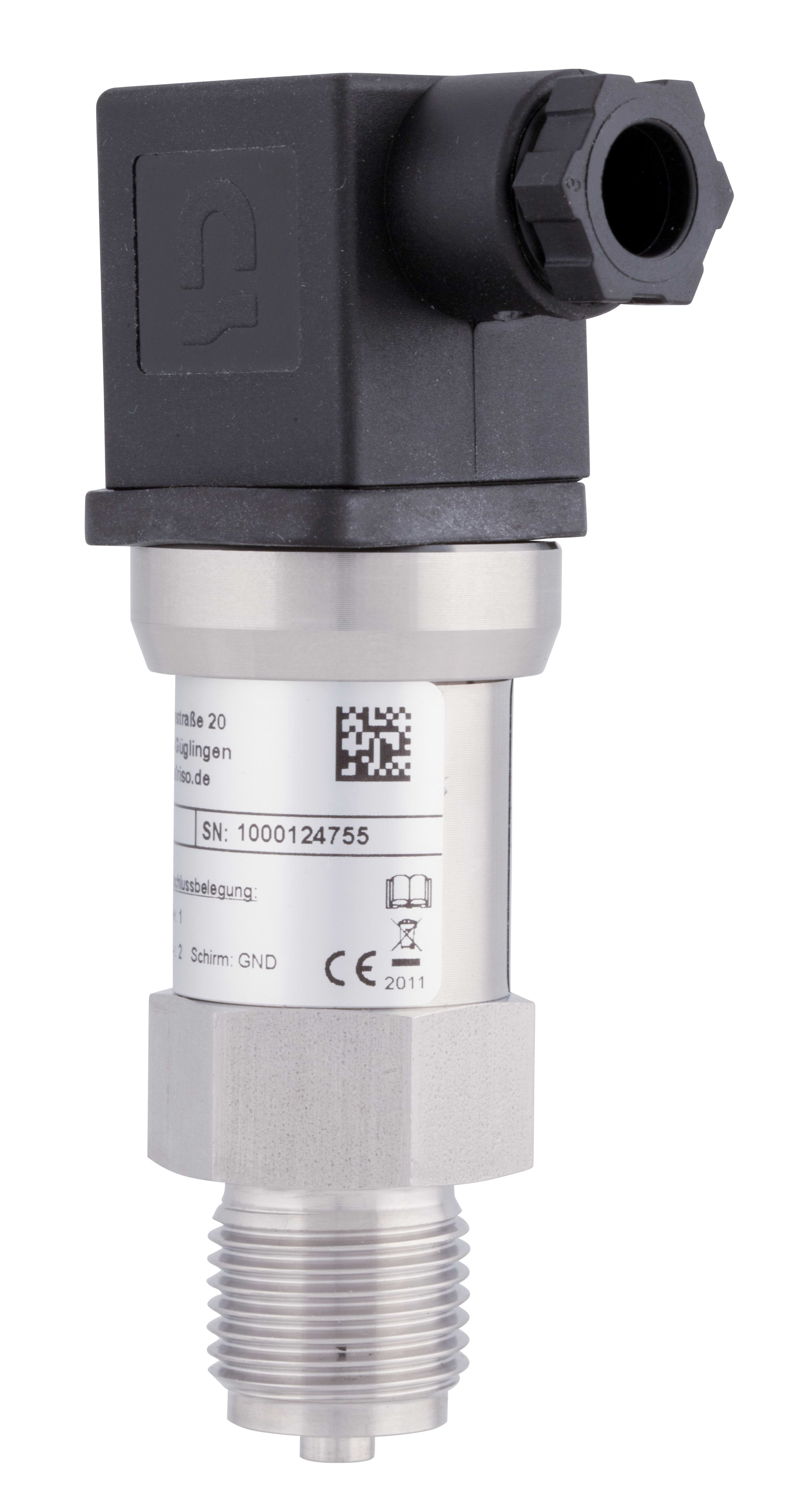

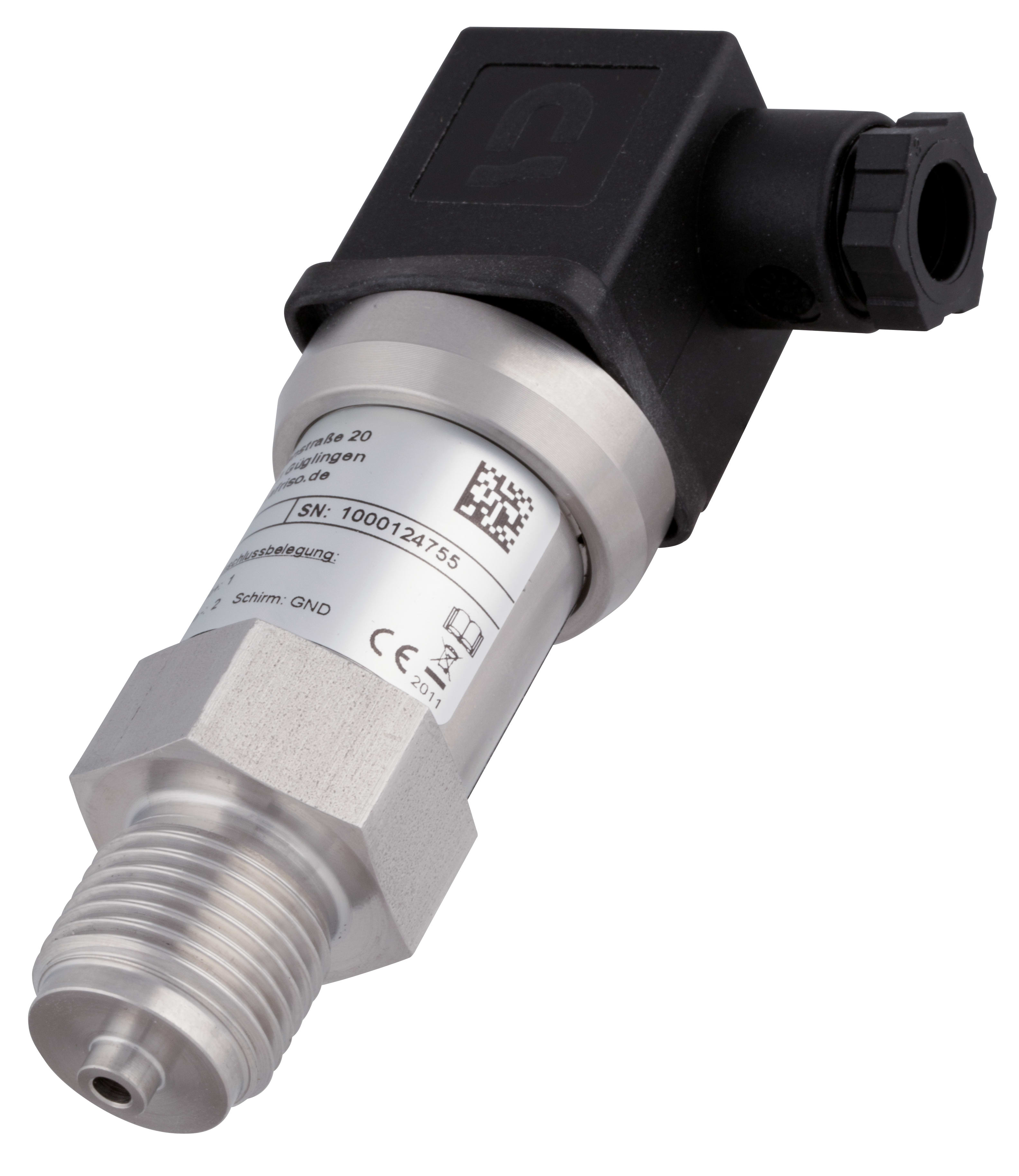

DMU 01

Druckmessumformer Standardausführung

Variants Documents

ConnectionG½B
ConnectionEN 837-1/7.3
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A, EN 175301-803)

  • proven ceramic technology
  • no mechanical ageing of the measuring cell
  • no transmission liquid
  • Versions for relative pressure and absolute pressure
  • small temperature error

For electronic pressure measurement in industrial applications (such as hydraulic and pneumatic applications as well as mechanical and plant engineering).

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 01 is equipped with a piezo-resistive thick-film ceramic measuring cell.

RangeMeasuring rangeTypeVersionPart no.
-1/0 barDMU 0131114
-1/+1.5 barDMU 0131616
-1/+3 barDMU 0131617
-1/+5 barDMU 0131618
0/1 barDMU 0131115
0/1.6 barDMU 0131116
0/2.5 barDMU 0131117
0/4 barDMU 0131118
0/6 barDMU 0131119
0/10 barDMU 0131120
0/16 barDMU 0131121
0/25 barDMU 0131122
0/40 barDMU 0131123
0/60 barDMU 0131124
0/100 barDMU 0131125
0/160 barDMU 0131126
0/200 barDMU 0131878
0/250 barDMU 0131127
0/400 barDMU 0131128
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
-1/0 bar < ± 1 % FSO
Measuring range
see ordering table
Overpressure safety
< 250 bar: at least 2 x FS
Burst pressure
< 400 bar: at least 3 x FS
Operating temperature range
Medium:
-25/+125 °C
Ambient:
-25/+85 °C
Storage:
-40/+85 °C
Temperature error band
≤ ± 0.3 % FSO/10 K ≤ ± In compensated range -25/+85 °C
dynamic characteristics
Response time:
≤ 10 ms

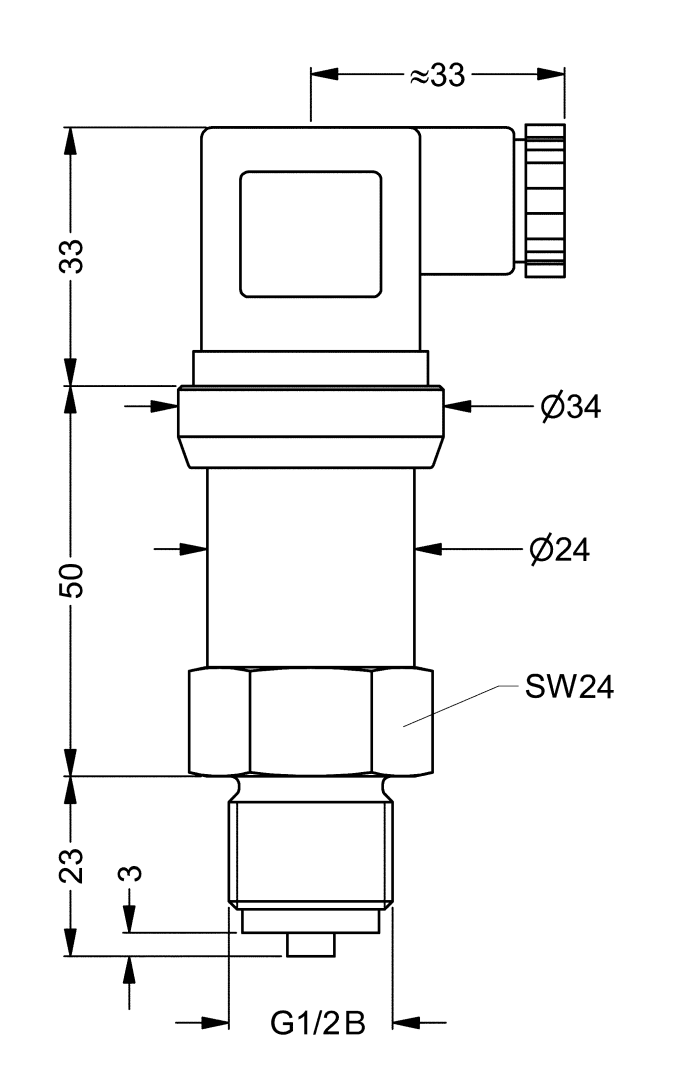

Process connection
G½B EN 837-1/7.3
material
Housing:
Stainless steel 304
pressure connection:
Stainless steel 304
diaphragm:
ceramic (Al2O3 96 %)
Seal:
FKM (Viton)
Supply voltage
DC 8 − 32 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A, EN 175301-803)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
