Industrial technology Electronic pressure measuring instruments DMU 03

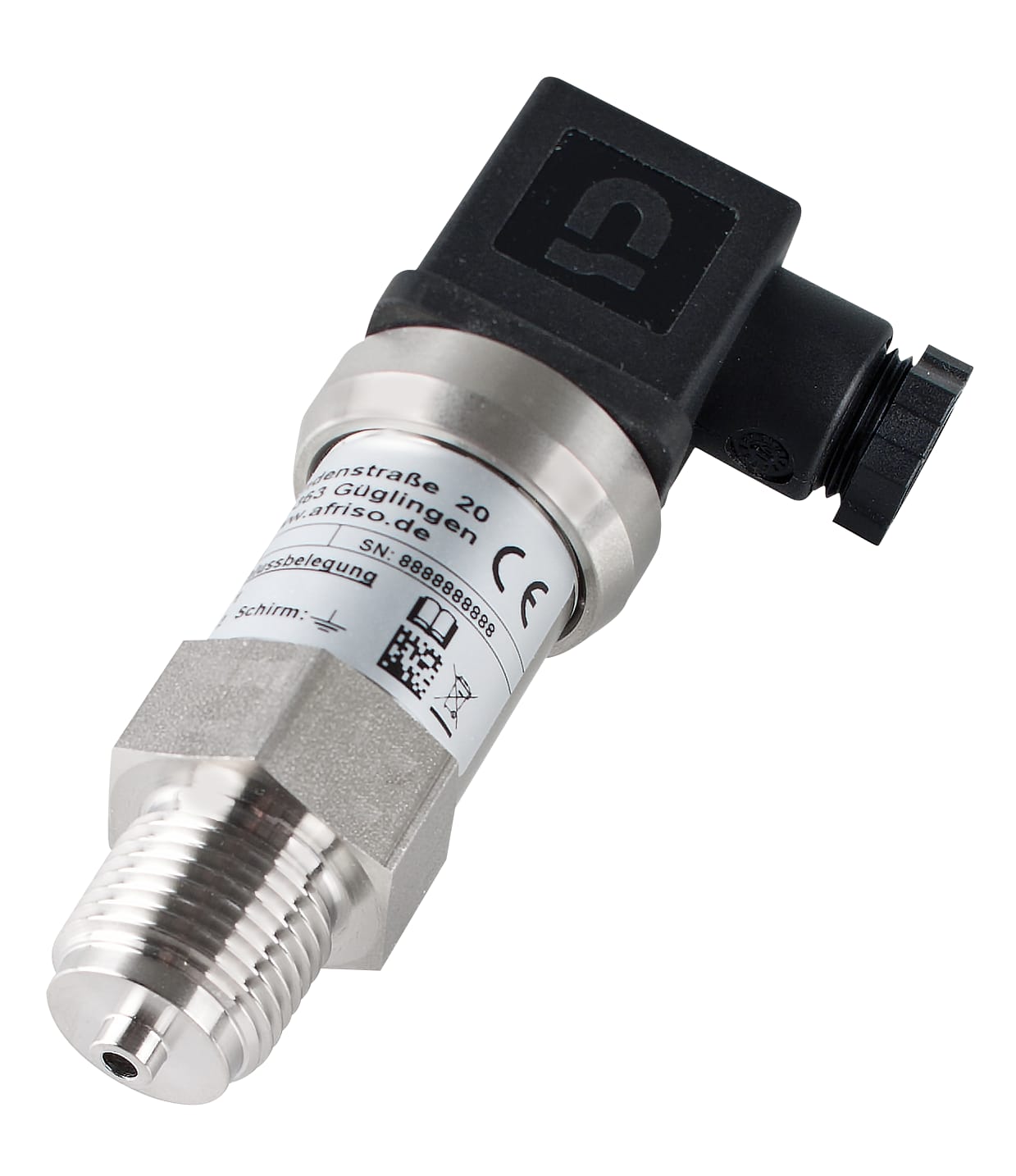

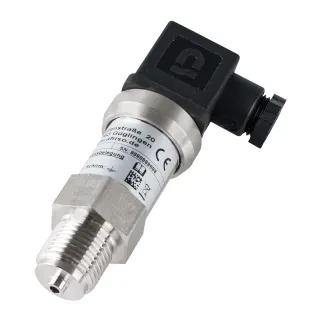

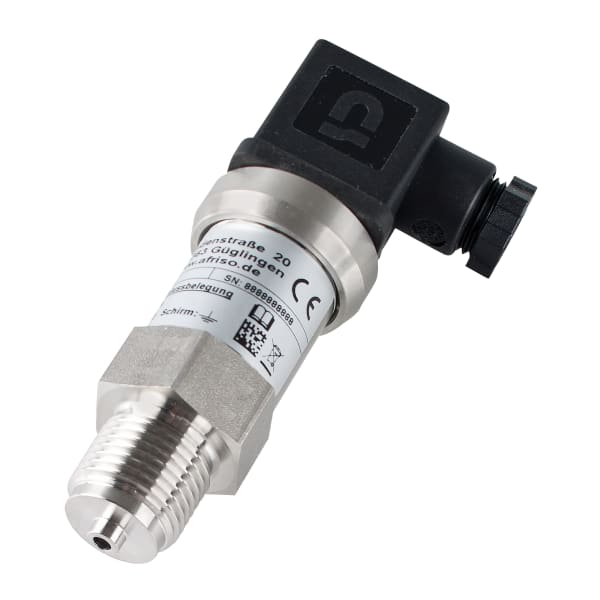

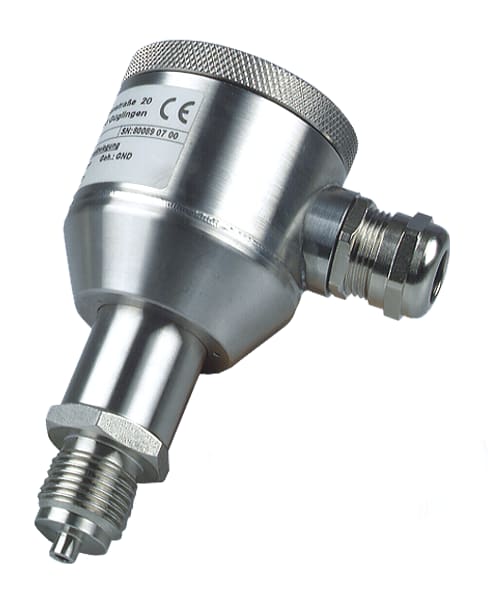

PRO_TEC_SAR_DMU03_31153.TIF

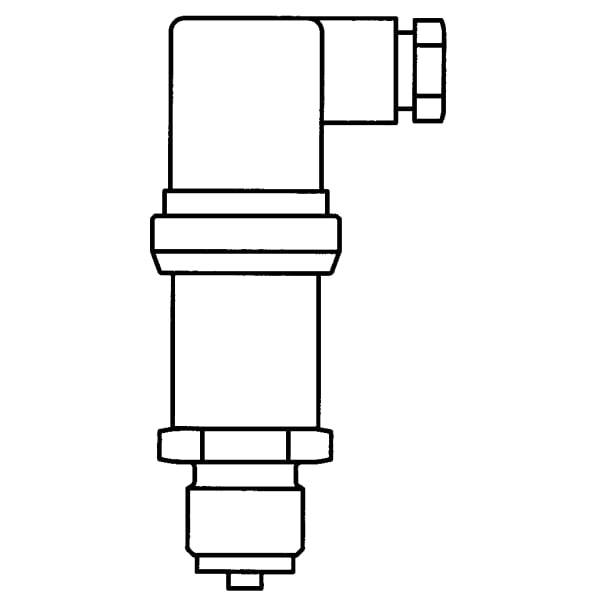

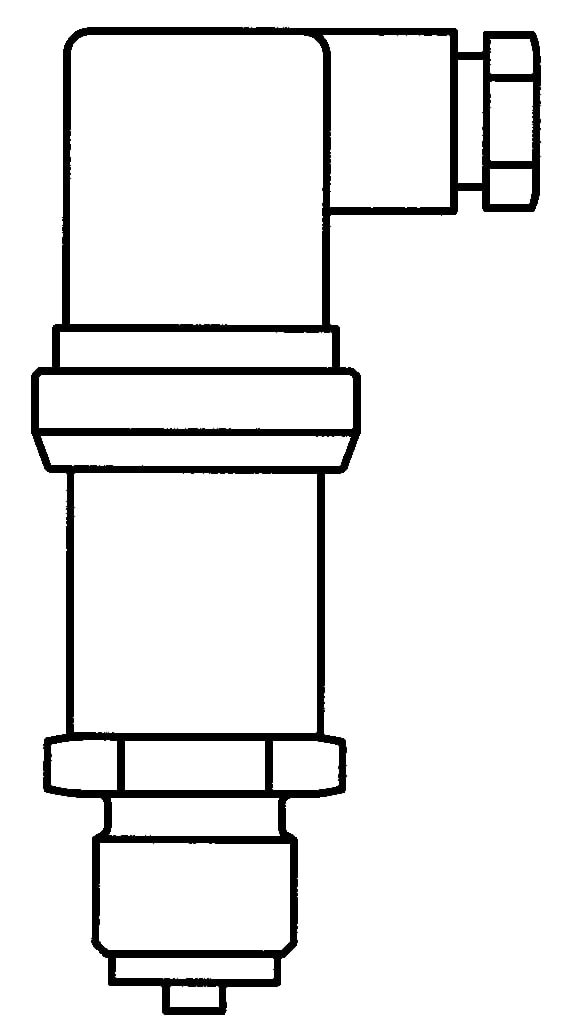

PRO_TEC_SCD_DMU03.TIF

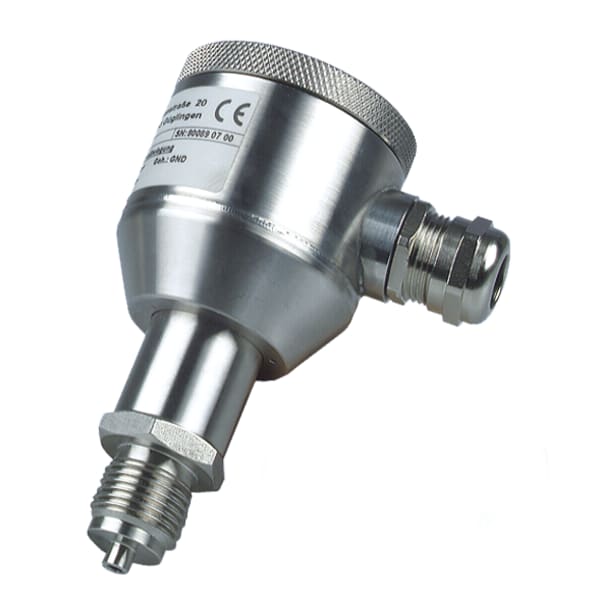

PRO_TEC_SAR_DMU03_31153.TIF
PRO_TEC_SCD_DMU03.TIF
Images 2

DMU 03

Druckmessumformer Industrieausführung

Variants Documents

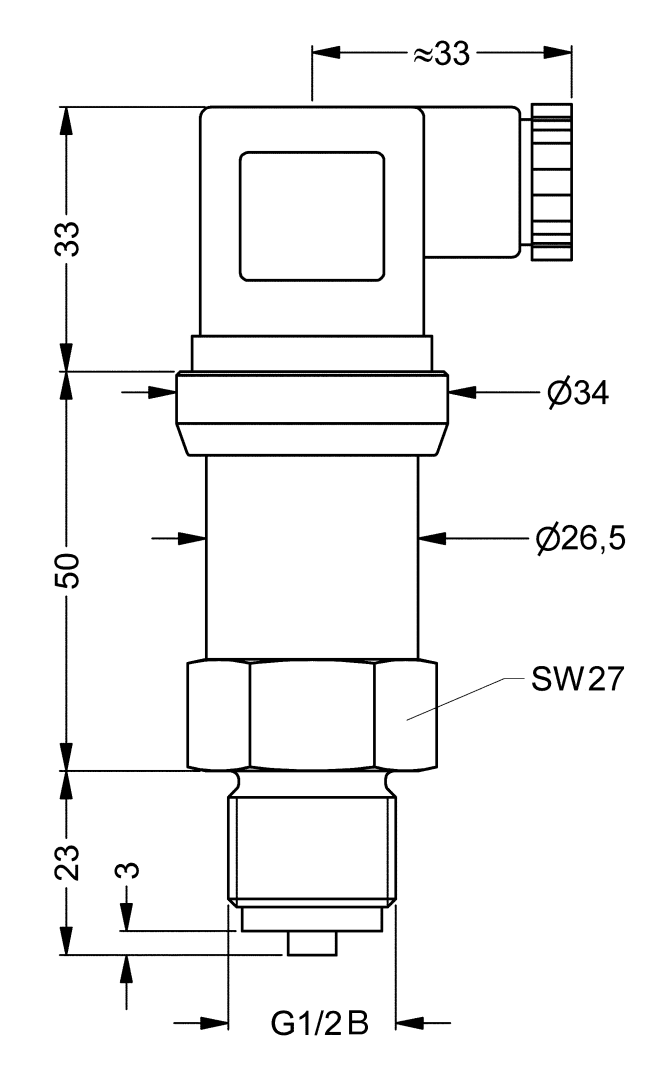

ConnectionG½B
ConnectionEN 837-1/7.3
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

  • for low pressure ranges
  • Versions for relative pressure and absolute pressure
  • excellent long-term stability
  • Ex version (optional)
  • Option SIL 2

For electronic pressure measurement in mechanical and plant engineering as well as process engineering applications. With flush diaphragm, the pressure transducers are also suitable for use with viscous, highly viscous media.

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 03 is equipped with an oil-filled piezo-resistive silicon measuring cell. DMU 03 has safety integrity level SIL 2 (IEC 61508/61511).

RangeMeasuring rangeTypeVersionPart no.
-1/0 barDMU 0331634
-1/+1.5 barDMU 0331635
-1/+3 barDMU 0331636
-1/+5 barDMU 0331637
0/40 mbarDMU 0332024
0/60 mbarDMU 0332025
0/100 mbarDMU 0331638
0/160 mbarDMU 0331639
0/250 mbarDMU 0331145
0/400 mbarDMU 0331146
0/600 mbarDMU 0331147
0/1 barDMU 0331148
0/1.6 barDMU 0331149
0/2.5 barDMU 0331150
0/4 barDMU 0331151
0/6 barDMU 0331152
0/10 barDMU 0331153
0/16 barDMU 0331154
0/25 barDMU 0331155
0/40 barDMU 0331156
0/60 barDMU 0331157
0/100 barDMU 0331158
0/160 barDMU 0331159
0/250 barDMU 0331160
0/400 barDMU 0331161
0/600 barDMU 0331162
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.35 % FSO
Measuring range
see ordering table
Overpressure safety
at least 3 x FS
Burst pressure
at least 5 x FS
Operating temperature range
Medium:
-40/+125 °C
Ambient:
-40/+85 °C
Storage:
-40/+100 °C
Temperature error band
PN < 0.4 bar: ≤ ± 1 % FSO ≤ ± In compensated range 0/70 °C
dynamic characteristics
Response time:
≤ 10 ms
Process connection
G½B EN 837-1/7.3
material
Housing:
Stainless steel 316 L
pressure connection
DMU 03: Stainless steel 316 L
diaphragm
DMU 03: Stainless steel 316 L
Seal:
FKM (Viton)
pressure transmission liquid
Silicone oil
Supply voltage
DMU 03: DC 8 − 32 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
