Industrial technology Electronic pressure measuring instruments DMU 05 P

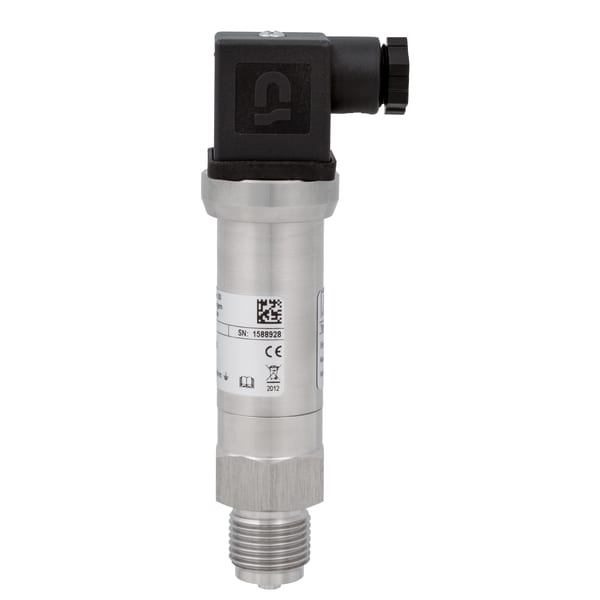

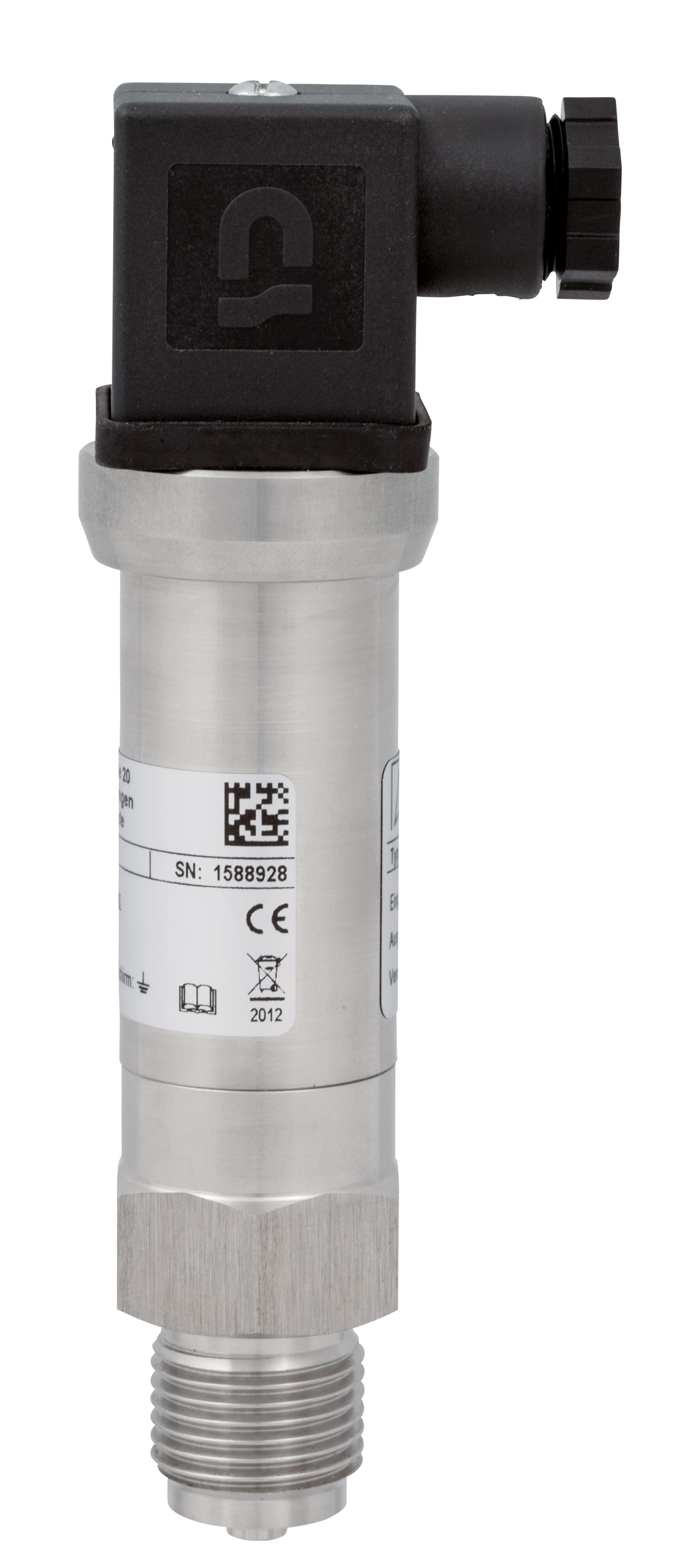

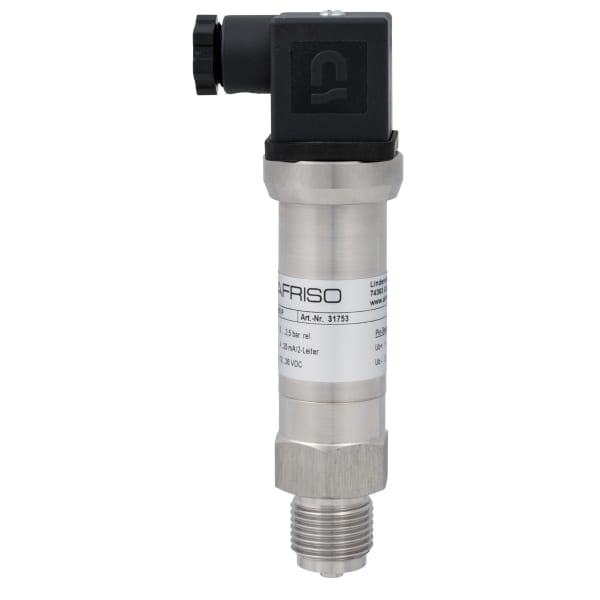

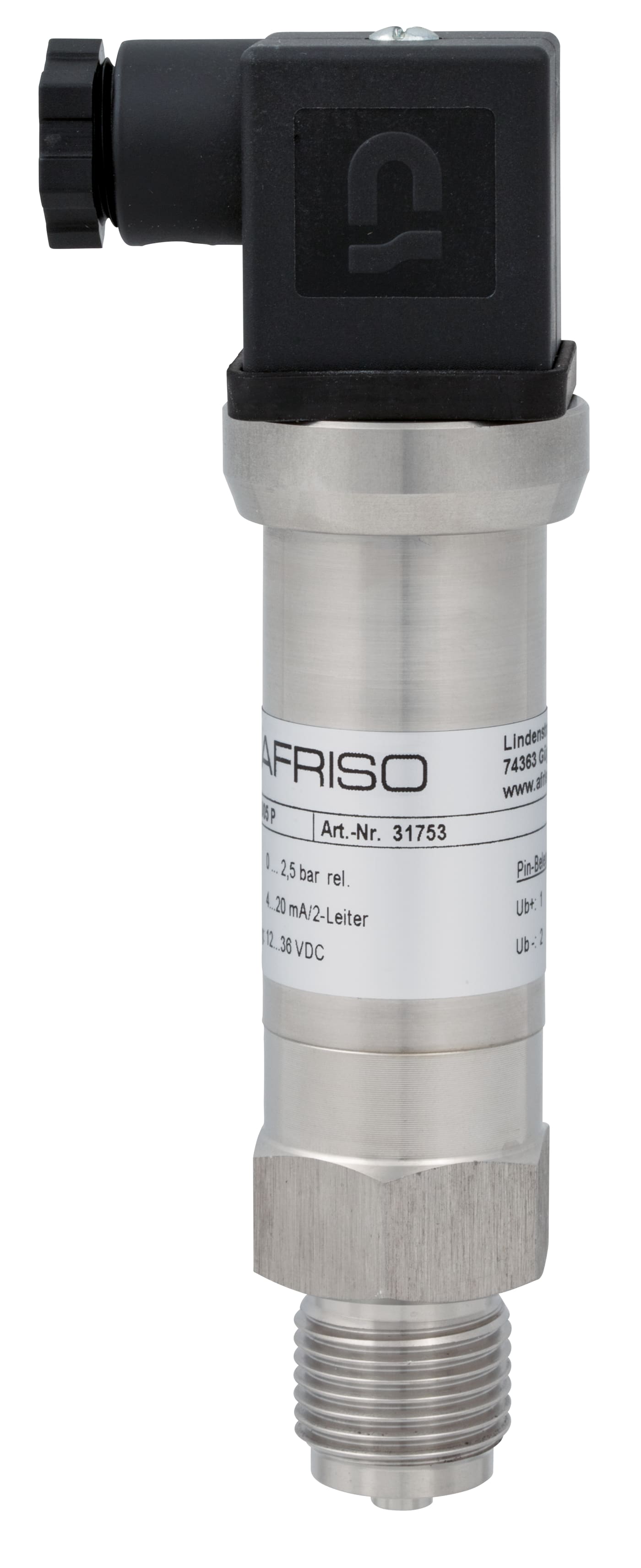

PRO_TEC_SAL_DMU05_P_31753.TIF

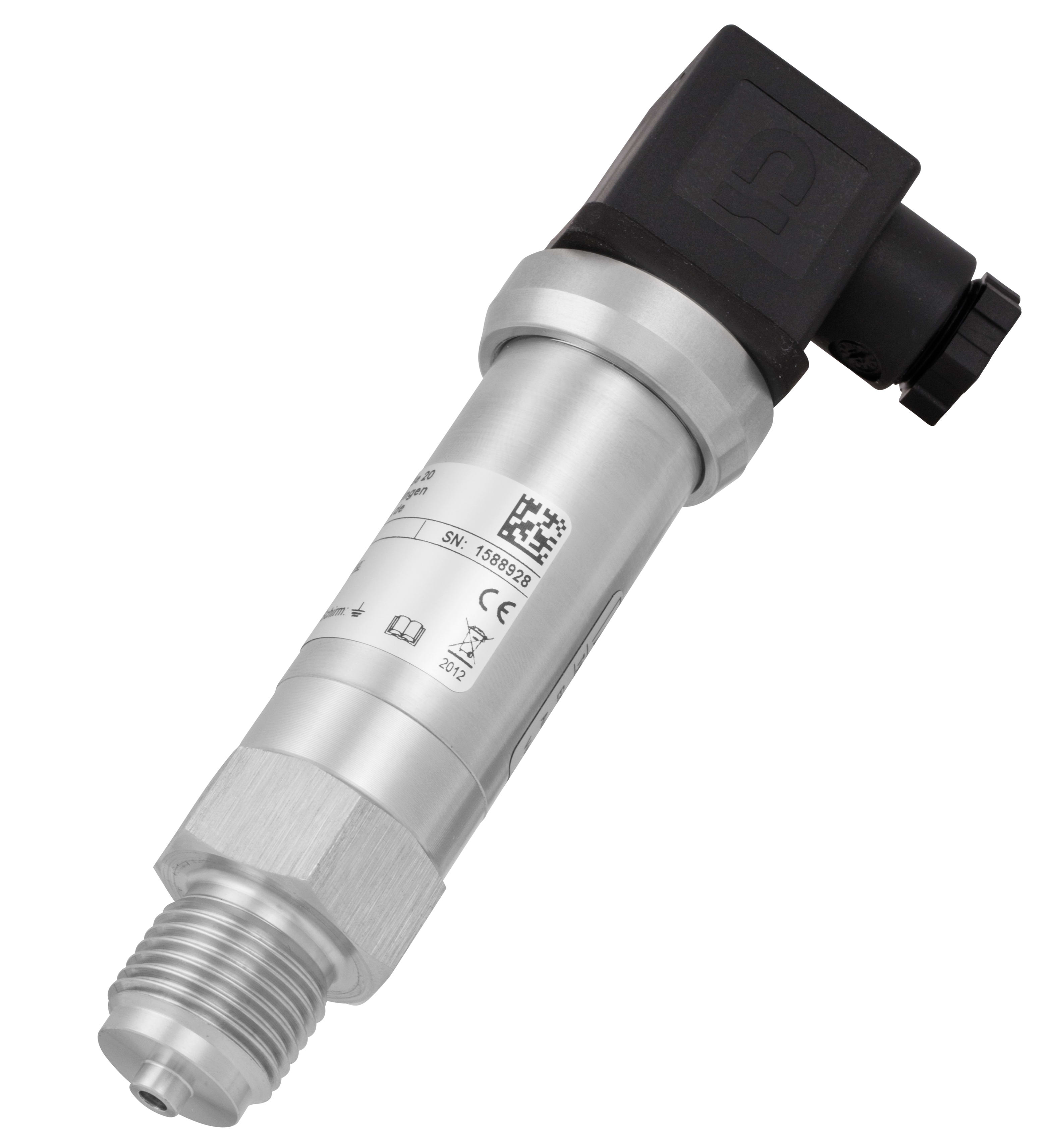

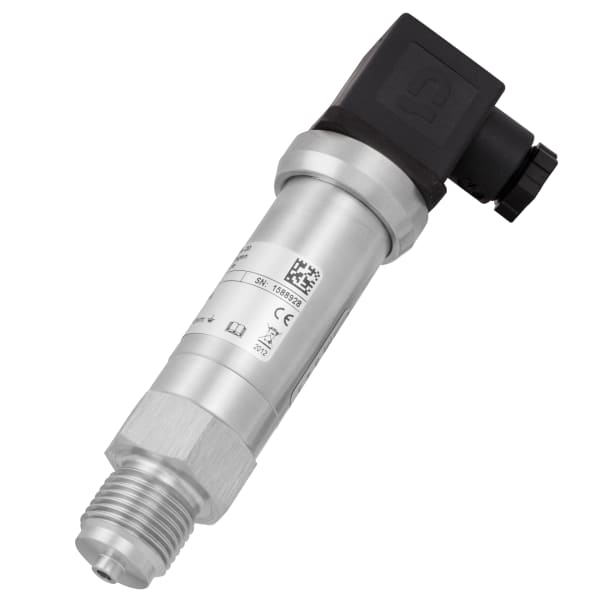

PRO_TEC_SAR_DMU05_P_31753_2.TIF

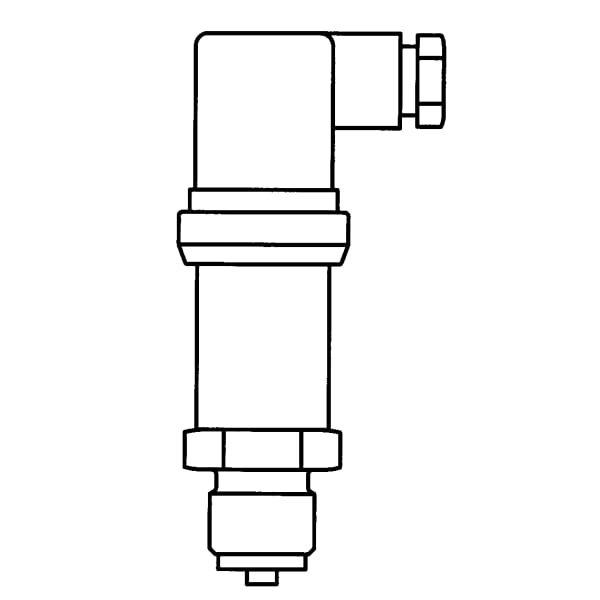

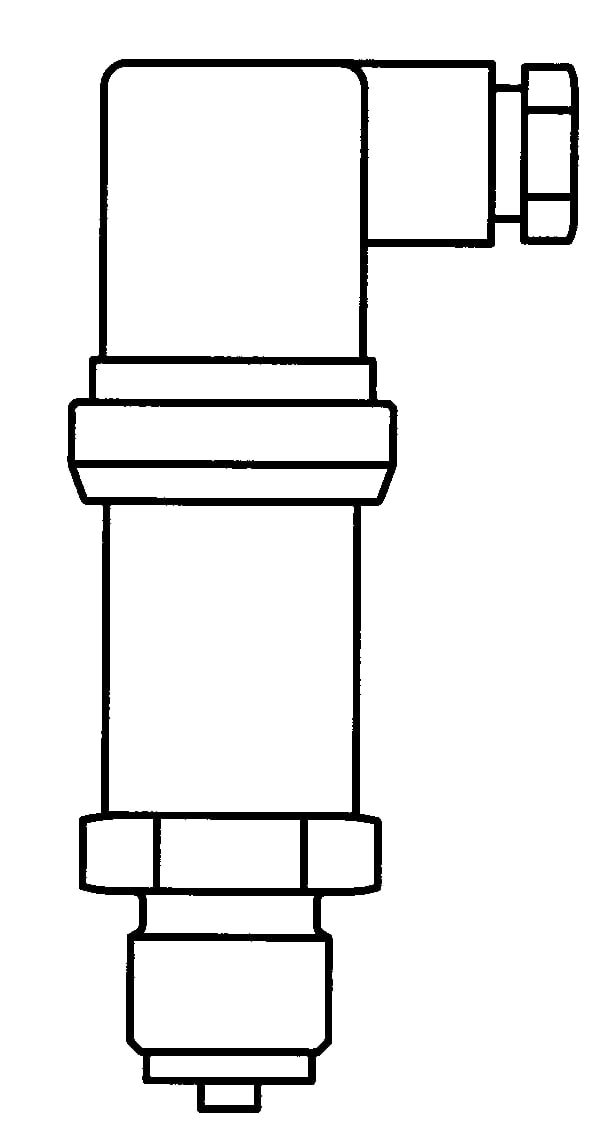

PRO_TEC_SCD_DMU05P.TIF
PRO_TEC_SAL_DMU05_P_31753.TIF
PRO_TEC_SAR_DMU05_P_31753_2.TIF
PRO_TEC_SCD_DMU05P.TIF
Images 3

DMU 05 P

Druckmessumformer Präzisionsausführung

Variants Documents

ConnectionG½B
ConnectionEN 837-1/7.3
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

  • precision version with outstanding measurement performance
  • for applications requiring superior measuring accuracy and long-term stability
  • Options: ATEX version or RS 232 interface

For electronic pressure measurement in applications requiring high measuring accuracy and long-term stability, such as process engineering, water treatment, laboratory applications as well as measurements of gas consumption and heat energy.

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 05 P is equipped with an oil-filled piezo-resistive silicon measuring cell. The intelligent DMU 05 P pressure transducers are equipped with digital amplifier electronics (microprocessor and 16 bit A/D converter). DMU 05 P actively compensates for sensor-specific deviations (non-linearity and temperature error), allowing for superior measuring characteristics. DMU 05 P can also be supplied with optional digital RS 485 Modbus RTU for setting offset, range and damping.

RangeMeasuring rangeTypeVersionPart no.
-1/0 barDMU 05 P31742
-1/+1.5 barDMU 05 P31743
-1/+3 barDMU 05 P31744
-1/+5 barDMU 05 P31745
0/100 mbarDMU 05 P33026
0/160 mbarDMU 05 P31747
0/250 mbarDMU 05 P31748
0/400 mbarDMU 05 P31749
0/600 mbarDMU 05 P31750
0/1 barDMU 05 P31751
0/1.6 barDMU 05 P31752
0/2.5 barDMU 05 P31753
0/4 barDMU 05 P31754
0/6 barDMU 05 P31755
0/10 barDMU 05 P31756
0/16 barDMU 05 P31757
0/25 barDMU 05 P31758
0/40 barDMU 05 P31759
0/60 barDMU 05 P31760
0/100 barDMU 05 P31761
0/160 barDMU 05 P31762
0/250 barDMU 05 P31763
0/400 barDMU 05 P31764
0/600 barDMU 05 P31765
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.1 % FSO
Measuring range
see ordering table
Overpressure safety
< 600 bar: at least 2 x FS
Burst pressure
< 400 bar: at least 5 x FS
Operating temperature range
Medium:
25/125 °C
Ambient:
-25/+85 °C
Storage:
-40/+100 °C
Temperature error band
≤ ± 0.02 % FSO/10 K ≤ ± In compensated range -20/+80 °C
dynamic characteristics
Response time:
< 5 ms

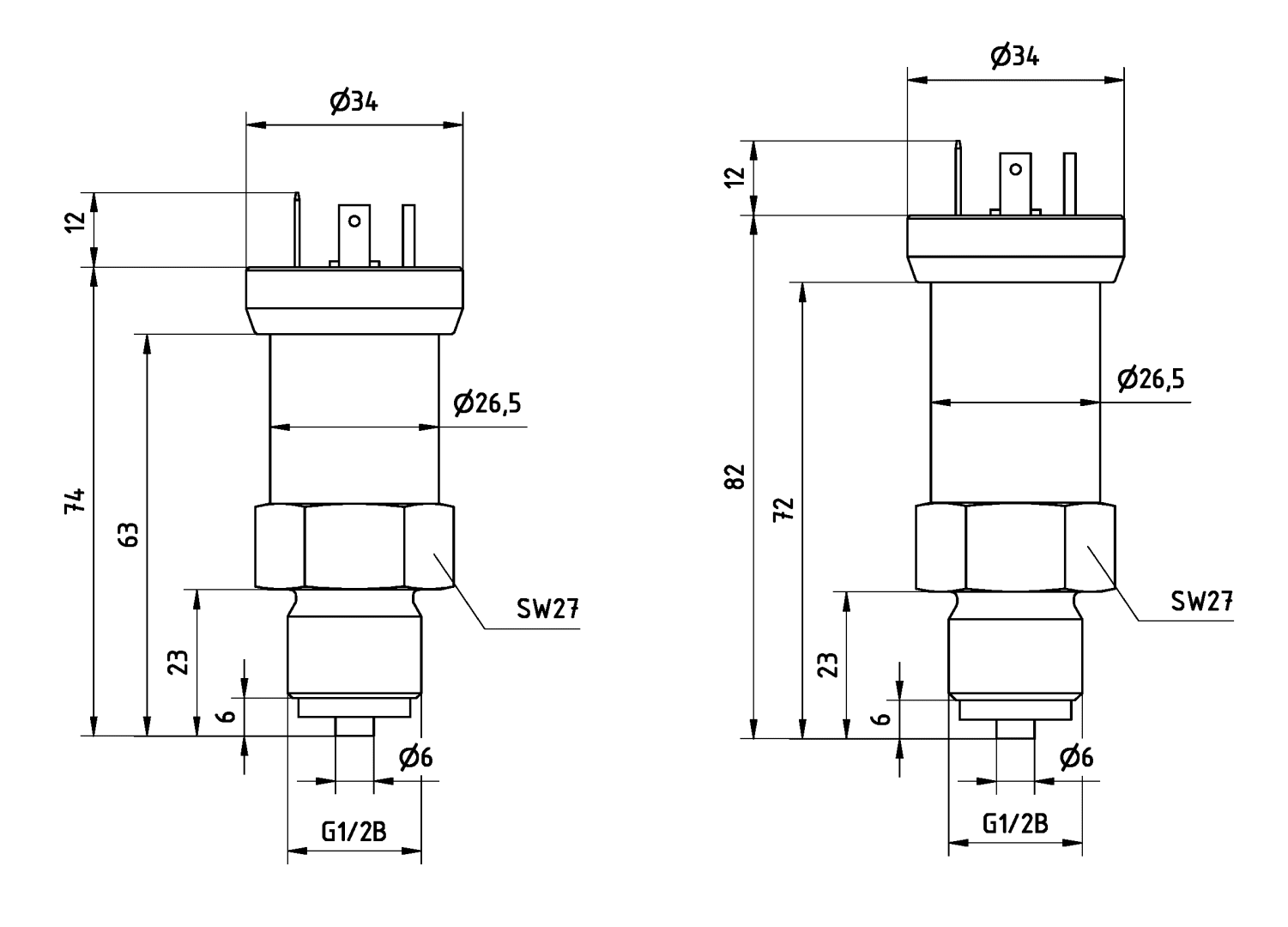

Process connection
G½B EN 837-1/7.3
material
Housing:
Stainless steel 316 L
pressure connection:
Stainless steel 316 L
diaphragm:
Stainless steel 316 L
Seal:
FKM (Viton)
pressure transmission liquid
Silicone oil
Supply voltage
DC 12 − 36 V
Output signal
2-wire, 0/4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
