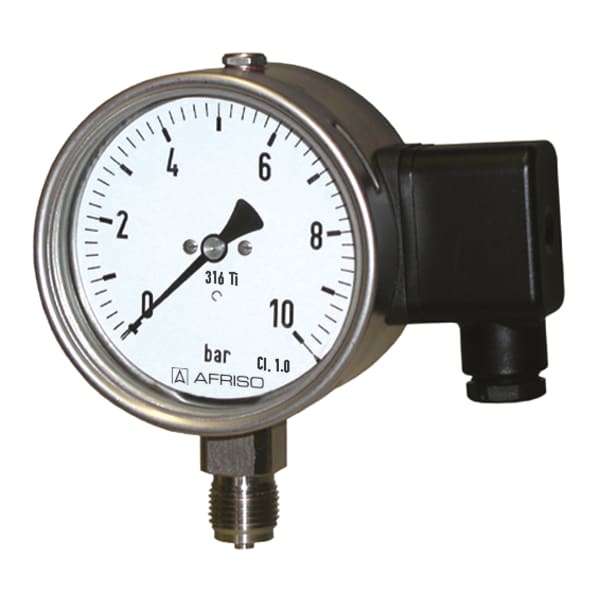

DMU 13

Druckmessumformer mit örtlicher Anzeige

Variants Documents

ConnectionG½B
ConnectionEN 837-1/7.3
Electrical connectionJunction box

  • robust stainless steel housing (safety housing)
  • high-precision measurements with integrated transducer
  • mechanical, power-independent local display

For pressure measurements with a power-independent local display in combination with an electrical output signal.

The DMU 13 pressure transducers consist of a mechanical Bourdon tube measuring element and a piezo-resistive stainless steel measuring cell. The Bourdon tube measuring element is used to provide an easy-to-read analogue local display. The display is power-independent. Due to the integrated pressure transducer, high-precision measurement in parallel is possible. A standardised current output is available for signal transmission and recording of measured data. The robust stainless steel housing has a solid baffle wall and blow out (safety housing).

Nominal size
100 - 100
accuracy class (EN 837-1/6)
1,0
Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.5 % FSO
Long-term stability
≤ ± 0.2 % FSO/Jahr ≤ ±
Measuring range
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
short-term load:
1.3 x full scale value
Operating temperature range
Medium:
-20/+100 °C
Ambient:
-20/+60 °C
Storage:
-40/+70 °C
Temperature error band
≤ 1 % FSO/10 K ≤ In compensated range 0/70 °C
Housing
with solid baffle wall and blow-out (S3)
window
Sicherheitsverbundglas
Process connection
G½B EN 837-1/7.3, bottom
material
Housing:
Stainless steel 304
pressure connection:
Stainless steel 316 L
diaphragm:
Stainless steel 316 L
Seal:
FKM (Viton)
wetted parts
stainless steel 316 Ti/316 L
pressure transmission liquid
Silicone oil
Supply voltage
DC 12 − 36 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
Electrical connection
Junction box
Degree of protection
IP 54 (EN 60529)
