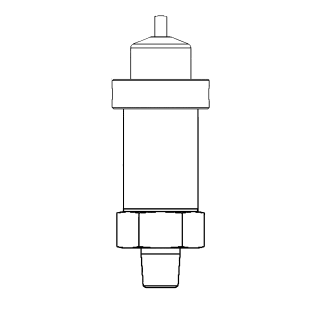

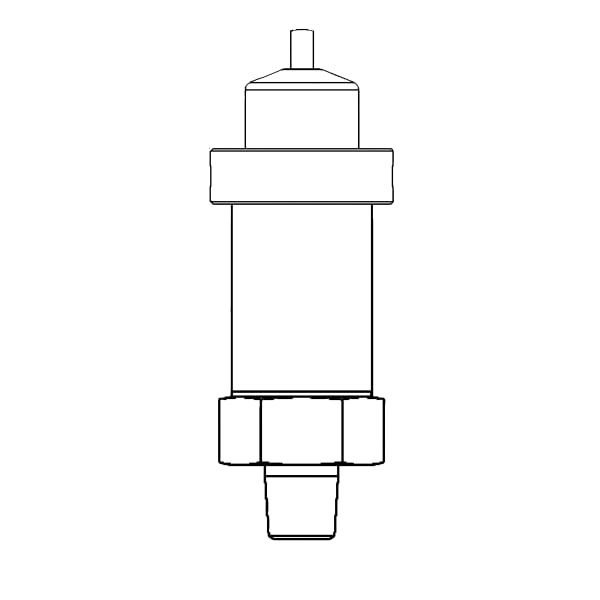

DMU30 PVC-Kabel, 2-Leiter Ex-Ausführung ¼-18NPT

Druckmessumformer Industrieausführung

Variants Documents

Connection¼-18 NPT
Electrical connectionCable outlet with PVC cable

  • for pressure ranges up to 1,000 bar
  • suitable for high overloads
  • insensitive to pressure peaks
  • Ex version (optional)

For electronic pressure measurement in machines and systems with technical gases (e.g. oxygen, oil-free, grease-free) and for use in hydrogen applications.

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. DMU 30 is equipped with a welded stainless steel measuring cell.

ConnectionConnectionMeasuring rangePart no.
Cable outlet with PVC cableEx version¼-18 NPT0/16 barDMU 30211150602
Cable outlet with PVC cableEx version¼-18 NPT0/25 barDMU 30211160602
Cable outlet with PVC cableEx version¼-18 NPT0/40 barDMU 30211170602
Cable outlet with PVC cableEx version¼-18 NPT0/60 barDMU 30211180602
Cable outlet with PVC cableEx version¼-18 NPT0/100 barDMU 30211190602
Cable outlet with PVC cableEx version¼-18 NPT0/160 barDMU 30211200602
Cable outlet with PVC cableEx version¼-18 NPT0/250 barDMU 30211210602
Cable outlet with PVC cableEx version¼-18 NPT0/400 barDMU 30211220602
Cable outlet with PVC cableEx version¼-18 NPT0/600 barDMU 30211230602
Cable outlet with PVC cableEx version¼-18 NPT0/1 000 barDMU 30211240602
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.5 % FSO
Long-term stability
≤ ± 0.2 % FSO/Jahr ≤ ± at reference conditions
Measuring range
see ordering table
Overpressure safety
16 bar: at least 3 x FS
Burst pressure
< 600 bar: at least 5 x FS
Vacuum resistance:
unlimited
Operating temperature range
Medium:
-40/+125 °C
Ambient:
-40/+100 °C
 in Ex zZone 0:
-20/+60 °C
 from Ex zone 1:
-20/+70 °C
Storage:
-40/+85 °C
Temperature error band
≤ ± 0.2 % FSO/10 K ≤ ± In compensated range -25/+85 °C
dynamic characteristics
Response time:
≤ 10 ms
Process connection
¼-18 NPT
material
Housing:
Stainless steel 316 L
pressure connection:
Stainless steel 316 L
diaphragm:
Stainless steel 316 L
Seal:
without (welded)
Degree of cleanliness:
oil- and grease-free version, based on ISO 15001
Residual particles:
no particles > 100 µm (with reference to 10 dm2)
Residual grease:
Residual grease content < 0.2 mg/dm2
Supply voltage
Ex version: DC 10 − 28 V
Output signal
4–20 mA, 2-wire
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Cable outlet with PVC cable
Degree of protection
IP 67 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
