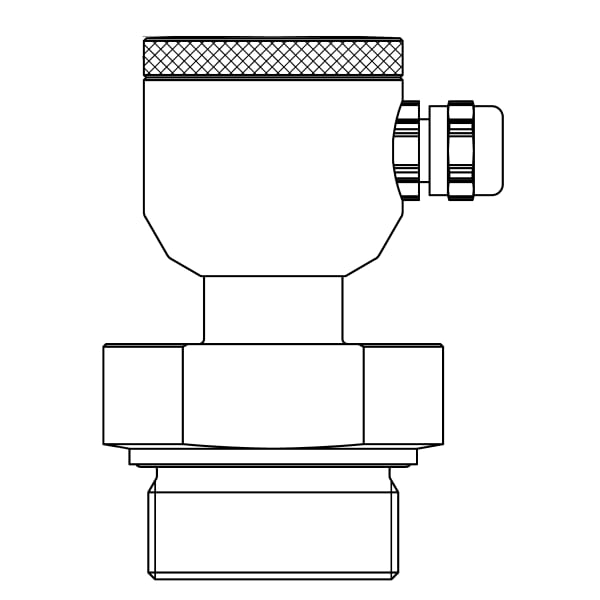

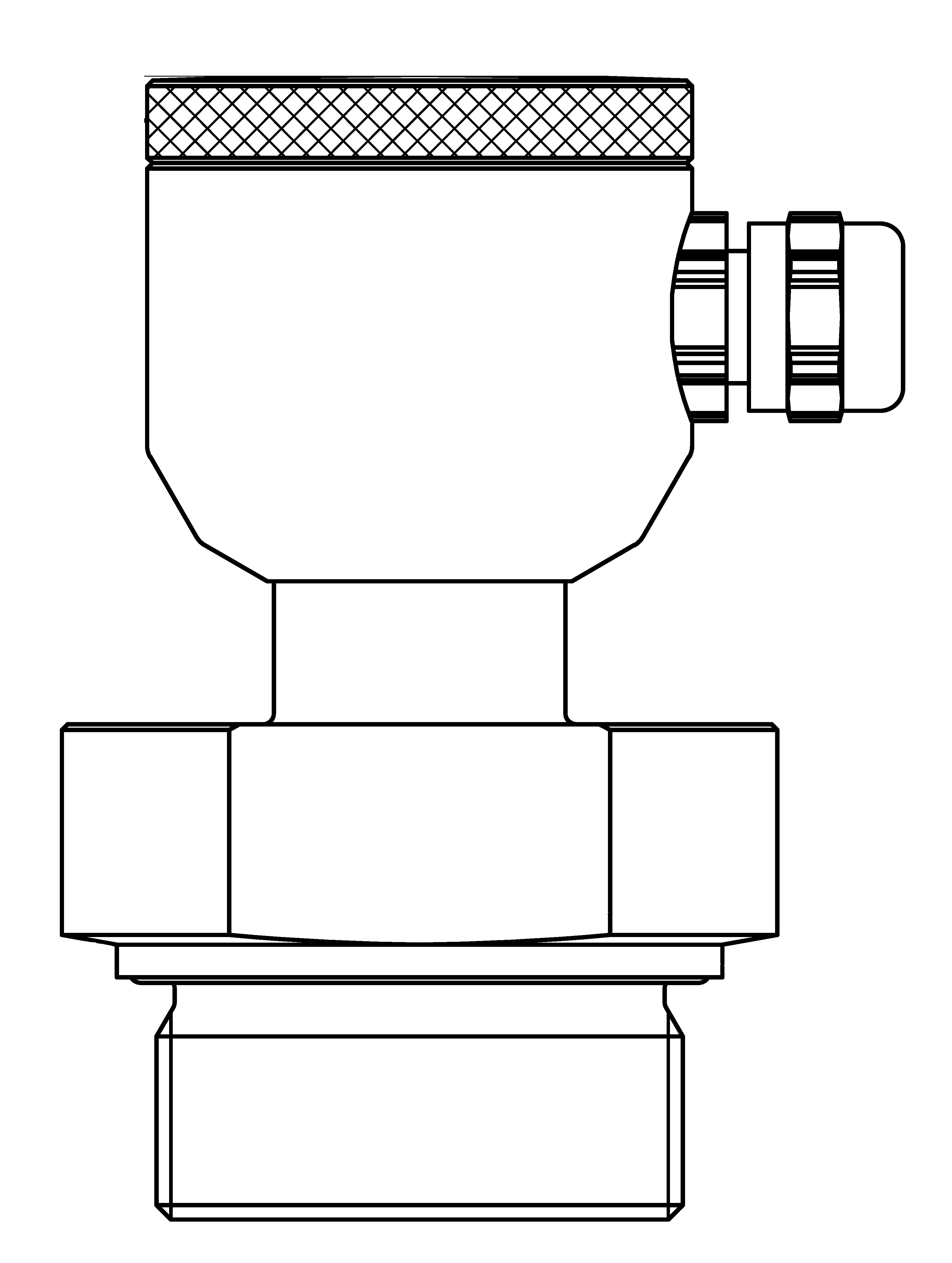

HydroFox® DMU 07 FG

Druckmessumformer für Füllstandmessung

Variants Documents

ConnectionG1½B
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

  • flush diaphragm
  • without transmission liquid
  • mechanically insensitive ceramic sensor
  • small temperature error
  • high overpressure safety

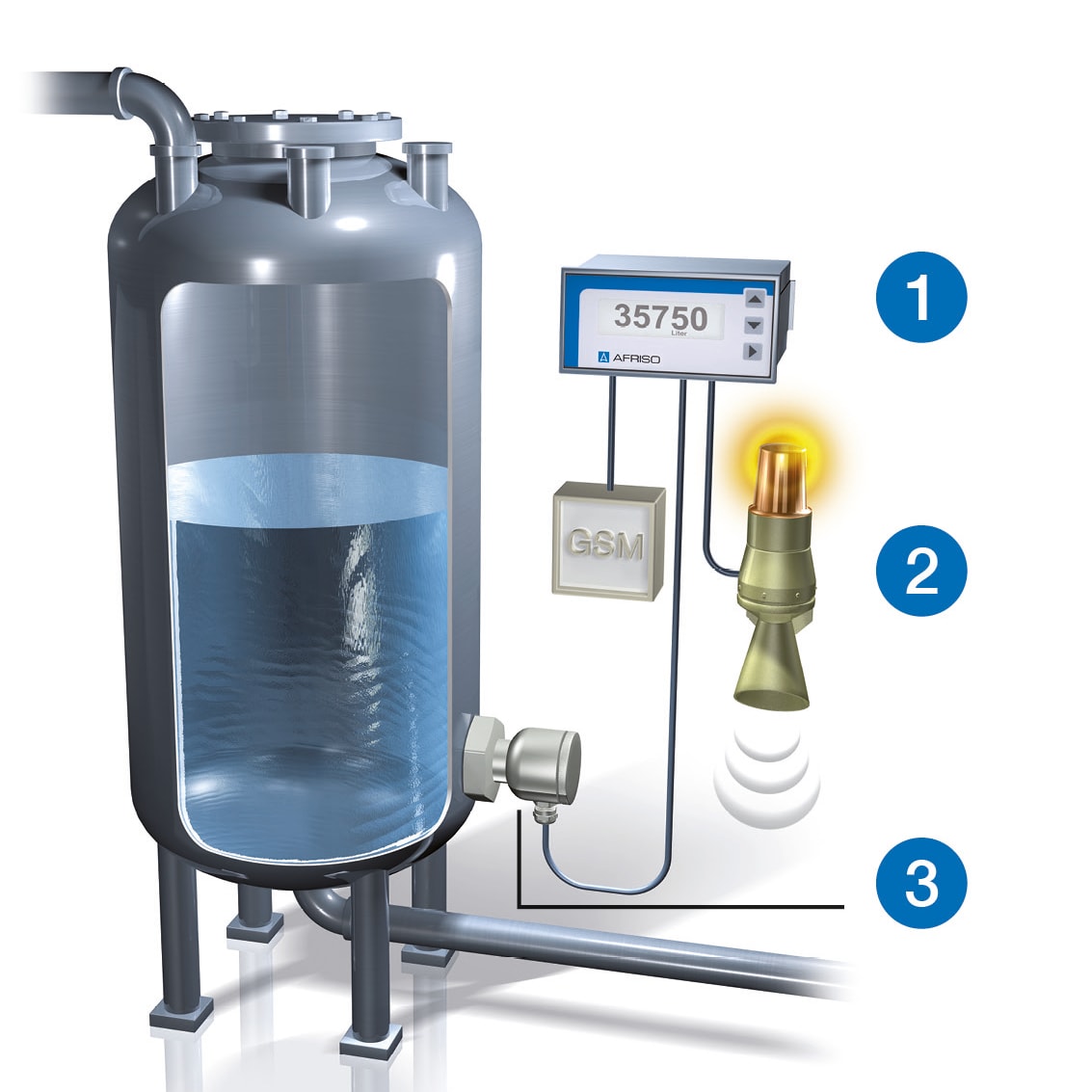

For electronic, continuous level measurement of liquids and for pressure measurement of liquids and gases in plant construction.

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. HydroFox® DMU 07 uses a capacitance ceramic measuring cell.

RangeMeasuring rangeTypeVersionPart no.
0/40 mbarHydroFox® DMU 07 FG31821
0/60 mbarHydroFox® DMU 07 FG31805
0/100 mbarHydroFox® DMU 07 FG31547
0/160 mbarHydroFox® DMU 07 FG31806
0/200 mbarHydroFox® DMU 07 FG31548
0/250 mbarHydroFox® DMU 07 FG31807
0/400 mbarHydroFox® DMU 07 FG31549
0/600 mbarHydroFox® DMU 07 FG31808
0/1 barHydroFox® DMU 07 FG31550
0/1.6 barHydroFox® DMU 07 FG31809
0/2 barHydroFox® DMU 07 FG31551
0/4 barHydroFox® DMU 07 FG31552
0/6 barHydroFox® DMU 07 FG31810
0/10 barHydroFox® DMU 07 FG31553
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.35 % FSO
Measuring range
see ordering table
Overpressure safety
≤ 400 mbar: at least 25 x FS
Operating temperature range
Medium:
-40/+125 °C
Ambient:
-40/+85 °C
Storage:
-40/+100 °C
Temperature error band
≤ 0.1 % FSO/10 K ≤ In compensated range -20/+80 °C
dynamic characteristics
Response time:
≤ 200 ms

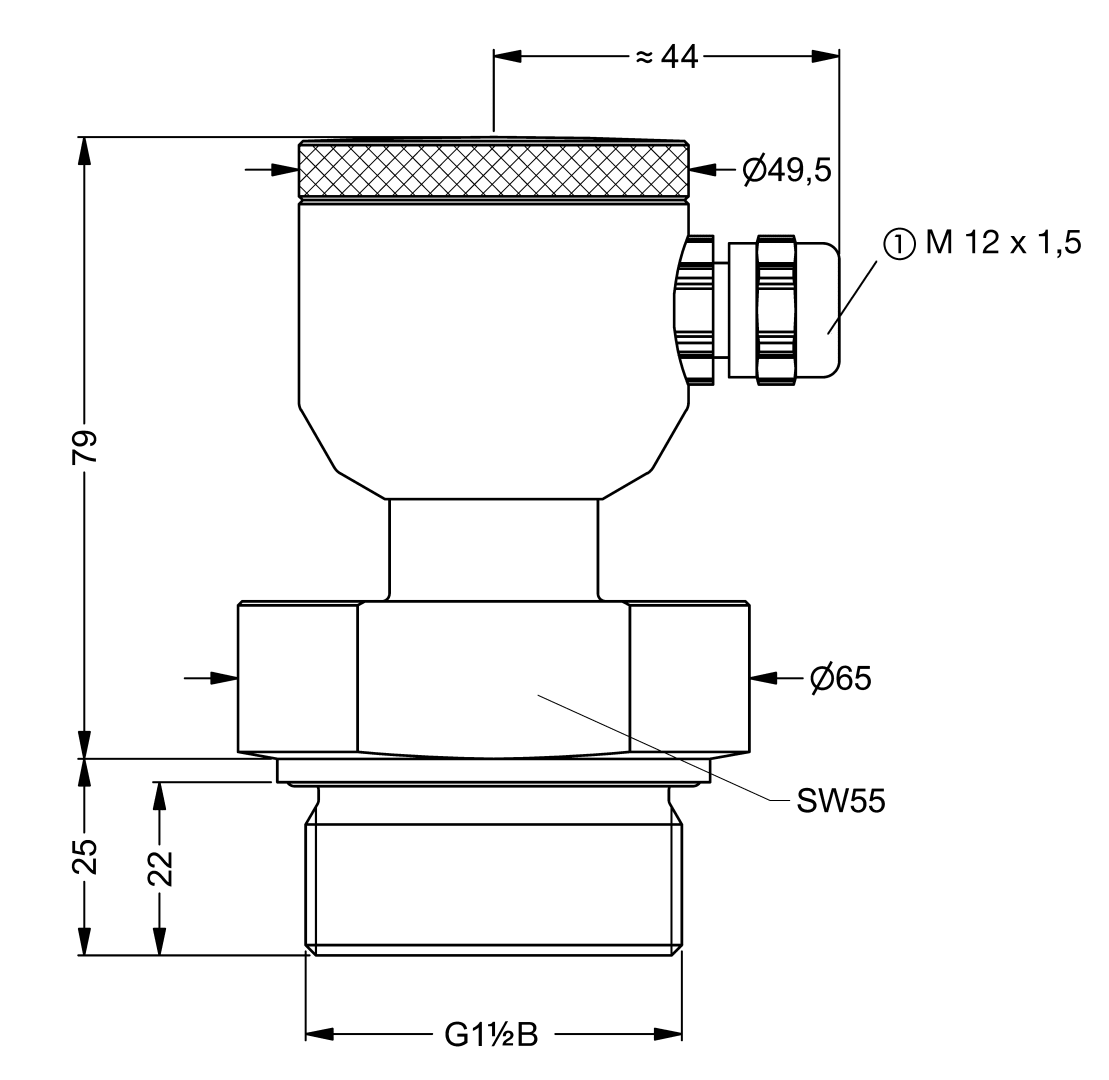

Process connection
G1½B with flush diaphragm
material
Housing:
Stainless steel 316 L
pressure connection:
Stainless steel 316 L
diaphragm:
ceramic (Al2O3 96 %)
Seal:
FKM (Viton)
Supply voltage
DC 9 − 32 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 21 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
