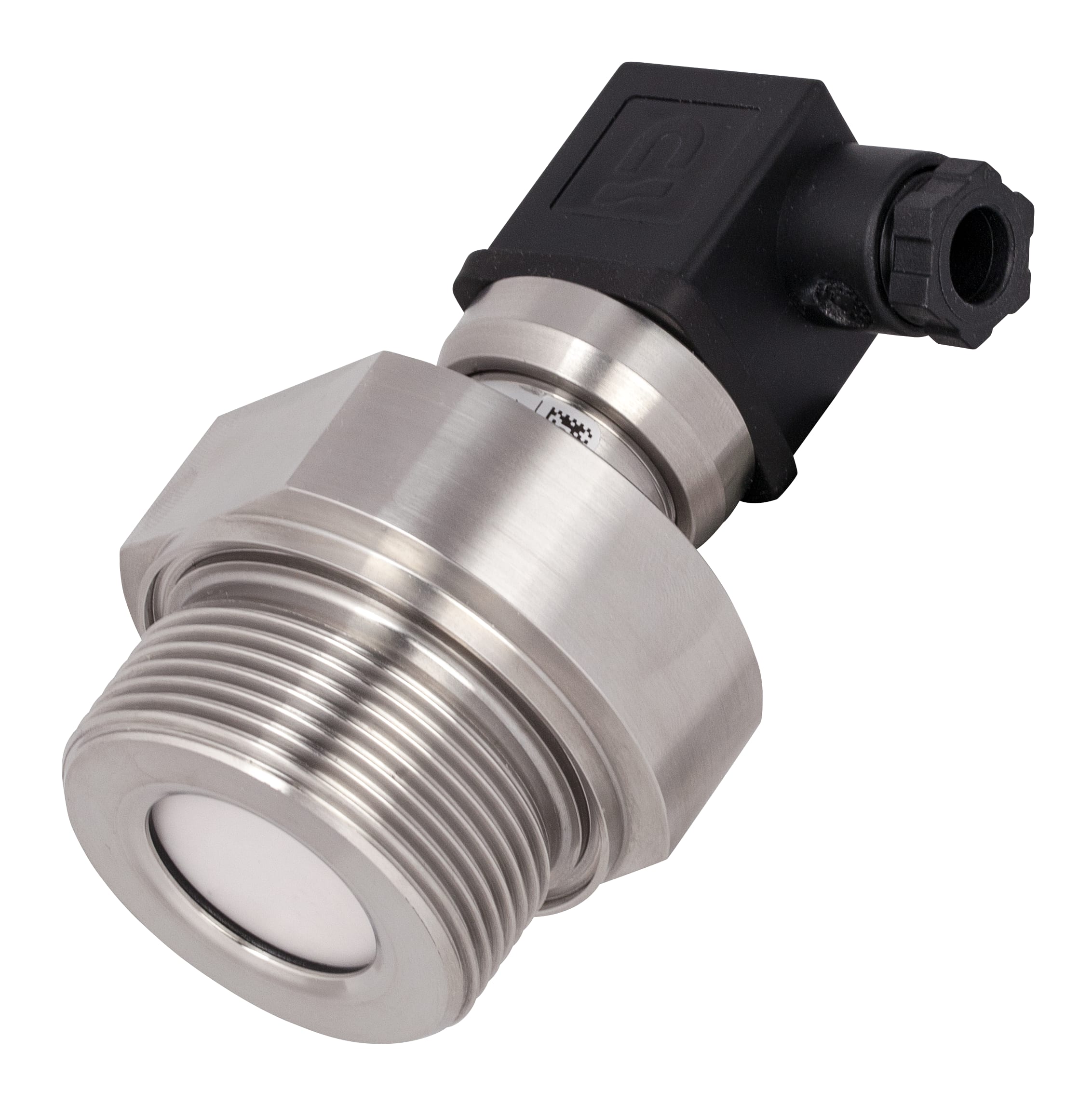

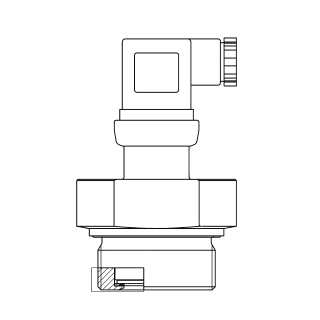

HydroFox® DMU 07

Druckmessumformer für Füllstandmessung

Variants Documents

ConnectionG1½B
Electrical connectionConnector and junction box as per ISO 4400 (DIN 43650-A)

  • flush diaphragm
  • without transmission liquid
  • mechanically insensitive ceramic sensor
  • small temperature error
  • high overpressure safety

For electronic, continuous level measurement of liquids and for pressure measurement of liquids and gases in plant construction.

Pressure transducers convert physical pressure into an electrical signal proportional to the pressure. HydroFox® DMU 07 uses a capacitance ceramic measuring cell.

RangeMeasuring rangeTypeVersionPart no.
0/40 mbarHydroFox® DMU 0731789
0/60 mbarHydroFox® DMU 0731790
0/100 mbarHydroFox® DMU 0731791
0/160 mbarHydroFox® DMU 0731792
0/200 mbarHydroFox® DMU 0731793
0/250 mbarHydroFox® DMU 0731794
0/400 mbarHydroFox® DMU 0731795
0/600 mbarHydroFox® DMU 0731796
0/1 barHydroFox® DMU 0731797
0/1.6 barHydroFox® DMU 0731798
0/2 barHydroFox® DMU 0731799
0/4 barHydroFox® DMU 0731800
0/6 barHydroFox® DMU 0731801
0/10 barHydroFox® DMU 0731802
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
< ± 0.35 % FSO
Measuring range
see ordering table
Overpressure safety
≤ 400 mbar: at least 25 x FS
Operating temperature range
Medium:
-40/+125 °C
Ambient:
-40/+85 °C
Storage:
-40/+100 °C
Temperature error band
≤ 0.1 % FSO/10 K ≤ In compensated range -20/+80 °C
dynamic characteristics
Response time:
≤ 200 ms

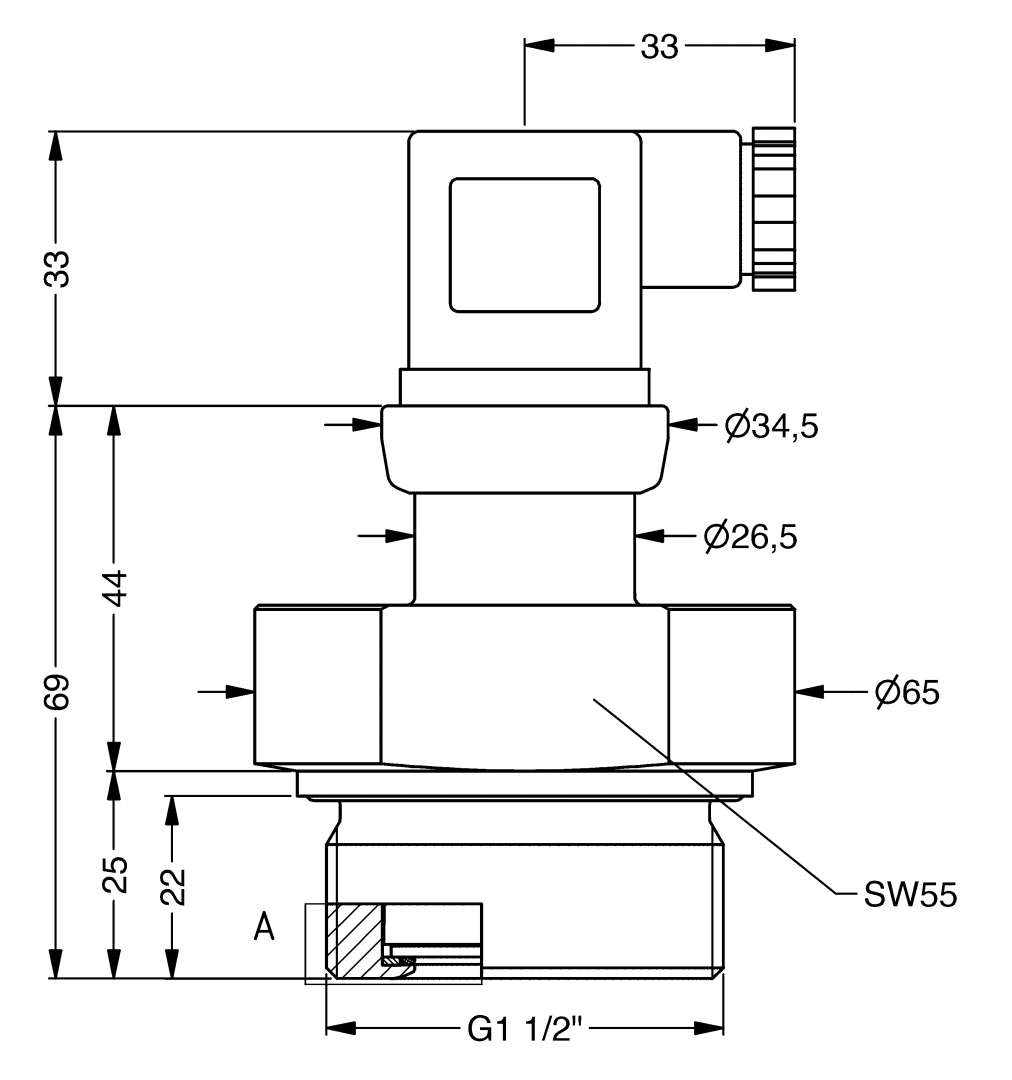

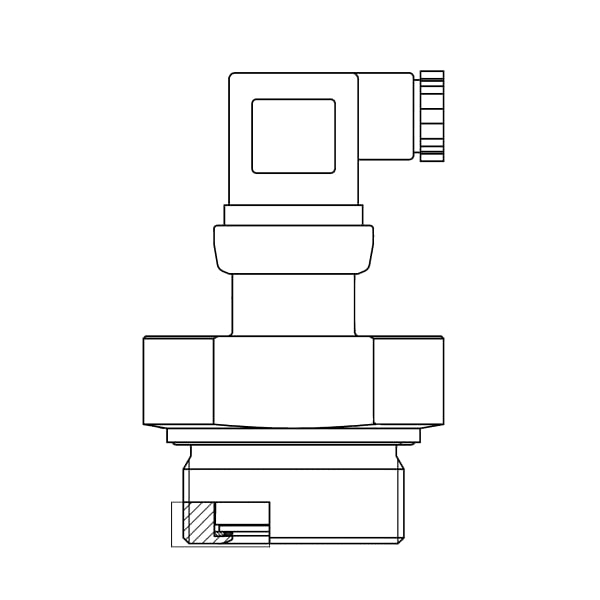

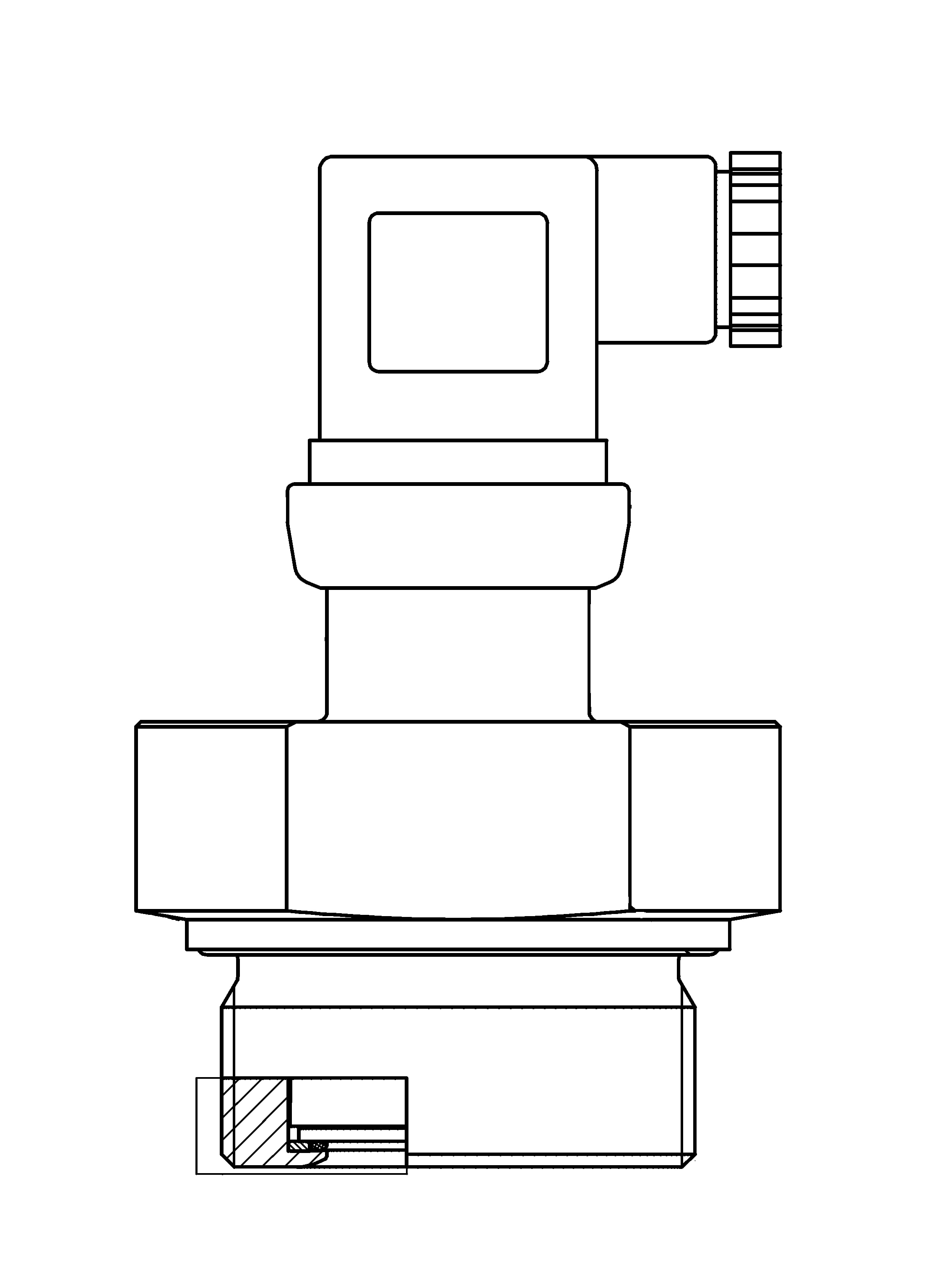

Process connection
G1½B with flush diaphragm
material
Housing:
Stainless steel 316 L
pressure connection:
Stainless steel 316 L
diaphragm:
ceramic (Al2O3 96 %)
Seal:
FKM (Viton)
Supply voltage
DC 9 − 32 V
Output signal
2-wire, 4–20 mA
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 21 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
Connector and junction box as per ISO 4400 (DIN 43650-A)
Degree of protection
IP 65 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
