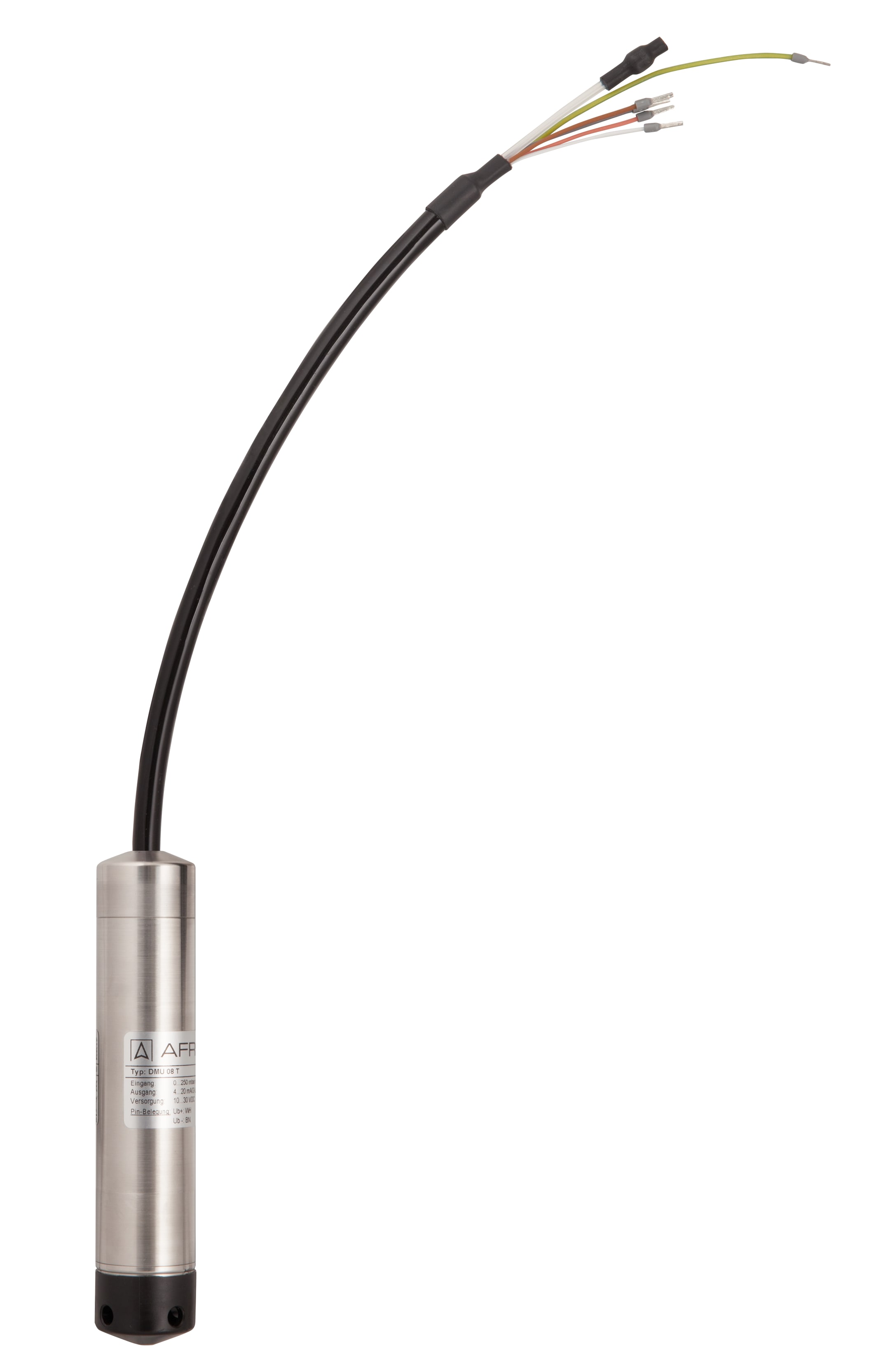

HydroFox® DMU 08 T

Druckmessumformer Pegelsonde

Variants Documents

  • with integrated temperature measurement
  • compact and sturdy stainless steel design
  • integrated overvoltage protection
  • special calibration for all standard pressure units possible

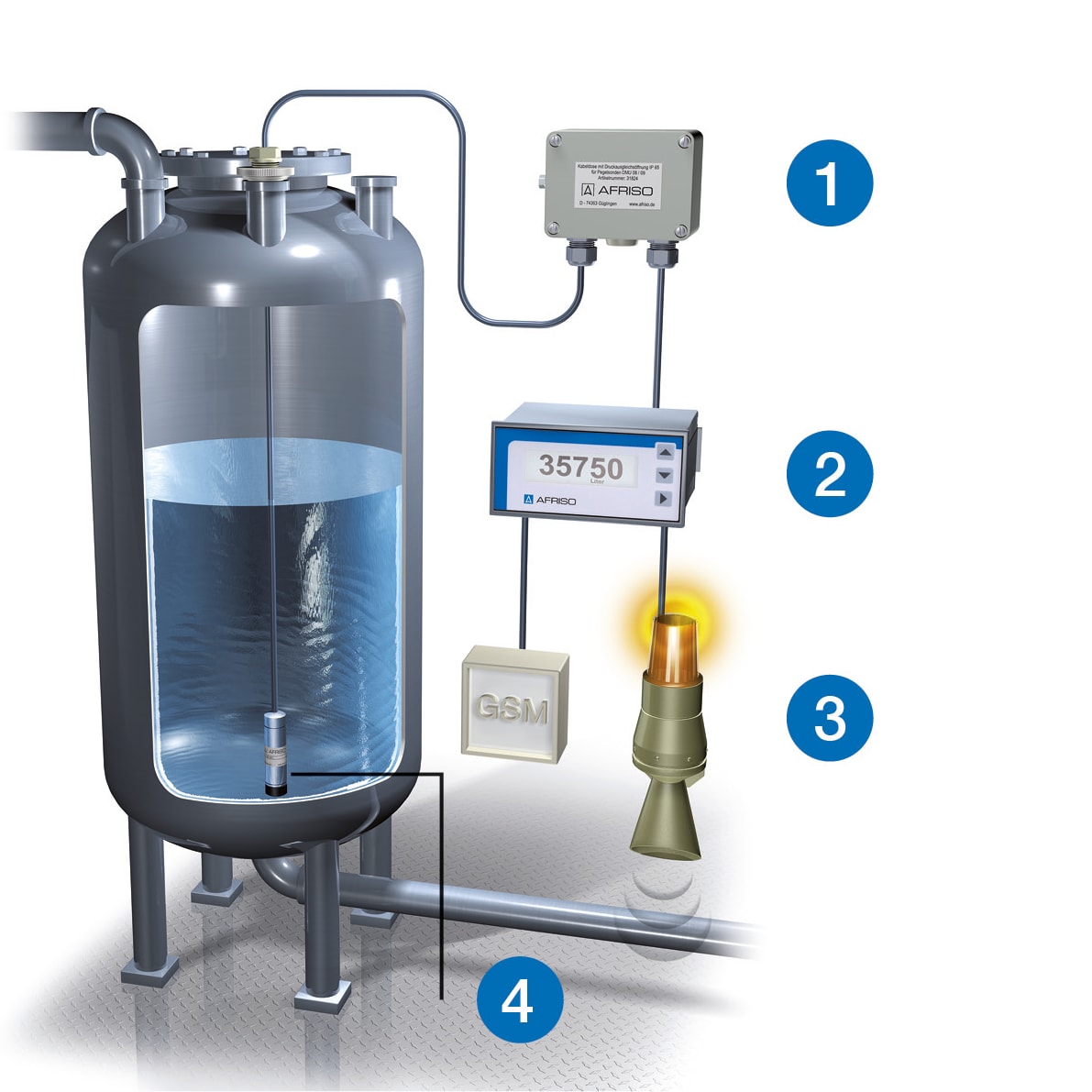

For electronic, continuous level measurement, e.g. in wells, drilling holes, water, containers or in waste water systems. Suitable for groundwater, waste water (with optional FEP cable), diesel fuel and fuel oil.

Pressure transducers HydroFox® DMU 08 convert physical pressure into an electrical signal proportional to the pressure. HydroFox® DMU 08 uses a piezo-resistive silicon measuring cell.

Measuring rangeOverloadPart no.
HydroFox® DMU 08 T0/100 mbarat least 5 x FS31555T0070
HydroFox® DMU 08 T0/160 mbarat least 6 x FS31556T0070
HydroFox® DMU 08 T0/200 mbarat least 4 x FS31557T0070
HydroFox® DMU 08 T0/250 mbarat least 4 x FS31558T0070
HydroFox® DMU 08 T0/300 mbarat least 4 x FS31519T0070
HydroFox® DMU 08 T0/400 mbarat least 5 x FS31559T0070
HydroFox® DMU 08 T0/600 mbarat least 8 x FS31560T0070
HydroFox® DMU 08 T0/1 barat least 5 x FS31561T0070
HydroFox® DMU 08 T0/1.6 barat least 6 x FS31562T0070
HydroFox® DMU 08 T0/2 barat least 4 x FS31563T0070
HydroFox® DMU 08 T0/2.5 barat least 4 x FS31564T0070
HydroFox® DMU 08 T0/4 barat least 5 x FS31565T0070
HydroFox® DMU 08 T0/6 barat least 6 x FS31566T0070
HydroFox® DMU 08 T0/10 barat least 4 x FS31567T0070
HydroFox® DMU 08 T0/16 barat least 5 x FS31568T0070
HydroFox® DMU 08 T0/20 barat least 3 x FS31569T0070
HydroFox® DMU 08 T0/25 barat least 3 x FS31570T0070
  • in-stock items
  • manufactured goods

Measuring accuracy
Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability)
≤ 0/400 mbar < ± 0.5 % FSO
Measuring range
see ordering table
Operating temperature range
Medium:
-10/+70 °C
Ambient:
-10/+70 °C
Storage:
-25/+70 °C
Temperature error band
≤ 400 mbar: ≤ ± 1 % FSO ≤ ± In compensated range 0/70 °C
dynamic characteristics
Response time:
≤ 10 ms
Probe
L x ⌀:
129 x 26.5 mm
material
Housing:
Stainless steel 316 L
diaphragm:
Stainless steel 316 L
seals:
FKM (Viton)
cable:
PUR
pressure transmission liquid
Silicone oil
Supply voltage
pressure:
DC 12 − 30 V
temperature:
DC 10 − 30 V
Output signal
4–20 mA, 2-wire
Load
Rmax = [(UB – UBmin)/0.02 A] Ω
Current input
< 25 mA
electrical protection
short circuit proof and protected against reverse polarity
Electrical connection
PUR cable with integrated breather tube for reference to the ambient atmospheric pressure
Cable length:
5 m
Degree of protection:
IP 68 (EN 60529)
CE conformity
EMC Directive 2014/30/EU
RoHS-Richtlinie 2011/65/EU
Pressure Equipment Directive 2014/68/EU
