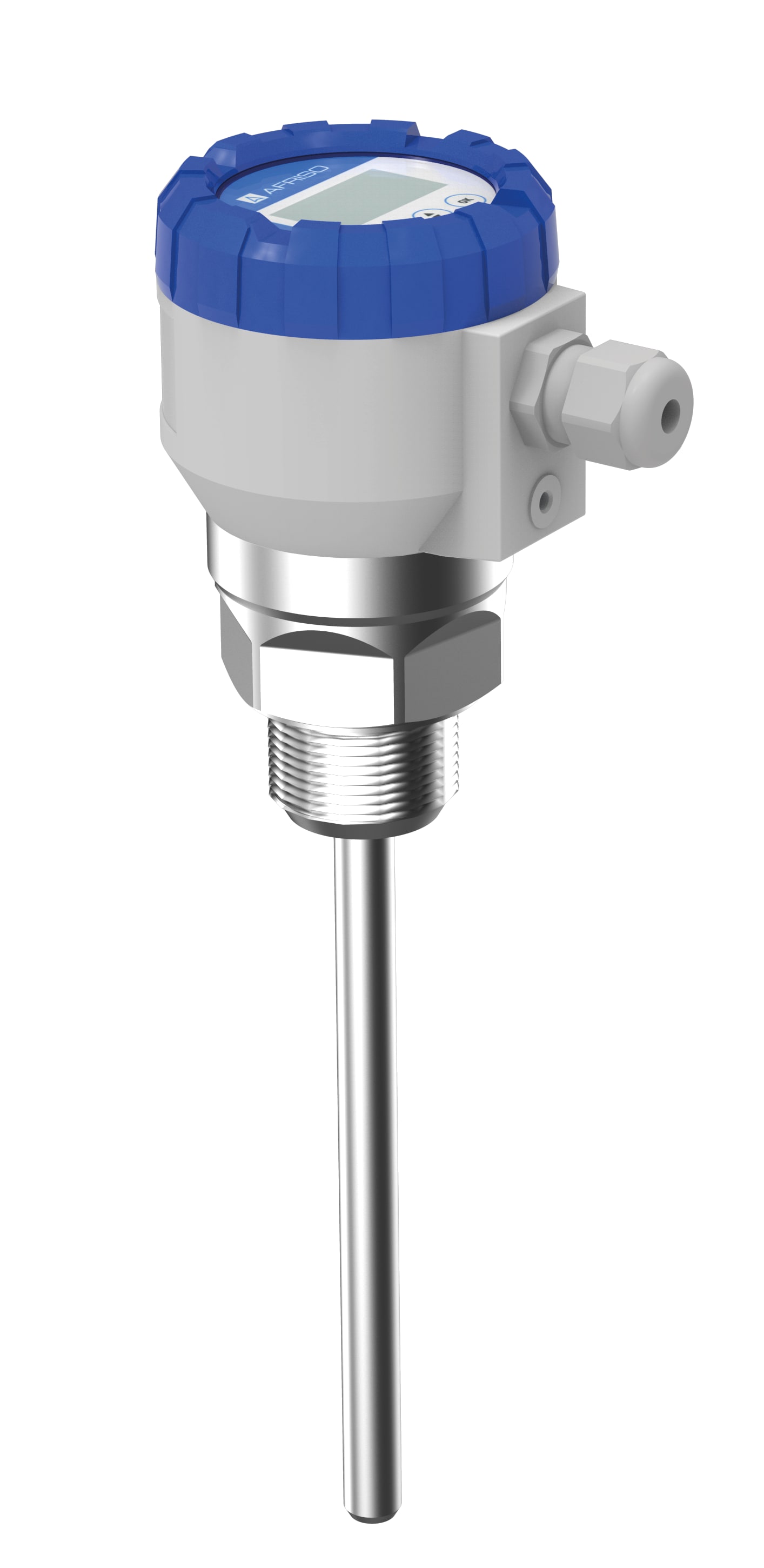

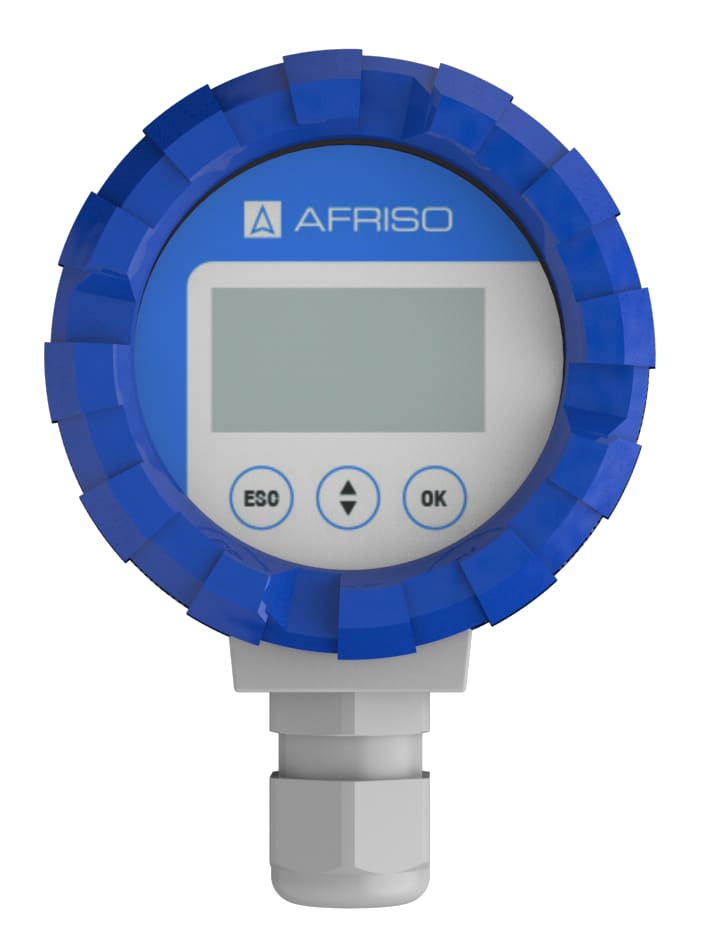

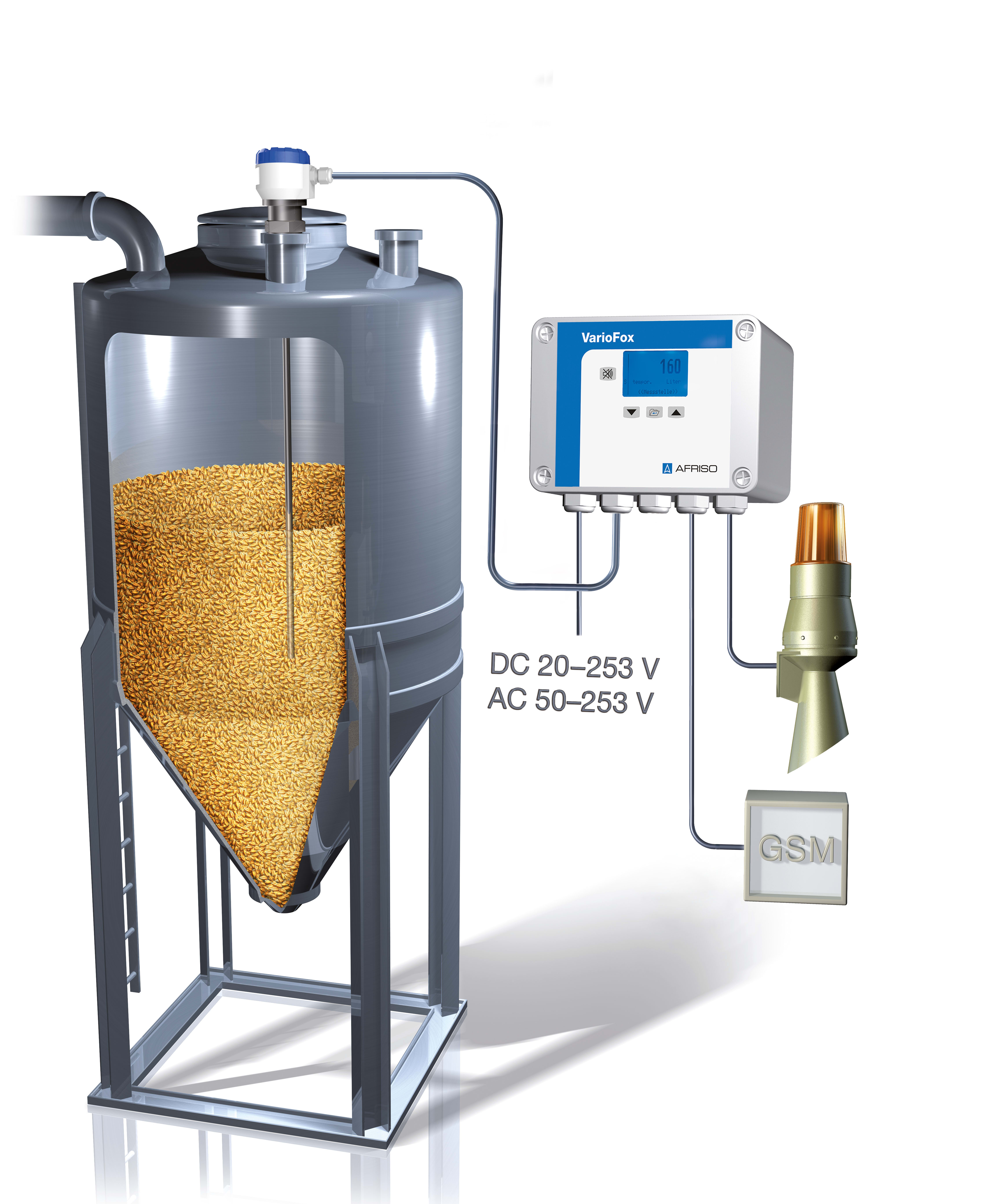

Images 3 PulsFox®PMG 20 MS Guided micropulse level indicators Variants Documents Benefits Level measurement independent of changes in pressure, temperature or densitystable, reliable measurement even with foam, vapour, dust or turbulent surfaces of the mediumrobust housing for rough ambient conditionsmaintenance-free, not subject to wear and tear Application For universal continuous level measurement in containers, tanks or silos. Suitable for liquid, powdery, electrically conductive or non-conductive media. Ideal fro changing media. FEP-coated and PFAcoated probes are available for corrosive, highly clean media or food. Also suitable for pressurised or vacuum tanks. The device can be easily adjusted by means of the programming display with user-friendly menus; it also serves as a local display. Description PulsFox® PMG 20 level indicators operate on the basis of the guided micropulse principle (TDR, time domain reflectometry). A micropulse is emitted along a probe. The micropulse is surrounded by an electromagnetic field. Reflections of the pulses from objects and surfaces serve as the basis of distance measurement. The pulse's propagation time is directly proportional to the distance between the probe and the surface of the medium. The reflectance of materials depends on the dielectric constant ɛr . Changes of the medium such as, for example vapour, dust or a turbulent surface do not affect the measuring accuracy of this measuring principle. No recalibration is required when a different medium is used. Even if properties such as pressure, temperature and density change, the system operates with high reliability and precision. PulsFox® PMG 20 has no moving parts and is therefore maintenance-free and not subject to wear. Variants Technical data Downloads Variants Part no.PulsFox®PMG 20 MS -205654020O-L-101PulsFox®PMG 20 MS -215654021O-L-101PulsFox®PMG 20 MS -225654022O-L-101PulsFox®PMG 20 MS -235654023O-L-101PulsFox®PMG 20 MS -20with local display5654020D-L-101PulsFox®PMG 20 MS -21with local display5654021D-L-101PulsFox®PMG 20 MS -22with local display5654022D-L-101PulsFox®PMG 20 MS -23with local display5654023D-L-101 in-stock items manufactured goods Technical data max. measuring rangeMS-20: ≤ 3000 mm(specify exact probe length when ordering)dielectric constant (ɛr) of mediumMS: ≥ 2.1Measuring accuracyMS: ± 4 mm ≤ 2 m± 2 mm > 2 mOperating temperature rangeMedium: -40/+300 °CFlange: -40/+85 °CAmbient: -30/+70 °CProcess pressureMS: max. 100 barProcess connectionG1B, Stainless steel 316 TiSupply voltageDC 18 − 36 VOutput signal4–20 mA/HART, 2-wirematerialProbe head: aluminium die castProbeMS: Stainless steel 316 TiDegree of protectionIP 67 (EN 60529)Electrical connectionCable gland M16 x 1.5 Downloads PulsFox® PMG 20 im Maische-Silo PDF English German Puls-Reflex-Füllstandmessgeräte PulsFox® PMG 20 PDF Download Puls-Reflex-Füllstandmessgeräte PulsFox® PMG 20 Industrial technology PDF English German professionelle Füllstandlösungen für Industrie- und Prozesstechnik PDF Italian English German Puls-Reflex-Füllstandmessgeräte PulsFox® PMG 20 Katalog-Bestellschlüssel PDF English German Puls-Reflex-Füllstandmessgeräte PulsFox® PMG 20 Manuals PDF Download Professionelle Fuellstandloesungen Prospekt PDF German English Italian
