Industrial technology Mechanical pressure measuring instruments KP100 D431
PRO_TEC_SCD_MANOMETER_AX_DX3Y.TIF
PRO_TEC_SCD_MANOMETER_AX_DX3Y.TIF
Images 1

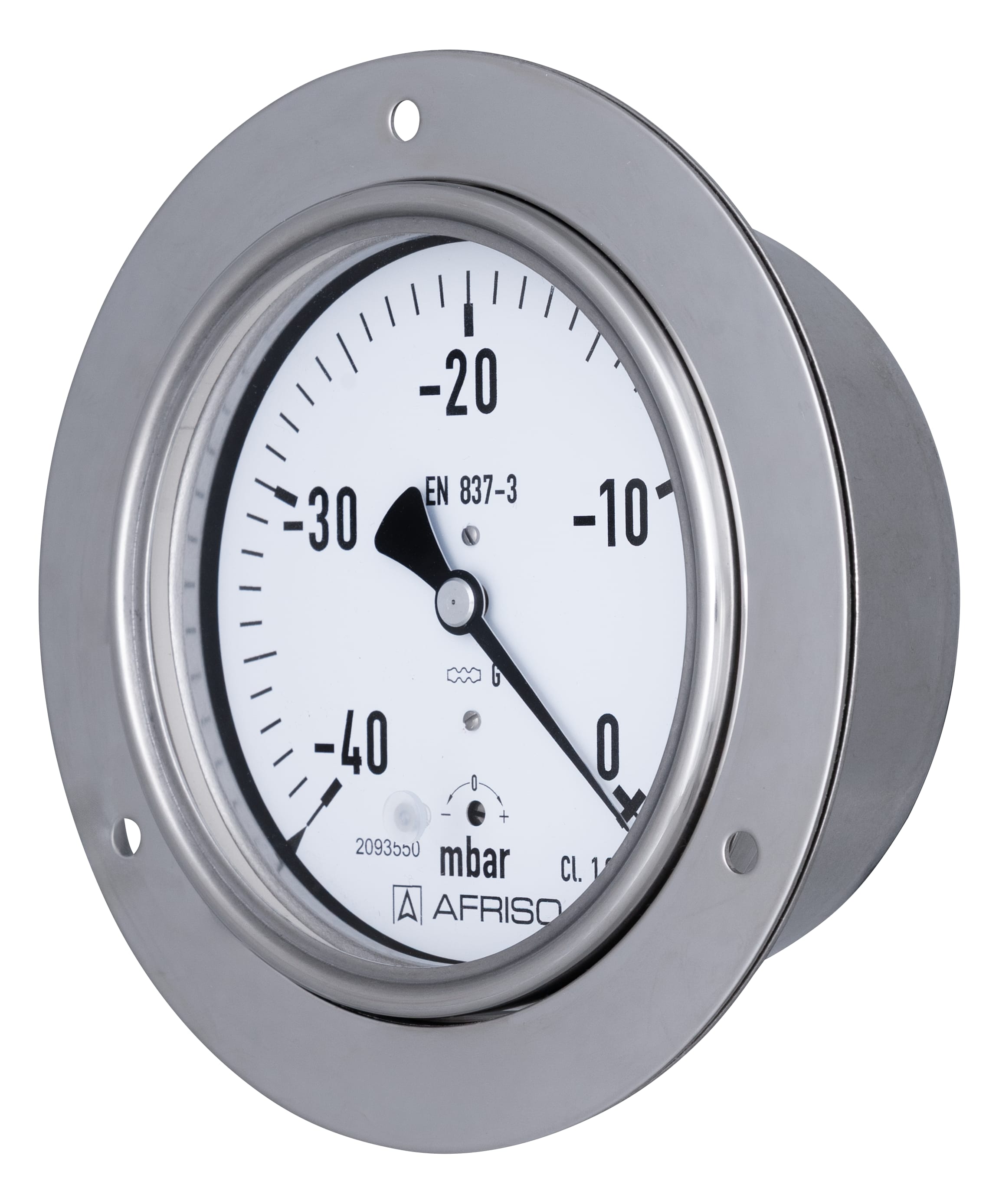

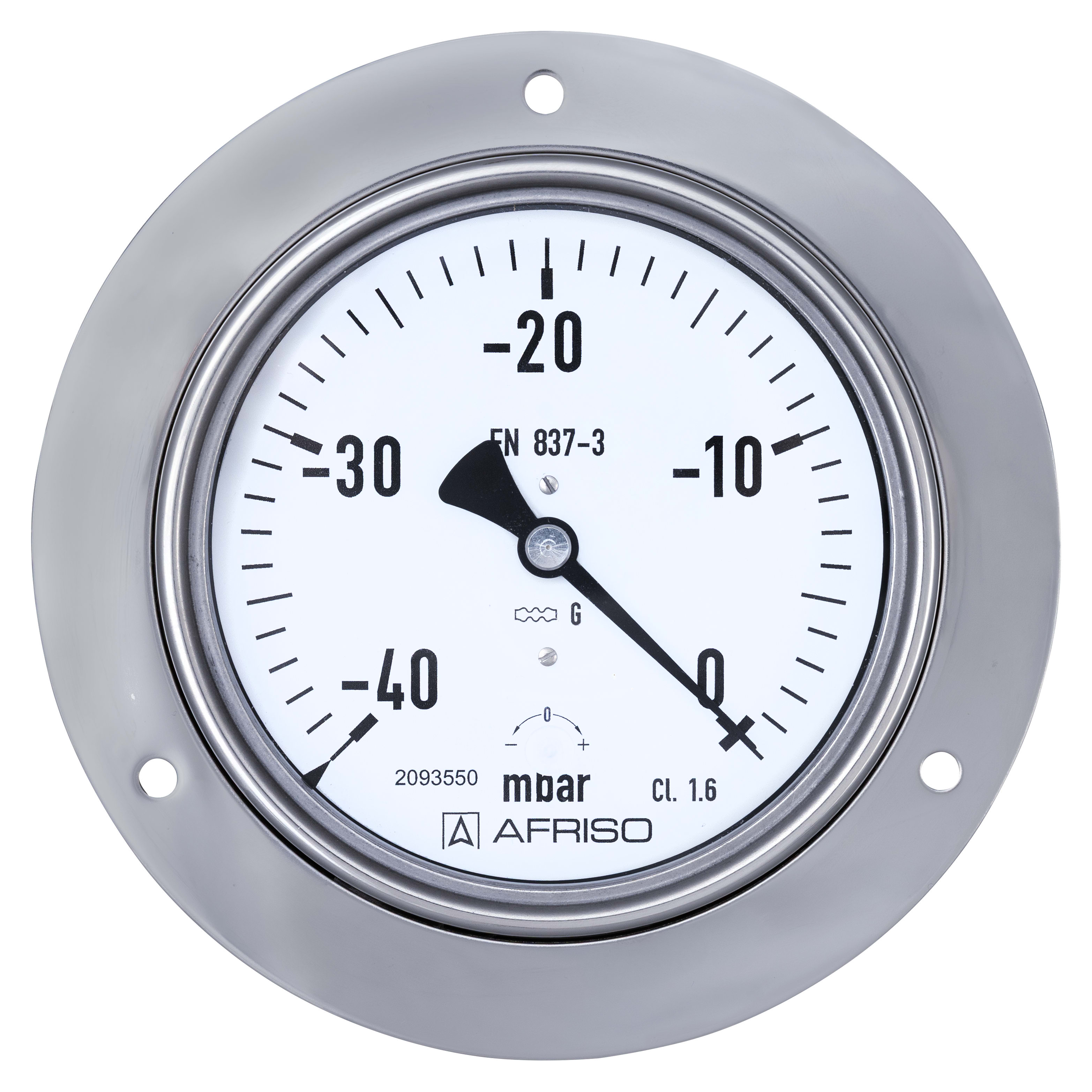

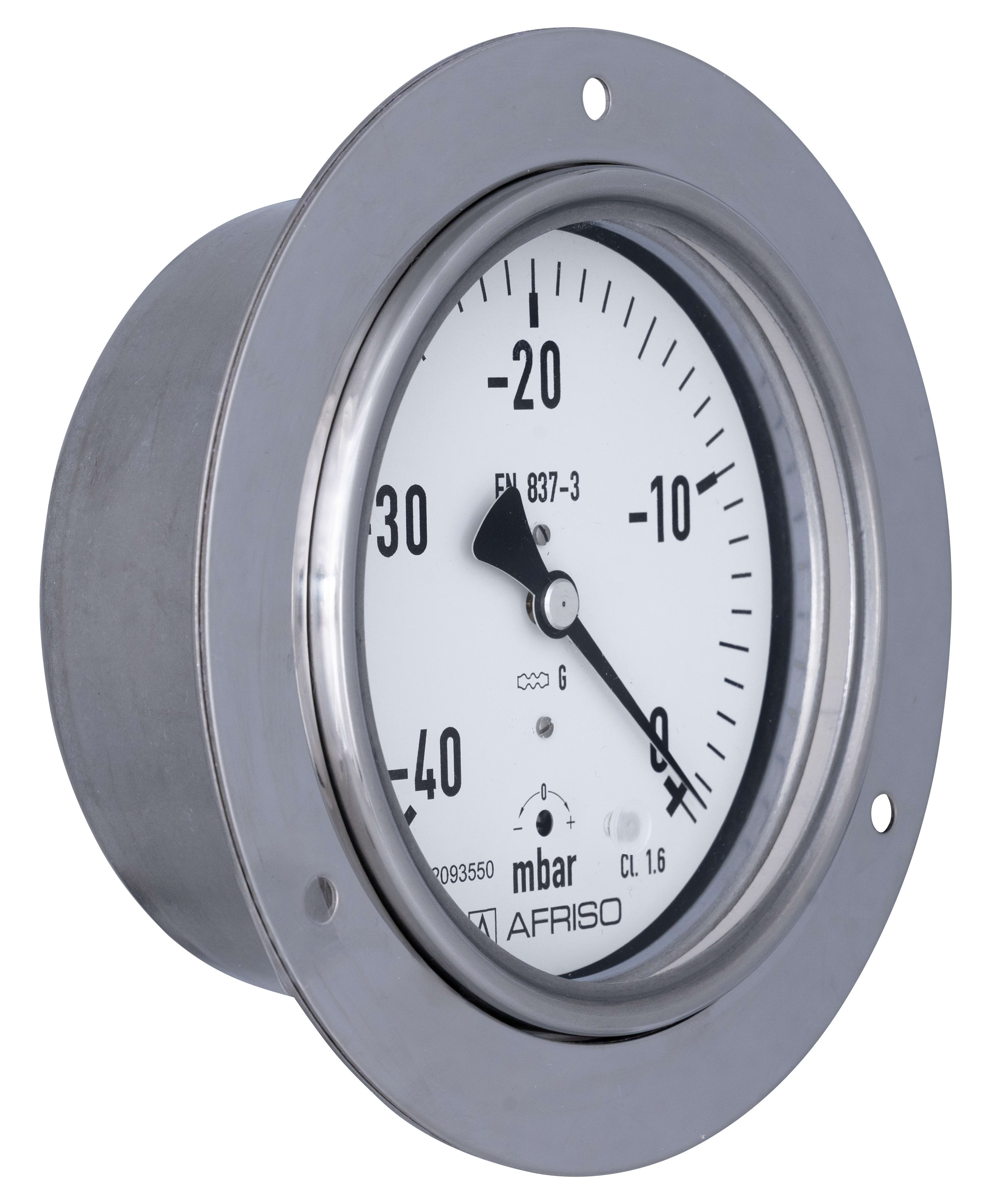

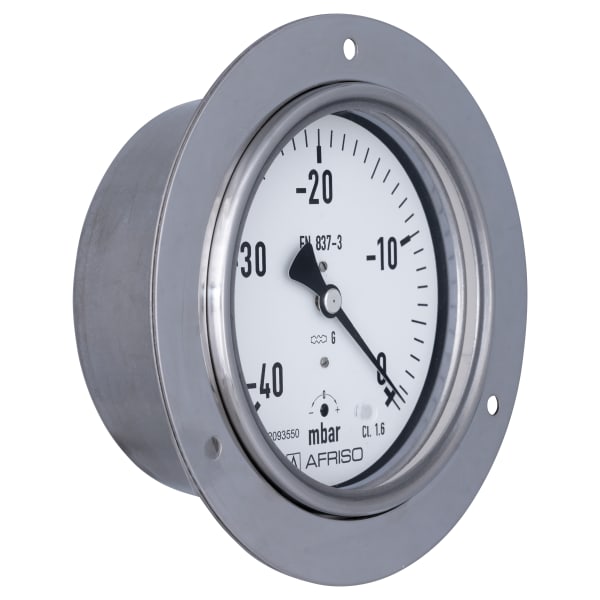

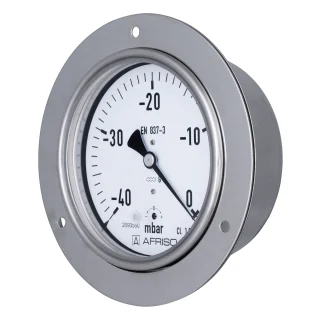

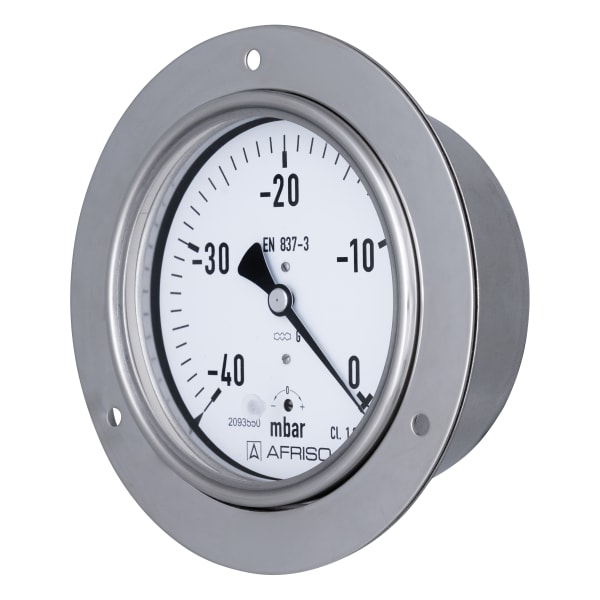

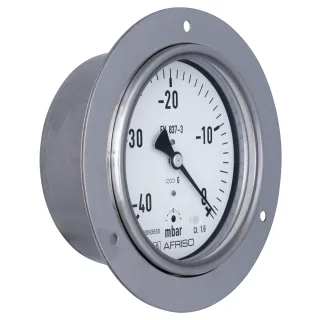

KP100 D431

Kapselfeder-Standardmanometer Typ D4

Variants Documents

housing ⌀ (nominal size)100 mm
ConnectionG½B
alignmentcentre back
accuracy class1,6
standardEN 837-3

  • with zero correction
  • optional overpressure and/or underpressure safety 10 x FSD
  • extremely low measuring ranges from 0/6 mbar
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-25/0 mbar3-hole fixing, panel mounting bezelKP100 D43135104431
-40/0 mbar3-hole fixing, panel mounting bezelKP100 D43135105431
-60/0 mbar3-hole fixing, panel mounting bezelKP100 D43135106431
-100/0 mbar3-hole fixing, panel mounting bezelKP100 D43135107431
-160/0 mbar3-hole fixing, panel mounting bezelKP100 D43135108431
-250/0 mbar3-hole fixing, panel mounting bezelKP100 D43135109431
-400/0 mbar3-hole fixing, panel mounting bezelKP100 D43135110431
-600/0 mbar3-hole fixing, panel mounting bezelKP100 D43135111431
-1 000/0 mbar3-hole fixing, panel mounting bezelKP100 D43135112431
0/25 mbar3-hole fixing, panel mounting bezelKP100 D43135116431
0/40 mbar3-hole fixing, panel mounting bezelKP100 D43135117431
0/60 mbar3-hole fixing, panel mounting bezelKP100 D43135118431
0/100 mbar3-hole fixing, panel mounting bezelKP100 D43135119431
0/160 mbar3-hole fixing, panel mounting bezelKP100 D43135120431
0/250 mbar3-hole fixing, panel mounting bezelKP100 D43135121431
0/400 mbar3-hole fixing, panel mounting bezelKP100 D43135122431
0/600 mbar3-hole fixing, panel mounting bezelKP100 D43135123431
0/1 000 mbar3-hole fixing, panel mounting bezelKP100 D43135124431
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
100 - 100
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 100: IP 54 (EN 60529)

Standard design

Connection
Brass, centre back
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
D431: Kunststoff (PMMA)

Click the corresponding image for detail views, additional information and dimension tables.

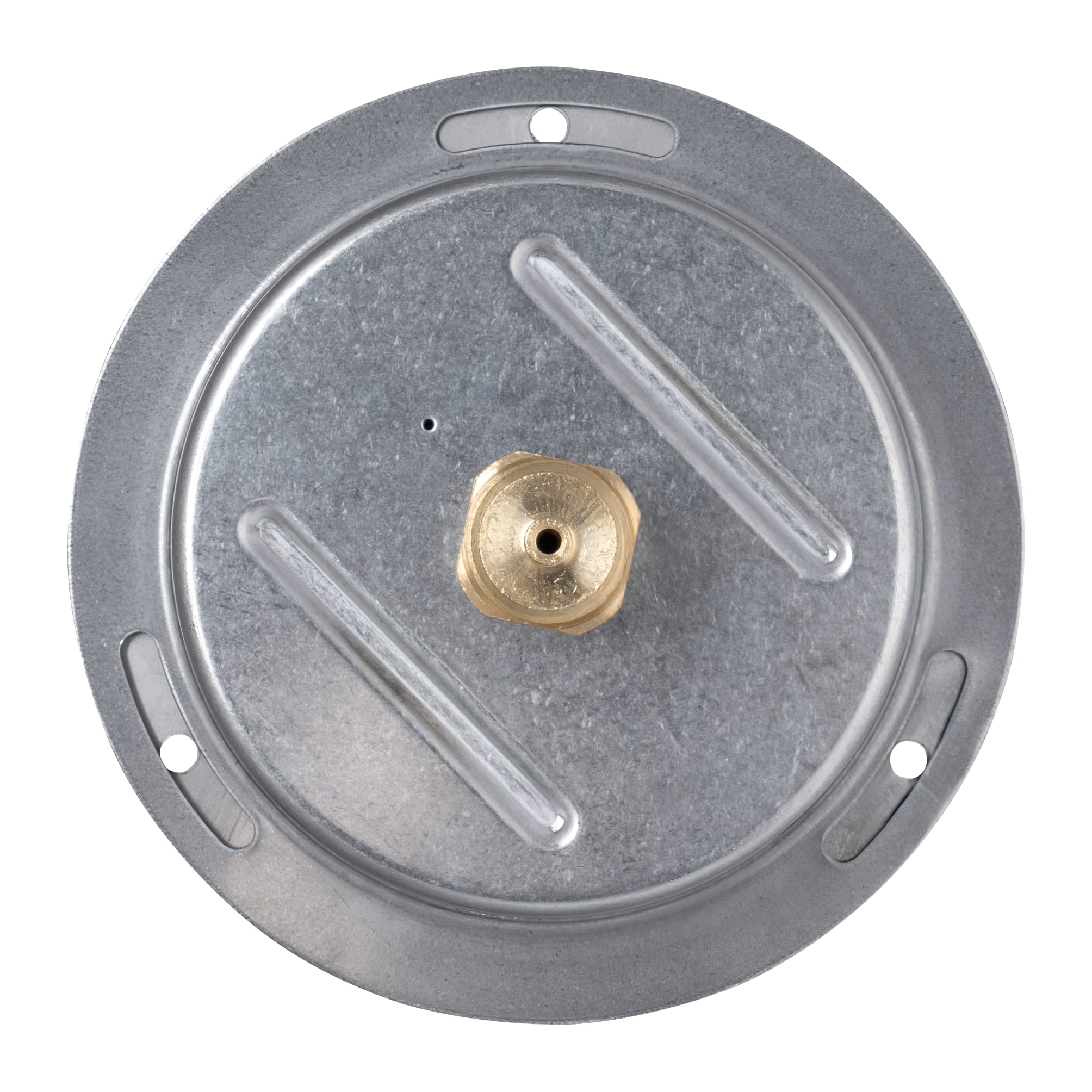

Centre back connection, 3-hole fixing, panel mounting bezel

PRO_TEC_BEP_KAPSELFEDER_STANDARD_D4_ANSCHLUSS_AXIAL_2.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
accuracy class 1.0 NG 100 | 38180
connection socket nickel-plated NG 100 | 38086
throttle screw brass NG 100 hole 0.3 – 0.5 – 0.7 mm (please specify) | 38099
bayonet bezel stainless steel 304, polished NG 100 | 38053
Housing stainless steel 304, polished NG 100 | 37613
red mark on dial NG 100 | 38186
1 reference pointer, red NG 100 SD External adjustment with screwdriver | 38117
1 reference pointer, red NG 100 DK external rotary knob adjustment | 38190
laminated safety glass window NG 100 | 38074
higher degree of protection IP 54 NG 100 | 38160
printing block creation per scale and colour NG 100 scale design as per EN 837-1, others on request | 38155
additional colour NG 100 | 38167
