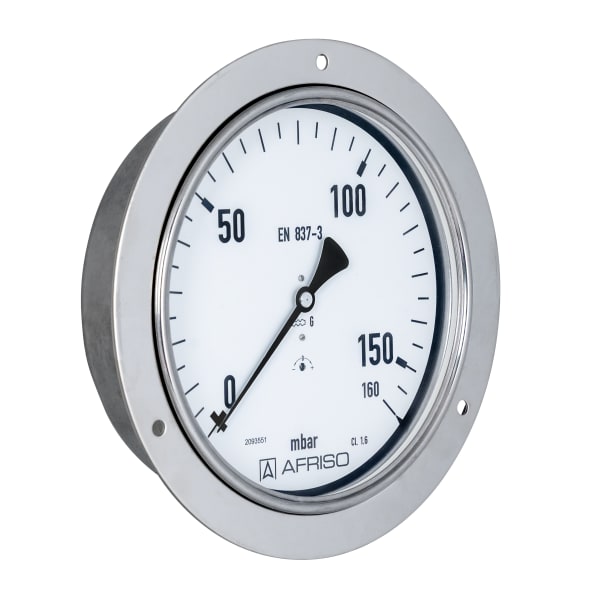

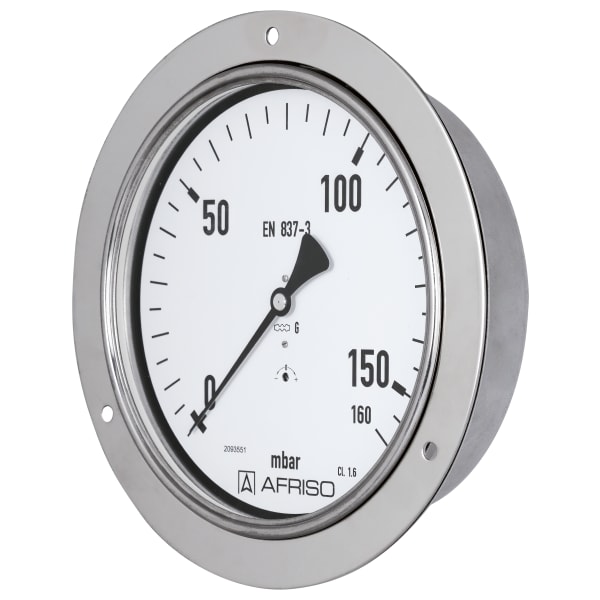

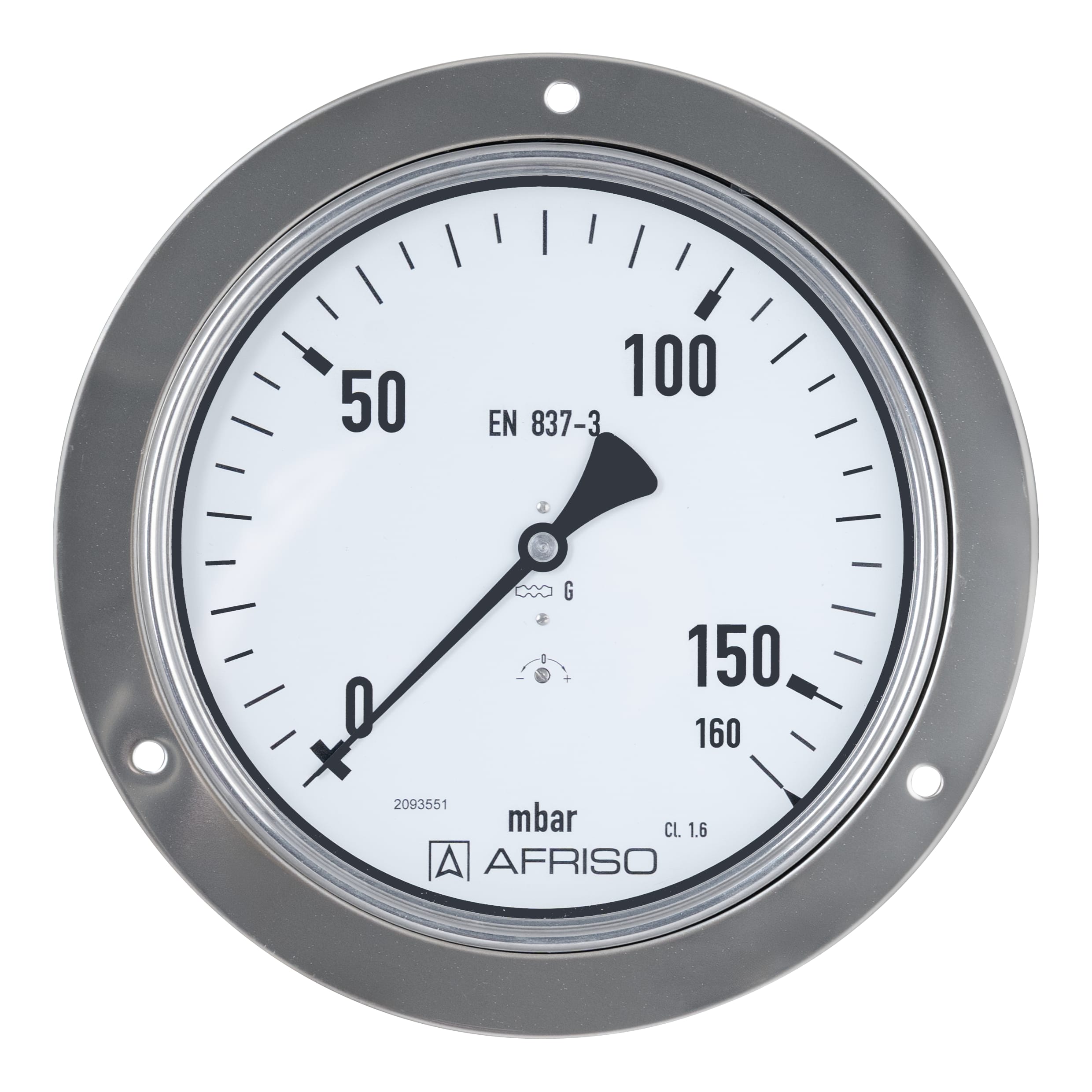

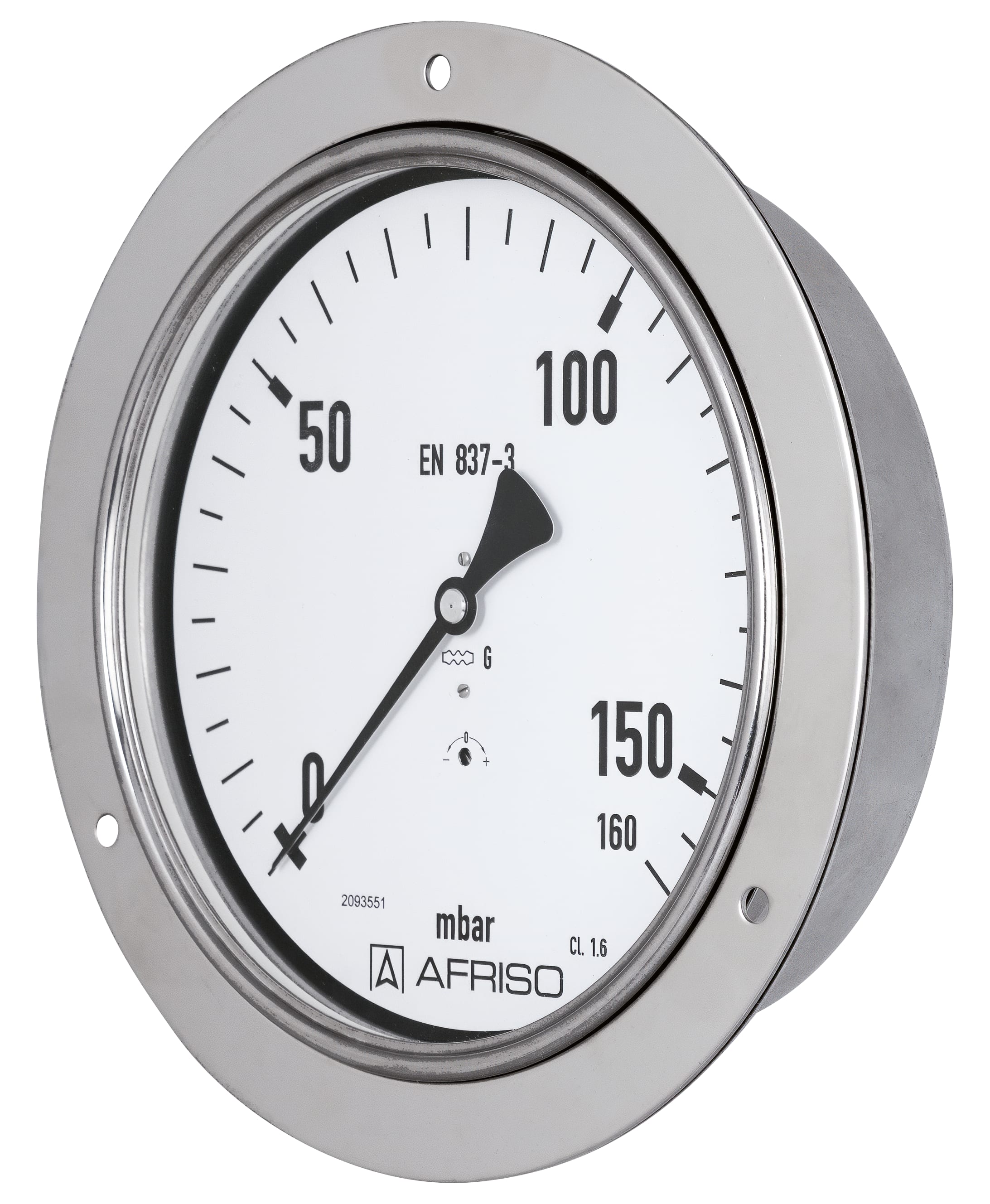

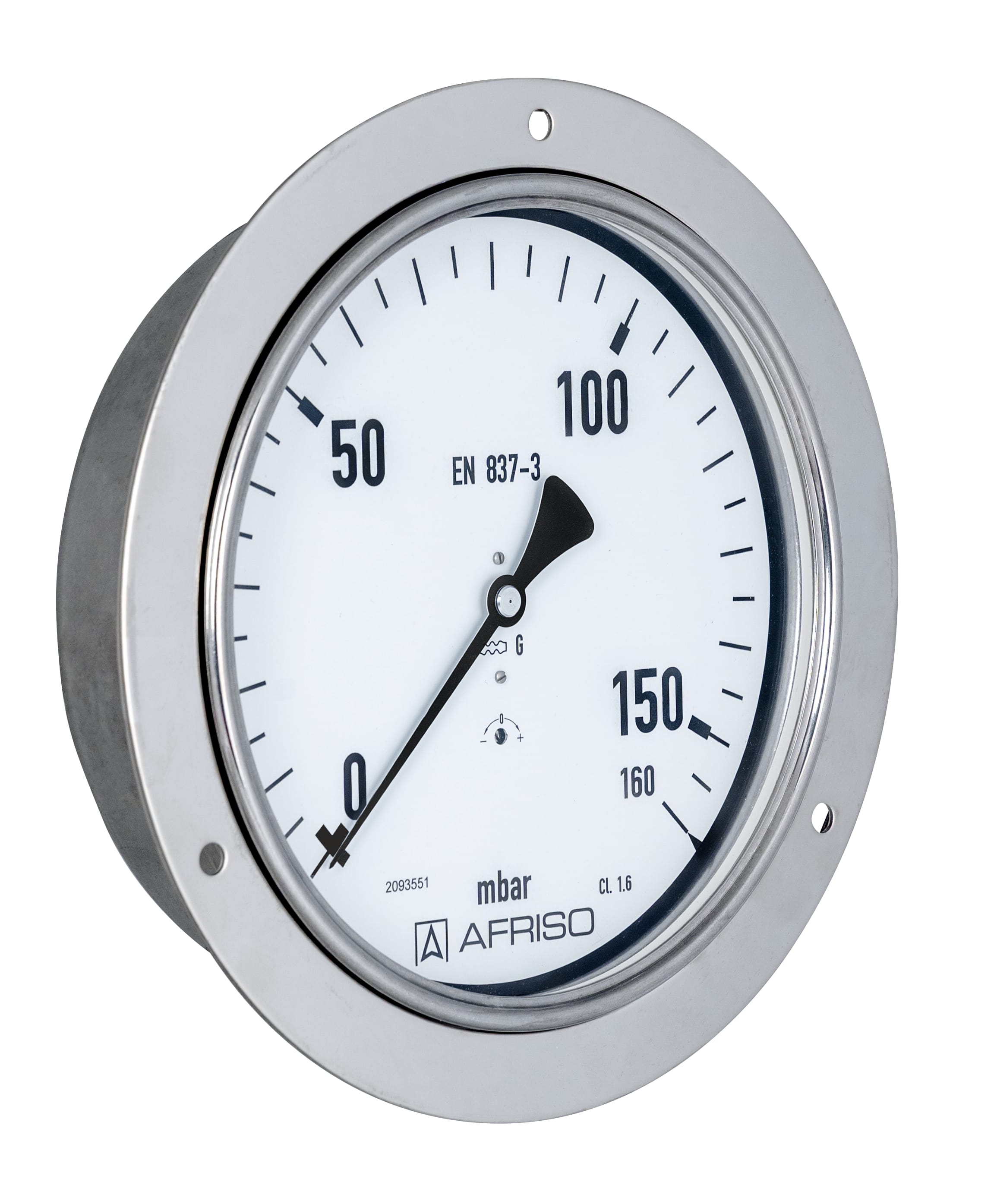

KP160 D431

Kapselfeder-Standardmanometer Typ D4

Variants Documents

housing ⌀ (nominal size)160 mm
ConnectionG½B
alignmentcentre back
accuracy class1,6
standardEN 837-3

  • with zero correction
  • optional overpressure and/or underpressure safety 10 x FSD
  • extremely low measuring ranges from 0/6 mbar
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-25/0 mbar3-hole fixing, panel mounting bezelKP160 D43135154431
-40/0 mbar3-hole fixing, panel mounting bezelKP160 D43135155431
-60/0 mbar3-hole fixing, panel mounting bezelKP160 D43135156431
-100/0 mbar3-hole fixing, panel mounting bezelKP160 D43135157431
-160/0 mbar3-hole fixing, panel mounting bezelKP160 D43135158431
-250/0 mbar3-hole fixing, panel mounting bezelKP160 D43135159431
-400/0 mbar3-hole fixing, panel mounting bezelKP160 D43135160431
-600/0 mbar3-hole fixing, panel mounting bezelKP160 D43135161431
-1 000/0 mbar3-hole fixing, panel mounting bezelKP160 D43135162431
0/25 mbar3-hole fixing, panel mounting bezelKP160 D43135166431
0/40 mbar3-hole fixing, panel mounting bezelKP160 D43135167431
0/60 mbar3-hole fixing, panel mounting bezelKP160 D43135168431
0/100 mbar3-hole fixing, panel mounting bezelKP160 D43135169431
0/160 mbar3-hole fixing, panel mounting bezelKP160 D43135170431
0/250 mbar3-hole fixing, panel mounting bezelKP160 D43135171431
0/400 mbar3-hole fixing, panel mounting bezelKP160 D43135172431
0/600 mbar3-hole fixing, panel mounting bezelKP160 D43135173431
0/1 000 mbar3-hole fixing, panel mounting bezelKP160 D43135174431
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
160 - 160
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 160: IP 33 (EN 60529)

Standard design

Connection
Brass, centre back
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
D431: Kunststoff (PMMA)

Click the corresponding image for detail views, additional information and dimension tables.

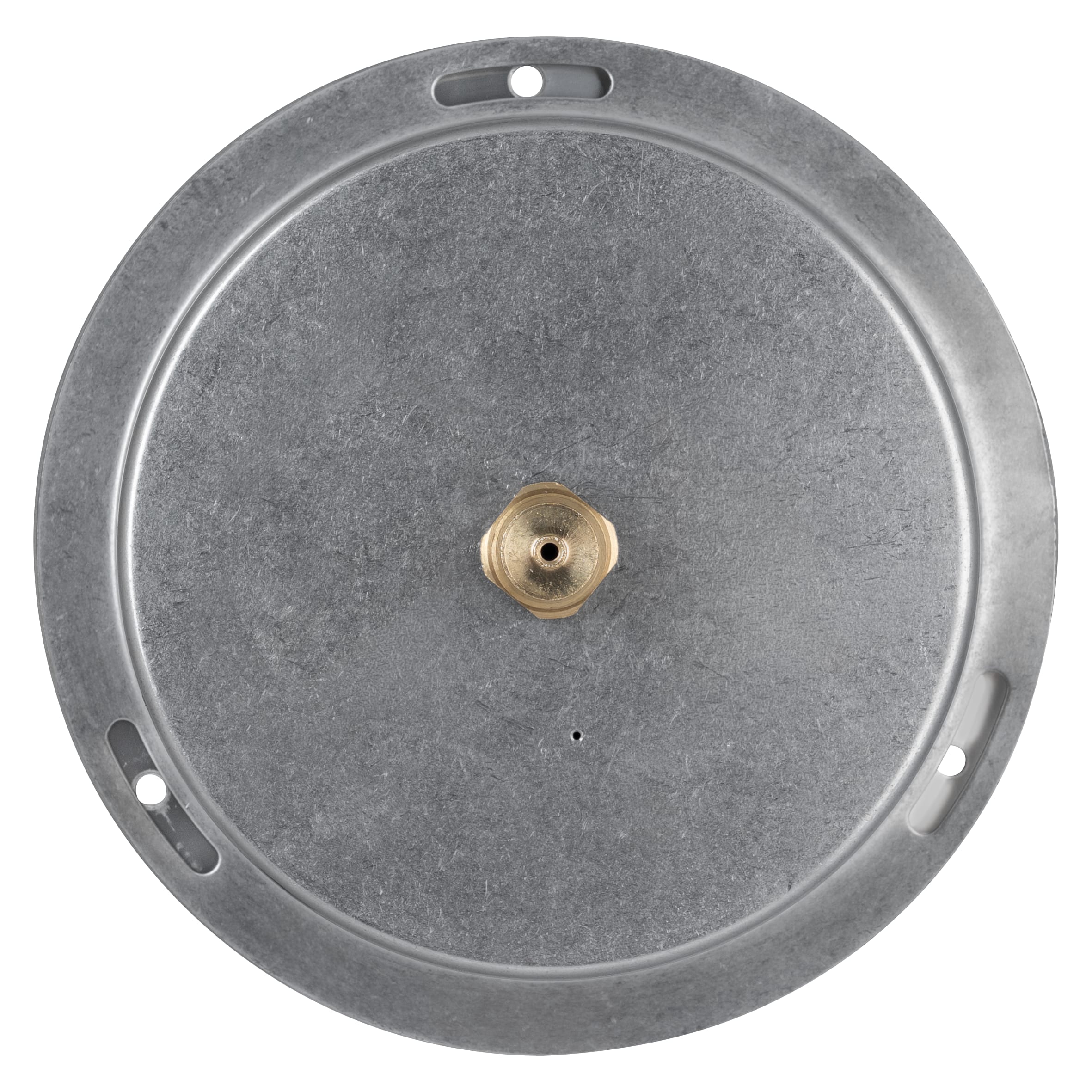

Centre back connection, 3-hole fixing, panel mounting bezel

PRO_TEC_BEP_KAPSELFEDER_STANDARD_D4_ANSCHLUSS_AXIAL_2.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
accuracy class 1.0 NG 160 | 38181
connection socket nickel-plated NG 160 | 38087
throttle screw brass NG 160 hole 0.3 – 0.5 – 0.7 mm (please specify) | 38100
bayonet bezel stainless steel 304 polished NG 160 | 38055
Housing stainless steel 304 polished NG 160 | 37614
red mark on dial NG 160 | 38187
1 reference pointer, red NG 160 DK external rotary knob adjustment | 38191
laminated safety glass window NG 160 | 38075
printing block creation per scale and colour NG 160 scale design as per EN 837-1, others on request | 38156
additional colour NG 160 | 38168
