Industrial technology Mechanical pressure measuring instruments KP160 D451
PRO_TEC_SCD_MANOMETER_AX_DX5Y.TIF
PRO_TEC_SCD_MANOMETER_AX_DX5Y.TIF
Images 1

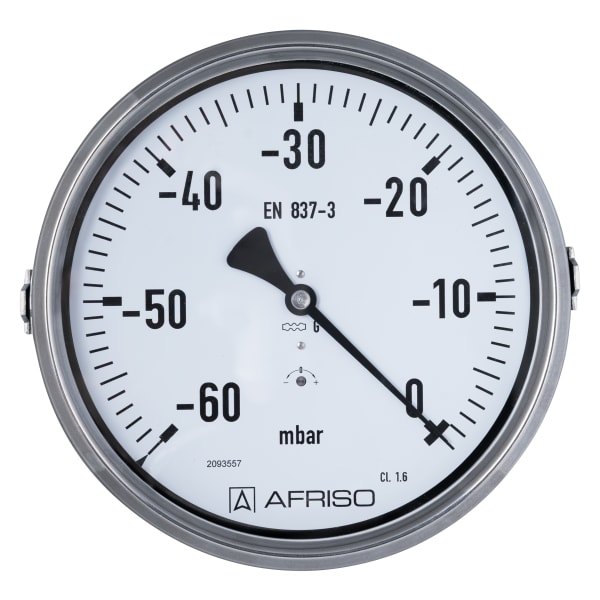

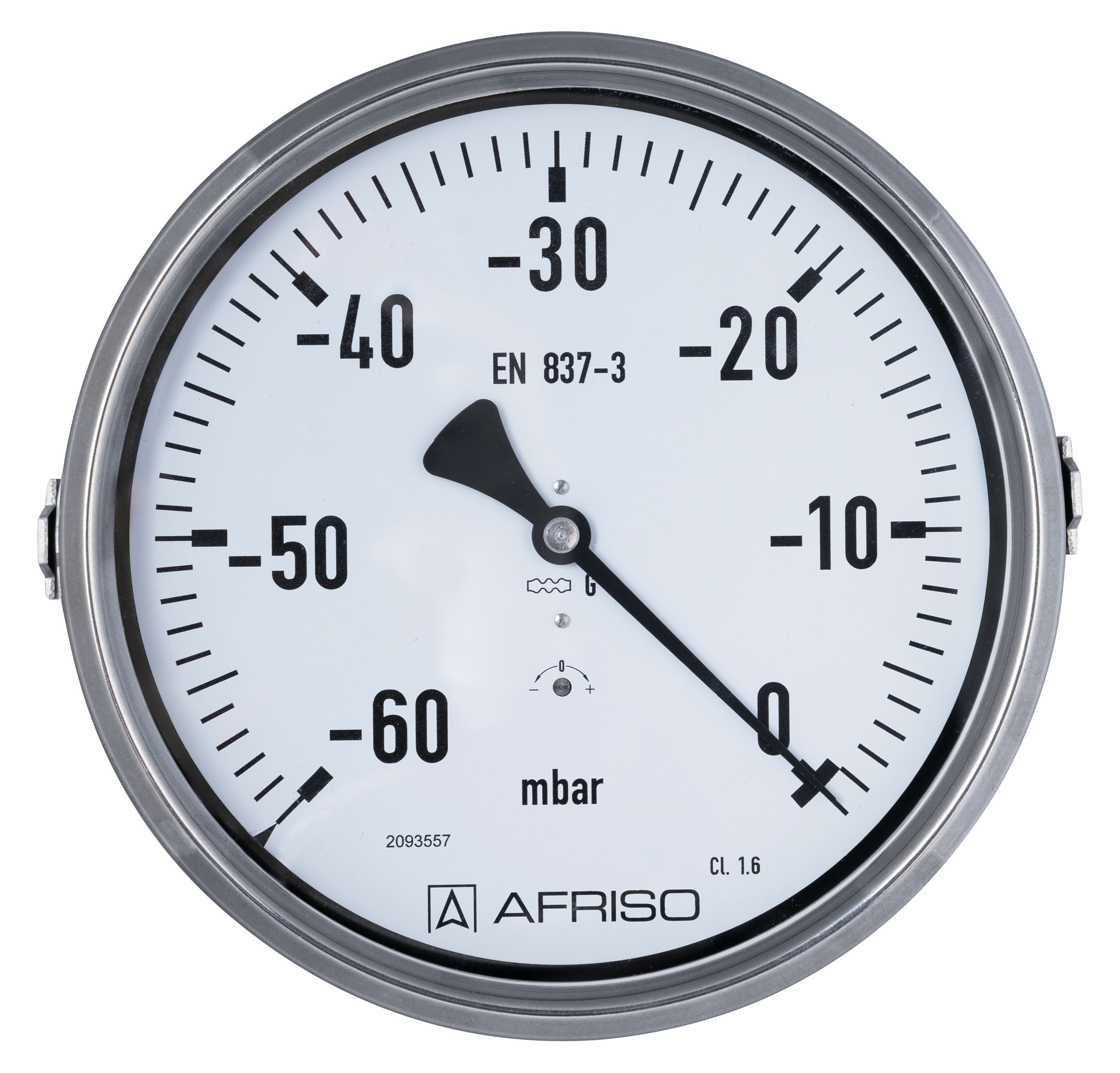

KP160 D451

Kapselfeder-Standardmanometer Typ D4

Variants Documents

housing ⌀ (nominal size)160 mm
ConnectionG½B
alignmentcentre back
accuracy class1,6
standardEN 837-3

  • with zero correction
  • optional overpressure and/or underpressure safety 10 x FSD
  • extremely low measuring ranges from 0/6 mbar
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-25/0 mbarPanel mounting bezel, with clamp fixingKP160 D45135154451
-40/0 mbarPanel mounting bezel, with clamp fixingKP160 D45135155451

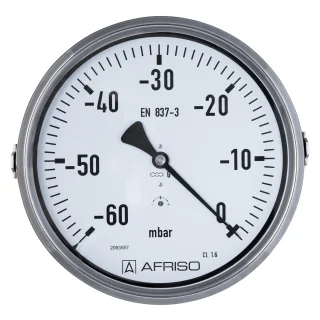

-60/0 mbarPanel mounting bezel, with clamp fixingKP160 D45135156451
-100/0 mbarPanel mounting bezel, with clamp fixingKP160 D45135157451
-160/0 mbarPanel mounting bezel, with clamp fixingKP160 D45135158451
-250/0 mbarPanel mounting bezel, with clamp fixingKP160 D45135159451
-400/0 mbarPanel mounting bezel, with clamp fixingKP160 D45135160451
-600/0 mbarPanel mounting bezel, with clamp fixingKP160 D45135161451
-1 000/0 mbarPanel mounting bezel, with clamp fixingKP160 D45135162451
0/25 mbarPanel mounting bezel, with clamp fixingKP160 D45135166451
0/40 mbarPanel mounting bezel, with clamp fixingKP160 D45135167451
0/60 mbarPanel mounting bezel, with clamp fixingKP160 D45135168451
0/100 mbarPanel mounting bezel, with clamp fixingKP160 D45135169451

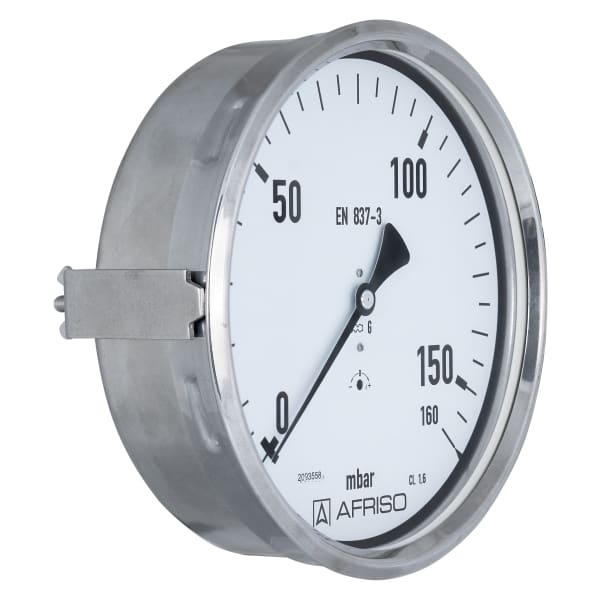

0/160 mbarPanel mounting bezel, with clamp fixingKP160 D45135170451
0/250 mbarPanel mounting bezel, with clamp fixingKP160 D45135171451
0/400 mbarPanel mounting bezel, with clamp fixingKP160 D45135172451
0/600 mbarPanel mounting bezel, with clamp fixingKP160 D45135173451
0/1 000 mbarPanel mounting bezel, with clamp fixingKP160 D45135174451
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
160 - 160
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 160: IP 33 (EN 60529)

Standard design

Connection
Brass, centre back
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
D451: Kunststoff (PMMA)

Click the corresponding image for detail views, additional information and dimension tables.

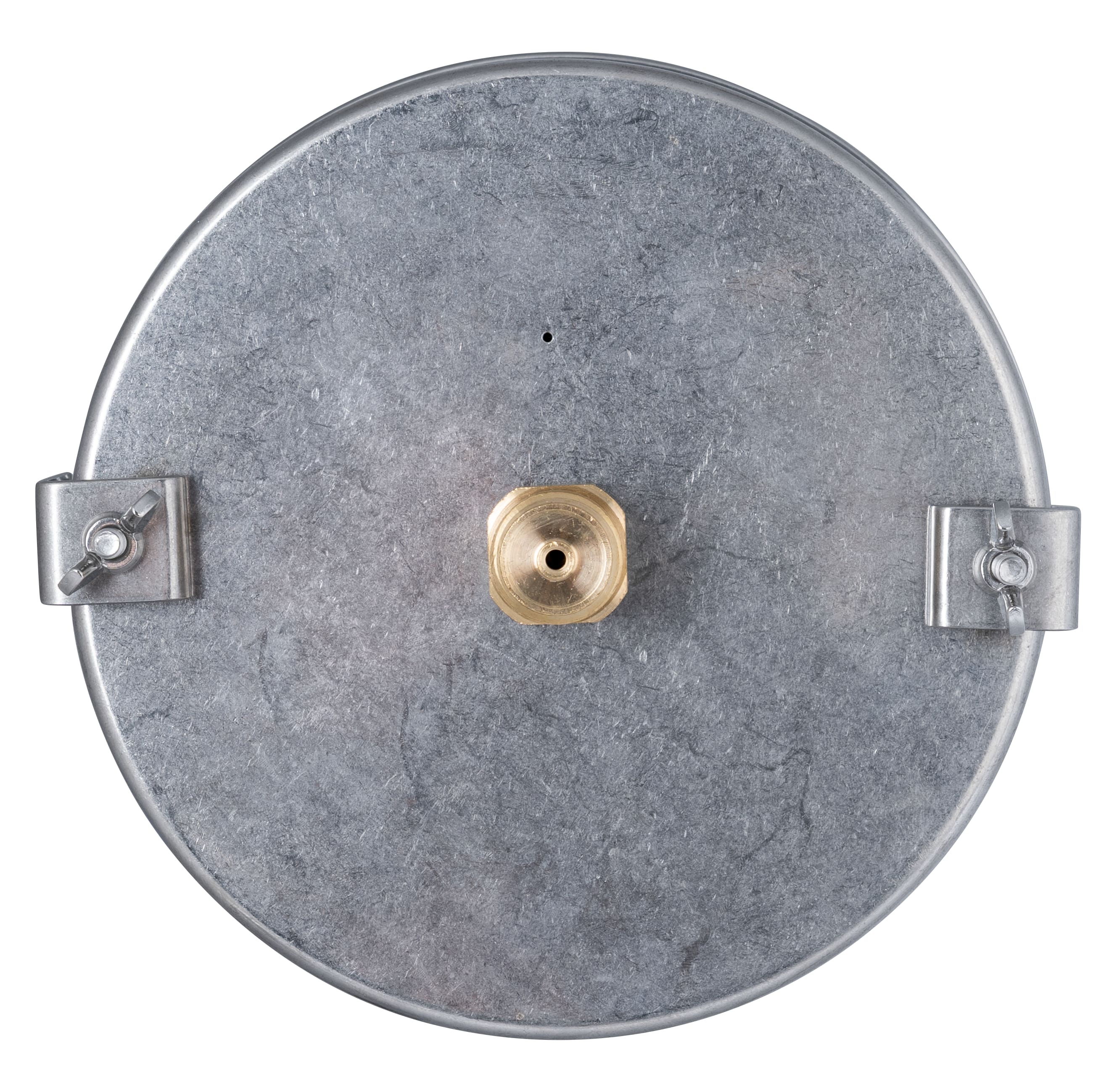

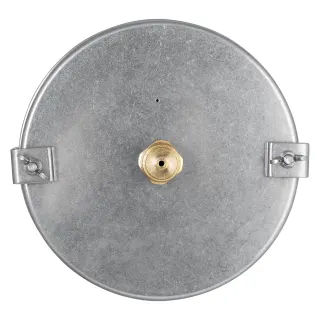

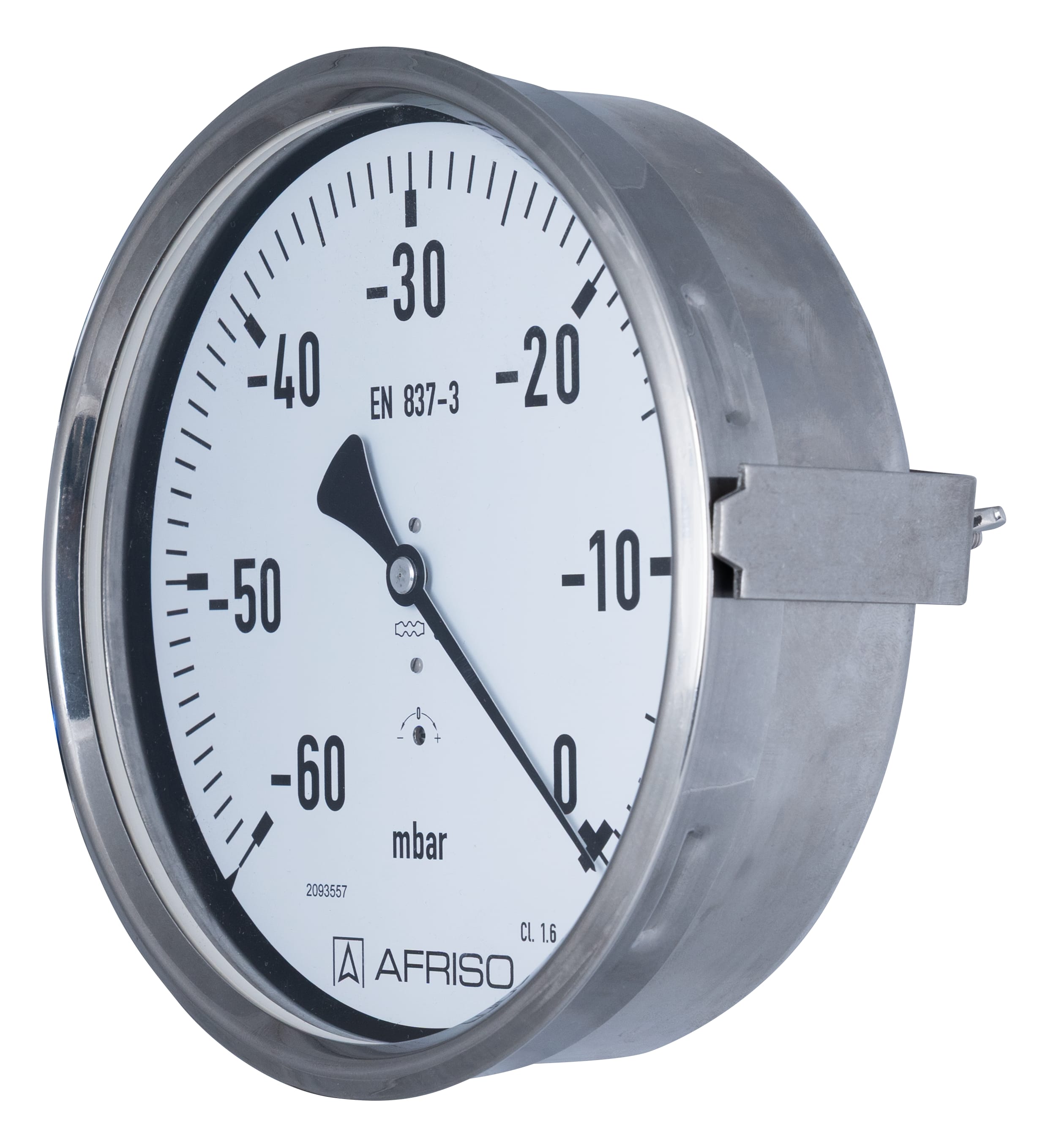

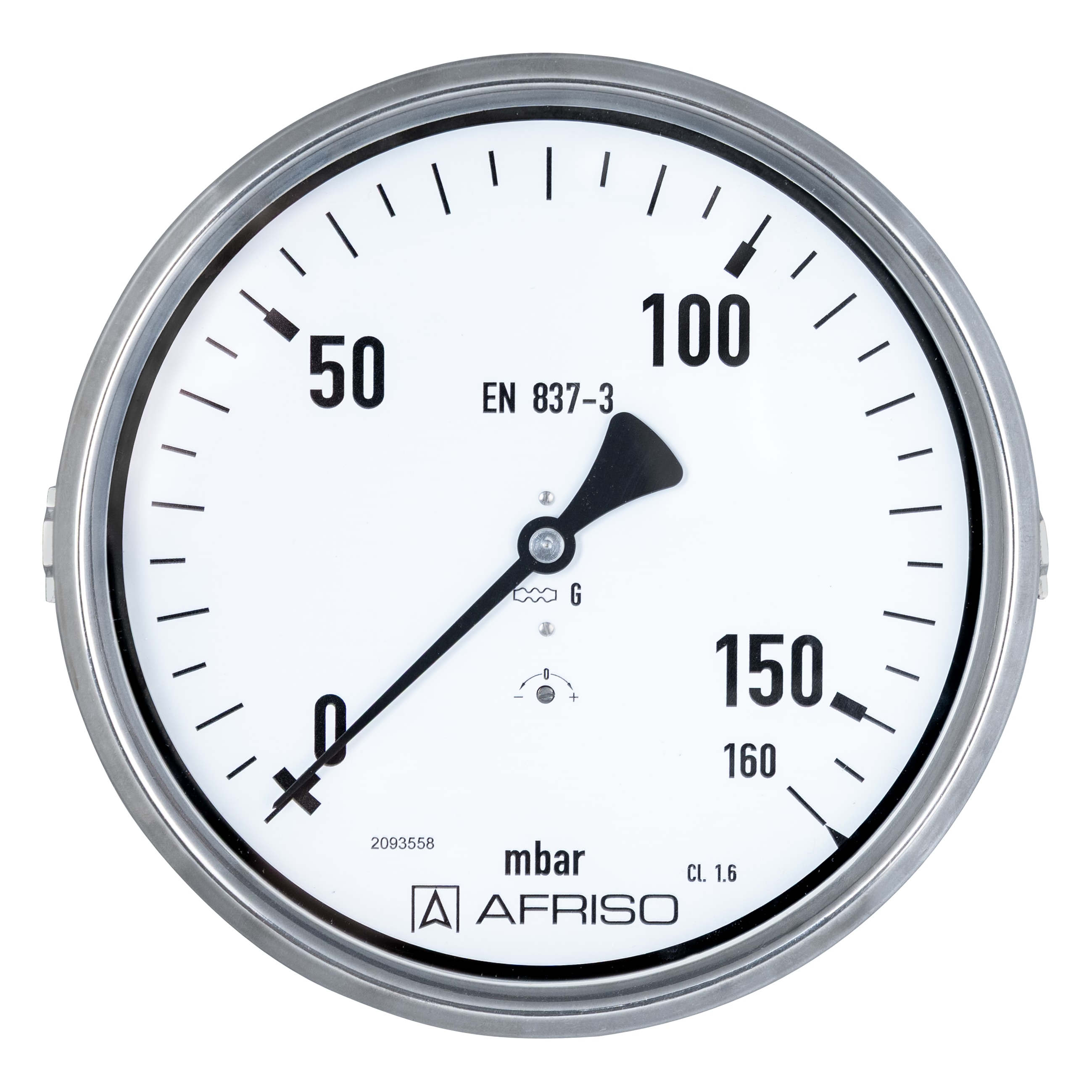

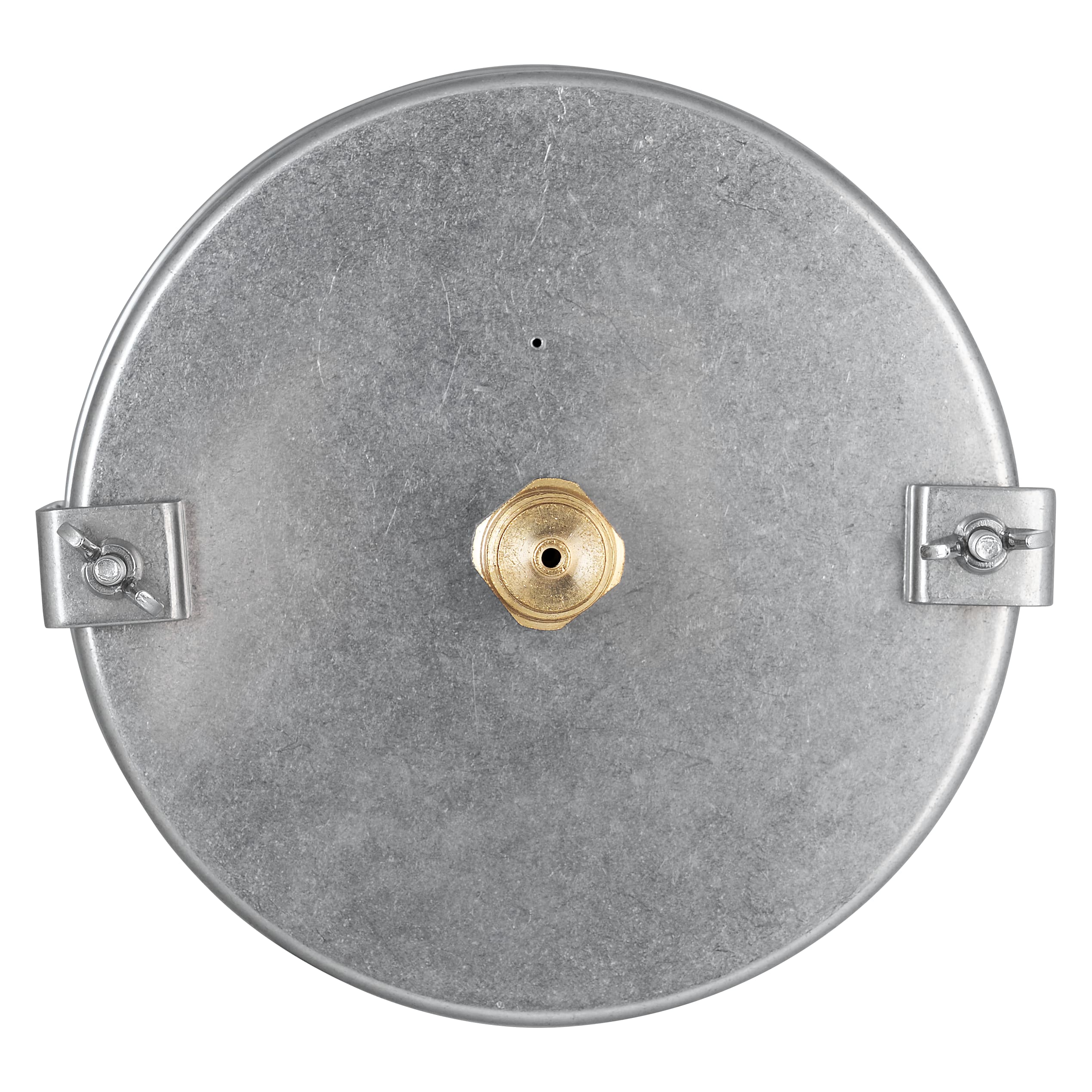

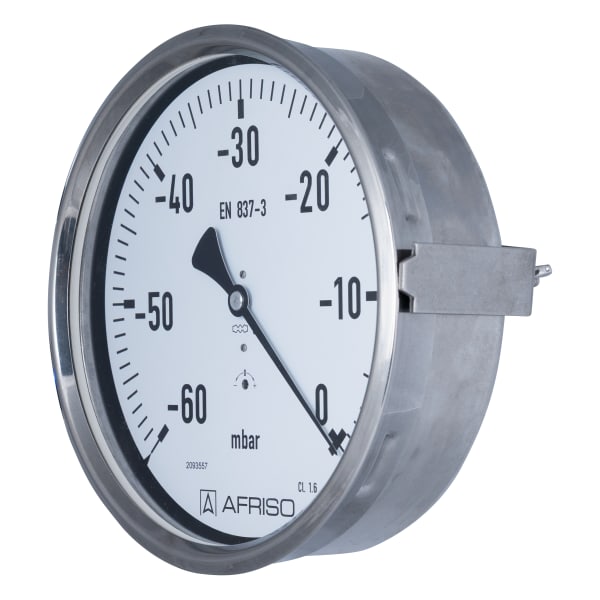

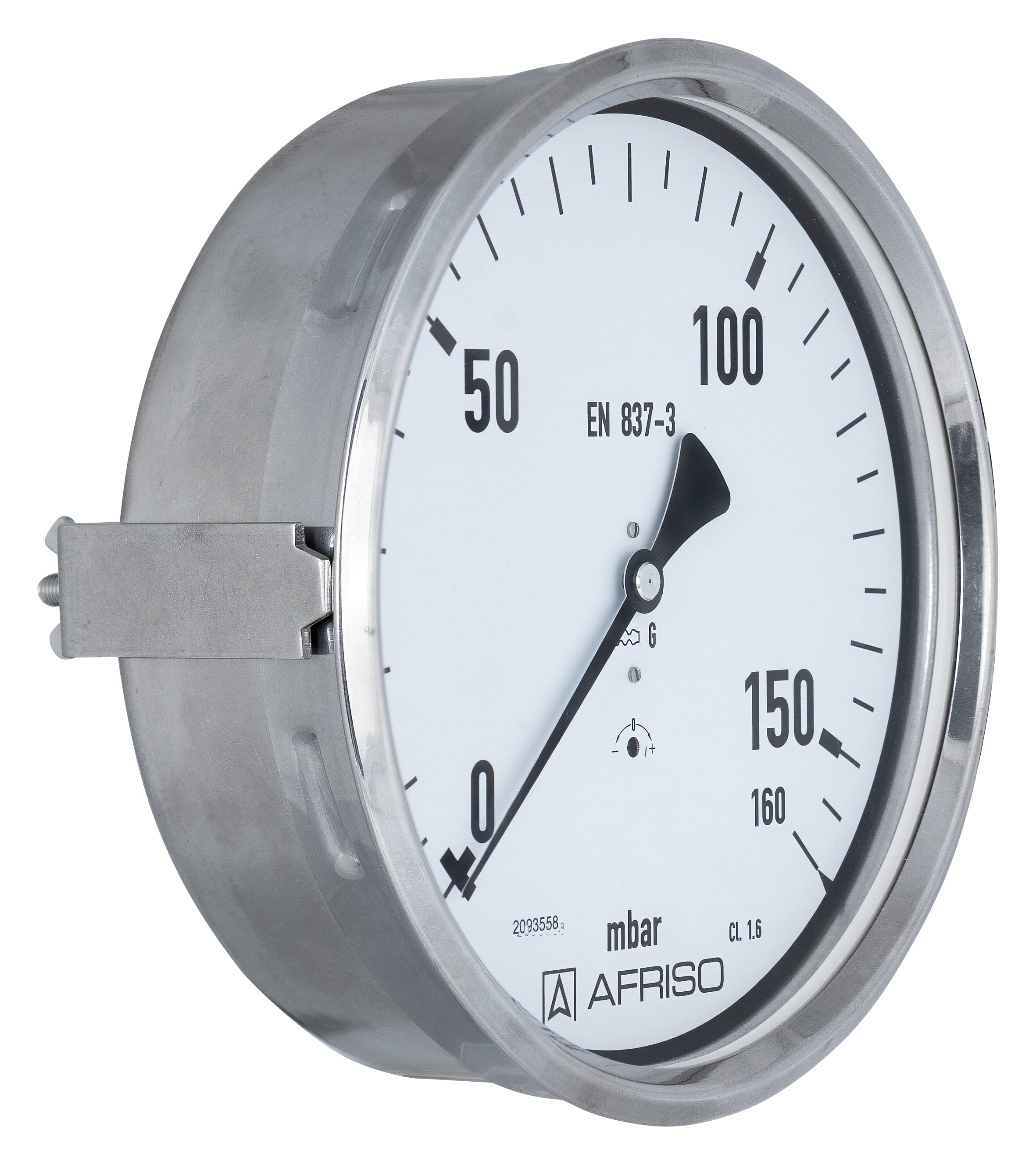

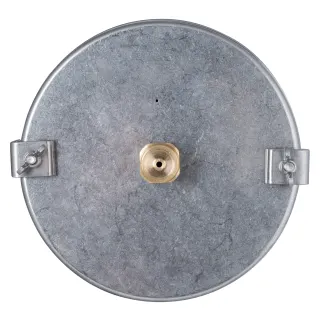

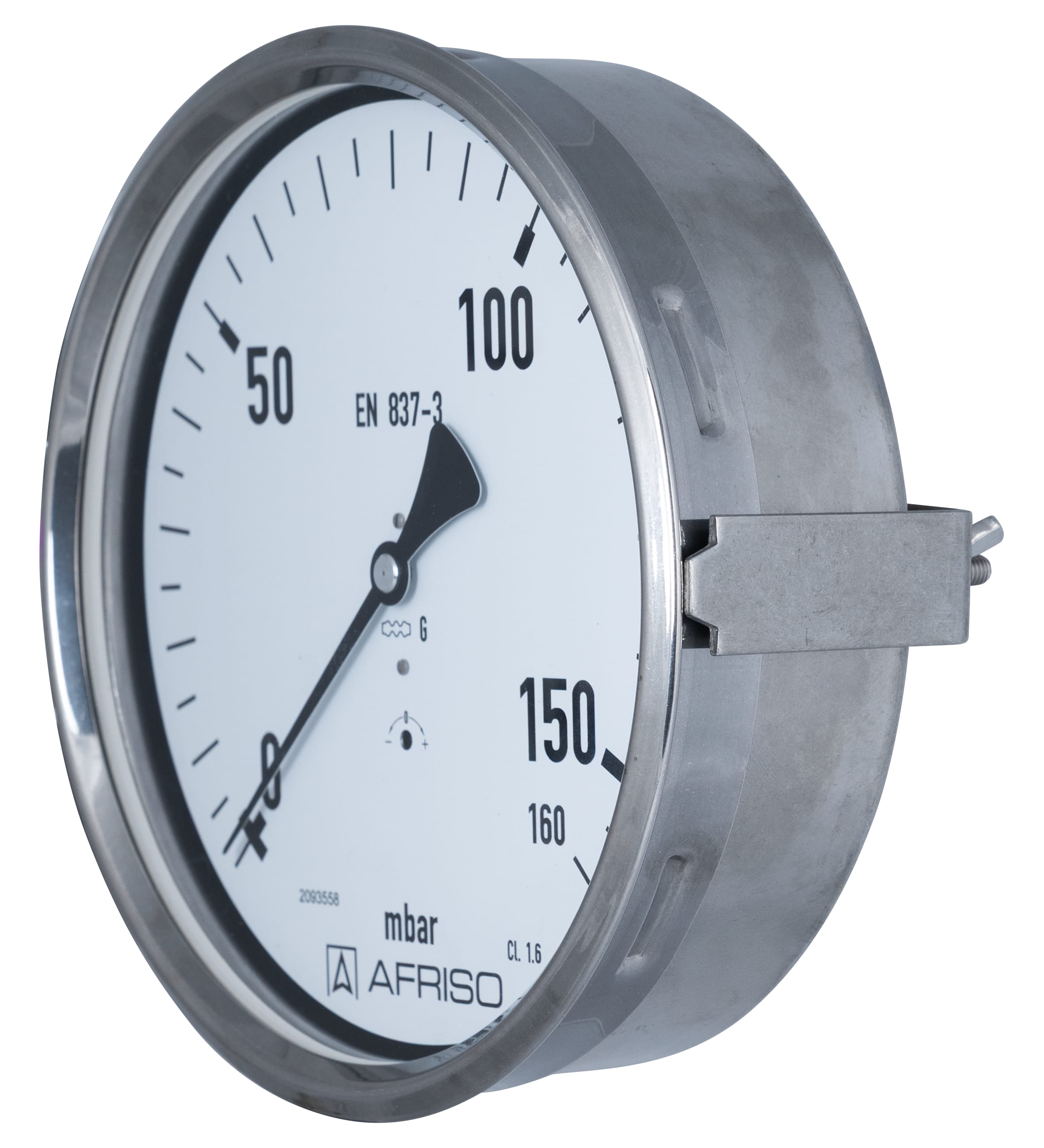

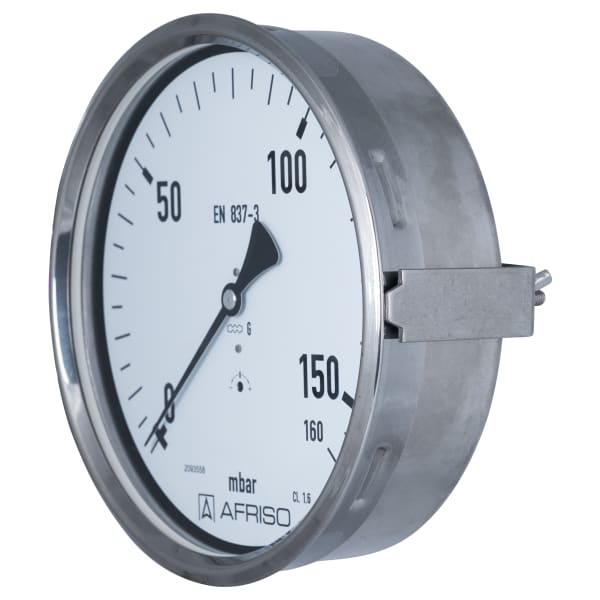

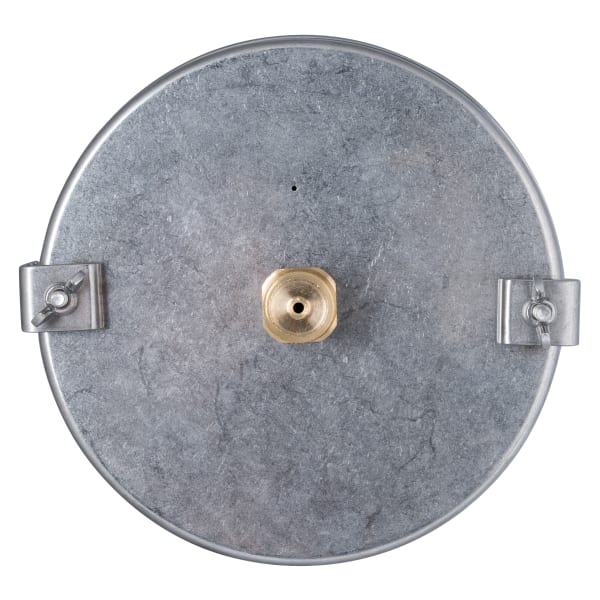

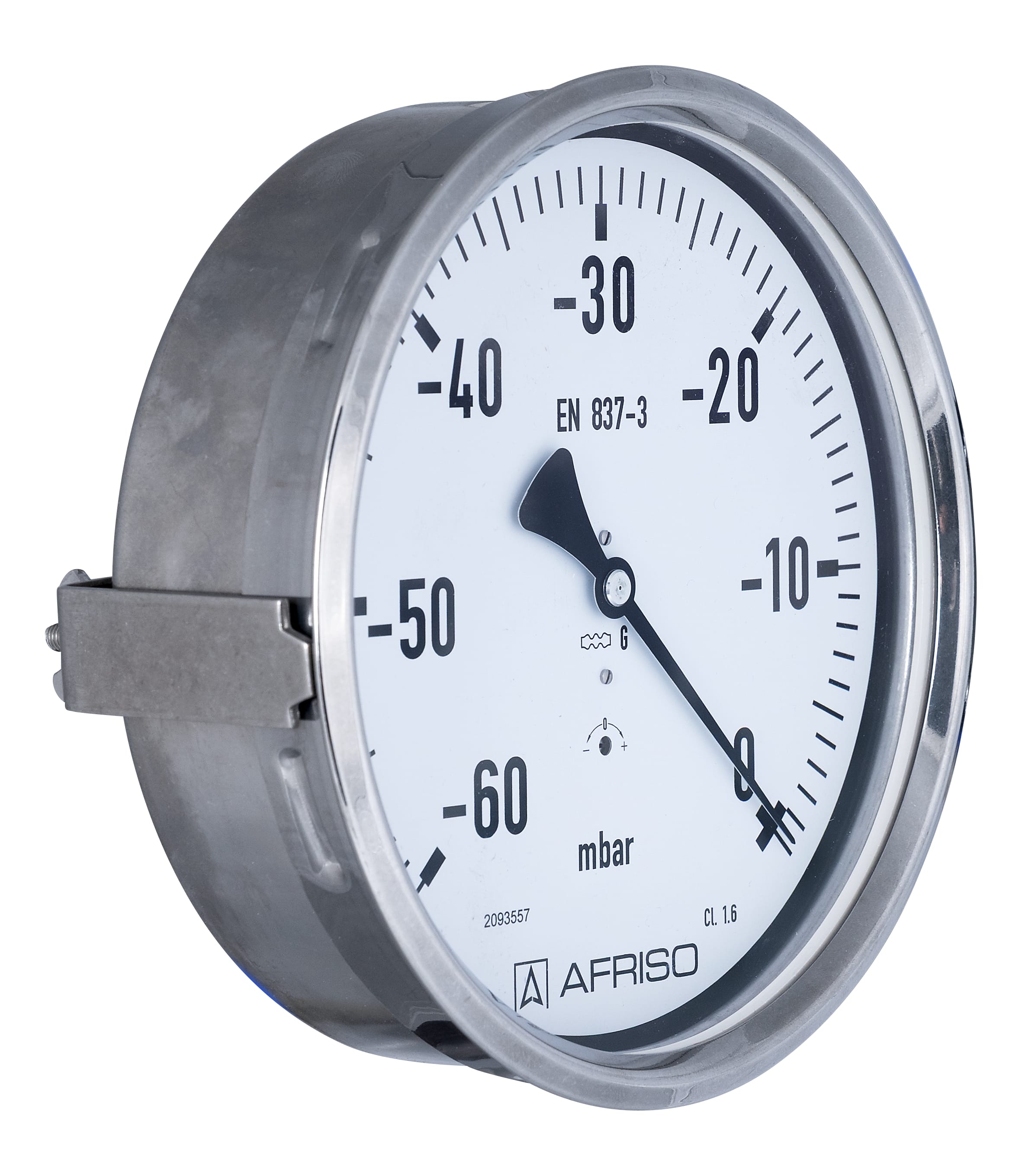

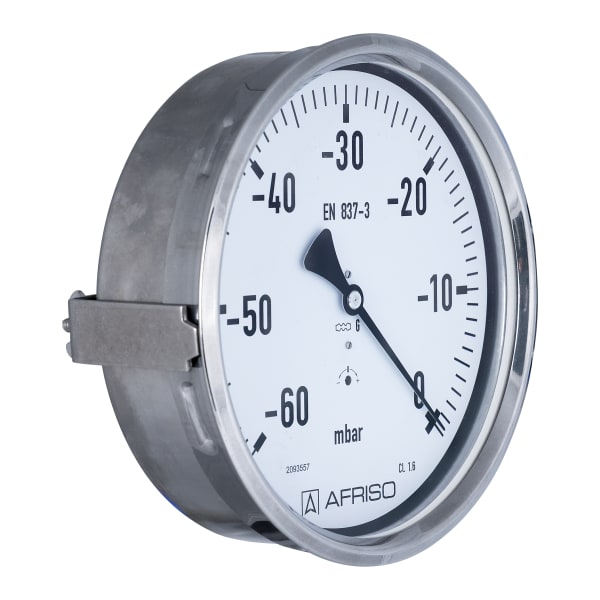

Centre back connection, panel mounting bezel with clamp fixing
