Kapselfeder-Standardmanometer Typ D3

Variants Documents

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentcentre back
accuracy class1,6
standardEN 837-3

  • with zero correction
  • ideal for low pressure ranges
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-25/0 mbar3-hole fixing, panel mounting bezelKP63 D33135004331
-40/0 mbar3-hole fixing, panel mounting bezelKP63 D33135005331
-60/0 mbar3-hole fixing, panel mounting bezelKP63 D33135006331
-100/0 mbar3-hole fixing, panel mounting bezelKP63 D33135007331
-160/0 mbar3-hole fixing, panel mounting bezelKP63 D33135008331
-250/0 mbar3-hole fixing, panel mounting bezelKP63 D33135009331
-400/0 mbar3-hole fixing, panel mounting bezelKP63 D33135010331
-600/0 mbar3-hole fixing, panel mounting bezelKP63 D33135011331
-1 000/0 mbar3-hole fixing, panel mounting bezelKP63 D33135012331
0/25 mbar3-hole fixing, panel mounting bezelKP63 D33135016331
0/40 mbar3-hole fixing, panel mounting bezelKP63 D33135017331
0/60 mbar3-hole fixing, panel mounting bezelKP63 D33135018331
0/100 mbar3-hole fixing, panel mounting bezelKP63 D33135019331
0/160 mbar3-hole fixing, panel mounting bezelKP63 D33135020331
0/250 mbar3-hole fixing, panel mounting bezelKP63 D33135021331
0/400 mbar3-hole fixing, panel mounting bezelKP63 D33135022331
0/600 mbar3-hole fixing, panel mounting bezelKP63 D33135023331
0/1 000 mbar3-hole fixing, panel mounting bezelKP63 D33135024331
  • in-stock items
  • manufactured goods

Type
D3
Nominal size
63 - 63
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 63: IP 33 (EN 60529)

Standard design

Connection
Brass, centre back
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
window
Kunststoff, eingeclipst

Click the corresponding image for detail views, additional information and dimension tables.

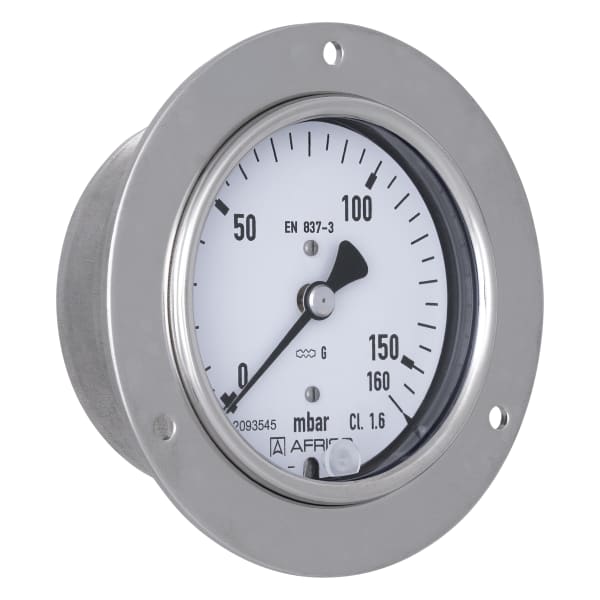

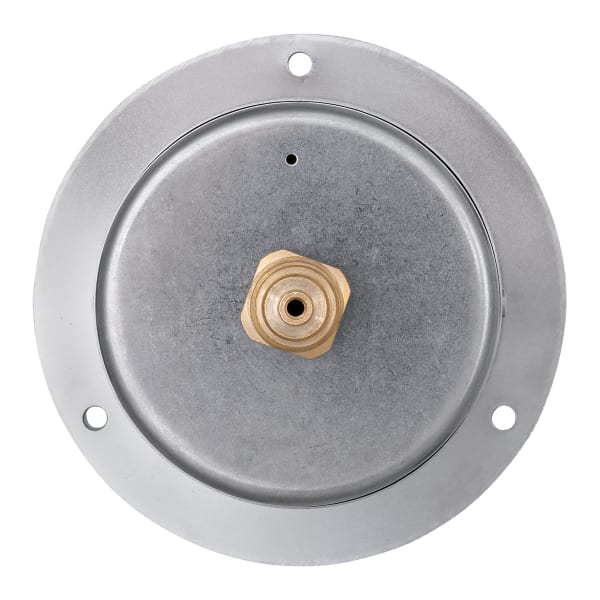

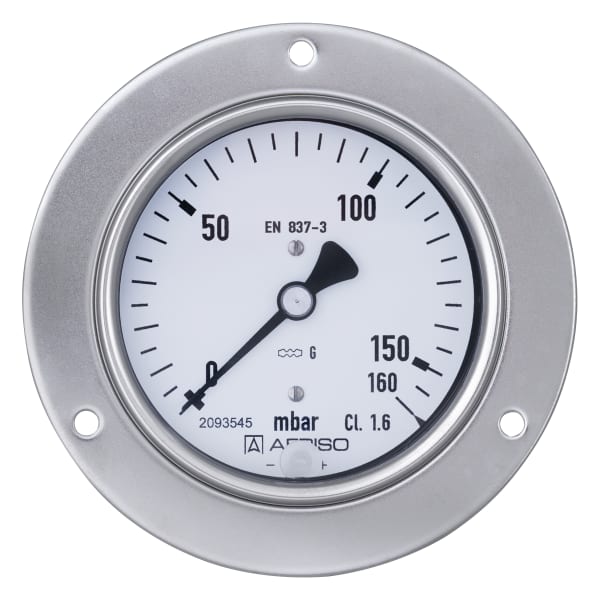

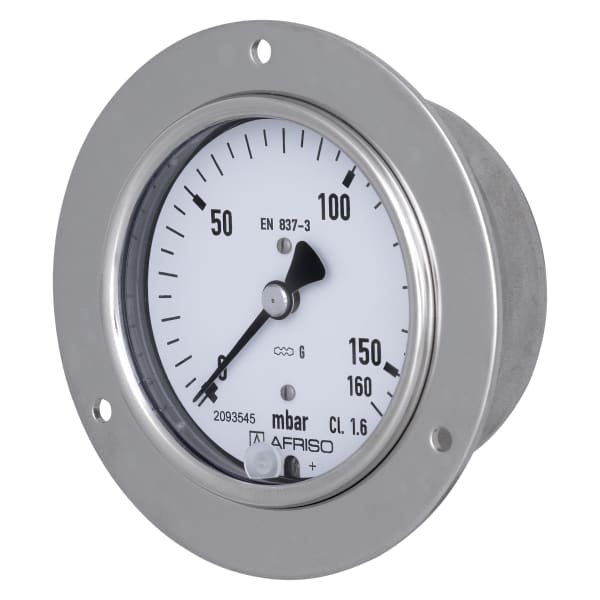

Centre back connection, 3-hole fixing, panel mounting bezel

PRO_TEC_BEP_KP_D22X-D33X_S.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
Anschlussstutzen vernickelt | 38084
Drosselschraube Messing | 38097
red mark on dial | 38184
1 Markenzeiger rot verstellbar mit Schraubendreher | 38115
1 Markenzeiger rot verstellbar mit Drehknopf | 38188
laminated safety glass window | 38072
Klischeekosten je Skala und Farbe | 38153
Druckkosten je Farbe | 38165
