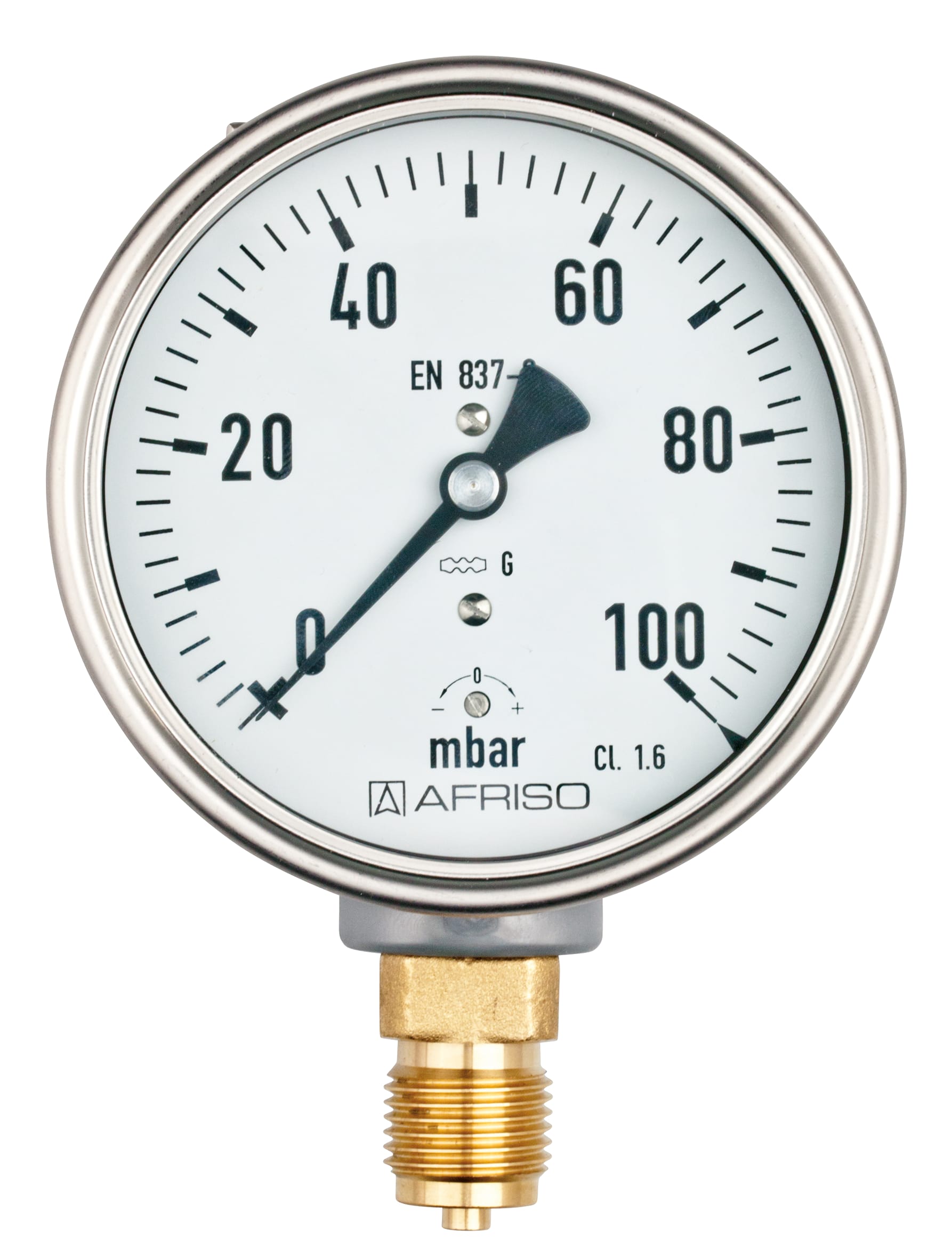

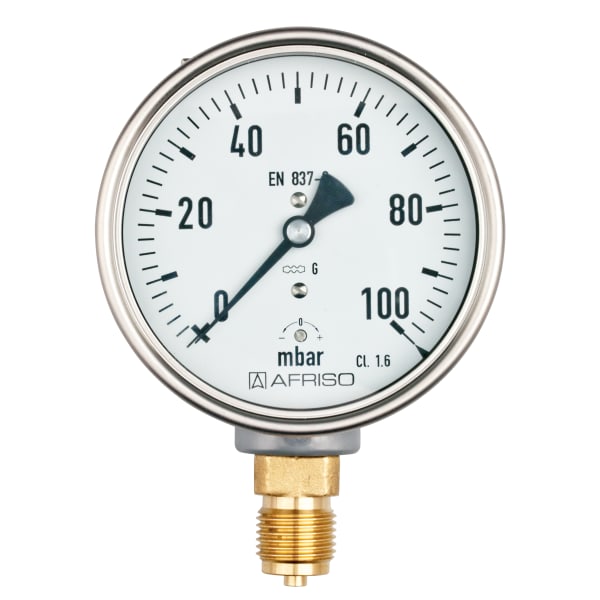

KP63 D401

Kapselfeder-Standardmanometer Typ D4

Variants Documents

housing ⌀ (nominal size)63 mm
ConnectionG¼B
alignmentbottom
accuracy class1,6
standardEN 837-3

  • with zero correction
  • optional overpressure and/or underpressure safety 10 x FSD
  • extremely low measuring ranges from 0/6 mbar
  • GOSSTANDART-certified

For gaseous, dry media which do not attack copper alloys.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!

RangeMounting typeTypePart number
-25/0 mbardirectKP63 D40135004401
-40/0 mbardirectKP63 D40135005401
-60/0 mbardirectKP63 D40135006401
-100/0 mbardirectKP63 D40135007401
-160/0 mbardirectKP63 D40135008401
-250/0 mbardirectKP63 D40135009401
-400/0 mbardirectKP63 D40135010401
-600/0 mbardirectKP63 D40135011401
-1 000/0 mbardirectKP63 D40135012401
0/25 mbardirectKP63 D40135016401
0/40 mbardirectKP63 D40135017401
0/60 mbardirectKP63 D40135018401
0/100 mbardirectKP63 D40135019401
0/160 mbardirectKP63 D40135020401
0/250 mbardirectKP63 D40135021401
0/400 mbardirectKP63 D40135022401
0/600 mbardirectKP63 D40135023401
0/1 000 mbardirectKP63 D40135024401
  • in-stock items
  • manufactured goods

Type
D4
Nominal size
63 - 63
accuracy class (EN 837-3/6)
1,6
ranges (EN 837-3/5)
see ordering table
application area
static load:
Full scale value
dynamic load:
0.9 x full scale value
overload safety:
1.3 x full scale value
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,6 %/10 K,
falling temperature approx. ± 0.6 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
NG 63: IP 33 (EN 60529)

Standard design

Connection
Brass, bottom
Measuring element
Capsule element, CuBe alloy
movement
Brass
Zero correction
from the front
Seal
NBR (Perbunan)
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
D401: Instrumentenglas

Click the corresponding image for detail views, additional information and dimension tables.

Bottom connection

PRO_TEC_BEP_KAPSELFEDER_STANDARD_D4_ANSCHLUSS_RADIAL_1.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck

Manuals
Industrial technology
PDF

Options for capsule pressure gauges
Abb.
Bezeichnung
Anschlussstutzen vernickelt | 38084
Drosselschraube Messing | 38097
3-Lochfrontflansch Edelstahl 304 poliert | 37608
Befestigungsrand hinten Edelstahl 304 trowalisiert
Befestigungsrand hinten Edelstahl 304 trowalisiert | 38048
red mark on dial | 38184
1 Markenzeiger rot verstellbar mit Schraubendreher | 38115
1 Markenzeiger rot verstellbar mit Drehknopf | 38188
laminated safety glass window | 38072
special mounting position | 38147
Klischeekosten je Skala und Farbe | 38153
Druckkosten je Farbe | 38165
3-Lochfrontflansch Bajonett ES 304 poliert
3-Lochfrontflansch Bajonett ES 304 poliert | 38054
