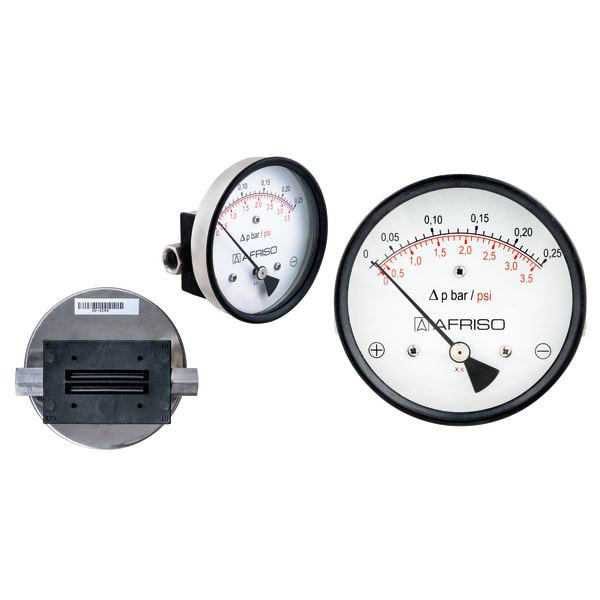

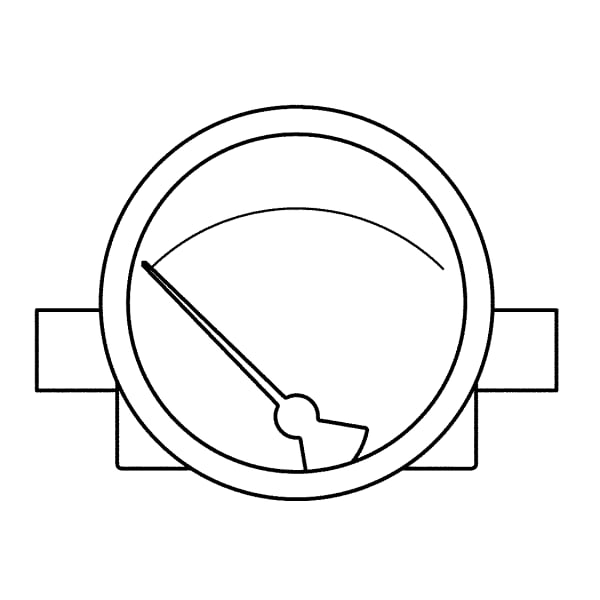

MAG100Dif D312

Magnetkolben-Manometer für Differenzdruck - hochüberlastbar

compact and robust stainless steel measuring system
max. static pressure PN 100, 250, 400
Leak-proof due to mechanical separation of pressure chamber and display
various connection types
easy retrofitting of electrical contacts without intervention in the measuring system

For differential pressure measurements at very high static pressures. For gaseous and liquid, non-adhesive media that are not highly viscous. Particularly suitable for monitoring filters, pumps, pipe systems and cooling circuits.

Type	housing ⌀	Housing	Connection	Range	Type	Type	Part no.
MAG100Dif D312	100 mm	Stainless steel 304	2 x G¼ female thread	0/0.25 bar	MAG100Dif	D312	88013312
MAG100Dif D312	100 mm	Stainless steel 304	2 x G¼ female thread	0/0.4 bar	MAG100Dif	D312	88014312
MAG100Dif D312	100 mm	Stainless steel 304	2 x G¼ female thread	0/0.6 bar	MAG100Dif	D312	88015312
MAG100Dif D312	100 mm	Stainless steel 304	2 x G¼ female thread	0/1 bar	MAG100Dif	D312	88016312
MAG100Dif D312	100 mm	Stainless steel 304	2 x G¼ female thread	0/1.6 bar	MAG100Dif	D312	88017312
MAG100Dif D312	100 mm	Stainless steel 304	2 x G¼ female thread	0/2.5 bar	MAG100Dif	D312	88018312
MAG100Dif D312	100 mm	Stainless steel 304	2 x G¼ female thread	0/4 bar	MAG100Dif	D312	88019312
MAG100Dif D312	100 mm	Stainless steel 304	2 x G¼ female thread	0/6 bar	MAG100Dif	D312	88020312
MAG100Dif D312	100 mm	Stainless steel 304	2 x G¼ female thread	0/10 bar	MAG100Dif	D312	88021312

in-stock items
manufactured goods

Type: MAG100Dif D312

Nominal size: 100 - 100

accuracy

: ± 3 % of full scale value

: (at increasing differential pressure)

ranges (EN 837-3/5): see ordering table

maximum static pressure: 100 bar

Overpressure safety: up to the maximum static pressure at both ends

Operating temperature range

Medium:: max. 80 °C

Ambient:: 0/80 °C

Degree of protection

: IP 65 (EN 60529)

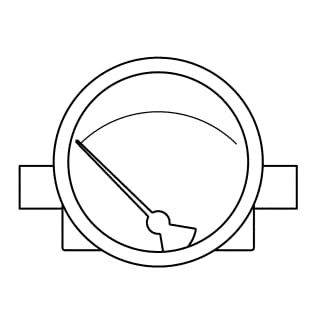

Standard design

Connection (wetted part)

: Stainless steel 316, on left and right sides, opposite each other

Connection cover: Kunststoff, glasfaserverstärkt, schwarz

Measuring element (wetted part)

: Compression spring, Stainless steel 301

Magnetic piston (wetted part): Stainless steel 316/strontium ferrite

Seal (wetted part)

: NBR (Perbunan)

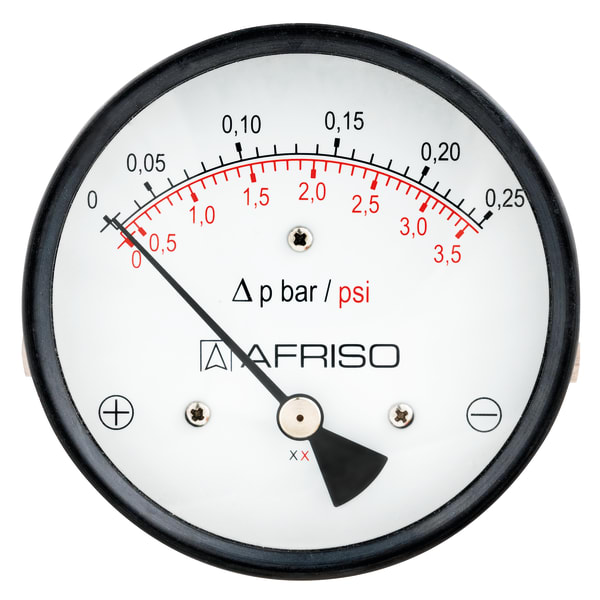

Dial

: Aluminium, weiß

: dual scale (bar/psi)

: Scaling black/red

: scale angle 90 °

Pointer

: Aluminium, schwarz

Housing

: Edelstahl 304, with rubber sealing ring at the front

window

: Instrumentenglas

OPTIONEN_MAG80_MAG100_MAG115_DIF_505_EN.PDF
