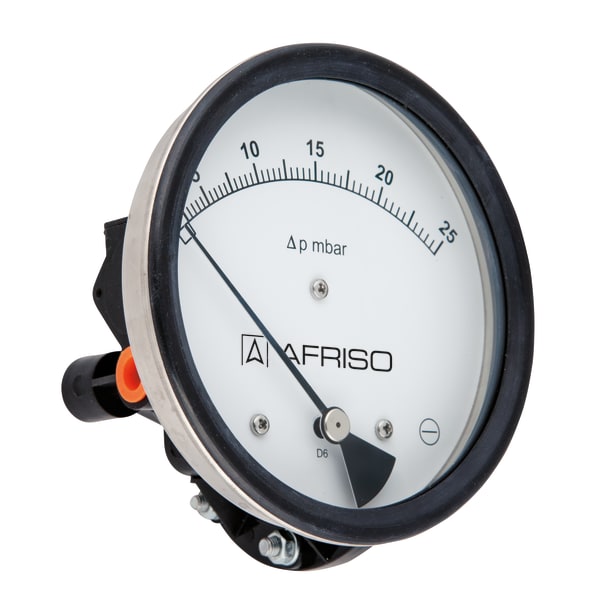

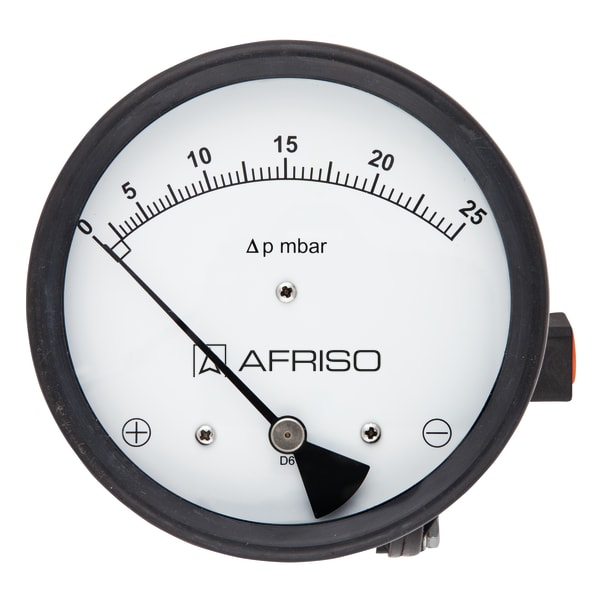

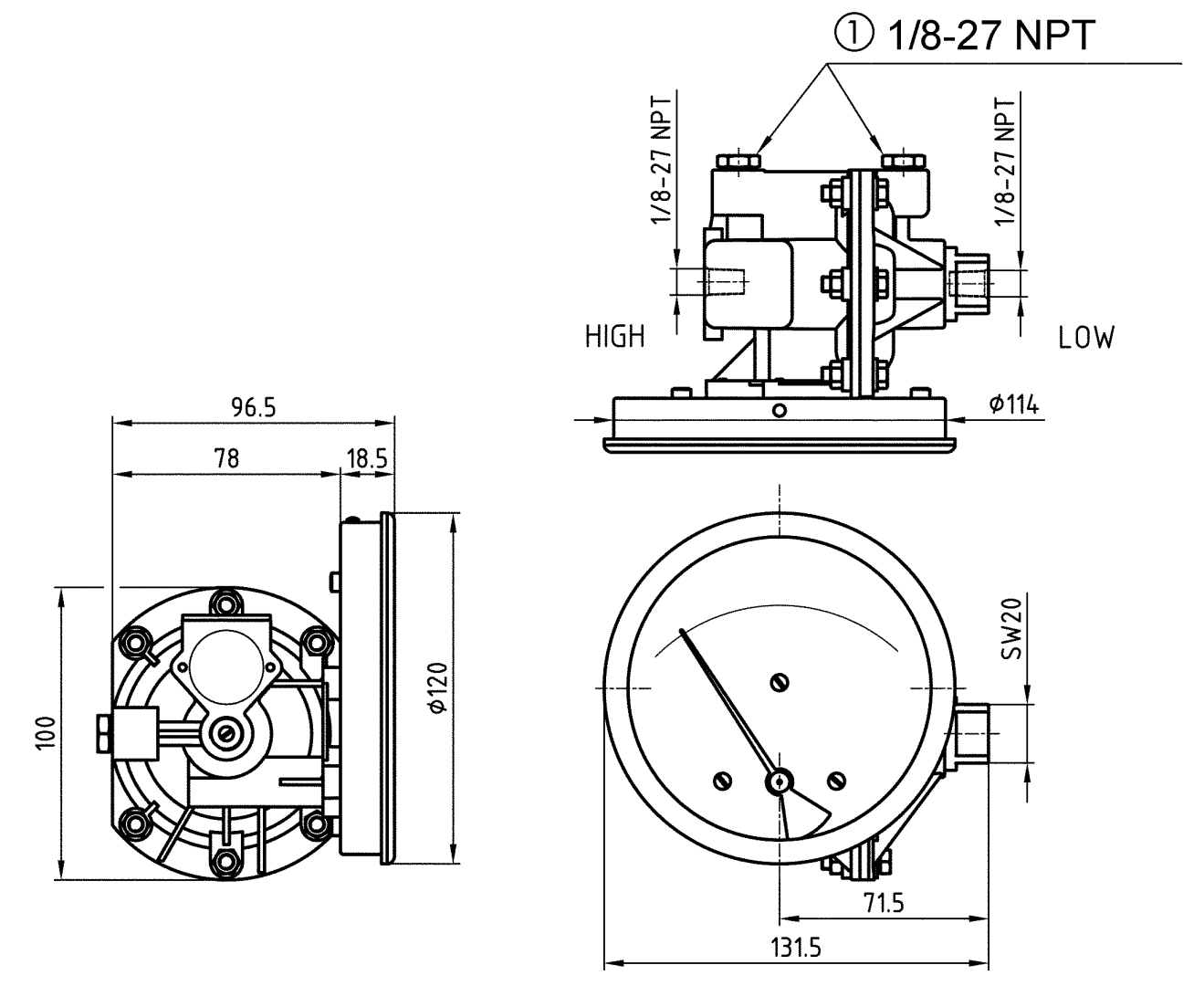

Images 3 MAG115Dif D311 Magnet-Membran-Manometer für sehr niedrigen Differenzdruck Variants Documents Benefits Differential pressure ranges starting at 0/2.5 mbarSwitching contacts can be retrofittedIP 65 degree of protection for pressure gauge and switching contactside or back connectiondelivery includes adapter for hose connection and brackets for control panel mounting Application For differential pressure measurement at very low differential pressure. Specially for gaseous media. Particularly suitable for monitoring filters and fans in air supply, air conditioning and clean room applications. Variants Technical data Downloads Variants Typehousing ⌀Housingaccuracy classConnectionAusrichtungRangeTypeTypePart no.MAG115Dif D311115 mmStainless steel 3042 x ⅛"NPT Innengewinde 2 x Schlauchanschluss 5 mm0/2.5 mbarMAG115DifD31188002311MAG115Dif D311115 mmStainless steel 3042 x ⅛"NPT Innengewinde 2 x Schlauchanschluss 5 mm0/4 mbarMAG115DifD31188003311MAG115Dif D311115 mmStainless steel 3042 x ⅛"NPT Innengewinde 2 x Schlauchanschluss 5 mm0/6 mbarMAG115DifD31188004311MAG115Dif D311115 mmStainless steel 3042 x ⅛"NPT Innengewinde 2 x Schlauchanschluss 5 mm0/10 mbarMAG115DifD31188005311MAG115Dif D311115 mmStainless steel 3042 x ⅛"NPT Innengewinde 2 x Schlauchanschluss 5 mm0/16 mbarMAG115DifD31188006311MAG115Dif D311115 mmStainless steel 3042 x ⅛"NPT Innengewinde 2 x Schlauchanschluss 5 mm0/25 mbarMAG115DifD31188007311MAG115Dif D311115 mmStainless steel 3042 x ⅛"NPT Innengewinde 2 x Schlauchanschluss 5 mm0/40 mbarMAG115DifD31188008311MAG115Dif D311115 mmStainless steel 3042 x ⅛"NPT Innengewinde 2 x Schlauchanschluss 5 mm0/60 mbarMAG115DifD31188009311MAG115Dif D311115 mmStainless steel 3042 x ⅛"NPT Innengewinde 2 x Schlauchanschluss 5 mm0/100 mbarMAG115DifD31188010311 in-stock items manufactured goods Technical data TypeMAG115Dif D311Nominal size115 - 115accuracy± 3 % of full scale value(at increasing differential pressure)ranges (EN 837-3/5)see ordering tablemaximum static pressure2.4 barOverpressure safetyup to the maximum static pressure at both endsOperating temperature rangeMedium: max. 60 °CAmbient: 0/60 °CDegree of protectionIP 65 (EN 60529) Standard design Connection (wetted part)plastic, glass-fibre reinforced, left and right sides, opposing or back (use enclosed blind plugs)Measuring element (wetted part)diaphragm: NBR (Perbunan)Compression spring: Stainless steel 301Transmission unit: Stainless steel 316Magnet (wetted part)Strontium ferriteSeal (wetted part)NBR (Perbunan)DialAluminium, weißScaling blackscale angle90 ° (first graduation mark after zero point at 15 % of full scale value)PointerAluminium, schwarzHousingEdelstahl 304, with rubber sealing ring at the frontwindowInstrumentenglas Downloads MAG 80 Dif/MAG 100 Dif/MAG 115 Dif Industrial technology PDF English German Magnetkolbenmanometer für Differenzdruck MAG 80/100/115 Dif Manuals PDF Download
