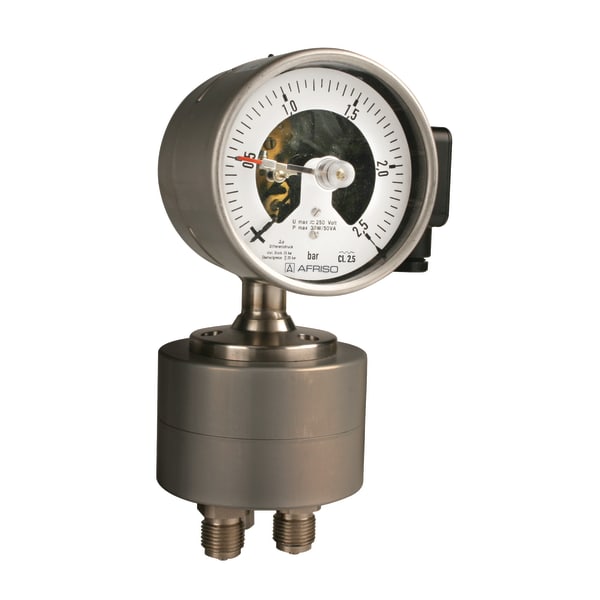

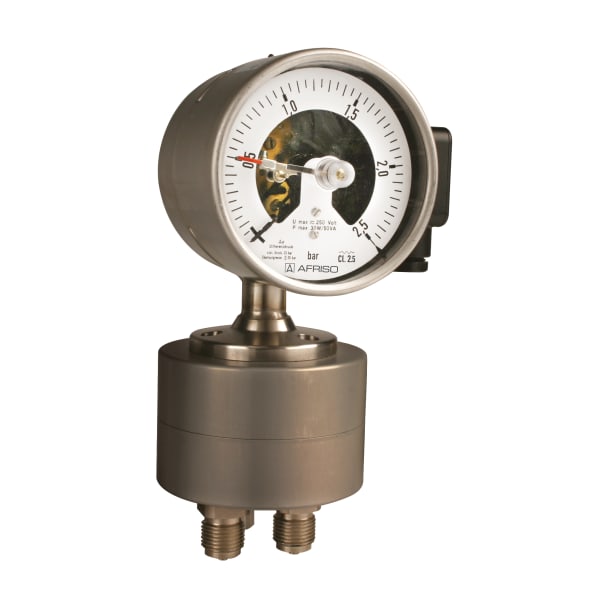

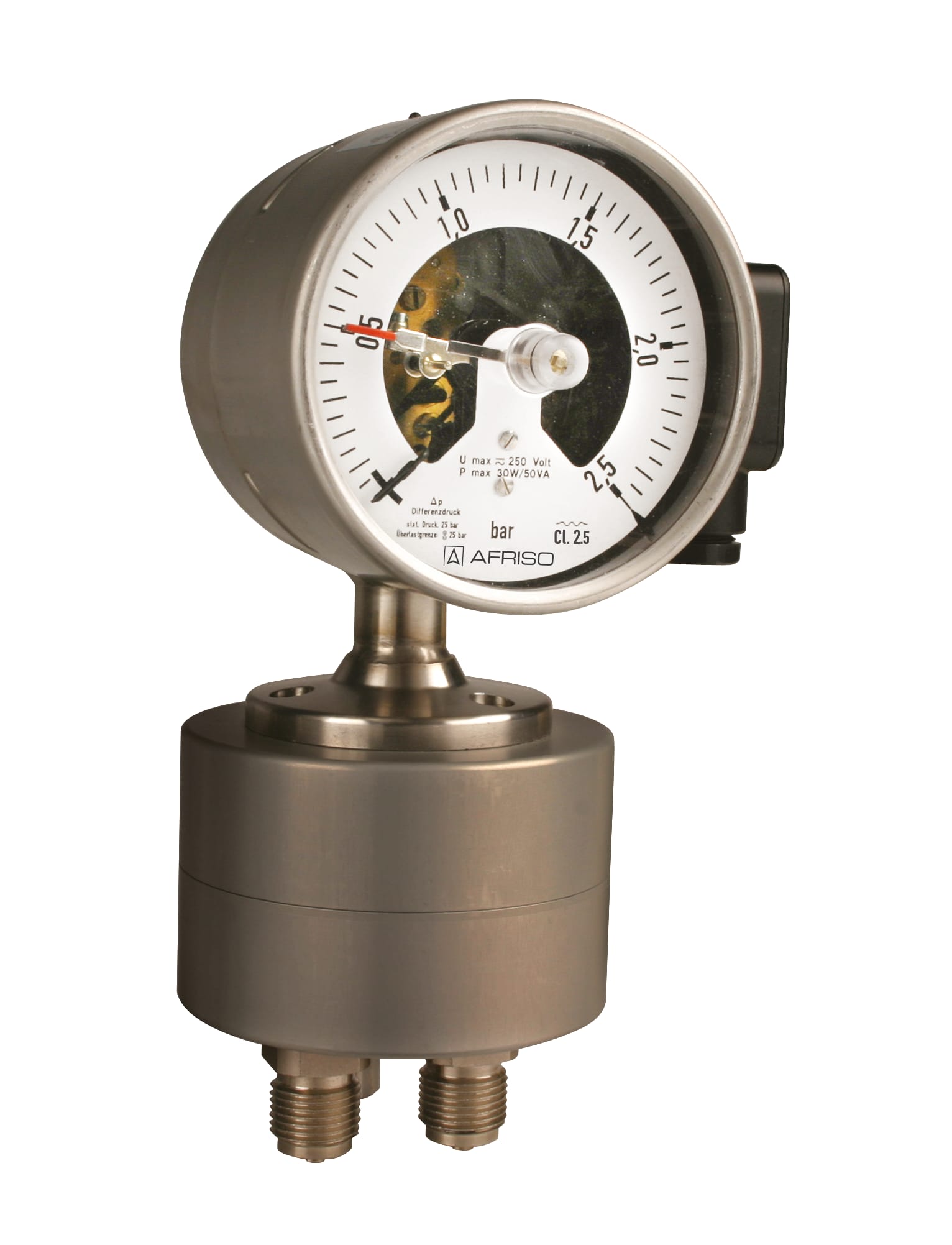

MFW100ChDif D402

Membran-Feder-Standardmanometer für Differenzdruck - überlastbar

Variants Documents

  • direct indication of the differential pressure
  • high overload protection
  • compact design
  • high resistance to chemicals
  • Electrical contacts optional

For differential pressure measurement at low differential pressure and high static pressure. For corrosive gaseous and liquid media which are not highly viscous, also for use in corrosive environments. Particularly suitable for monitoring filters, pumps and pipe systems.

Typehousing ⌀Housingaccuracy classConnectionAusrichtungRangeTypeTypePart no.
MFW100ChDif D402100 mmStainless steel 3042,52 x G½B0/250 mbarMFW100ChDifD40288106402
MFW100ChDif D402100 mmStainless steel 3042,52 x G½B0/400 mbarMFW100ChDifD40288107402
MFW100ChDif D402100 mmStainless steel 3042,52 x G½B0/600 mbarMFW100ChDifD40288108402
  • in-stock items
  • manufactured goods

Type
MFW ChDif D402
Nominal size
100 - 100
Function
The pressures act on two pressure chambers separated by an elastic diaphragm. If there are different pressures in the chambers, the diaphragm is axially displaced against a compression spring. This is transmitted to the movement by means of a rod. The differential pressure is directly indicated by a pointer. The diaphragm is held by a metallic support which results in an overpressure safety of up to 25 bar at both sides.
accuracy class (EN 837-3/6)
2,5
ranges (EN 837-3/5)
see ordering table
maximum static pressure
25 bar
Overpressure safety
up to the maximum static pressure at both ends
Operating temperature range
Medium:
max. 60 °C
Ambient:
-20/+60 °C
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
bei Temperaturzunahme ca. ± 0,5 %/10 K,
falling temperature approx. ± 0.5 %/10 K
vom jeweiligen Skalenendwert
Degree of protection
IP 54 (EN 60529)

Standard design

Connection
stainless steel 316 Ti/316 L
MFW ChDif: bottom, parallel next to each other
Measuring element
Compression spring, Stainless steel 301
diaphragm
FKM (Viton)
Measuring flange
Edelstahl 316 Ti/316 L
movement
Stainless steel
Dial
Aluminium, weiß
Scaling black
Pointer
Aluminium, schwarz
Housing
Edelstahl 304
bayonet bezel
Edelstahl 304
window
Sicherheitsverbundglas

Click the corresponding image for detail views, additional information and dimension tables.

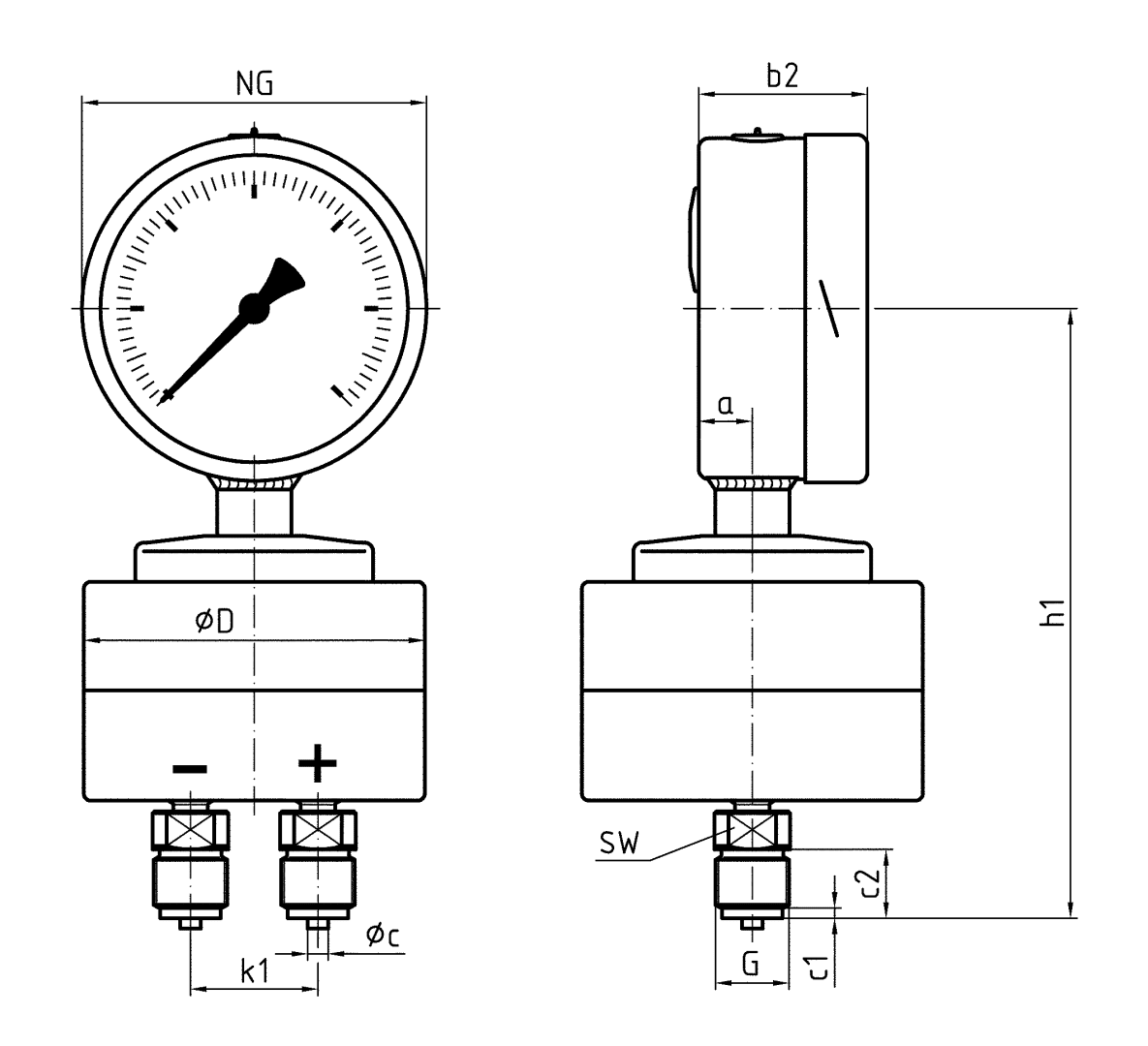

Bottom connection

PRO_TEC_BEP_MFW100CHDIF_D40X_S.TIF

854_017_0336-00.PDF

Rohrfeder-, Kapselfeder-, Plattenfeder-, Membranfedermanometer für Differenzdruck
